Dodge Ram Won’t Start But Has Power? The 3 Step Fix

If your dodge ram won’t start but has power, you are likely feeling incredibly frustrated. You turn the key in the ignition, the dashboard lights up brightly, and the radio plays perfectly. Yet, the engine refuses to turn over and leave you stranded.

This exact symptom points to a specific set of electrical or module failures unique to Dodge trucks. Dash electronics require very few amps to operate successfully. Your starter motor requires a massive amount of amperage to crank a heavy Hemi engine.

We will walk through exactly what is happening under your hood right now. You will find the exact failed component by following this symptom based diagnostic tree.

What To Check First When Your Ram Has Power But Will Not Crank

The first step is isolating the auditory symptom your truck is making. What you hear when you turn the key completely changes your diagnostic path. Turn your radio and climate control completely off so you can hear clearly.

Listen closely as you turn the ignition to the start position. You will experience one of three specific outcomes.

• Rapid clicking sound from the engine bay
• A single loud clunk or click
• Dead silence with no noise at all

Let us trace the first and most common symptom.

How To Diagnose Rapid Clicking From Under The Hood

If you hear a rapid machine gun clicking sound, then your starter is starved for amps. The starter solenoid is rapidly engaging and disengaging due to low voltage. This almost always points to a battery or terminal connection issue.

A good battery should read around 12.6 volts when fully charged, and if it dips below that threshold, you will just get a click when you turn the key. If your battery reading is below 12.4 volts, your battery might not have enough charge to start the engine. The power from the battery will still power other accessories such as the radio, but you may not have any power to the starter.

You will need a digital voltmeter set to DC volts for this test. Place the red probe on the positive battery post and the black probe on the negative post. Check the static voltage reading on the screen.

If the voltmeter reading is 12 volts or lower, then it is time to consider jump-starting your truck or replacing the battery. However, if the voltage reads high enough but you still cannot crank, the outcome changes to a physical connection failure.

1. Inspect both battery terminals for white acidic corrosion buildup
2. Grab the terminal clamps and twist them to ensure they are completely tight
3. Follow the negative ground cable to where it bolts to the chassis and check for rust

If your terminals are corroded, clean battery terminals thoroughly with a wire brush before retesting. If your battery has full voltage and clean terminals but you only hear a single thud, the problem shifts entirely.

Listen For A Single Click When Turning The Key

If you turn the key and hear one single solid click, then your starter relay is working perfectly. That single click is the sound of the solenoid pushing the starter gear forward. However, if the starter motor itself is failing to spin the engine, the path changes.

If the starter motor binds internally, then it will draw power but refuse to rotate. If this happens, you likely need a complete starter replacement. You can verify this mechanical failure by performing a manual tap test.

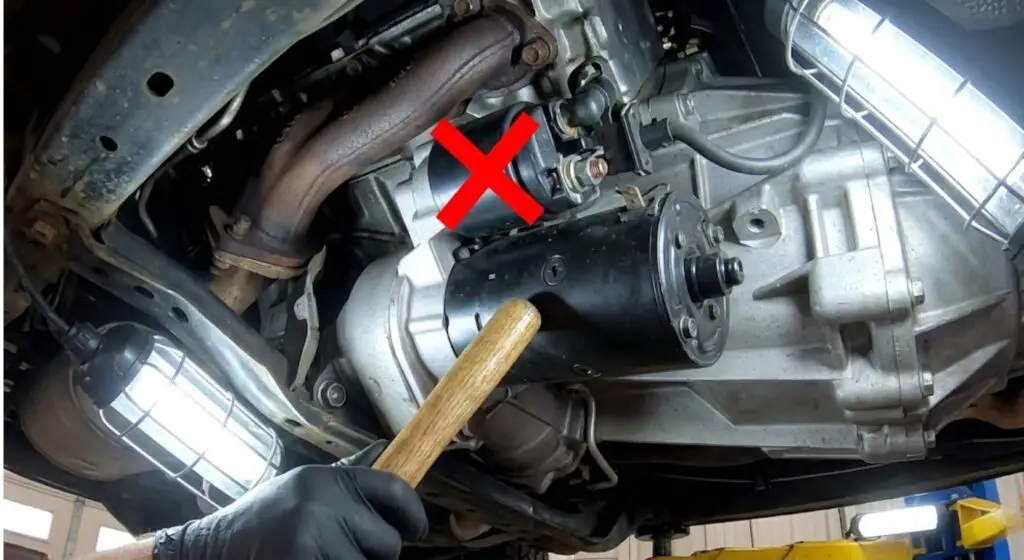

You will need a helper to sit in the driver seat for this test. Have your helper turn and hold the key in the start position. Take a solid tool like a hammer handle and lightly tap the metal body of the starter motor.

If the truck starts after a tap, your starter motor has dead electrical spots and must be replaced. We recommend you safely test the starter relay to confirm full power is reaching the unit. However if you turn the key and hear absolutely nothing, you are facing a module failure.

3 Common Dodge Module Failures Causing Dead Silence

If your truck is completely silent when you turn the key, then the starter is not receiving any signal. Dodge trucks are notorious for specific module failures that block the ignition command entirely. The Totally Integrated Power Module is a primary suspect.

If you drive a 2011 to 2013 Dodge Ram 1500, 2500, or 3500, the TIPM fuel pump relay frequently fails. You can bypass the TIPM temporarily with an external relay wire to test this circuit. Another major failure point is the Wireless Ignition Node.

According to the NHTSA safety recall R03 and P57, the Wireless Ignition Node module often fails in specific models. If you own a model built through May 17, 2010, you may be affected by these WIN module issues.

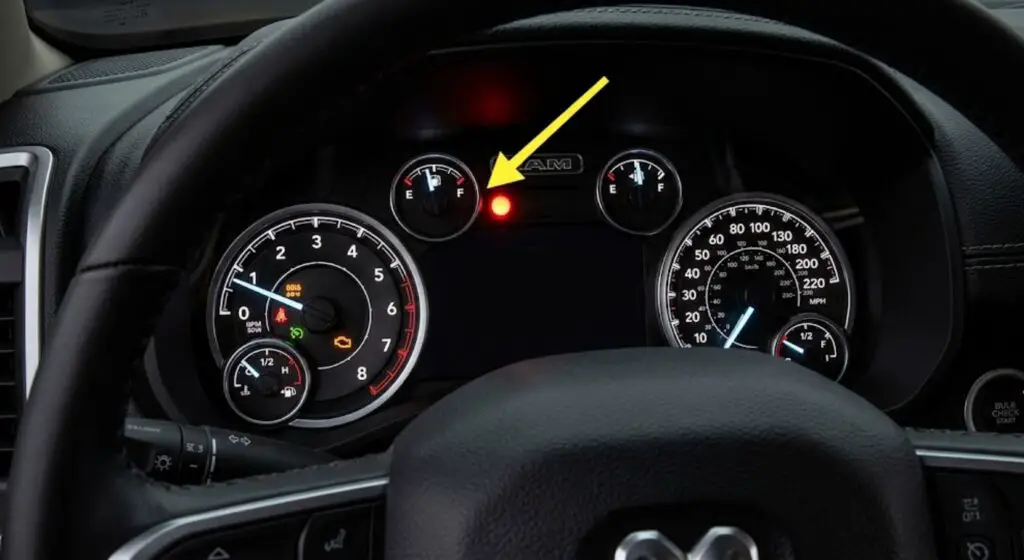

Look closely at your dashboard gauge cluster. If the red security light stays solid or flashes rapidly, your immobilizer has locked you out. Before replacing expensive modules you must verify the physical safety switches.

Testing The Starter Relay Versus The Neutral Safety Switch

The engine computer requires confirmation that the truck is not in gear before starting. If the transmission range sensor fails, then the computer thinks the truck is actively in drive. This prevents the starter relay from ever receiving power.

You can easily test this without any specialized tools or mechanic experience. If the truck is dead silent in Park, then apply the foot brake heavily. Shift the gear selector out of Park and directly into Neutral.

Turn the key again to test the circuit. If the random intermittent failure to turn the starter over goes away and the engine cranks in Neutral, then your shift cable or safety switch needs adjustment. If it remains silent in both gears, the issue lives deeper in the electrical system.

When To Stop Testing And Call A Tow Truck

There is a strict limit to what you can diagnose in a driveway without professional scan tools. If you have verified the battery, starter, and relays are functioning, then you must stop testing. Continuing to jump wires haphazardly can permanently fry your engine control unit.

If the WIN module has failed, only a certified dealer can program a new unit to your keys. A direct replacement wireless ignition module can cost over $584 for the part alone, before adding professional programming labor. This is a severe jump from a standard starter motor replacement cost.

Call a tow truck immediately if your security light is flashing and the key is not recognized.

Diagnosing why your dodge ram won’t start but has power comes down to isolating the exact auditory symptom. You must listen closely to the truck before throwing expensive parts at the problem. A rapid click is almost always a voltage drop, while absolute silence points toward module communication failures.

Always start with the easiest fixes like checking battery terminal tightness and shifting into Neutral. If you methodically follow this diagnostic path, you will save yourself significant time and money at the repair shop. Your very next step is to grab a voltmeter and test the static voltage at your battery posts.

FAQ

Why Does My Dodge Ram Dashboard Light Up But The Engine Will Not Turn Over

Dashboard lights draw very minimal amperage and will illuminate perfectly even with a weak battery. The starter motor requires hundreds of amps to crank the heavy engine block. If your battery drops below the required 12.4 volt threshold, it cannot physically engage the starter.

How Do I Know If My TIPM Is Failing On My Ram

A failing TIPM often causes random electrical issues like the horn honking or wipers turning on by themselves. In a dead silent no start scenario, a faulty internal TIPM relay will completely prevent power from reaching the starter or fuel pump circuits.

Can A Bad Key Fob Battery Prevent My Dodge Truck From Starting

Yes, a completely dead key fob battery is a very common failure point for these trucks. If the battery inside your fob is dead, the Wireless Ignition Node may fail to read the immobilizer chip. You can try pushing the fob directly into the ignition button to start it.

What Does The Red Security Light Mean On My Dodge Ram Dash

A solid or flashing red dot indicates the factory anti theft system is currently active. The engine computer has locked the ignition system because it does not recognize the transponder key. This will cause a completely silent no crank condition to protect the vehicle.

How Do I Bypass The Neutral Safety Switch To Start My Truck

You should never permanently bypass safety switches as it creates a severe physical hazard. You can temporarily bypass a failing park sensor by firmly applying the brake and shifting the transmission into Neutral. Turn the key while in Neutral to complete the starting circuit safely.
