Ford Maverick Bed Size Chart: Year 2022-2026 Cargo Dimensions
The Ford Maverick bed size chart shows the same core cargo-box measurements from 2022 through 2026: 54.4 inches long at the floor, 53.3 inches at its widest exposed point, and 42.6 inches between the wheelhouses. Its nominal 4.5-foot FLEXBED provides 33.3 cubic feet of cargo volume.
A wide object may fit above the wheelhouses but not between them. The chart and loading examples explain usable space, safe cargo arrangements, and accessory fitment.
TruckGuider / Factory dimensions
Ford Maverick Bed Size Chart
2022–2026 model years · One nominal 4.5-foot cargo box · All measurements from published Ford specifications

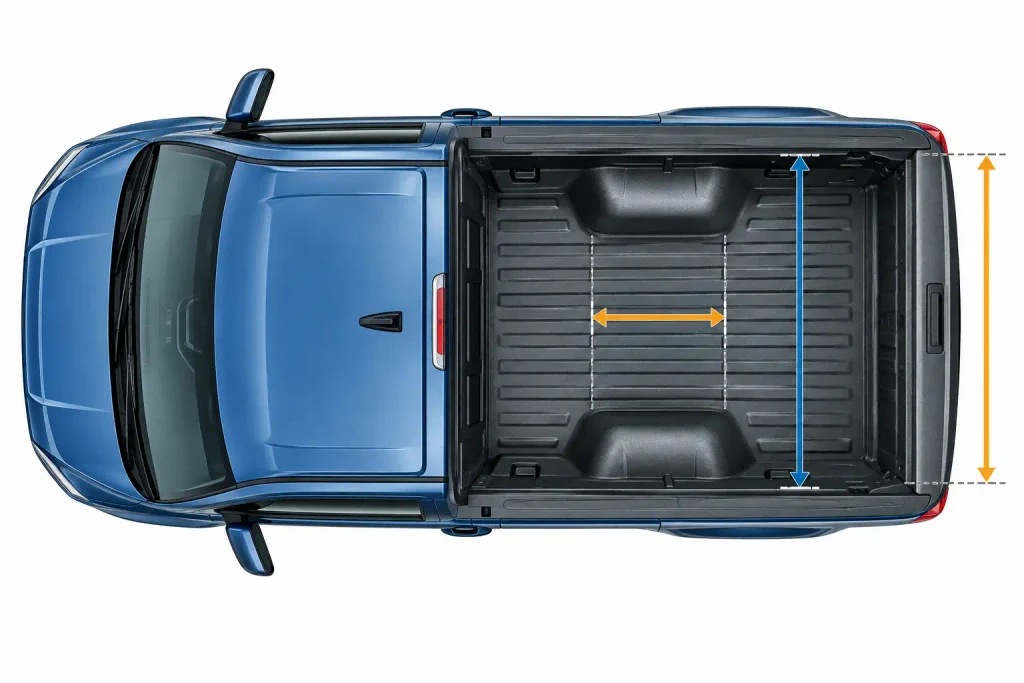

Illustrative width comparison using Ford’s published measurements.
Swipe the table sideways to view all measurements →
| Year | Length | Max width | Wheelhouse | Depth | Volume |
|---|---|---|---|---|---|
| 2022 | 54.4 in | 53.3 in | 42.6 in | 20.3 in | 33.3 ft³ |
| 2023 | 54.4 in | 53.3 in | 42.6 in | 20.3 in | 33.3 ft³ |
| 2024 | 54.4 in | 53.3 in | 42.6 in | 20.3 in | 33.3 ft³ |
| 2025 | 54.4 in | 53.3 in | 42.6 in | 20.3 in | 33.3 ft³ |
| 2026 | 54.4 in | 53.3 in | 42.6 in | 20.3 in | 33.3 ft³ |
Measurement note: Length is measured at the floor with the tailgate closed. Maximum exposed width is not the same as clearance between wheelhouses. Liners and mounted accessories may reduce usable space.
Ford Maverick Bed Size Chart for 2022 to 2026
Ford has retained the Maverick’s principal cargo-box dimensions through the 2026 model year. The first model’s measurements appear in Ford’s 2022 technical specifications, and later factory data confirms the same layout.
| Model Year | Bed Length at Floor | Max. Exposed Width | Width Between Wheelhouses | Bed Depth | Cargo Volume |
|---|---|---|---|---|---|
| 2022 | 54.4 in | 53.3 in | 42.6 in | 20.3 in | 33.3 cu ft |
| 2023 | 54.4 in | 53.3 in | 42.6 in | 20.3 in | 33.3 cu ft |
| 2024 | 54.4 in | 53.3 in | 42.6 in | 20.3 in | 33.3 cu ft |
| 2025 | 54.4 in | 53.3 in | 42.6 in | 20.3 in | 33.3 cu ft |
| 2026 | 54.4 in | 53.3 in | 42.6 in | 20.3 in | 33.3 cu ft |
At 54.4 inches, the floor measures 4 feet 6.4 inches. The advertised 4.5-foot bed is a rounded description, not a six-foot box.
The table also applies to the main bed dimensions on 2025 Lobo and Tremor models. Their ride heights and other equipment can differ, but the published box length and width remain the same. Ford lists this explicitly in its 2025 Maverick and Lobo technical data.
What Do Ford Maverick Bed Measurements Actually Mean
The Maverick’s 53.3-inch maximum exposed width does not mean every part of the box provides 53.3 inches of unobstructed loading space. The wheelhouses and rear opening narrow the paths available to rigid cargo.
Floor Length Versus Upper Bed Length
Ford measures 54.4 inches at the bed floor with the tailgate closed. Its 2025 specifications also list 53.1 inches at the top of the box. These are measurements at different heights, not a change in bed size between trims.
For rigid objects, measure clearance at the height where the item will rest.
Maximum Width Versus Wheelhouse Clearance
The widest exposed cargo measurement is 53.3 inches. Between the two wheelhouse protrusions, however, the clear width is only 42.6 inches.
That 10.7-inch difference matters for toolboxes, panels, and storage drawers. The narrowest point along the loading path determines fit.
Rear Opening Versus Bed Depth
Ford’s 2025 specification sheet lists a 49.8-inch upper rear opening and a 48.8-inch lower rear opening. These figures describe the tailgate opening, not the entire internal width.
The bed is 20.3 inches deep, measured from floor to box rail. Cargo depth is different from lift-in height, which measures how high you must raise an item from the ground to reach the load floor.
The 33.3-cubic-foot cargo volume cannot predict whether a rigid object clears the opening or wheelhouses.
Did Ford Maverick Bed Sizes Change Across Model Years
The principal Maverick bed dimensions did not change from 2022 through 2026 in the published specifications reviewed for this guide. That includes the floor length, maximum exposed width, wheelhouse clearance, depth, and cargo volume.
The 2025 update introduced different equipment and the performance-oriented Lobo variant. Ford’s data still lists 54.4-inch floor length and 42.6-inch wheelhouse width for the hybrid, EcoBoost, Tremor, and Lobo configurations covered in its technical sheet.
For 2026, Ford’s Maverick specifications page continues to list 54.4 inches of bed length and 53.3 inches of bed width for XL, XLT, Lariat, Tremor, and Lobo. The trims do not all have the same lift-in height. Ford lists 30.4 inches for XL, 29.4 for XLT and Lariat, 30.0 for Tremor, and 28.2 for Lobo on that page.
The practical takeaway: You do not gain a longer bed simply by moving to a newer model year or a different trim. Yet the unchanged bed size does not guarantee that every aftermarket cover, liner, or bracket fits every year. Check the product’s stated fitment and mounting requirements separately.
Why Does the Maverick Wheelhouse Width Affect Cargo
The 42.6-inch gap between the wheelhouses is narrower than a standard 48-inch-wide sheet of plywood. Therefore, a full-width 4-by-8-foot sheet cannot lie completely flat on the lowest part of the Maverick bed between those protrusions.
This does not mean the Maverick cannot transport plywood. The FLEXBED has support locations that allow suitable materials to be carried above the wheelhouses, with the multi-position tailgate used as part of the supported loading arrangement. The sheet still extends beyond the closed-box floor length, so proper support and restraint matter.
A wide tabletop may clear the rear opening yet hit a wheelhouse. Similarly, a 45-inch-wide storage drawer is wider than the 42.6-inch wheelhouse gap.
Before loading a rigid object, identify its widest, longest, and tallest dimensions. Then compare them with the narrowest section it must pass through. Avoid relying on a single overall-width figure.
Which Everyday Loads Fit in a Ford Maverick Bed
The Maverick’s short cargo floor can still handle many everyday hauling jobs. The deciding factors are the load’s shape, its resting height, available support, and the truck’s actual payload capacity.
| Cargo Type | Practical Loading Guidance | What to Check |
|---|---|---|
| 4-by-8-foot plywood | Use Ford’s supported raised-loading arrangement above the wheelhouses | Tailgate setup, load distribution, securement, and weight |
| Long lumber | Can extend beyond the floor when appropriately supported and secured | Overhang, local marking rules, and tie-down locations |
| Bicycle | May fit with a suitable rack or tailgate-based arrangement | Wheelbase, handlebar width, rack fit, and restraint |
| Toolboxes and bins | Compact units can occupy the floor between wheelhouses | Actual outside width and lid-opening clearance |
| Bed organizers | Dividers or raised systems can use the available bed pockets | Rail access, attachment points, and cargo clearance |
Ford’s FLEXBED concept uses accessible bed slots and dividers to make short-bed storage more adaptable. For smaller tools and loose equipment, a well-fitted organizer often helps more than simply stacking containers. Our guide to truck bed organization ideas covers drawer, tray, and cargo-management approaches.
A fit is not a weight rating. A physically small but heavy load may exceed your individual truck’s payload allowance. Account for passengers, accessories, and cargo together, and use the vehicle’s certification label and owner’s manual for the applicable limits.
How Does the Maverick Multi Position Tailgate Support Cargo
The Maverick tailgate has more than one useful loading position. The supported arrangement changes what you can carry without changing Ford’s published 54.4-inch bed-floor length.
Fully Closed Tailgate Position
With the tailgate latched, the bed offers its ordinary enclosed floor length. This is the simplest configuration for secured items that fit inside the box. Verify that taller cargo clears any installed tonneau cover before closing it.
Fully Lowered Tailgate Position
A lowered tailgate provides access for loading bulky objects and can be part of a properly supported longer-load arrangement. It should not be treated as permission to leave long or heavy cargo unsecured.
The truck’s usable overall loading length in this position depends on the item, support arrangement, and measurement reference points. Do not substitute an unverified tailgate-down length for the official closed-box specification.
Middle Position for Supported Loads
The middle position is designed to work with the Maverick’s raised bed-support locations. For the 2026 Maverick, Ford’s owner’s manual specifies a 500-pound maximum load for this arrangement, evenly distributed across the two pickup-box wheelhouse support locations and the tailgate.
That 500-pound figure is not the truck’s overall payload capacity or an unrestricted tailgate rating. Follow the manual’s instructions for attaching both tailgate cables to the strikers, installing the safety bracket, distributing the load, and securing all cargo. Earlier model years may have different published tailgate guidance; use the manual for your exact truck.
Never assume that simply placing the tailgate in the middle position makes unsupported cargo safe. Use appropriate tiedowns, avoid obstructing required lights or the license plate, and follow applicable cargo-overhang rules.
Which Ford Maverick Bed Accessories Require Exact Measurements
A Maverick accessory should be selected by truck model, model year, mounting design, and actual fitment, not by the 4.5-foot bed label alone. Two products made for nominally identical box lengths can use different clamps, brackets, or rail clearances.
A tonneau cover must match the Maverick’s rails, tailgate sealing area, and any other interfering equipment. For real truck-specific examples, see our tonneau cover comparison with Maverick fitment options. Confirm the manufacturer’s current application list before ordering rather than treating a generic 54-inch measurement as proof of fit.
A bed mat or liner needs enough room around the wheelhouses and factory bed contours. A drop-in liner can also reduce the clear space available for a tight-fitting storage box. For a bed extender, check whether it mounts to the vehicle’s existing points and whether the design works with your cover or bed accessories.
These checks also apply to nets, racks, and dividers. Our Ford Maverick accessories guide covers storage and bed-extension products; verify each listing’s year coverage and mounting requirements.
How to Measure the Maverick Bed Before Buying Accessories
Published dimensions are the starting point. Measure your own truck if an accessory has a tight tolerance or your bed already contains a liner, rack, storage system, or factory-installed equipment.
- Measure floor length. Close the tailgate and measure along the usable load floor from the front bulkhead to the inner tailgate face. Compare your result with Ford’s nominal 54.4-inch figure.
- Measure the narrowest width. Check the distance between the wheelhouse protrusions at the height where the accessory or cargo will actually rest. Do not use the 53.3-inch maximum width for a floor-level box.
- Check the rear opening. Measure where rigid cargo must pass through. If the item is tall, take measurements at both the upper and lower portions of the opening.
- Check installed hardware. Note liner thickness, tie-downs, rail caps, cover clamps, bed lighting, and other parts that project into the cargo area.
- Match the product instructions. Compare your measurements against the manufacturer’s dimensions, application list, and required mounting clearance. Resolve any mismatch before purchasing or drilling.
Record where each dimension was taken; exposed width and narrowest clearance are not interchangeable.
What Ford Maverick Bed Size Owners Should Know
The Ford Maverick bed size chart confirms that 2022–2026 trucks share the same principal cargo dimensions: 54.4 inches long at the floor, 53.3 inches at the widest exposed point, 42.6 inches between the wheelhouses, and 20.3 inches deep. Ford also lists 33.3 cubic feet of cargo volume.
The wheelhouse gap and rear opening matter as much as nominal bed length. Raised supports and the multi-position tailgate help with larger materials under specific loading conditions. Check your cargo dimensions, model-year manual, and payload limits before loading or buying accessories.
5 Ford Maverick Bed Size Questions Answered
How Long Is a Ford Maverick Bed in Feet and Inches?
The Maverick bed is 54.4 inches long at the floor, which equals 4 feet 6.4 inches. Ford markets it as a nominal 4.5-foot bed. The figure describes the cargo floor with the tailgate closed, not the truck’s total length or a tailgate-down loading measurement.
Did the Ford Maverick Bed Size Change From 2022 to 2026?
No. The main published cargo-box measurements remain consistent across the 2022–2026 model years. Trims and equipment have changed, and lift-in heights differ, but Ford’s current specs still list the same fundamental box length and width.
How Wide Is the Ford Maverick Bed Between Wheel Wells?
It is 42.6 inches wide between the wheelhouses, while the maximum exposed bed width is 53.3 inches. Use the narrower figure when deciding whether a rigid toolbox, drawer, or other floor-level item will fit between the protrusions.
Can a Ford Maverick Carry a 4-by-8-Foot Sheet of Plywood?
Yes, using the supported raised-loading arrangement designed into the FLEXBED system, not by placing a full 48-inch-wide sheet flat between the wheelhouses. Proper tailgate positioning, weight distribution, and cargo securement are essential. Follow the instructions and load limits for your specific model year.
Does the Ford Maverick Have a Six-Foot Bed Option?
No factory six-foot bed is offered for the 2022–2026 U.S.-market Maverick models covered here. They use the nominal 4.5-foot cargo box. A lowered tailgate or bed extender can change how longer items are carried, but neither converts the factory bed into a six-foot box.
