Ram 2500 Wheelbase Chart by Year: 1994-2026 Cab & Bed
The Ram 2500 wheelbase chart varies by model year, cab style, bed length, and sometimes drivetrain. For 2026, the standard pickup configurations have wheelbases of 140.2, 149.1, 160.4, and 169.0 inches, according to Stellantis’ published exterior dimensions.
Older Dodge Ram 2500 trucks use different measurements. A 1999 Quad Cab long-bed model, for example, has a nominal 155-inch wheelbase, while a 2026 Crew Cab long-bed model measures 169.0 inches.
The charts below cover factory-documented configurations from the 1994–2026 period. Where exact specifications differ between model years or manufacturer publications, those differences are identified rather than treated as interchangeable.
TruckGuider specs reference / 2026
Ram 2500 Wheelbase by Cab & Bed
Compare four standard 2026 pickup configurations. All values in inches, based on manufacturer exterior dimensions.
Wheelbase comparison
Bars share a zero baseline and are scaled to the longest wheelbase (169.0 in = 100%). Exact measurements appear at right.
What Is the 2026 Ram 2500 Wheelbase by Cab
![Auto Ventshade [AVS] In-Channel Rain Guards For 2009 - 2024 Dodge Ram…](https://m.media-amazon.com/images/I/31RMoDEtJ4L._SS500_.jpg)
The 2026 Ram 2500 offers four standard cab and bed combinations. Wheelbase is the distance between the center of the front axle and the center of the rear axle.
The following measurements come from the 2026 Stellantis Fleet Heavy Duty Buyer’s Guide.
| Cab Style | Bed Length | Wheelbase | Overall Length |
|---|---|---|---|
| Regular Cab | 8 ft | 140.2 in | 232.0 in |
| Crew Cab | 6 ft 4 in | 149.1 in | 238.8 in |
| Mega Cab | 6 ft 4 in | 160.4 in | 249.9 in |
| Crew Cab | 8 ft | 169.0 in | 260.8 in |
Source: 2026 Ram 2500 standard exterior dimensions, base pickup configurations. The Mega Cab configuration is 4WD only.
The Crew Cab long-bed truck has a wheelbase 28.8 inches longer than the Regular Cab. Its overall length is also 28.8 inches greater.
A Crew Cab with the 6-foot-4-inch bed offers a shorter footprint than the long-bed Crew Cab. The Mega Cab falls between those two Crew Cab configurations in overall length, despite sharing the shorter cargo box.
The comparison applies to the standard configurations shown. Specialized trims may have different published dimensional details.
1994 to 2002 Dodge Ram 2500 Wheelbase Chart
Second-generation Dodge Ram 2500 pickups used substantially different cab and bed combinations from modern Heavy Duty trucks.
The most recognizable configurations were the Regular Cab, Club Cab, and later Quad Cab. Dodge introduced the Quad Cab with rear access doors during this generation.
The table shows documented nominal configurations represented in late-1990s and early-2000s model listings.
| Cab Style | Bed Length | Nominal Wheelbase |
|---|---|---|
| Regular Cab | 8 ft | 135 in |
| Club Cab | Short bed | 139 in |
| Club Cab | Long bed | 155 in |
| Quad Cab | Short bed | 139 in |
| Quad Cab | Long bed | 155 in |
The Quad Cab entries apply to model years in which that cab style was offered. They do not apply to every year from 1994 onward.
The 1999 Dodge Ram 2500 specifications identify all five configurations. Regular Cab, Club Cab, and Quad Cab versions were also offered with four-wheel drive.
These are nominal wheelbase classifications. Detailed specifications for some vehicles list approximately 134.7, 138.7, or 154.7 inches instead.
That distinction matters when comparing an original factory measurement with a rounded trim description.
Regular Cab and Club Cab Differences
The Regular Cab long-bed configuration used the shortest nominal wheelbase in this group, at 135 inches.
A Club Cab added rear seating space and used either a 139-inch short-bed or 155-inch long-bed layout.
The longer configuration provided more room for passengers and cargo but also increased the truck’s overall footprint.
Quad Cab Configurations
The Quad Cab introduced additional rear-door access while retaining the same nominal 139-inch and 155-inch wheelbase classes.
For 2002, the Ram 2500 still belonged to the older Heavy Duty design generation. The Ram 1500’s redesign schedule should not be applied automatically to the 2500.
Before buying frame-mounted equipment for one of these trucks, confirm its exact model year and cab configuration.
2003 to 2009 Dodge Ram 2500 Wheelbase Chart
The third-generation Dodge Ram 2500 arrived for the 2003 model year. The Heavy Duty lineup used a different set of cab and chassis dimensions.
The 2005 factory specifications provide an especially useful reference for Regular Cab and Quad Cab pickups.
| Model Year Reference | Cab Style | Bed Length | Wheelbase |
|---|---|---|---|
| 2005 | Regular Cab | 8 ft | 140.5 in |
| 2005 | Quad Cab | 6 ft 3 in | 140.5 in |
| 2005 | Quad Cab | 8 ft | 160.5 in |
| 2006–2009 | Mega Cab | Short bed | 160.5 in nominal |
The 2005 Chrysler Ram Heavy Duty specifications document the 140.5-inch and 160.5-inch configurations. The Mega Cab was introduced for the 2006 model year.
The 2005 Quad Cab short-bed truck measures 227.7 inches in overall length. Its long-bed counterpart measures 249.7 inches. Both share the same general cab design, but the longer bed adds 20 inches to the wheelbase.
The Regular Cab long-bed truck measures 229.7 inches overall. That is slightly longer than the Quad Cab short-bed truck, even though both use a 140.5-inch wheelbase.
This example shows why wheelbase and overall body length must be treated as separate measurements.
When the Mega Cab Arrived
The Mega Cab introduced a substantially larger passenger compartment in 2006.
Its 160.5-inch nominal wheelbase was similar to the Quad Cab long-bed configuration. However, the Mega Cab used a shorter bed behind the extended passenger compartment.
This layout prioritized interior space without requiring the longest conventional cargo box.
The 2009 model lineup still included Regular Cab, Quad Cab, and Mega Cab configurations, with nominal wheelbases of 140.5 and 160.5 inches depending on the body style.
2010 to 2018 Ram 2500 Wheelbase Chart
The 2010 Ram Heavy Duty lineup introduced the Crew Cab configuration, replacing the previous Quad Cab layout in the 2500 pickup range.
One important detail is that some factory specifications list different exact wheelbases for two-wheel-drive and four-wheel-drive trucks.
The 2010 figures below come from the published 2010 Ram Heavy Duty specifications.
| 2010 Configuration | 2WD Wheelbase | 4WD Wheelbase |
|---|---|---|
| Regular Cab, 8-ft bed | 140.5 in | 140.0 in |
| Crew Cab, 6-ft 4-in bed | 149.4 in | 148.9 in |
| Crew Cab, 8-ft bed | 169.4 in | 168.9 in |
| Mega Cab, 6-ft 4-in bed | 160.5 in | 160.0 in |
These values are for the documented 2010 Ram 2500 pickup configurations. They should not be automatically substituted for every model year through 2018.
The difference between 2WD and 4WD wheelbase figures is 0.5 inch in each 2010 configuration shown.
For example, the 2010 Crew Cab short-bed pickup uses a 149.4-inch wheelbase with 2WD and 148.9 inches with 4WD.
A buyer who relies only on the rounded 149.5-inch configuration label could overlook that distinction.
How the 2018 Dimensions Compare
The 2018 Ram 2500 Heavy Duty technical specifications continued to distinguish the drivetrain configurations.
The detailed 2018 specifications report the same wheelbase pairs as the 2010 technical document:
| Cab and Bed | 2018 2WD | 2018 4WD |
|---|---|---|
| Regular Cab, 8 ft | 140.5 in | 140.0 in |
| Crew Cab, 6 ft 4 in | 149.4 in | 148.9 in |
| Crew Cab, 8 ft | 169.4 in | 168.9 in |
| Mega Cab, 6 ft 4 in | 160.5 in | 160.0 in |
Some 2018 marketing-brochure exterior tables report slightly different figures. For precise frame or equipment fitment, use the technical specifications applicable to the particular truck and market.
This also illustrates why a general fourth-generation wheelbase chart may not be precise enough for every mechanical application.
2019 to 2026 Ram 2500 Wheelbase Chart
The 2019 Ram Heavy Duty update introduced revised exterior dimensions and updated body configurations.
The 2019 factory technical specification and the 2026 published exterior table provide useful reference points for the modern Ram 2500.
| Cab and Bed | 2019 Technical Spec | 2026 Exterior Spec |
|---|---|---|
| Regular Cab, 8 ft | 140.0–140.2 in | 140.2 in |
| Crew Cab, 6 ft 4 in | 149.0 in | 149.1 in |
| Crew Cab, 8 ft | 169.0 in | 169.0 in |
| Mega Cab, 6 ft 4 in | 160.4 in | 160.4 in |
The 2019 Regular Cab technical table distinguishes 2WD and 4WD figures. The 2026 values come from the standard exterior-dimension table.
The same body configurations appear in later model-year documentation, but an individual model-year specification remains the correct reference for precise measurement work.
The 2025 factory technical sheet, for example, lists a 149.0-inch Crew Cab short-box wheelbase, while the 2026 buyer’s guide lists 149.1 inches. The nominal configuration remains similar, but the published figures should not be silently treated as identical.
Why the 2019 Model Year Matters
For a Crew Cab short-bed pickup, the 2018 technical document lists 149.4 inches for 2WD and 148.9 inches for 4WD.
The corresponding standard Crew Cab measurement in the 2019 technical table is 149.0 inches for both drivetrains.
The overall truck length also changed. The older Crew Cab short-bed configuration is listed at 237.4 inches in the technical specifications, compared with 238.8 inches for 2019.
These changes are relevant when checking garage dimensions or comparing equipment that depends on body length.
Power Wagon and Rebel Wheelbase Exceptions
The standard Crew Cab chart does not cover every specialized Ram 2500 configuration.
The 2019 Power Wagon technical specification lists a 149.3-inch wheelbase, compared with 149.0 inches for the standard Crew Cab short-bed model in that year’s technical sheet.
The 2025 factory specification also identifies the Power Wagon and Rebel Crew Cab configuration at 149.3 inches.
For a specialized trim, verify that trim’s individual specification instead of relying solely on the standard Crew Cab row.
How Ram 2500 Cab and Bed Sizes Affect Wheelbase
Cab style and cargo-box length determine how far apart the axles must be positioned. Two trucks with similar engines and trim names can therefore use different wheelbase dimensions.
Regular Cab and Quad Cab Configurations
The Regular Cab has one passenger seating row. The historical Quad Cab provided additional passenger access while retaining a relatively compact cab design.
On the 2005 Ram 2500, the Regular Cab long-bed and Quad Cab short-bed both use a 140.5-inch wheelbase.
Their overall lengths differ because the cab and bed occupy different portions of the truck.
Crew Cab Short and Long Beds
Modern Crew Cab pickups offer two primary bed lengths: 6 feet 4 inches and 8 feet.
In 2026, the short-bed Crew Cab has a 149.1-inch wheelbase. The long-bed Crew Cab measures 169.0 inches.
That is a 19.9-inch difference in axle spacing.
For additional cargo-box measurements, see our Dodge Ram bed size chart by year.
Mega Cab Dimensions and Exceptions
The Mega Cab is designed around a larger passenger compartment rather than the longest cargo box.
For 2026, it pairs the 6-foot-4-inch box with a 160.4-inch wheelbase and 249.9-inch overall length.
That gives it a longer wheelbase than the Crew Cab short-bed truck, even though both have the same nominal bed size.

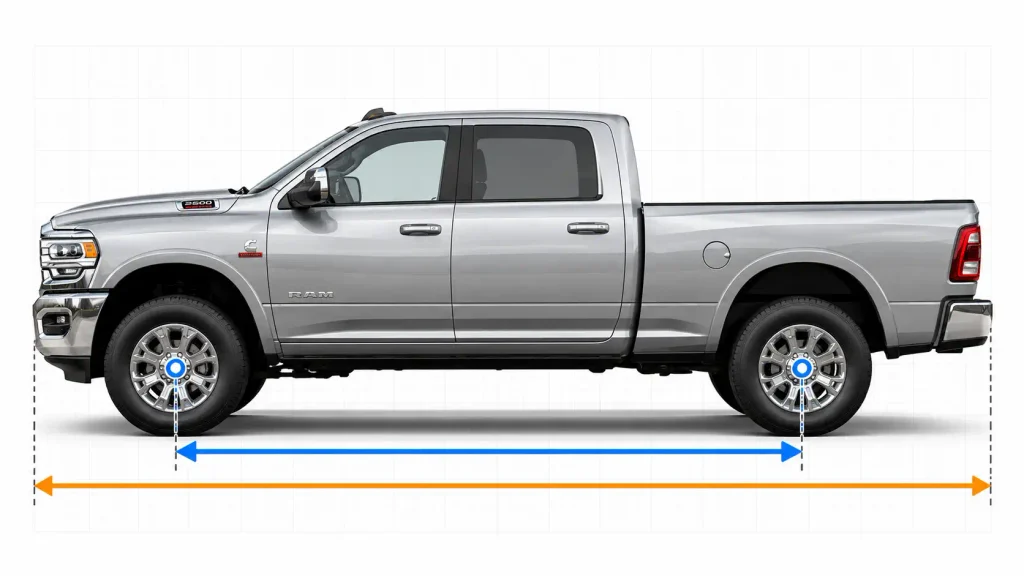

Ram 2500 Wheelbase vs Overall Length Explained
Wheelbase and overall length measure different parts of a pickup truck.
Wheelbase is the horizontal distance between the front axle center and rear axle center. Overall length measures the truck from its foremost exterior point to its rearmost exterior point.
A truck’s overall length also includes the front and rear body overhangs.
Consider the 2026 Crew Cab configurations.Measurement 6-ft 4-in Bed 8-ft Bed Wheelbase 149.1 in 169.0 in Overall length 238.8 in 260.8 in Cargo-box floor length 76.3 in 98.3 in
The long-bed configuration adds 22 inches of cargo-box floor length, while its wheelbase increases by 19.9 inches.
These measurements explain different aspects of the truck. They should not be substituted for one another when evaluating modifications, garage clearance, or replacement body components.
How Ram 2500 Wheelbase Affects Parking and Turning
A longer wheelbase generally requires more planning in tight spaces. However, wheelbase alone does not establish the turning diameter of a particular truck.
Steering geometry, tire dimensions, suspension configuration, and other specifications also matter.
The 2010 Ram Heavy Duty technical document illustrates this difference. Its Regular Cab pickup has a shorter wheelbase than the Crew Cab long-bed version, but the document also provides separate steering and chassis measurements.
For actual maneuvering clearance, use the turning-diameter specification for the exact model year and configuration.
Measuring Garage Clearance
When checking whether a Ram 2500 fits inside a garage, start with overall length rather than wheelbase.
A 2026 Crew Cab long-bed truck measures 260.8 inches, or approximately 21 feet 9 inches, from end to end.
That measurement does not include extra clearance needed to walk around the truck, open a garage door safely, or accommodate aftermarket accessories extending beyond the standard body.
The 2026 Crew Cab short-bed version is 238.8 inches long, or 19 feet 11 inches.
Measure your usable interior space and check the actual truck before assuming either configuration will fit.
Does Wheelbase Determine Towing Capacity?
No. Wheelbase is one element of truck geometry, not a towing rating.
Ram 2500 towing capability depends on the exact engine, axle ratio, drivetrain, cab, equipment, and other vehicle-specific ratings.
A longer wheelbase does not automatically mean a higher manufacturer-approved trailer weight.
For trailer ratings and configuration-specific information, consult our Ram 2500 towing capacity chart.
How to Verify Your Ram 2500 Wheelbase
The published charts are most useful when you know your truck’s original configuration.
Follow these four steps to identify the appropriate factory specification.
- Confirm the model year. Check the registration, original documentation, or vehicle identification number. Make sure the truck is a Ram 2500 pickup rather than a different Heavy Duty or chassis-cab model.
- Identify the cab style. Determine whether it is a Regular Cab, historical Club Cab, Quad Cab, Crew Cab, or Mega Cab. Cab names changed between generations.
- Check the bed and drivetrain. Identify the original cargo-box size and whether the truck is 2WD or 4WD. This is particularly important for years with drivetrain-specific published measurements.
- Compare the factory dimension. Use the applicable model-year specifications. If documentation is unavailable, measure the horizontal axle-center distance on level ground with the suspension at normal ride height.
When measuring, mark the center of the front and rear wheel hubs on the same side of the truck. Transfer those positions to the ground and measure the horizontal distance between the marks.
Measuring between tire edges or between the nearest points on the wheel openings will not provide an accurate wheelbase.
If the truck has undergone substantial frame or axle modifications, the original factory value may no longer describe its actual geometry.
Which Ram 2500 Wheelbase Matches Your Truck
The correct Ram 2500 wheelbase depends on the model year, cab, bed, and sometimes the drivetrain.
For 2026 standard pickups, the four main wheelbase figures are 140.2 inches for Regular Cab, 149.1 inches for Crew Cab short bed, 160.4 inches for Mega Cab, and 169.0 inches for Crew Cab long bed.
Older Dodge Ram models use different nominal wheelbase groups, including 135, 139, and 155 inches on second-generation trucks and 140.5 or 160.5 inches on several third-generation configurations.
Use this Ram 2500 wheelbase chart as a reference for identifying the correct configuration. For precision fitment, verify the actual vehicle against its model-year factory documentation.
Ram 2500 Wheelbase Frequently Asked Questions
What Is the Wheelbase of a 2026 Ram 2500 Crew Cab?
The 2026 Ram 2500 Crew Cab has a 149.1-inch wheelbase with the 6-foot-4-inch bed and a 169.0-inch wheelbase with the 8-foot bed. These are standard factory exterior-dimension figures. The short-bed version is easier to accommodate in a limited parking space because its overall length is shorter.
What Is the Ram 2500 Mega Cab Wheelbase?
The 2026 Ram 2500 Mega Cab has a 160.4-inch wheelbase and a 6-foot-4-inch bed. Its overall length is 249.9 inches. Older Mega Cab trucks may use different specifications, including 160.5-inch nominal configurations, so the exact model year remains important.
How Long Is a Ram 2500 Long Bed?
A modern Ram 2500 long bed is nominally 8 feet long. The 2026 factory cargo-box floor measures 98.3 inches with the tailgate closed. That is the bed measurement, not the overall truck length or wheelbase. A 2026 Crew Cab long-bed truck measures 260.8 inches overall.
Did the Ram 2500 Wheelbase Change in 2019?
Yes, some detailed published specifications changed with the 2019 Heavy Duty update. For example, the 2018 technical sheet lists 149.4 inches for a 2WD Crew Cab short-bed truck, while the 2019 technical sheet lists 149.0 inches. The exact comparison depends on cab, drivetrain, and which manufacturer specification is being referenced.
Is Ram 2500 Wheelbase the Same as Overall Length?
No. Wheelbase measures the distance between the front and rear axle centers. Overall length measures the entire truck from front to rear. The 2026 Ram 2500 Crew Cab short-bed model has a 149.1-inch wheelbase but an overall length of 238.8 inches. Use overall length for garage-fit calculations.
