Fuel Pressure Regulator Location: The Ultimate Guide to Finding & Fixing It

The fuel pressure regulator is one of the most critical yet misunderstood components in your truck’s engine. It’s the unsung hero responsible for ensuring your fuel injectors receive fuel at the exact pressure required for optimal performance, fuel economy, and emissions control. When it fails, it can cause a cascade of problems, from poor acceleration and black smoke to a no-start condition that leaves you stranded.

But before you can diagnose or replace it, you have to find it. This guide provides a definitive, expert-backed breakdown of where to find your fuel pressure regulator, how to understand its function based on its location, and what to do when you suspect it has failed.

Pinpointing Your Fuel Pressure Regulator’s Location

Your truck’s fuel pressure regulator (FPR) isn’t in a random spot; its location is determined by the specific type of fuel system your vehicle uses. Over the years, engineering has evolved, but virtually all regulators can be found in one of three primary locations.

The Three Most Common Locations: A Quick Overview

1. On the Fuel Rail: This is the classic location for vehicles with a “return-style” fuel system, common in trucks and cars manufactured before the mid-2000s. The fuel rail is the metal pipe that distributes gasoline to the individual fuel injectors. The regulator is typically a small, round, metallic component bolted to one end of this rail. It will have fuel lines connected to it and a small vacuum hose attached to a nipple on its top.
2. Inside the Fuel Tank: This is the standard location for most modern vehicles with a “returnless” fuel system. In this design, the regulator is not a standalone part in the engine bay. Instead, it’s integrated directly into the fuel pump module—the entire assembly that sits inside your gas tank. This design is more efficient and produces fewer emissions, but it makes the regulator much harder to access.
3. Along the Fuel Line (Less Common): In some older or more unique designs, the regulator may be mounted “in-line” somewhere between the fuel filter and the engine. This is less common but worth considering if you can’t find it on the rail or have confirmed you don’t have a returnless system.

The Easiest Way to Tell: One Fuel Line or Two?

The quickest way to determine your fuel system type—and thus the regulator’s likely location—is to pop the hood and inspect the fuel rail.

• If you see TWO fuel lines connected to the rail, you have a return-style system. One line is the supply line from the fuel tank, and the second is the return line that sends excess fuel back to the tank. In this case, your fuel pressure regulator is almost certainly located on the fuel rail in the engine bay.
• If you see only ONE fuel line connected to the rail, you have a returnless system. This single line is the supply from the tank. Since there’s no return line from the engine, pressure regulation must happen at the source. Your fuel pressure regulator is located inside the fuel tank as part of the fuel pump assembly.

This simple visual check is the most powerful first step in locating the component.

Typical Fuel Pressure Regulator Locations

To understand how fuel flows and where the regulator fits in, it helps to visualize the two primary system layouts.

1. Fuel Tank → Fuel Pump → Fuel Filter → Fuel Supply Line → Fuel Rail (with injectors) → Fuel Pressure Regulator (at the end of the rail) → Fuel Return Line → Fuel Tank.

2. Fuel Tank (a box containing an integrated “Fuel Pump & Regulator Module”) → Fuel Filter → Single Fuel Supply Line → Fuel Rail (with injectors).

Why Location Matters: Understanding the Fuel Pressure Regulator’s Critical Role

Knowing where the regulator is located is only half the battle. Understanding why it’s there unlocks a deeper knowledge of your vehicle’s fuel system, which is essential for accurate diagnosis and repair. The location is a direct consequence of the system’s design philosophy.

What Exactly Does a Fuel Pressure Regulator Do?

At its core, the fuel pressure regulator is a simple mechanical valve designed to do one critical job: maintain a constant pressure differential across the fuel injectors. Your truck’s Engine Control Unit (ECU) is the brain of the operation. It calculates the precise amount of fuel needed for combustion based on dozens of inputs like engine speed, throttle position, and air temperature. It delivers this fuel by controlling how long each injector stays open—a duration known as “pulse width.”

This entire calculation hinges on one crucial assumption: that the fuel pressure at the injector is stable and known. If the pressure is too low, the calculated pulse width won’t deliver enough fuel, leading to a lean condition. If the pressure is too high, the same pulse width will deliver too much fuel, causing a rich condition.

The FPR acts as the system’s gatekeeper. It uses a spring-loaded diaphragm to act as a relief valve. Pressurized fuel from the pump pushes against one side of the diaphragm. When the pressure exceeds the spring’s force, a valve opens, allowing excess fuel to be bypassed, thus maintaining the target pressure. Where that excess fuel goes is the key difference between the two major system types.

The Evolution of Fuel Systems: Return vs. Returnless

The design of automotive fuel systems has evolved significantly, driven primarily by the need to reduce evaporative emissions. This evolution directly dictates the fuel pressure regulator’s location and function.

Classic Return-Style Systems

Common in vehicles built before the mid-2000s, this is a robust and straightforward system. The in-tank fuel pump typically runs at a constant speed, sending a high volume of fuel to the engine bay—more than the engine could ever use, even at full throttle. This over-supply ensures that pressure is always available.

The fuel pressure regulator, located at the end of the fuel rail, manages this excess. It acts as a mechanical bypass, bleeding off any fuel not used by the injectors and sending it back to the fuel tank via a dedicated return line.

A key feature of many return-style regulators is a vacuum reference port. A hose connects this port to the engine’s intake manifold. This allows the regulator to dynamically adjust fuel pressure based on engine load.

• At idle, engine vacuum is high. This vacuum pulls on the regulator’s diaphragm, helping to open the bypass valve and lowering fuel pressure.
• During acceleration, engine vacuum drops. With less vacuum assistance, the spring in the regulator exerts more force, closing the bypass valve and raising fuel pressure to meet the increased demand.

This vacuum referencing maintains a perfect 1:1 relationship between fuel pressure and manifold pressure, ensuring the pressure drop across the injectors remains constant for precise fuel metering under all conditions.

Modern Returnless Systems

Starting in the late 1990s and becoming dominant after the mid-2000s, manufacturers shifted to returnless fuel systems. The primary motivation for this change was to comply with stricter emissions regulations. In a return-style system, the fuel circulates through the hot engine bay and then returns to the tank, heating the entire fuel load. This “heat-soaked” fuel creates more gasoline vapor, which contributes to evaporative emissions.

The returnless design solves this by eliminating the return line from the engine altogether. All pressure regulation happens inside or very near the fuel tank, meaning only cool fuel is ever sent to the engine. There are two main types:

• Mechanical Returnless: A simpler design where the regulator, located within the in-tank fuel pump module, maintains a constant fuel pressure in the line. The ECU compensates for changing engine loads solely by adjusting the injector pulse width.
• Electronic Returnless: The most sophisticated and common modern design. This system does away with a traditional mechanical regulator and instead uses a closed-loop electronic system. A Fuel Rail Pressure (FRP) sensor is mounted on the fuel rail to provide a real-time pressure reading to the ECU. The ECU then instructs a Fuel Pump Driver Module to vary the voltage to the fuel pump, speeding it up or slowing it down to deliver the exact pressure required at any given moment. This is the most efficient method of fuel delivery.

This engineering shift from mechanical, engine-bay regulation to integrated, in-tank regulation has significant consequences for the vehicle owner. The move was driven by a need to reduce fuel vapors, an environmental benefit. However, it transformed the fuel pressure regulator from a simple, relatively inexpensive, and accessible mechanical part into an integrated component of a complex and costly fuel pump module.

A failure that once might have been a $350 repair involving a part on the fuel rail now often requires replacing the entire fuel pump assembly. This repair is far more labor-intensive, as it requires dropping the fuel tank, and can easily cost between $700 and $1,500. This connection between emissions engineering and modern repair costs is a critical factor for any truck owner to understand.

Table 1: Return vs. Returnless Fuel Systems at a Glance

Symptoms of a Bad Fuel Pressure Regulator: Listening to Your Truck

When a fuel pressure regulator fails, it rarely does so silently. It disrupts the delicate air-fuel balance your engine needs to run properly, creating a host of noticeable performance issues. Most failures fall into one of two categories: the regulator gets stuck closed, causing excessive pressure, or it gets stuck open (or leaks internally), causing low pressure.

Decoding the Warning Signs: High vs. Low Pressure

Understanding whether you have a high or low-pressure situation is key to diagnosis.

• High Pressure creates a “rich” condition, where there is too much fuel for the amount of air.
• Low Pressure creates a “lean” condition, where there is not enough fuel for the amount of air.

Each condition produces its own distinct set of symptoms.

Symptoms of High Fuel Pressure (Rich Condition)

• Black Smoke from the Exhaust: This is the most telling sign of a rich condition. The black smoke is essentially soot—raw, unburned fuel being pushed out the tailpipe because the engine is so flooded with gasoline it can’t burn it all during the combustion cycle.
• Strong Fuel Smell: You may notice the smell of raw gasoline around the vehicle. This can be caused by a ruptured diaphragm leaking fuel directly into the vacuum line and intake manifold, or simply from the sheer amount of unburned fuel passing through the exhaust.
• Decreased Fuel Economy: Your miles-per-gallon will plummet. The engine is injecting far more fuel than necessary, wasting it with every combustion cycle.
• Fouled Spark Plugs: Over time, a chronic rich condition will leave a thick, black, sooty coating of carbon on your spark plugs. This buildup can insulate the electrode, preventing a strong spark and leading to misfires.
• Engine Backfires: In some cases, the excess unburned fuel can enter the hot exhaust system, where it can ignite unexpectedly, causing a loud pop or backfire.

Symptoms of Low Fuel Pressure (Lean Condition)

• Lack of Power & Poor Acceleration: This is a classic symptom of fuel starvation. The engine runs smoothly at idle but stumbles, hesitates, or feels sluggish when you press the accelerator because the fuel system can’t deliver the increased volume of fuel needed for acceleration.
• Engine Hesitation or Stumbling: The engine may sputter or jerk when under load, as the inconsistent fuel supply causes intermittent misfires.
• Hard Starting or No-Start Condition: To start, an engine needs a specific fuel pressure to prime the system. If the regulator is stuck open, it may not be able to build enough pressure to fire up. A related issue is a failed internal check valve, which allows the pressure in the fuel lines to bleed back to the tank overnight, resulting in long crank times in the morning.
• Engine Misfires: A lean mixture is harder to ignite than a correctly balanced one. This can lead to incomplete combustion, causing the engine to run rough, shake at idle, or trigger a flashing Check Engine Light.

A failing fuel pressure regulator can be a deceptive culprit. The lean or rich conditions it creates are detected by the vehicle’s oxygen sensors. In response, the ECU will attempt to compensate by adjusting its short-term and long-term fuel trims. When these adjustments reach their limit and the air-fuel ratio is still incorrect, the ECU will illuminate the Check Engine Light and store diagnostic trouble codes like P0171/P0174 (System Too Lean) or P0172/P0175 (System Too Rich). An inexperienced technician might see these codes and immediately suspect a faulty oxygen sensor, a vacuum leak, or a bad mass airflow sensor.

This can lead to a frustrating and expensive process of replacing the wrong parts. The root cause—the fuel pressure regulator—is often overlooked. This is why, when these specific codes are present, a fuel pressure test should be one of the very first diagnostic steps performed. It can quickly confirm or rule out the entire fuel delivery system as the source of the problem, saving significant time and money.

Table 2: High vs. Low Fuel Pressure Symptoms

How to Test a Fuel Pressure Regulator: The Definitive Guide

For the confident DIYer, testing a fuel pressure regulator is a manageable task that can save you a costly diagnostic fee. However, working with the fuel system requires caution and the right tools.

Safety First: Before You Begin

Working with gasoline is inherently dangerous. Fuel systems are under high pressure, and gasoline is extremely flammable. Before attempting any tests, adhere to these critical safety rules:

• Work in a well-ventilated area, preferably outdoors. Never work in an enclosed garage where fumes can accumulate.²⁵
• Have a Class B (flammable liquids) fire extinguisher within arm’s reach.
• Wear safety glasses and fuel-resistant gloves.
• Eliminate all sources of ignition. Do not smoke, and avoid creating sparks.
• Always relieve the fuel system pressure before disconnecting any fuel line. The easiest way to do this is to locate the fuse or relay for the fuel pump, remove it, and then start the engine. Let it run until it stalls from lack of fuel. This will safely depressurize the lines.

Step 1: The Visual Inspection (The Easiest Check)

Start with the simplest checks that require no special tools.

• Carefully inspect the regulator (if it’s on the fuel rail) and its surrounding fuel lines for any signs of external leaks, wet spots, or fuel stains.
• The Litmus Test for Return-Style FPRs: This is the most definitive and simple test for an external, vacuum-referenced regulator. With the engine off, locate the small rubber vacuum hose connected to the top of the FPR. Gently pull it off the nipple. Look and smell for any trace of raw gasoline inside the hose or on the nipple. If fuel is present, the internal diaphragm has ruptured, and the regulator is faulty. It must be replaced. This single check can often confirm the diagnosis in under 30 seconds.

Step 2: The Fuel Pressure Gauge Test

This is the most accurate method for diagnosing fuel pressure issues. You will need a fuel pressure test kit, which can be purchased or rented from most auto parts stores.

1. Connect the Gauge: After relieving the system pressure, connect the pressure gauge to the Schrader valve (it looks like a tire valve) on your engine’s fuel rail. Ensure the connection is secure to prevent leaks.
2. Static Test (Key On, Engine Off): Reinstall the fuel pump fuse/relay. Turn the ignition key to the “ON” position but do not start the engine. You should hear the fuel pump hum for a few seconds as it primes the system. The pressure on the gauge should jump to the manufacturer’s specified range (typically 35-60 PSI for port-injected engines). Crucially, the pressure should hold steady. If it begins to drop immediately, you may have a leaking injector, a bad check valve in the fuel pump, or a leaking regulator.
3. Dynamic Test (Engine Running): Start the engine and let it idle. The pressure should be stable and within the specified range for your vehicle.
   • For Return-Style Systems: With the engine idling, disconnect the vacuum hose from the regulator. The pressure on the gauge should instantly jump by 5-10 PSI. Reconnecting the hose should cause it to drop back down. If the pressure does not change when the vacuum line is removed, the regulator’s diaphragm is not responding, and the unit is faulty.
   • For All Systems: Briefly and gently increase the engine RPM. The fuel pressure should remain stable or increase slightly. A significant drop in pressure under load points to a problem, most likely a weak fuel pump or a clogged fuel filter that can’t keep up with demand, though a faulty regulator can also be the cause.

Step 3: Differentiating the Regulator from the Sensor

On modern trucks, it’s easy to confuse two similarly named components: the regulator and the sensor. Understanding the difference is vital for accurate diagnosis.

• A Fuel Pressure Regulator (FPR) is a mechanical valve. It physically opens and closes to control the flow of fuel and thereby regulate pressure. It is an actuator.

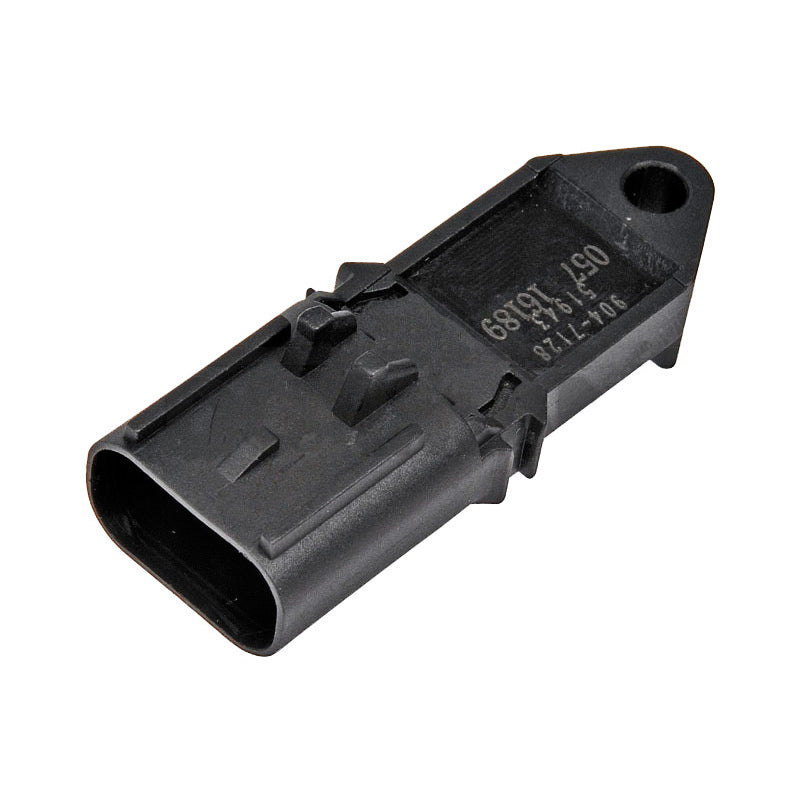

• A Fuel Pressure Sensor (FPS or FRP Sensor) is an electronic device. It does not control anything. Its only job is to monitor the pressure in the fuel rail and convert that reading into a voltage signal that it sends to the ECU. It is a sensor.

In an electronic returnless system, a bad fuel pressure sensor can send incorrect data to the ECU, causing the ECU to command the wrong fuel pump speed. This can create high or low pressure symptoms that perfectly mimic a bad regulator. If you have a returnless system, using a scan tool to read the live data from the FRP sensor is a critical diagnostic step. Comparing the scan tool reading to a mechanical gauge connected to the rail will tell you if the sensor is reporting accurately.

Fuel Pressure Regulator Replacement: What to Expect

If your tests confirm a faulty regulator, the next step is replacement. The difficulty and cost of this job depend entirely on the regulator’s location.

Is This a DIY Job? Assessing the Difficulty

• On the Fuel Rail (Return-Style): For a mechanically inclined individual with the right tools and a strong respect for safety procedures, this is a very manageable DIY job. Access is typically straightforward in the engine bay. The process involves relieving fuel pressure, disconnecting the battery, removing a few bolts and fuel line fittings, and swapping the part. The entire job can often be completed in 1-2 hours.
• In the Fuel Tank (Returnless): This is a significantly more complex and hazardous repair. It requires either removing the truck bed or dropping the entire fuel tank to access the fuel pump module. This involves dealing with a large volume of gasoline and fumes, disconnecting filler necks and electrical harnesses, and safely lowering and raising a heavy, awkward tank. Due to the high risk of fire and the specialized tools often required, this job is best left to a professional technician unless you have extensive experience.

Fuel Pressure Regulator Replacement Cost

The cost to replace an FPR varies dramatically based on your vehicle’s system type and local labor rates.

• External (On-Rail) Regulator Replacement:
  • Parts: A new regulator typically costs between $50 and $200.
  • Labor: A shop will charge for 1-2 hours of labor.
  • Total Estimated Cost: $250 – $550.
• Internal (In-Tank) Regulator/Module Replacement:
  • Parts: You must buy the entire fuel pump module, which includes the pump, sending unit, and regulator. This assembly can cost anywhere from $250 to over $600.
  • Labor: This is a labor-intensive job, typically taking 3-5 hours.
  • Total Estimated Cost: $700 – $1,500+.

For a more precise estimate tailored to your vehicle and location, resources like RepairPal can provide valuable data.

Is It Safe to Drive with a Bad Fuel Pressure Regulator?

The answer is an unequivocal no. While the vehicle may still be drivable in the early stages of failure, continuing to operate it with incorrect fuel pressure is unsafe and risks causing severe, expensive damage to other components.

• The Risks of a Rich Condition (High Pressure): Chronically running rich will not only destroy your fuel economy but can also lead to more severe issues. The excess fuel can “wash” the lubricating oil off the cylinder walls, increasing wear. It can seep past the piston rings and dilute the engine oil, reducing its ability to protect vital components. Most critically, the unburned fuel gets superheated in the exhaust, which can melt the internal structure of your catalytic converter, a repair that can cost thousands of dollars.
• The Risks of a Lean Condition (Low Pressure): This is arguably even more dangerous for the engine’s internal health. A lean air-fuel mixture burns significantly hotter than a normal mixture. This extreme heat can lead to detonation (engine knock), which puts immense stress on internal components. Ensuring proper torque on all engine parts, like on the 5.7 Hemi exhaust manifold bolts, is critical to handling normal stresses, but detonation can cause catastrophic failure of pistons, piston rings, and valves.

Ignoring the symptoms of a bad fuel pressure regulator is a gamble that is not worth taking. Prompt diagnosis and repair are essential to protect your engine and your wallet.

Frequently Asked Questions (FAQs)

1. What’s the difference between a fuel pressure regulator and a fuel pressure sensor?

A fuel pressure regulator is a mechanical valve that actively controls fuel pressure by bypassing excess fuel. A fuel pressure sensor is a purely electronic device that monitors or reads the pressure and reports that data to the vehicle’s computer (ECU).

Can a bad fuel pressure regulator cause a no-start condition?

Yes, it is a common cause. If the regulator is stuck open, the fuel system cannot build enough pressure to operate the injectors. If it is stuck closed, it can flood the engine with so much fuel that it fouls the spark plugs, preventing ignition.

How long does a fuel pressure regulator last?

Fuel pressure regulators are generally durable components, but they can fail, especially on vehicles with over 100,000 miles. While some sources suggest preventative replacement around 60,000-90,000 miles, most are replaced only after they exhibit symptoms of failure.

Will a bad fuel pressure regulator always turn on the Check Engine Light?

Most of the time, yes. A failure significant enough to cause a persistent rich or lean condition will be detected by the ECU and trigger a fault code and the Check Engine Light.8 However, an intermittent or minor fault might cause drivability issues before the system stores a code.

Can I clean a fuel pressure regulator?

No. The primary mode of failure is an internal tear or rupture of the rubber diaphragm, or a weakening of the internal spring. These are mechanical failures that cannot be fixed by cleaning. The entire unit must be replaced.

What are the main causes of fuel pressure regulator failure?

The primary cause is simple age and wear from millions of pressure cycles. The internal diaphragm can become brittle and crack over time. Fuel contaminated with dirt, debris, or excessive ethanol can also accelerate wear on the internal valve and seat. The best way to prolong its life is to use high-quality fuel and replace your fuel filter according to your vehicle’s maintenance schedule.
