1998 Ford Ranger Exhaust System Diagram: Layout & Repair (2026)
The 1998 Ford Ranger exhaust system layout runs from the engine exhaust manifolds through downpipes with upstream O2 sensors into dual or single catalytic converters. An intermediate pipe connects to an offset-inlet muffler, terminating in an over-axle tailpipe. Flange studs torque to 25–35 lb-ft, suspended by heavy-duty rubber isolators across the frame.
📌 Key Takeaways
- Manifold-to-flange hardware torques to 25–35 lb-ft; upstream and downstream O2 sensors torque to 30 lb-ft.
- System configuration varies slightly between the 2.5L I4, 3.0L V6, and 4.0L V6 engine options.
- Always support intermediate pipes with stands before unbolting rubber isolators to prevent manifold stress cracking.
- Most common failure points are rusted muffler seams, rotted over-axle tailpipes, and stripped flange studs.
- DIY replacement is feasible with basic hand tools, but extensive rust welding requires a professional exhaust shop.
The 1998 model year marked a foundational redesign for the Ford Ranger platform. Transitioning to a redesigned front frame assembly with short- and long-arm (SLA) independent front suspension on two-wheel-drive models and revised crossmembers altered the routing space available for factory exhaust components. Understanding the 1998 Ford Ranger exhaust system diagram requires analyzing how exhaust gas routing, thermal control, and emissions compliance converge under the cab and bed. Whether servicing the base four-cylinder or the optional V6 platforms, mastering this physical and operational exhaust architecture is essential for isolating gas leaks, addressing catalyst codes, and restoring factory backpressure dynamics.

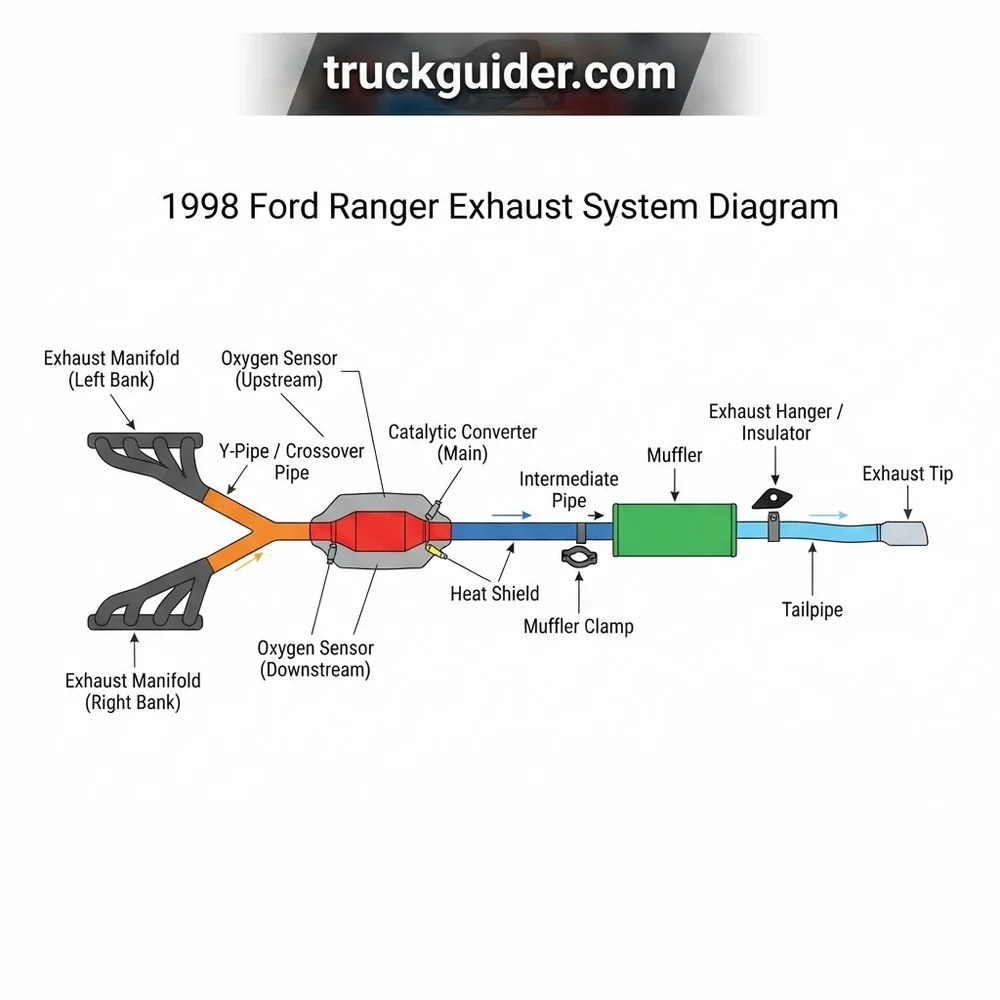

[DIAGRAM_PLACEHOLDER: Detailed schematic illustrating cylinder head exhaust ports, manifold hardware, pre- and post-oxygen sensor bungs, Y-pipe merge collector, catalytic converter assembly, frame-mounted rubber isolator locations, intermediate extension pipe, transverse oval muffler, and over-axle tailpipe termination.]
1998 Ford Ranger Exhaust System Diagram: Complete Component Breakdown
Every factory configuration of the 1998 Ford Ranger exhaust system blueprint follows an end-to-end design starting at the engine cylinder head mating face and discharging past the rear leaf spring hanger. Each component in this sequence manages thermal retention, gas expansion, toxic emission conversion, and acoustic attenuation.
Exhaust Manifold Assemblies
The system begins at the exhaust manifold, which bolts to the cylinder head exhaust ports using steel studs and locking prevailing-torque nuts. On the inline-four powertrain, Ford utilized a tuned tubular stainless-steel header assembly rather than a traditional cast unit to improve exhaust scavenging. The 3.0L and 4.0L V6 engines employ nodular cast-iron exhaust manifolds engineered with thick structural flanges to reduce thermal warping across the exhaust ports. The manifold collects high-velocity combustion gases from each cylinder port and directs them toward the downstream flange collector. The right-hand (passenger) manifold on V6 applications frequently incorporates an internally threaded port for the Differential Pressure Feedback EGR (DPFE) transducer tube and the primary EGR supply tube, directly integrating exhaust gas recirculation into the front-end layout.
Y-Pipe and Downpipe Collector
On V6 platforms, the Y-pipe downpipe structure joins the cylinder banks into a single continuous exhaust tract. The downpipe section mounts to each manifold collector using a two-bolt swivel flange and flared ball-and-socket connection, eliminating the failure-prone flat composite gaskets seen on earlier generations. The pipes route down around the bellhousing, clearing the starter motor on the passenger side and front driveshaft on four-wheel-drive models, before converging at a low-angle merge collector. On 2.5L I4 engines, a single mandrel-bent downpipe drops vertically from the manifold collector to bridge the engine bay and lower underbody.
Manifold-to-Cylinder Head Fasteners: M8 x 1.25 threaded studs torqued to 19–24 lb-ft (26–33 N·m). Manifold-to-Downpipe Flange Studs: M10 x 1.5 torqued to 25–34 lb-ft (34–46 N·m). O2 Sensor Bung Threads: M18 x 1.5 torqued to 27–33 lb-ft (37–45 N·m).
Oxygen Sensors (O2 Sensors)
The 1998 Ford Ranger uses heated exhaust gas oxygen (HEGO) sensors with internal ceramic zirc-oxide thimbles to transmit air-fuel feedback to the Powertrain Control Module (PCM). On Federal-emissions V6 configurations, the schematic includes three sensors: Bank 1 Sensor 1 (passenger side upstream downpipe), Bank 2 Sensor 1 (driver side upstream downpipe), and Bank 1 Sensor 2 (downstream, post-catalytic converter). Four-cylinder models utilize two sensors: one upstream and one downstream. Upstream sensors
Catalytic Converter Configuration
Downstream of the merge junction, the exhaust enters the catalytic converter assembly. For 1998, Ford implemented dual-brick catalytic converter technology within a stainless steel shell. The forward ceramic brick acts as a light-off Three-Way Catalyst (TWC), optimized with a platinum and rhodium washcoat to rapidly oxidize hydrocarbons (HC) and carbon monoxide (CO) while initiating the reduction of nitrogen oxides (NOx). The secondary substrate downstream leverages a palladium-heavy substrate for final oxidation before the exhaust gas passes into the intermediate extension piping. Surrounding the converter are stamped aluminized-steel heat shields clamped directly to the shell, which keep underbody skin temperatures from migrating into the cab floorpan.
Exhaust Pipe Layout Differences Across 2.5L, 3.0L, and 4.0L Engines
The exhaust architecture on the 1998 Ford Ranger changes noticeably depending on the displacement of the powertrain and the chassis wheelbase. The four-cylinder Lima and the two V6 engines (Vulcan and Cologne) demand distinctive pipe routing, upstream collection volumes, and cross-sectional tubing diameters to balance scavenging velocity against backpressure.
| Engine & Displacement | Manifold / Header Style | Upstream Pipe Diameter | Catalyst Inlet / Outlet | Intermediate Pipe Size |
|---|---|---|---|---|
| Ford 2.5L Lima I4 Engine | Tubular 4-into-1 Stainless Steel | 2.00 in. Outer Diameter (Single) | 2.00 in. / 2.00 in. | 2.00 in. Outer Diameter |
| Ford 3.0L Vulcan V6 Engine | Cast Iron Dual Manifolds | 2.00 in. (Dual into 2.25 in. Y-Merge) | 2.25 in. / 2.25 in. | 2.25 in. Outer Diameter |
| Ford 4.0L Cologne V6 Engine | Cast Iron Dual Manifolds (High-Flow) | 2.125 in. (Dual into 2.50 in. Y-Merge) | 2.50 in. / 2.25 in. | 2.25 in. Outer Diameter |
Ford 2.5L Lima I4 Engine Configuration
The 2.5L Lima inline-four features an asymmetric exhaust path that routes exclusively down the passenger side of the engine compartment. Because this engine does not require bank-to-bank crossover balancing, its layout is straightforward. The tubular factory header terminates in an integrated 2.00-inch downpipe that dips beneath the starter pocket. Upstream sensor positioning sits close to the manifold merge collector to maintain high sensor operating temperatures. The exhaust passes straight into a single inline catalyst body and continues back through an intermediate pipe (extension pipe) without crossing the transmission crossmember centerline.
Ford 3.0L Vulcan V6 Engine Configuration
The 3.0L Vulcan V6 requires an under-chassis crossover system. The driver-side manifold routes downward and loops under the rear lip of the transmission bellhousing, joining the passenger-side pipe just behind the engine oil pan. This layout balances cylinder pulse timing but exposes the driver-side intermediate crossover tube to impacts on four-wheel-drive models. The Y-pipe transitions from dual 2.00-inch branches into a 2.25-inch main trunk immediately ahead of the primary catalytic element. Correct alignment is critical during installation to keep the balance tube from rubbing the transmission crossmember.
Ford 4.0L Cologne V6 Engine Configuration
The 4.0L Cologne overhead-valve V6 uses a heavy-duty exhaust layout with higher volume flow capacity. Its cast-iron manifolds feature wider exhaust runners and heavy structural ribs to resist thermal cracking. The downpipe legs measure 2.125 inches in outer diameter, merging into a 2.50-inch inlet pipe leading to an enlarged catalytic converter footprint. Models with the 4.0L engine utilize an aggressive transmission heat shield package due to the proximity of the passenger-side collector to the 4R55E/5R55E automatic transmission pan and servo covers.
Intermediate Pipe (Extension Pipe) Wheelbase Variances
The structural layout of the intermediate pipe (extension pipe) depends directly on the frame length of the vehicle. For 1998, the Ranger was produced in three primary wheelbase configurations: 112 inches (Regular Cab, 6-foot bed), 118 inches (Regular Cab, 7-foot bed), and 126 inches (SuperCab, 6-foot bed). While the catalytic converter output flange remains in an identical spatial coordinate relative to the transmission crossmember, the intermediate extension pipe length must match the cab-to-axle dimension:
- 112-inch Wheelbase: Employs a direct-fit intermediate pipe measuring approximately 14 inches between the converter outlet flange and the muffler inlet nipple.
- 118-inch Wheelbase: Uses an intermediate extension pipe measuring approximately 20 inches, running parallel to the steel boxed frame rail.
- 126-inch Wheelbase (SuperCab): Features a 28-inch intermediate extension pipe secured by an isolated middle-support hanger to eliminate longitudinal driveline harmonic vibration transfer.
Do not interchange intermediate pipes between standard cab and SuperCab chassis. Using an incorrect intermediate pipe creates severe interference between the exhaust pipe and the two-piece rear driveshaft center support bearing crossmember, which can rupture the driveshaft boot under suspension compression.
How to Trace the 1998 Ford Ranger Exhaust System Diagram Step by Step
When resolving acoustic leaks, physical rattles, or diagnostic trouble codes, trace the 1998 Ford Ranger exhaust blueprint under the vehicle following this systematic sequence. Work from high-pressure engine exhaust ports rearward to ambient discharge to maintain complete diagnostic accuracy.
-
Inspect the Exhaust Manifold and Cylinder Head Mating Surface:
Begin at the cylinder head exhaust flanges using an inspection mirror and bore scope. Check for missing or sheared manifold studs, particularly on the rearmost cylinders (Cylinder 4 on I4 engines; Cylinders 3 and 6 on V6 engines). Inspect the cast iron near the runner convergence point for longitudinal hairline cracks that typically open up during cold starts. Review the EGR tube connection on the passenger manifold to ensure the flare fitting is tight and free from carbon deposits.
-
Trace the Downpipe and Upstream O2 Sensor Wiring Harnesses:
Follow the downpipes downward from each manifold-to-pipe connection point. Inspect the ball-and-socket swivel flanges for soot trails, which indicate leaking sealing rings or uneven flange draw. Check the oxygen sensor bungs welded into the pipes. Trace the wiring harness for both Bank 1 and Bank 2 upstream sensors back to the main engine harness, verifying that the heat-reflective loom is intact and clear of direct pipe contact. Check our guide on fuel trim diagnostics to correlate physical sensor conditions with fuel metering performance.
-
Verify the Catalytic Converter Assembly and Heat Shields:
Move rearward along the merge pipe into the catalytic converter assembly. Firmly strike the converter housing with a rubber mallet. A hollow rattle inside the chamber indicates a fractured or loose ceramic substrate, which causes structural restrictions and catalyst failure codes. Check both upper and lower stamped steel heat shields. Look for rusted-out spot welds or loose steel worm-drive clamps, which create persistent metallic buzzes between 1,800 and 2,400 RPM.
-
Measure the Intermediate Pipe and Hanger Isolators:
Examine the intermediate pipe (extension pipe) running along the inner passenger frame rail. Inspect the two-bolt spring-loaded slip flange (or heavy-duty saddle clamp depending on repair history) linking the converter to the intermediate tube. Trace the exhaust hangers welded to the intermediate section. Ensure the heavy-duty round rubber isolators are pliable, free from petroleum swelling, and that the retaining pin barbed ends are properly seated inside the frame brackets.
-
Check the Muffler Baffles and Tailpipe Clearance:
Trace the intermediate pipe into the offset inlet of the reverse-flow factory oval muffler. Inspect the rolled perimeter seams and the lower front/rear end-caps for moisture corrosion or split seams. From the muffler outlet, trace the over-axle tailpipe arch as it loops over the rear axle tube and behind the shock absorber. Ensure the pipe maintains at least 0.75 inches (19 mm) of dynamic clearance from the right-side rear shock tube, leaf spring assembly, and spare tire carrier under full suspension travel.
To locate microscopic leaks without running a hot engine, insert the discharge hose of a cold-air shop blower or vacuum set to reverse into the tailpipe. Seal the perimeter with a rag, then mist a mixture of dish soap and water onto every welded seam, slip-fit joint, and manifold interface. Escaping air will generate distinct soap bubbles without thermal hazard.
Troubleshooting Common 1998 Ford Ranger Exhaust System Diagram Faults
Age, thermal cycling, and underbody environmental exposure cause predictable physical and mechanical failures across the 1998 Ford Ranger exhaust framework. Using the structural layout as a diagnostic map simplifies isolating and repairing these issues.
Exhaust Manifold Cracking and Broken Head Studs
Thermal expansion differences between the aluminum cylinder heads on the 2.5L and 4.0L engines and the cast-iron exhaust manifolds cause severe stress on the end studs. The rearmost studs regularly shear off flush inside the cylinder head casting. This condition introduces unmetered ambient air into the exhaust stream ahead of the upstream HEGO sensors during exhaust pulse reversals, causing false lean readings and forcing the PCM to drive fuel trims positive. Refer to our technical walkthrough on exhaust manifold bolt extraction for proper extraction and thread-repair techniques using solid carbide guides.
Catalytic Converter Degradation and Diagnostic Trouble Codes
A downstream DTC P0420 (Catalyst System Efficiency Below Threshold – Bank 1) indicates the secondary substrate has lost its oxygen-buffering capacity. You can verify this on the 1998 Ranger by reading live OBD-II parameter data (PID). At a steady 2,000 RPM with coolant temperature above 185°F (85°C), the downstream sensor (Bank 1 Sensor 2) signal should stabilize into a nearly flat line between 0.45 and 0.65 volts. If the downstream sensor’s voltage mirrors the rapid oscillating pattern of the upstream sensor, the catalytic washcoat has degraded. Physical restrictions inside the converter can be verified with a backpressure gauge installed in the upstream O2 bung; backpressure exceeding 1.25 psi (8.6 kPa) at 2,500 RPM indicates a melted or collapsed core.
Intermediate Pipe and Hanger Deterioration
The structural junction between the catalytic converter and the intermediate pipe takes the brunt of underbody road spray and frame torsion. The factory two-bolt flange studs often corrode into tapered, threadless pins. This deterioration creates high-frequency exhaust rattles and pinhole leaks right beneath the cab passenger floorboard. When the rubber frame isolators degrade, the intermediate pipe can make metal-to-metal contact with the crossmember, generating low-frequency cabin vibrations often misdiagnosed as transmission mount or driveshaft u-joint wear.
Ball Flange and Exhaust Flange Leaks
While the ball-and-socket collector flanges eliminate flat composite gaskets, misalignment during transmission or clutch service frequently prevents proper seating. If the downpipe is tightened unevenly, the hardened spherical flared lip binds against the manifold socket, leaving a crescent-shaped gap. This produces a characteristic sharp ticking sound under heavy throttle acceleration. To ensure a gas-tight seal, torque the opposing flange bolts down alternately in 5 lb-ft increments until the collar draws flush against the manifold collar face.
Factory Specifications, Emissions Types, and Aftermarket Upgrades
Servicing or modifying the exhaust tract on a 1998 Ranger requires matching replacement components to the truck’s specific emissions certification standard and chassis layout. Replacement parts that disregard emissions equipment routing will trip permanent trouble codes and prevent inspection readiness.
Federal EPA vs. California Air Resources Board (CARB) Emissions
The 1998 Ford Ranger was certified under two distinct emissions packages, marked on the under-hood Vehicle Emission Control Information (VECI) decal:
- Federal (EPA 49-State): Utilizes a single primary TWC converter housing located downstream of the Y-pipe collector, supported by three oxygen sensors on V6 platforms.
- California (CARB / Tier 1): Employs a close-coupled warm-up converter design. This setup places two small “puck” pre-catalysts directly on the downpipe legs immediately below each manifold dump point, followed by the main dual-brick underfloor converter. CARB configurations on select late-1998 3.0L builds incorporate four oxygen sensors (two upstream pre-cats, two downstream monitor sensors).
Replacing an authentic CARB-equipped exhaust configuration with a Federal-type Y-pipe assembly is a direct violation of environmental standards and triggers constant P0133/P0153 (Slow Response) codes due to altered sensor thermal profiles. Also verify all lines linking the exhaust to the evaporative emissions system remain sealed to protect tank vapor purge control.
Aftermarket Cat-Back Exhaust System Implementation
Upgrading the factory exhaust tract behind the catalytic converter to a performance cat-back system can decrease pumping losses without disturbing factory emissions monitoring. Cat-back kits for the 1998 Ranger run a 2.25-inch to 2.50-inch mandrel-bent configuration. The mandrel bending process maintains uniform cross-sectional tube diameter through bends, reducing internal turbulent drag compared to standard factory crush-bent tubing.
When selecting a cat-back system, match the kit’s inlet pipe design to your specific chassis wheelbase. Premium systems provide modular multi-length extension pipes to accommodate 112-inch, 118-inch, and 126-inch frames. Ensure the kit retains factory-style barbed hanging rods that interface directly with the OEM isolated rubber brackets, avoiding rigid frame clamps that transmit acoustic resonance into the vehicle cabin.
1998 Ford Ranger Exhaust System Blueprint and Diagnostic FAQs
How many oxygen sensors are mapped on the 1998 Ford Ranger exhaust diagram?
Standard Federal emissions configurations for the 2.5L I4 employ two heated oxygen sensors: one upstream of the catalytic converter on the downpipe and one downstream monitor sensor. Federal V6 configurations (3.0L and 4.0L) use three sensors: Bank 1 Sensor 1 (passenger downpipe), Bank 2 Sensor 1 (driver downpipe), and Bank 1 Sensor 2 (post-catalytic converter). Select California emissions V6 configurations feature four sensors, adding an extra catalyst monitor sensor behind the secondary pre-converter bank.
What is the factory exhaust tubing diameter across 1998 Ford Ranger chassis configurations?
The 2.5L Lima inline-four uses 2.00-inch outer diameter (OD) tubing from the downpipe through the muffler. The 3.0L Vulcan V6 runs 2.00-inch downpipes converging into a 2.25-inch Y-collector, continuing through a 2.25-inch intermediate pipe and tailpipe. The 4.0L Cologne V6 utilizes 2.125-inch downpipes merging into a 2.50-inch converter inlet, which drops to a 2.25-inch intermediate extension pipe and tailpipe past the muffler outlet.
Can you interchange the intermediate pipe between standard cab and SuperCab models?
No. Standard cab models (112-inch and 118-inch wheelbases) use shorter intermediate pipes than SuperCab chassis (126-inch wheelbase). The SuperCab intermediate pipe is roughly 28 inches long and includes an integrated middle-support isolation hanger. Installing a standard cab intermediate pipe on a SuperCab chassis will position the muffler too far forward, colliding with the center driveline crossmember and preventing proper over-axle tailpipe fitment.
How does an exhaust leak at the manifold affect upstream fuel trims on the 1998 Ranger?
Exhaust systems operate on positive pressure pulses followed by momentary negative pressure scavenging waves. A cracked manifold or leaking collector gasket pulls fresh outside air into the pipe during negative pressure drops. This unmetered oxygen flows directly across the upstream HEGO sensor thimble. The sensor registers this excess oxygen as a lean condition and reports a low voltage signal (under 0.2V) to the PCM. The computer responds by driving Short Term Fuel Trim (STFT) rich, causing over-fueling, rough idle, fouled spark plugs, and reduced fuel economy.
What is the correct tightening procedure for the manifold-to-downpipe ball flanges?
The ball-and-socket connection requires self-centering alignment to seat properly. Thread both M10 flange nuts onto the studs by hand until the locking collar contacts the spherical lip. Using a torque wrench, alternate between the two fasteners in 5 lb-ft increments until you reach the final specification of 25 to 34 lb-ft (34 to 46 N·m). Tightening one nut completely before the other will cock the collar, crush the spherical lip unevenly, and create an unsealable exhaust leak.
Step-by-Step Guide to Understanding the 1998 Ford Ranger Exhaust System Diagram
Identify – Match your Ranger engine size (2.5L, 3.0L, or 4.0L) and wheelbase to the correct exhaust schematic.
Locate – Find all structural hanger brackets, intermediate flange joints, and O2 sensor harnesses along the underbody.
Reference – Consult the diagram for proper catalytic converter orientation and oxygen sensor bung locations before unbolting components.
Connect/Route – Hang new intermediate pipes and muffler into rubber isolators loosely before tightening flange joints to avoid stress.
Verify – Torque flange bolts to 30 lb-ft, confirm 1-inch minimum clearance from driveshaft and brake lines, then start engine to test for leaks.
Troubleshoot – If hissing or sulfur smells occur, inspect manifold-to-pipe donut gaskets and re-torque clamp hardware to manufacturer specifications.
