2004 Chevy Silverado Vacuum Line Routing & Repair Guide 2026
The 2004 Chevy Silverado vacuum system utilizes hard plastic lines and rubber connectors. The EVAP purge valve is located on the intake manifold near the throttle body. Ensure the manifold vacuum port connects to the solenoid, with the outlet routing directly to the charcoal canister located near the fuel tank assembly.
📌 Key Takeaways
- The EVAP purge valve operates on a 12V switched circuit; check for 12V at the pink wire with the ignition in the ON position.
- Vacuum lines are typically color-coded by size; black rubber is standard for intake manifold connections, while hard plastic lines use gray or black connectors.
- Ensure all vacuum connections are seated firmly to prevent P0440, P0442, or P0446 evaporative emission system diagnostic trouble codes.
- The most common failure point is the plastic quick-connect fitting at the intake manifold cracking due to heat soak from the 4.8L or 5.3L engine.
- If a smoke test reveals leaks at the canister purge valve, replace the assembly rather than attempting to patch the plastic housing.
The 2004 Chevy Silverado utilizes a sophisticated evaporative emission control system designed to prevent fuel vapors from escaping into the atmosphere. This closed-loop system is integrated with the powertrain control module (PCM), which monitors fuel tank pressure and vacuum integrity to ensure compliance with OBD-II emissions standards. Understanding the architecture of this system is critical for diagnostic technicians, as leaks in the charcoal canister, purge solenoid, or fuel lines often trigger persistent service engine soon lights. By analyzing the vacuum routing and electrical feedback loops, mechanics can isolate faulty components ranging from a compromised vent solenoid to a saturated fuel tank pressure sensor, ultimately restoring the vehicle’s optimal emissions performance and fuel efficiency.
Prime for Young Adults — 6 Months Free
Students and 18–24s get six months of Prime free, then half price.
Start 6 Months Free[DIAGRAM_PLACEHOLDER: A detailed engineering-style technical schematic showing the fuel tank, charcoal canister, vent solenoid, canister purge valve, intake manifold vacuum port, and PCM interconnects for the 2004 Silverado platform.]
Deciphering the 2004 Chevy Silverado Evap System Diagram
Recommended Best Deal Products
The 2004 Silverado EVAP system operates on a complex, PCM-managed cycle that captures hydrocarbon vapors from the fuel tank and processes them through an activated charcoal canister. When the engine reaches specific thermal and load parameters, the PCM commands the canister purge valve to open. This utilizes intake manifold vacuum to draw stored vapors into the combustion chamber for burning. The “returnless” fuel system architecture used in this model year complicates diagnostics, as the fuel pump module sits within the tank, and the EVAP system must maintain a precise pressure vacuum to detect leaks effectively.

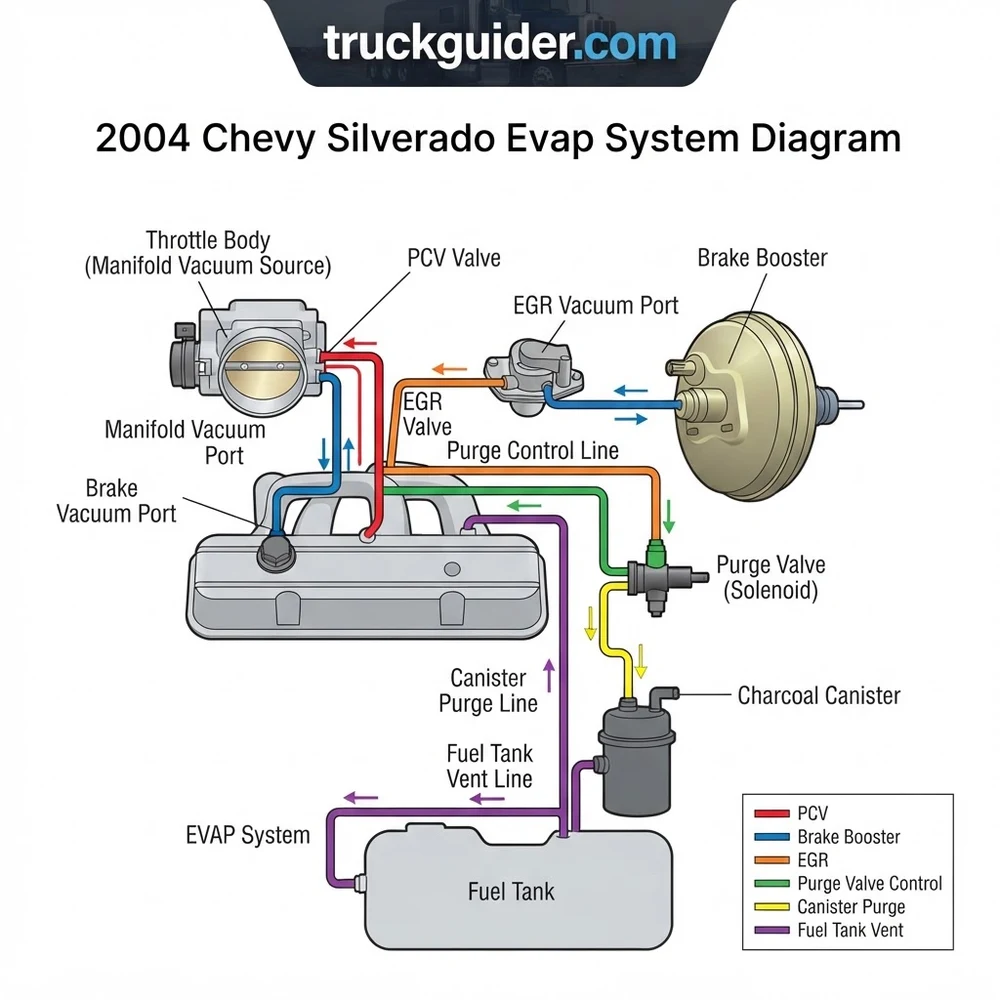

As shown in the primary diagram, the system functions in three distinct modes: the closed state, the purge cycle, and the leak test phase. During the purge cycle, the PCM pulses the solenoid to regulate flow, preventing an overly rich fuel mixture that would otherwise destabilize idle quality. The charcoal canister acts as the heart of this system, holding vapors when the engine is off. The fuel tank pressure sensor—a critical diagnostic component—sends real-time data to the PCM, which allows the system to run the “EVAP monitor.” If the system detects a leak larger than 0.040 inches (or 0.020 inches on later calibrations), it sets diagnostic trouble codes (DTCs).
