2008 Chevy Silverado Front Bumper Diagram: Component Breakdown 2026
The 2008 Chevy Silverado front bumper system comprises the steel impact bar, energy absorber, upper fascia, and lower air deflector. Attachment points include M10 bolts securing the frame brackets to the chassis. Refer to the layout to locate fog light clips and sensor harnesses, ensuring proper clearance during reassembly.
📌 Key Takeaways
- The bumper assembly utilizes 18mm and 21mm hex-head bolts for primary frame-to-bracket attachment.
- Crucial identification requires distinguishing between the GMT900 light-duty and heavy-duty (2500/3500) bumper configurations.
- Always torque frame-mounted bracket bolts to 65 lb-ft to ensure structural integrity in the event of impact.
- A common failure point is the plastic rivet securing the lower valance, often sheared during off-road or deep snow driving.
- Seek professional body shop assistance if frame horn alignment is compromised, as structural pulling may be required for panel gaps.
The 2008 Chevy Silverado front bumper configuration represents a critical intersection of aesthetic design and structural safety. For technicians and advanced DIYers, mastering the front bumper assembly is essential, as this system houses vital cooling ducts, lighting components, and energy-absorption structures. Utilizing a detailed 2008 Chevy Silverado front bumper diagram allows you to navigate the complex layout of clips, fasteners, and support brackets that define this model year. Whether you are performing a collision repair, upgrading to an aftermarket heavy-duty brush guard, or simply replacing a damaged valance, understanding the specific schematic of this assembly ensures precise fitment and structural integrity according to OEM manufacturing standards.
2008 Chevy Silverado Front Bumper Diagram: Core Components Explained
Recommended Best Deal Products

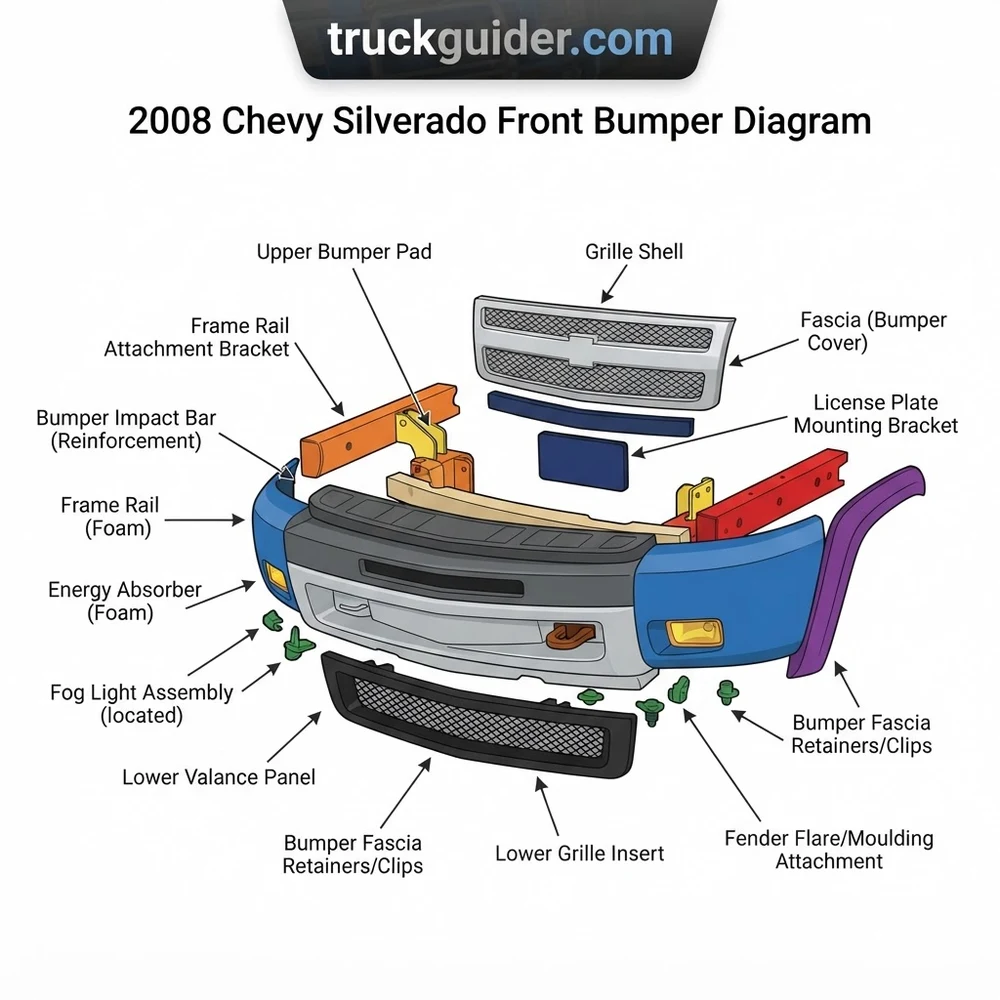

The front bumper system of the 2008 Silverado is a multi-piece modular unit designed for impact energy management. Viewing the 2008 Chevy Silverado front bumper diagram reveals that the system is not a single structural piece but an assembly comprising a steel reinforcement bar, a high-density foam absorber, and a multi-sectioned plastic fascia. Understanding the role of each component is vital for proper part sourcing and structural reassembly.
The reinforcement bar, or impact bar, serves as the primary skeleton of the front end. It is bolted directly to the frame rails. Suspended in front of this is the energy-absorbing foam, which cushions minor impacts. The bumper cover, or fascia, serves as the aerodynamic skin, and it is here that the most frequent damage occurs. Below the main cover sits the valance panel, which acts as a secondary air dam to improve cooling efficiency and fuel economy by directing airflow beneath the radiator support.
| Component | Function | Technical Notes |
|---|---|---|
| Reinforcement Bar | Structural integrity | Bolt-on, torque to 55 lb-ft |
| Energy Absorber | Impact mitigation | High-density EPS foam |
| Bumper Fascia | Aerodynamics/Aesthetics | Polypropylene plastic |
| Valance Panel | Airflow management | Attach via 10mm plastic rivets |
| Mounting Brackets | Alignment | Composite clip-in style |
When sourcing parts, always verify if your vehicle is a “half-ton” (1500) or “heavy-duty” (2500/3500) configuration. The 2008 Chevy Silverado front bumper diagram for the 1500 model features a different frame width and bracket mounting point compared to the HD variants, which utilize a heavier gauge steel reinforcement.
The brackets are arguably the most critical points in the configuration. These composite guides ensure the bumper aligns with the fender lines. If these are deformed, even a brand-new bumper cover will show uneven gaps, often referred to as “bumper sag.” Inspecting these during removal will reveal whether they have lost their snap-fit tension, which is common in vehicles with over 150,000 miles.
Disassembling the 2008 Chevy Silverado Front Bumper Assembly
Systematic disassembly is the key to preventing damage to the surrounding fender cladding and grille components. Following the logical sequence presented in the 2008 Chevy Silverado front bumper diagram, you must approach the removal starting from the exterior fascia inward.
1. Preparation: Before engaging with the hardware, ensure the vehicle is on a flat surface and the ignition is off. Disconnect the negative battery terminal to prevent accidental shorting of the fog lamp wiring harness.
2. Grille Removal: The grille is interlocked with the top edge of the bumper cover. Remove the top radiator cover clips using a trim panel removal tool. Extract the four 10mm bolts located along the top of the grille, then gently pull the grille forward to disengage the lower locking tabs.
3. Fascia Fastener Extraction: Access the wheel well liners. Remove the three T20 Torx screws connecting the bumper fascia to the fender liner on both the driver and passenger sides.
4. Lower Valance and Wiring: From beneath the vehicle, locate the plastic rivets or 7mm bolts securing the valance panel. After removing the valance, you will have clear access to the fog light wiring. Disconnect the harness clips.
5. Structural Release: With the outer fascia and electrical connections clear, locate the main bumper bracket bolts. These are typically accessed through the front face of the bumper cover or from the top, depending on the specific trim level (LTZ vs. WT). Use a deep-well 18mm socket to loosen the main frame-to-bumper bolts.
6. Extraction: Carefully pull the bumper assembly straight away from the frame rails. Have an assistant help, as the weight of the steel reinforcement bar can lead to unintended damage to the fenders if the assembly drops during removal.
When re-securing the bumper to the frame rails, torque the main mounting bolts to 55 lb-ft (75 Nm). Do not exceed this, as you risk stripping the weld nuts inside the frame horns, which would necessitate a difficult frame repair.
Throughout the removal process, document the placement of each plastic retainer clip. The 2008 Silverado is notorious for brittle plastic clips after years of thermal cycling. Replacing these clips with new OEM-spec fasteners is recommended to prevent unwanted vibration or bumper misalignment post-installation.
Addressing 2008 Chevy Silverado Front Bumper Diagram Issues
Recommended Best Deal Products
Even with the correct schematic in hand, installers often encounter common failure points. Identifying these during the inspection phase of your repair project can save significant downtime and prevent the need for repeat disassembly.
Bumper Bracket Fatigue: The plastic guides at the junction of the fender and the bumper often lose their tension. If your bumper is “popping” out near the headlights, the brackets are likely stripped. Replace these as a set to ensure both sides maintain factory-tight gaps.
Fender Liner Separation: The junction between the wheel well liner and the bumper cover is a high-stress area. If the screw holes in the plastic liner are torn, the bumper will sag under its own weight. Use large-diameter fender washers to reinforce these connection points if the plastic has become overly thin.
Corrosion of the Reinforcement Bar: In high-salt environments, the internal steel impact bar can suffer from advanced oxidation. If the 2008 Chevy Silverado front bumper diagram shows a mounting point that is severely pitted, do not attempt to reuse the bar. A compromised reinforcement bar fails to dissipate energy during a collision, placing the vehicle’s chassis at risk.
Electrical Faults in the Fog Lamp Circuit: If you are upgrading your bumper, ensure the wiring loom is correctly routed along the reinforcement bar. Use zip-tie mounts to prevent the wire from resting against the hot radiator support, which can melt the insulation and lead to intermittent electrical shorts or blown fuses.
Never attempt to weld or straighten a deformed reinforcement bar. These components are manufactured from specific tempered steel designed to collapse at calculated rates. Repairing these items fundamentally changes the vehicle’s crash safety profile and is strongly advised against by GM service manuals.
For those installing aftermarket “bull bars” or heavy-duty bumpers, always refer to the included manufacturer instructions in conjunction with the stock 2008 Chevy Silverado front bumper diagram. Many aftermarket mounting systems utilize the factory bolt locations but require the removal of the energy-absorbing foam. Ensure your aftermarket replacement accounts for proper airbag sensor clearance, as interfering with these proximity sensors can inhibit the supplemental restraint system.
2008 Chevy Silverado Front Bumper Diagram Questions Answered
Do all 2008 Silverado trim levels use the same bumper layout?
Not exactly. While the core structure (the frame rail mounting points) remains consistent across the 1500 series, the fascia design varies between the Work Truck (WT), LT, and LTZ models. The LTZ often includes integrated fog light housings and chrome-accented bumper tops, which alter the specific clip configuration and electrical harness layout shown in the diagram.
Can I upgrade to a newer model year bumper?
Upgrading to a 2009-2013 “facelift” bumper is a common modification, but it requires more than just a swap. While the main reinforcement bar width is similar, the grille and headlight contours changed in 2009. To make this work, you would need the bumper, the matching grille, and the updated headlight assemblies to avoid massive gaps in the body lines.
Why is there a gap between my headlight and the bumper?
This is almost always due to damaged or loose bumper alignment brackets. As shown in the 2008 Chevy Silverado front bumper diagram, the bumper is held in place at the corners by small plastic clips. Over time, road vibration causes these to loosen. Replacing these brackets is a low-cost, high-impact fix that typically restores the factory-spec alignment.
How do I know if my impact absorber is damaged?
The foam energy absorber is meant to be a sacrificial component. If you have been involved in even a minor collision where the bumper was compressed, remove the fascia and inspect the foam. If it shows cracks, compression marks, or “dents” that do not spring back, it has reached its end of life and must be replaced to maintain safety standards.
Are the fasteners used in the assembly reusable?
Most of the 7mm and 10mm bolts are reusable provided the threads are clean and the heads are not rounded. However, the plastic push-pin rivets and T20 Torx screws should be inspected for thread integrity. If they show signs of wear or stripped heads, replace them immediately. A single loose screw can lead to “bumper flutter” at highway speeds, which eventually breaks the larger mounting tabs.
Step-by-Step Guide to Understanding the 2008 Chevy Silverado Front Bumper Diagram
Recommended Best Deal Products
Identify – Inspect the bumper configuration to determine if your truck uses a standard or chrome-clad setup.
Locate – Find the primary frame-to-bumper mounting bolts accessible from underneath the chassis.
Reference – Use the diagram to map the location of the fog light wire harnesses before pulling the bumper away.
Connect/Route – Route electrical lines and secure all mounting hardware following the specific order shown in the layout.
Verify – Check for even gaps between the bumper and the hood/grille assembly to ensure correct alignment.
Troubleshoot – If alignment is off, adjust the bracket shims until the structure sits flush with the frame.
