2013 Ram 1500 Cabin Air Filter Location: Definitive Retrofit & DIY Guide (4th Gen)

The Heating, Ventilation, and Air Conditioning (HVAC) system of the 2013 Ram 1500, a key component of the truck’s 4th Generation platform, is designed to accommodate a cabin air filtration system. The physical location of this filter housing is consistently found behind the passenger-side glove compartment, nestled directly within the HVAC assembly. Locating this area requires straightforward disassembly of the glove box linkage and stops, a process generally requiring less than one hour for most owners.

However, the primary challenge associated with the 2013 Ram 1500—and indeed, most 4th Generation Ram 1500 trucks built between 2009 and 2018—is the critical caveat that the filter access slot is often sealed by the factory. Unlike later models (2016 onward) which typically include a removable access cover, the majority of these earlier models feature a continuous, molded plastic wall where the filter door should be located.

For the owner of a 2013 Ram 1500, this means that the first attempted “filter change” must involve a permanent vehicle modification, commonly referred to as a retrofit modification. This process necessitates the use of a genuine Mopar retrofit kit and the precision cutting of the molded plastic housing to create an access door.

This diagnostic distinction is paramount and serves to immediately empower the truck owner. Reports from the ownership community highlight instances where service centers have recommended or charged for a filter replacement without performing the required physical modification, relying on the assumption that the vehicle had a standard access door. Verifying the sealed housing is the first critical step to prevent unnecessary expense and confirms the need for this detailed DIY guide. The following sections provide a definitive, technical walkthrough for identifying the location and executing the mandatory retrofit procedure.

Semantic Core: Understanding the 4th Generation Ram HVAC System and Filter Function

The 2013 Ram 1500 is firmly situated within the 4th Generation (2009–2018/2019) model range. The HVAC and blower motor design utilized across this generation shares essential architectural similarities, meaning that the procedures and parts specified in this guide apply broadly to this entire platform.

The Purpose of the Cabin Air Filter

The cabin air filter is a specialized component whose role is often understated but crucial to both occupant health and vehicle longevity. The filter media, typically composed of tightly woven fibers like paper, cotton, or synthetics, is pleated to maximize surface area and filtering capacity. As outside air is drawn into the vehicle for climate control (AC or heat), the filter captures fine particulates, including dust, road debris, mold spores, and pollen, preventing these contaminants from entering the cabin environment.

Filter Media Types and Benefits

Not all cabin air filters offer the same level of filtration or protection. There are two principal types available for the Ram 1500 platform:

1. Standard Particulate Filters: These use woven media to effectively trap physical debris and dust.

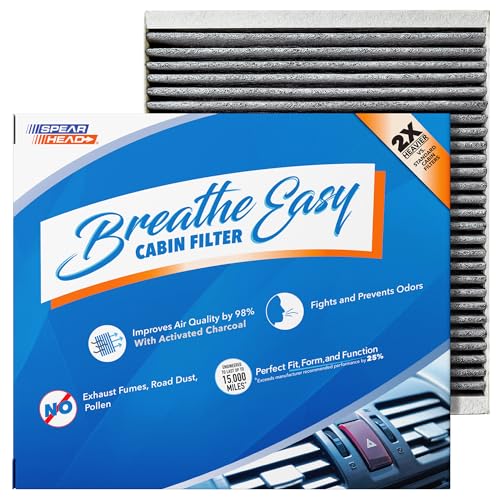

2. Premium Filters (Activated Carbon/Charcoal): These filters incorporate a layer of activated charcoal, sometimes referred to as Fresh Breeze media (e.g., FRAM Fresh Breeze), which chemically neutralizes noxious gases and odors.⁷ This premium filtration significantly improves air quality for occupants, particularly in high-pollution or urban driving environments, by blocking harmful components such as sulfur dioxide and carbon monoxide, as well as general exhaust fumes.

Why DIY the Retrofit? Saving the Blower Motor

The primary justification for undertaking the complex retrofit procedure is not merely improved air quality, but long-term protection of the HVAC components themselves.

The filter serves a critical protective function: shielding the blower motor cage from accumulating large debris, such as leaves, pine needles, and large pieces of organic material that are drawn into the air intake.¹⁰ When a filter is present and becomes saturated with particulate matter, airflow is progressively restricted. If the filter is allowed to remain severely clogged, or if the access slot remains sealed and debris bypasses where the filter should be, the blower motor must strain excessively to push air through the restricted path or against accumulated internal debris.

This elevated resistance increases the strain on the motor's electrical components and mechanical bearings, potentially leading to premature failure of the blower motor. Blower motor replacement constitutes a significantly more extensive and expensive repair than the proactive, preventative measure of installing and routinely replacing the cabin air filter. Thus, the effort and inherent risk involved in the initial modification procedure are demonstrably outweighed by the certainty of mitigating future, much higher repair costs associated with HVAC system failure.

Pre-Operation Checklist, Required Materials, and Essential Safety Protocols

Successfully converting the sealed 2013 Ram 1500 HVAC housing requires meticulous preparation, especially concerning tooling and safety procedures, given the necessity of physically cutting the vehicle’s plastic components.

Mandatory Retrofit Kit Components

The modification requires specific Genuine Mopar components engineered to fit the existing blower motor housing precisely. Aftermarket components may fail to provide the necessary secure seal.

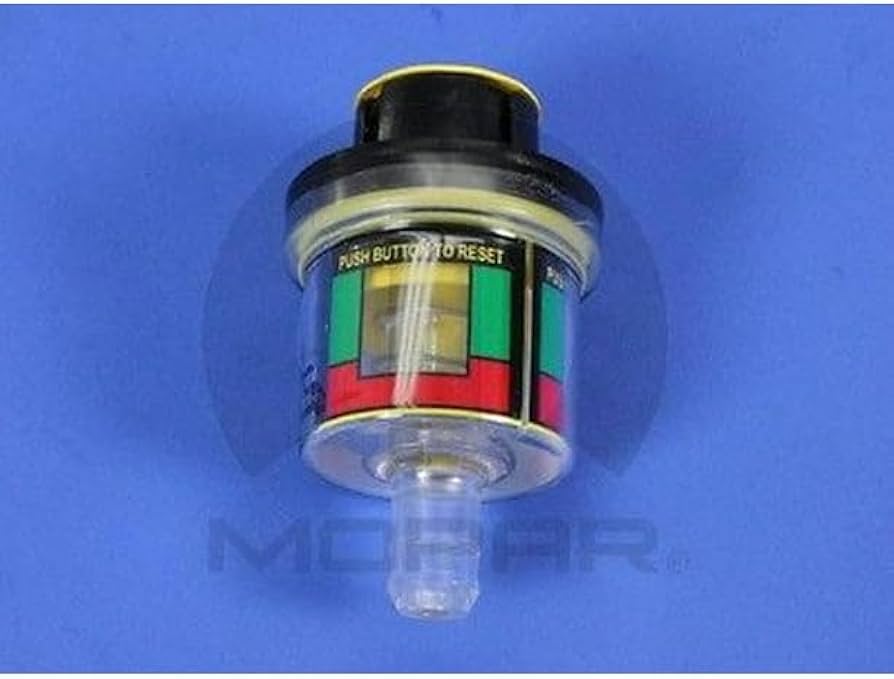

• Mopar Retrofit/Heater Door and Filter Kit: This kit provides the necessary template and sealing access door. The required components are specified by the following part numbers, which are typically sold together or referenced in conjunction: 5058693AA & 68052292AA. These parts establish the structural integrity for all future filter changes.
• Replacement Filter Element: While the kit may include a filter, replacements must fit the newly created housing. The standard Mopar filter element is Part Number 68535623AA (which replaces 68318365AA and 68406048AA). Equivalent aftermarket filters are widely available.

Tool List Breakdown

The tools required are separated into standard components needed for glove box removal and specialty tools necessary for the cutting phase.

• Standard Tools:
  • Safety glasses and gloves.
  • Small flathead screwdriver or trim tool (for disengaging linkage).
  • Small shop vacuum or detailed suction device.
  • Painter's tape or masking tape.
• Retrofit Specific Tools (Critical for Precision):
  • High-quality utility knife or razor blade. Some users report success using an oscillating multi-tool with a shallow blade set, as this provides greater control over the depth of the cut and reduces the risk of accidental damage to internal components.

CRITICAL Safety Protocol (Mitigating Debris Risk)

The most significant risk during both the diagnostic check and the cutting procedure is the potential for debris (either accumulated trash behind the sealed housing or plastic shavings from cutting) to fall into the exposed blower motor cage. If debris enters the blower motor, it can cause immediate noise, imbalance, or eventual failure.

Therefore, an explicit, multi-stage debris mitigation protocol is mandatory:

1. Pre-Cut Cleaning: Once the glove box is removed and the sealed housing is visible, use the shop vacuum to thoroughly clean the exterior surface of the housing and surrounding area.
2. Cutting Prep: Apply painter's tape along the edge of the intended cut line. This helps delineate the path and provides a temporary sticky surface to trap fine plastic dust. Some users also advise placing a small strip of tape along the filter edge prior to installation to act as a handle for easier future removal.
3. Active Debris Removal: Position the running shop vacuum directly below the cutting path before starting the cut. The vacuum should operate continuously throughout the cutting phase to capture plastic shavings immediately as they are generated.
4. Post-Cut Cleaning: Immediately after the cut plastic piece is removed, thoroughly vacuum the newly exposed housing edges and the filter cavity to ensure no fine plastic particles or long-accumulated debris (like dried leaves) have fallen near the blower motor fan.

The Step-by-Step Diagnostic: Accessing the Filter Housing

This foundational procedure must be executed whether the vehicle requires a full modification or a simple filter replacement, as it provides the necessary visual confirmation of the HVAC housing status.

Removing the Glove Box Assembly (The Gateway)

The glove box is retained by three lower hinges, two upper compression tabs, and a single damper cord linkage.

1. Empty and Prepare: Remove all contents from the glove box entirely.
2. Disconnect Damper Linkage: Locate the damper cord linkage, situated on the right side of the glove box assembly. The linkage is responsible for the controlled, slow drop of the box. To release it, gently pull the base of the linkage toward the interior of the cabin until it disengages from the corresponding bracket on the glove box. This step releases the tension.
3. Release Compression Tabs: Locate the two plastic support tabs (stops) on the top corners of the glove box opening. Using both thumbs, compress these tabs inwards simultaneously.
4. Lower and Release Hinge Tabs: While maintaining compression on the tabs, gently pull the glove box forward. Continue lowering the box slowly until the three lower hinge tabs at the bottom release their hold on the dash structure.
5. Secure Storage: Carefully remove the entire glove box assembly and place it out of the work area to ensure ample space for the filter housing inspection.

Visual Confirmation: Is the Access Door Sealed or Open?

With the glove box removed, the HVAC housing and blower motor enclosure on the passenger side are exposed. The location of the filter slot is clearly defined by a rectangular or square outline molded into the plastic.

• Diagnosis 1: Open Access (Filter Already Installed or Retrofitted): If a cabin air filter has been previously installed, the housing will feature a recognizable plastic cover secured by two clips or locking tabs (one on each side).¹ In this case, the owner may proceed directly to the standard maintenance procedure in Section V.
• Diagnosis 2: Sealed Access (First Time Access): If the truck has never been modified, the area where the door clips would normally be located is uniform and continuous, consisting of a single piece of molded plastic covering the rectangular opening. There will be no separate door or locking tabs visible. This confirms the necessity of the permanent modification using the Mopar retrofit kit, requiring the user to proceed to Section VI.

Maintenance Procedure: Scenario 1 – Standard Filter Replacement

If the diagnostic process confirms the presence of an existing access door, the 2013 Ram 1500 is either a rare version that came factory-equipped with the door (or a post-2016 model) or has already undergone the modification. The procedure for replacement is standard.

1. Release and Remove Cover: Press the locking tabs located on each side of the filter cover. These tabs must be pressed toward the center of the housing to release the door.¹ Once loose, remove the cover and place it aside.
2. Gentle Filter Removal: Pull the old filter element straight out of the slot. Due to the snug fit and potential accumulation of debris, pull slowly. If the filter is heavily soiled, exercise caution to avoid shaking large leaves or particles down into the blower motor fan. A quick vacuum of the filter cavity before inserting the new filter is recommended.
3. Confirm Flow Direction: Crucially, cabin air filters are directional components. The new filter element will feature an arrow indicating the required airflow direction. This arrow must align with the direction indicated on the HVAC housing (usually pointing toward the rear of the vehicle). Incorrect installation will render the filter ineffective or restrict flow.
4. Installation and Seal: Slide the new filter element into the slot until it is fully seated. Reinstall the access cover, pressing it against the housing until both clips or tabs lock firmly into place with an audible confirmation click.
5. Reassembly: Reinstall the glove box by first aligning and inserting the three lower hinge tabs into the dash. Tilt the glove box upward, ensuring the upper stops engage, and reconnect the retracted damper cord linkage on the right side. Functionally test the glove box by opening and closing it to ensure the damper cord operates correctly.

Definitive Retrofit Guide: Modifying the 2013 Ram 1500 HVAC Housing

For vehicles confirmed to have a sealed housing, this section details the mandatory and irreversible modification process. Given the permanence of this action, precision is non-negotiable.

Required Kit Review (5058693AA & 68052292AA)

The complexity of the sealed housing necessitated Mopar to produce a specialized kit. The primary advantage of using the genuine Mopar kit is that it provides a professionally engineered access door and a rigid frame that ensures a proper, airtight seal around the newly created opening. This seal is crucial for maintaining the HVAC system's efficiency and protecting the internal blower motor from unfiltered air bypass. The kit, compatible with 2009-2017 Ram 1500 and HD trucks, standardizes the housing for future maintenance.

Precision Cutting: Creating the Access Slot (The Point of No Return)

This procedure demands patience and strict adherence to the critical safety protocols detailed in Section III regarding debris mitigation.

1. Prep and Mark: Prior to cutting, apply painter's tape along the perimeter of the existing molded outline to clearly define the cut path. As a preventative measure, place a shop vacuum nozzle directly underneath the cut area, running continuously.
2. Execution of the Cut: The plastic housing is relatively thick but marked with a guide line for the cut.
   • If using a utility knife, score the plastic repeatedly along the recessed line. Deepen the cut with controlled, steady strokes. Avoid applying excessive side force, as this can cause the knife to slip and result in uneven edges or injury.
   • If using an oscillating tool, set the blade depth precisely to slightly exceed the thickness of the housing wall. This controlled depth minimizes the risk of damaging components inside the air box. Cut along the pre-marked line slowly.
3. Removal and Cleaning: Once the plastic piece is nearly severed, carefully pull the flap out of the way. Ensure the cut-out piece does not fall into the blower motor opening. Immediately use the high-powered shop vacuum to meticulously clear all plastic shavings, dust, and any large debris accumulated within the newly exposed slot and housing edges. Cleaning up the edges of the cut with the knife or file may be necessary to ensure a smooth surface for the kit components.

Installing the Filter and Securing the New Access Door

1. Filter Installation: Install the filter element, confirming that the airflow direction arrow aligns correctly with the flow path of the HVAC system.
2. Door Installation: Install the frame components provided in the Mopar kit (if the kit features separate frame elements) around the newly cut opening to finish the rough edges.
3. Securing the New Door: Secure the new plastic access door (the 68052292AA component) over the opening. This door uses clips or screws to provide a robust, repeatable seal, clicking firmly into place to ensure airtight closure.
4. Final Reassembly: Reverse the steps for glove box installation (Section IV). Test the glove box function fully. The successful completion of this modification means that all future filter changes will be a simple maintenance procedure (Scenario 1).

Comprehensive Parts Data and Procurement Guide

Understanding the correct part numbers and dimensional requirements prevents procurement errors and ensures that the newly installed filter fits snugly, providing an adequate seal against the housing.

Aftermarket Selection and Dimensional Integrity

While the Mopar filter element (68535623AA) is guaranteed for fitment, numerous high-quality aftermarket options exist, including those featuring activated carbon media for enhanced odor filtration (e.g., FRAM Fresh Breeze CF10729).

Dimensional variance between brands highlights the tight tolerances involved. A filter that is too large, even by a small fraction of an inch, may warp when forced into the slot, which compromises the seal. Air will then bypass the filter, rendering the modification largely useless and allowing debris to still access the blower motor. Owners are advised to compare specific brand dimensions before purchase.

Table 1: Key Cabin Air Filter & Retrofit Kit Specifications for Ram 1500 (4th Gen)

Table 2: Typical Filter Dimensions (Inches) for 2013 Ram 1500 Aftermarket Options

Replacement Schedule and Clogged Filter Troubleshooting

Once the retrofit is complete, adhering to a consistent maintenance schedule is essential for maximizing the benefits of the newly installed filtration system.

Service Intervals for Peak Performance

Ram manufacturers recommend replacing the cabin air filter every 15,000–20,000 miles, or at least once per year. This interval ensures that particulate buildup does not severely impede airflow or allow microbial growth.

However, these intervals should be accelerated based on environmental and driving conditions. If the vehicle is frequently operated in severe conditions—defined as frequent driving on dusty roads, off-road environments, or in areas prone to high pollution (such as during wildfire events)—it is prudent to inspect the filter at least twice annually (every 7,500 to 10,000 miles). Proactive checking, such as during every engine oil change, ensures the filter is clean and flowing well.⁶ For comprehensive guidance on other critical preventative services, owners should consult this Optimizing Ram 1500 Engine Maintenance for Longevity.

Diagnosing Symptoms of Failure (When to Change Sooner)

The HVAC system provides several clear diagnostic indicators when the cabin air filter is nearing the end of its service life:

• Musty/Moldy Odors: An acrid, musty, or moldy smell emanating from the vents is a common sign of a failing filter, indicating that moisture and microbes are growing within the media or on the evaporator core itself.
• Poor Defrost/Fogging: A critical safety hazard occurs when the windows and windshield persistently fog up and fail to clear properly. This happens because the clogged filter restricts necessary airflow and impedes the HVAC system’s ability to manage cabin humidity and temperature differences effectively.
• Reduced Airflow and Fan Noise: A noticeable decrease in the velocity of air coming from the vents, or a labored, noisier operation of the blower motor , indicates the motor is struggling to overcome the resistance created by the densely clogged filter.

The consequence of neglecting a clogged filter extends slightly beyond mere comfort and air quality. When the HVAC system must exert more energy to force air through a restricted filter, it demands increased power from the engine. This increased load, while minor, translates into a corresponding increase in fuel consumption. Therefore, routine filter replacement is a small but measurable factor in maintaining the vehicle's optimal operational efficiency, linking a simple maintenance task to broader economic benefits.

Table 3: Ram 1500 Cabin Filter Replacement Schedule and Symptoms

Conclusion: Take Control of Your Ram’s Air Quality

The initial installation of a cabin air filter in a 2013 Ram 1500 requires acknowledging the unique engineering challenge of the 4th Generation platform—the sealed access door. This complex maintenance task transforms from a quick replacement into a permanent vehicle modification utilizing the specialized Mopar retrofit kit (68052292AA). The detailed, technical approach provided here ensures that the DIY owner can successfully perform this modification with the necessary precision to protect the costly blower motor assembly and guarantee clean cabin air for years to come.

By executing the precision cutting procedure, installing the Mopar kit correctly, and adhering to strict debris mitigation protocols, the owner establishes a standard maintenance cycle that prevents expensive repairs, improves air quality, and safeguards driver visibility. Regular attention to this component, particularly when operating under severe conditions, is key to maximizing the longevity and efficiency of the truck's HVAC system. Furthermore, ensuring that the truck’s operational health is monitored includes routine inspection of the vehicle’s chassis components; consider referencing this Guide to Ram 1500 Brake Inspection and Replacement for further preventative maintenance instruction.

Frequently Asked Questions (FAQs)

How often should I replace the cabin air filter in my 2013 Ram 1500?

The recommended service interval is every 15,000 to 20,000 miles or at least once per year. However, if the truck is frequently exposed to dusty conditions, off-road travel, or excessive pollution, the filter should be inspected and potentially replaced twice a year.

What is the Mopar part number for the 2013 Ram 1500 cabin air filter retrofit kit?

The essential components for the retrofit, including the filter door and housing, are part numbers 5058693AA & 68052292AA. These numbers are crucial for ensuring proper fitment and sealing post-modification.

Why was my 2013 Ram 1500 built without a cabin air filter access door?

During the 4th Generation production run, Ram utilized a universal HVAC air box designed to house the filter across various trims and markets. However, in many base or mid-level models, the access port was deliberately sealed with molded plastic as a cost-saving measure during assembly, despite the internal system being designed for filtration. The system itself was prepared for a filter, but the factory access was omitted.

Can a clogged cabin filter affect my AC performance?

Yes. A dirty or clogged filter severely restricts the volume of air that can be pushed through the HVAC system, forcing the blower motor to work harder and reducing the overall effectiveness and circulation capacity of both the AC and heating functions.
