2014 Ford F150 Exhaust System Diagram: 2026 Troubleshooting Guide
The 2014 Ford F150 exhaust system layout features a split dual-bank configuration converging into a single muffler and tailpipe assembly. Key components include dual upstream O2 sensors, catalytic converters, the resonator, mid-pipe, muffler, and rear tailpipe. Proper routing requires maintaining clearance from the driveshaft and fuel lines for optimal heat dissipation and backpressure management.
📌 Key Takeaways
- The 5.0L and 3.5L EcoBoost engines utilize specific flange-to-muffler configurations with varying pipe diameters from 2.5 to 3 inches.
- Oxygen sensor downstream placement is critical for identifying potential catalytic converter efficiency codes (P0420/P0430).
- Exhaust manifold studs are prone to snapping; always use high-temp anti-seize and torque to 18 lb-ft during reinstallation.
- The most common failure point is the flex pipe section, which develops air leaks leading to engine performance degradation.
- If heavy rust has compromised structural integrity or structural weld points, consult a certified muffler shop for professional cutting and welding.
The exhaust system of a 2014 Ford F-150 is a sophisticated engineering marvel designed to balance backpressure, emissions control, and acoustic performance across diverse engine platforms, including the 3.5L EcoBoost, 3.7L V6, 5.0L Coyote, and 6.2L V8. Understanding the 2014 ford f150 exhaust system diagram is essential for any technician tasked with identifying leaks, diagnosing sensor malfunctions, or performing system upgrades. This overview provides a deep dive into the structural layout and specific component functions required to maintain optimal engine efficiency. Whether you are dealing with a manifold stud failure or a catalytic converter restriction, having a firm grasp of the system blueprint ensures safe and efficient repairs.
Prime for Young Adults — 6 Months Free
Students and 18–24s get six months of Prime free, then half price.
Start 6 Months Free[DIAGRAM_PLACEHOLDER: Insert schematic here: 2014 Ford F-150 Exhaust System Layout showing manifolds, Y-pipe, catalysts, and muffler placement.]

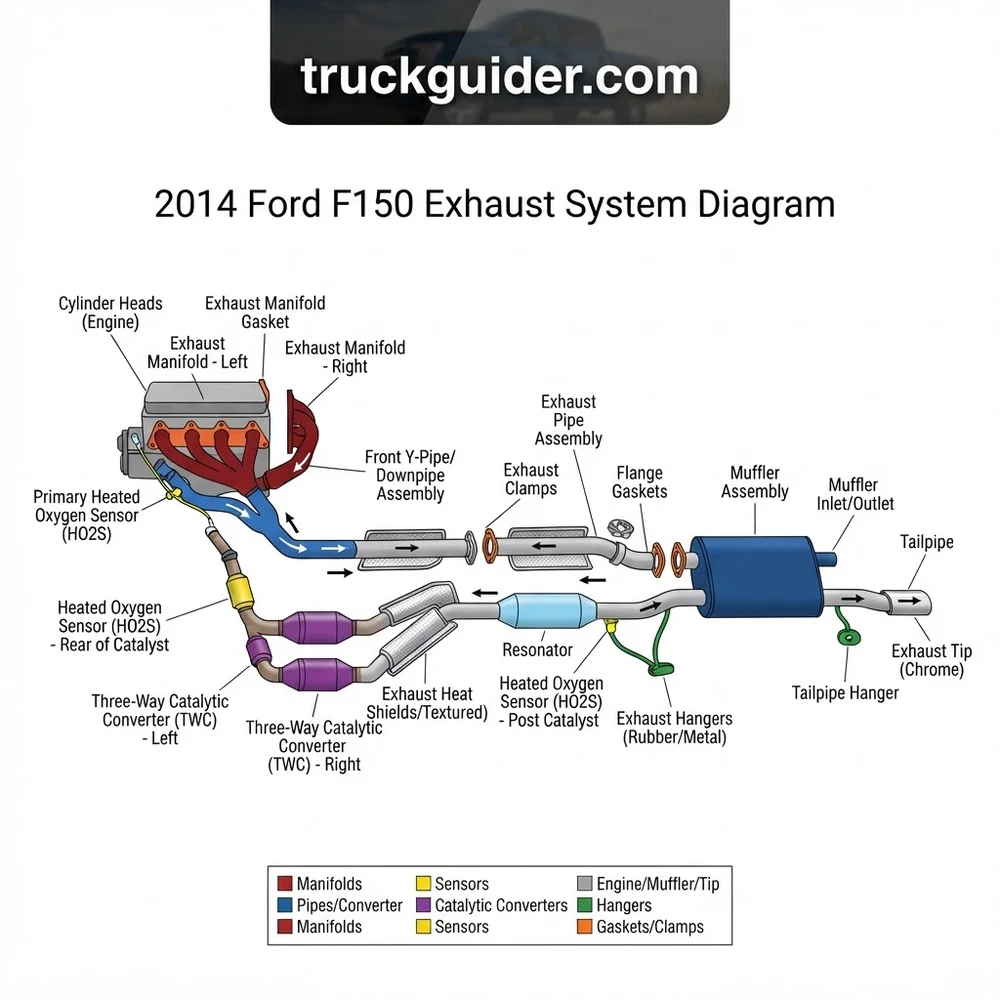

2014 Ford F150 Exhaust System Diagram: Every Part Labeled
Recommended Best Deal Products
The exhaust architecture of the 2014 F-150 is highly configuration-dependent, varying based on the engine displacement and wheelbase length (e.g., 126-inch, 145-inch, or 163-inch). The primary flow path begins at the cylinder heads and terminates at the tailpipe. Mapping these components correctly is vital for emission compliance and performance.
| Component | Primary Function | Diagnostic Indicator |
|---|---|---|
| Exhaust Manifold | Collects pulses from cylinder head ports. | Audible ticking at cold start. |
| Upstream O2 Sensor | Monitors A/F ratio for ECU fuel trim. | P0171/P0174 lean codes. |
| Catalytic Converter | Reduces NOx, CO, and HC emissions. | P0420/P0430 efficiency codes. |
| Resonator | Cancels specific acoustic frequencies. | Increased interior cabin drone. |
| Muffler | Reduces overall sound pressure levels. | Internal rattle or blockage. |
The exhaust manifold acts as the primary collection point. On the 5.0L V8, you have dual manifolds merging into a collector pipe, whereas the 3.5L EcoBoost setup integrates the turbocharger exhaust housing directly into the manifold structure. The oxygen sensors are positioned strategically; the upstream (Bank 1/2, Sensor 1) sensors dictate fuel injection timing, while downstream sensors (Sensor 2) monitor the integrity of the catalytic converters. If your schematic shows a damaged catalytic converter, it is often due to an underlying fuel trim issue upstream. The resonator, often located mid-pipe, is specific to the 2014 model year’s attempt to neutralize high-frequency drone common with the modular engine configurations. Always verify your specific wheelbase in the blueprint before ordering replacement pipes, as hangers and pipe lengths vary significantly.
For the 3.5L EcoBoost variant, the exhaust system configuration includes dedicated cooling lines to the turbocharger housings. When replacing manifolds, ensure these lines are properly bled to prevent airlocks that could lead to thermal runaway.
How to Navigate the 2014 Ford F150 Exhaust System Diagram Step by Step
Navigating a 2014 ford f150 exhaust system diagram requires a logical, systematic approach. Whether performing a manifold gasket replacement or a full cat-back swap, follow these professional procedures to maintain structural integrity.
1. Preparation and Safety: Secure the vehicle on a heavy-duty lift. Exhaust components are prone to extreme thermal cycling, causing bolt heads to seize or snap. Apply high-temperature penetrating oil to all studs, flanges, and hanger grommets 24 hours prior to service.
2. Manifold Stud Inspection: The 5.0L Coyote engine is notorious for broken manifold studs near the rear cylinders. Use the diagram to identify the specific stud locations. If a stud is broken flush with the head, use a center punch and a left-handed drill bit to extract. Do not exceed 18 lb-ft of torque when reinstalling new manifold studs to prevent shearing.
3. Flange and Gasket Alignment: When removing the Y-pipe or connecting the manifold to the mid-pipe, ensure the exhaust gasket is seated perfectly. A misaligned gasket creates a localized high-pressure leak that mimics a lifter tick. Use a new OEM-equivalent graphite-core gasket for every installation.
4. Hanger Tension Analysis: Use the blueprint to identify all five primary exhaust hangers. If the exhaust system is vibrating against the frame, check the rubber grommets for dry rot. The exhaust configuration must float; if the hangers are under tension, thermal expansion will cause the welds at the flange connections to crack over time.
5. Sensor Calibration: Before final installation, check the oxygen sensor wire routing. The wiring harness must not be in proximity to the catalytic converter shell, as high surface temperatures (often exceeding 1,200°F) will melt the sensor pigtail insulation, leading to intermittent signal shorts.
Following these steps prevents common assembly errors. Always verify that the exhaust pipe diameter matches the factory specification, as narrowing the pipe too aggressively can introduce unwanted backpressure, negatively affecting the scavenging effect required for peak volumetric efficiency.
Common 2014 Ford F150 Exhaust System Diagram Problems and Fixes
Recommended Best Deal Products
Even with regular maintenance, the exhaust system faces harsh environmental conditions. The following list identifies frequent failures observed in the 2014 F-150 chassis and provides industry-standard resolutions.
Exhaust Manifold Leak: Characterized by a sharp, rhythmic ticking sound that accelerates with RPM. This is frequently caused by warped manifolds or sheared rear studs due to thermal expansion differences between the steel stud and the cast iron manifold. Replacement with stainless steel headers or updated thicker-flange manifolds is the recommended fix.
Catalytic Converter Efficiency: If you observe the P0420 or P0430 codes, do not automatically replace the converter. Check the upstream O2 sensors first. A slow-switching sensor can trigger a false catalyst efficiency code. Use a diagnostic scan tool to graph the voltage of Sensor 1 versus Sensor 2; Sensor 2 should remain relatively flat if the catalyst is functioning correctly.
Excessive Backpressure: If the vehicle feels lethargic at high RPM, the catalytic converter media may have collapsed, creating an internal blockage. Test this by measuring the exhaust backpressure at the pre-cat sensor port; pressure should remain below 1.5 psi at 2,500 RPM.
Unwanted Resonance: If a new aftermarket component introduces a drone between 1,800 and 2,200 RPM, it suggests the system frequency has shifted. The OEM exhaust system uses specific helmholtz-style chambers. If you have removed these, adding a “J-pipe” or “quarter-wave” resonator of the correct length can eliminate the harmonic vibration.
* Flange Corrosion: Salt and moisture ingress often cause the mid-pipe flanges to rust thin. Avoid simple welding patches; the base metal is likely compromised. Replace the entire flange section with a high-quality stainless steel slip-fit coupler if possible.
Audible — Listen Free for 30 Days
One free credit a month and thousands of titles included.
Listen Free for 30 DaysNever attempt to weld a leaking catalytic converter shell. The internal ceramic substrate is highly susceptible to heat-induced fractures. Welding heat can cause the substrate to break apart, leading to a catastrophic blockage that may damage the engine.
Upgrading Your 2014 Ford F150 Exhaust System Configuration
Upgrading the exhaust system is a popular modification, but it requires an understanding of how changes affect the vehicle’s engine management system. The 2014 F-150 relies on precise airflow calculations; radical changes to the exhaust path can shift the power band significantly.
| Upgrade Level | Scope of Work | Legal/Emission Impact |
|---|---|---|
| Axle-Back | Replaces muffler and tailpipe only. | Minimal; fully emission compliant. |
| Cat-Back | Replaces piping from cat to exhaust tip. | Compliant if catalysts remain untouched. |
| Turbo-Back | Full system from turbo to tailpipe. | Significant risk of non-compliance. |
When choosing a configuration, consider the legal implications. Removing or replacing the catalytic converter with a high-flow test pipe is a federal violation of the Clean Air Act. Most street-legal upgrades focus on a Cat-back system, which replaces the tubing behind the primary converters. This allows for improved flow and a deeper exhaust note without triggering check engine lights or failing emissions testing. For the EcoBoost engines, maintain a larger diameter (typically 3.0-inch) to keep exhaust gas velocities high, which is crucial for quick turbocharger spooling.
For optimal performance gains, ensure that any aftermarket exhaust upgrade is paired with a matching ECU tune. The factory engine management system is calibrated to a specific backpressure profile; modifying the flow dynamics without updating the fuel and timing maps can result in a loss of low-end torque.
2014 Ford F150 Exhaust System Diagram Questions Answered
Recommended Best Deal Products
Is the 2014 F-150 exhaust system interchangeable between the 5.0L and 3.5L EcoBoost?
No, the systems are not interchangeable. The EcoBoost configuration requires specific turbo-outlet connections and different pipe routing around the transmission and transfer case. Always verify your engine code before sourcing parts.
What torque spec should be used for the exhaust manifold bolts?
The factory specification for the exhaust manifold studs on a 2014 Ford F-150 is typically 18 lb-ft (24 Nm). Always use a calibrated torque wrench in a star pattern to ensure an even seal across the gasket face, moving from the center outward.
Why does my 2014 F-150 throw a P0430 code after installing an aftermarket exhaust?
An aftermarket exhaust system that increases the distance between the catalytic converter and the downstream oxygen sensor can result in a P0430 (Bank 2 efficiency) code. This occurs because the sensor cools down too much or takes too long to reach operating temperature, causing the ECU to perceive a catalyst failure.
Can I safely delete the resonator to improve exhaust tone?
While resonator deletion is common to achieve a more aggressive sound, it often introduces an annoying cabin drone at highway speeds. If you choose to remove it, ensure the remaining pipe section is secured with an extra hanger to prevent vibration-induced stress on the muffler inlet weld.
Audible Premium Plus — Annual Membership
12 audiobook credits up front, plus the full Audible catalogue.
See Annual PlansHow often should oxygen sensors be replaced to maintain peak efficiency?
According to OEM recommendations, oxygen sensors should be inspected for performance degradation every 60,000 to 80,000 miles. Sluggish sensor response times are a leading cause of decreased fuel economy and premature catalytic converter degradation in the 2014 F-150.
Step-by-Step Guide to Understanding the 2014 Ford F150 Exhaust System Diagram
Identify – Inspect the entire exhaust run from engine headers to tailpipe for soot marks or gaps.
Locate – Find the specific flange connections and O2 sensors using the visual diagram as a reference map.
Reference – Match your truck’s engine configuration against the diagram to confirm component compatibility and layout.
Connect/Route – Align the exhaust hangers into the rubber isolators to ensure proper tension and avoid rattling.
Verify – Start the engine and listen for audible leaks at connections while checking for clearance from the fuel lines.
Troubleshoot – If check engine lights persist, re-verify O2 sensor electrical connections and catalytic converter sensor placement.
