2015 Chevy Silverado AC System Diagram: Troubleshooting 2026
The 2015 Chevy Silverado AC system relies on a high-pressure line from the compressor to the condenser, transitioning to the expansion valve. Ensure the system is charged to 0.75-0.85 lbs of R-134a refrigerant. If the blower motor fails, check the 40A fuse in the under-hood block and the relay trigger circuit.
📌 Key Takeaways
- The system capacity is approximately 22 to 24 ounces (0.62-0.68 kg) of R-134a refrigerant for dual-zone models.
- The AC compressor clutch relay is located in the under-hood fuse block, typically at position KR14.
- Always evacuate refrigerant using certified recovery equipment to avoid atmospheric contamination and potential legal fines.
- The most frequent failure point is the condenser due to rock strikes or the blend door actuator failing inside the HVAC box.
- Seek professional assistance if the system shows metallic debris in the refrigerant, indicating a catastrophic compressor internal failure.
The HVAC system in the 2015 Chevrolet Silverado K2XX platform is a complex thermal management network that relies on precise refrigerant pressures and electrical signaling to maintain cabin comfort. Understanding the 2015 chevy silverado ac system diagram is essential for any technician tasked with diagnosing climate control failures, as the system integrates heavily with the Engine Control Module (ECM) and the Body Control Module (BCM). Unlike older mechanical systems, this architecture utilizes variable displacement compressors and sophisticated sensor feedback loops. Accurate repairs require a deep dive into the routing of high and low-pressure lines, the operation of the electronic blower motor control module, and the precise state of the refrigerant charge.

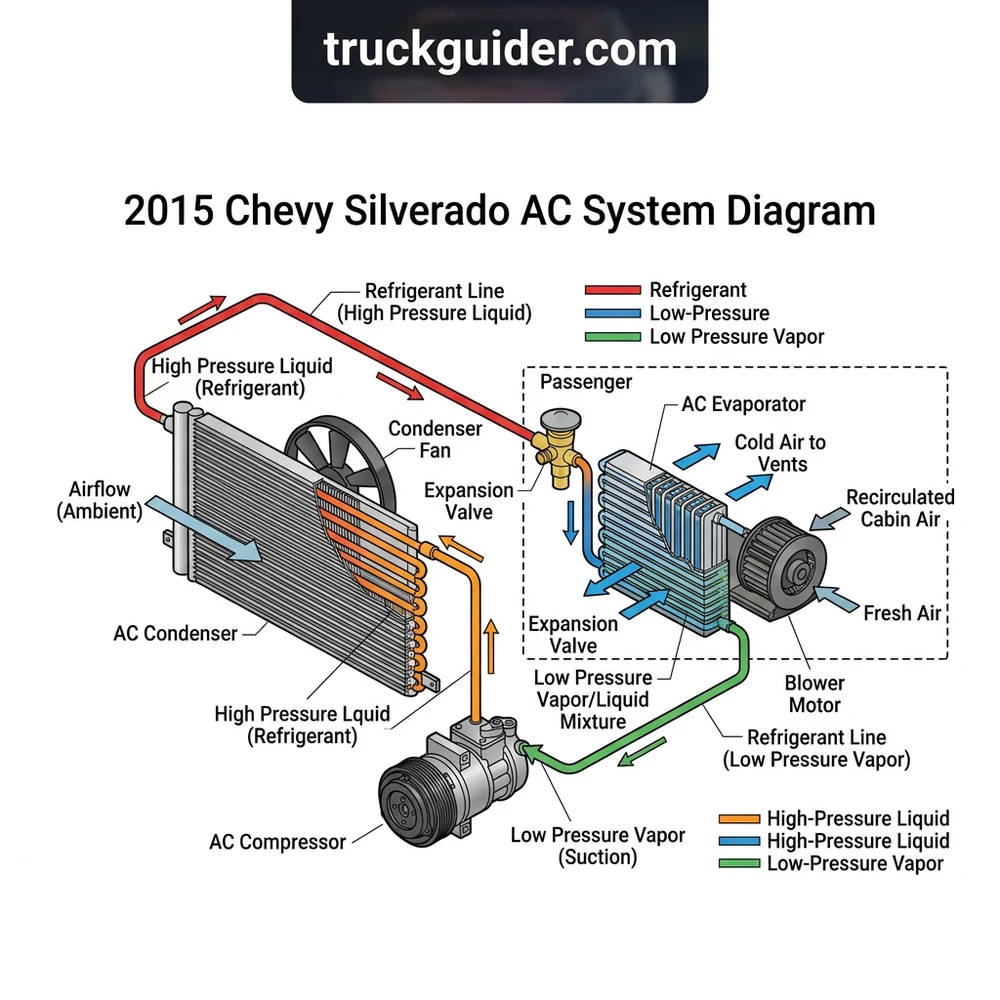

2015 Chevy Silverado Ac System Diagram: Core Components Explained
Recommended Best Deal Products
To troubleshoot the K2XX HVAC system effectively, you must understand how each module interacts within the 2015 chevy silverado ac system diagram. The system functions as a closed-loop thermal transfer mechanism, utilizing R-134a refrigerant to move heat from the cabin to the exterior environment. The following table provides a breakdown of the primary mechanical hardware that makes up the system’s architecture.
| Component | Function | Diagnostic Key |
|---|---|---|
| A/C Compressor | Variable displacement pump | Monitor clutch relay/PWM signal |
| Condenser | Heat exchanger for phase change | Check for debris and airflow |
| Expansion Valve | Regulates refrigerant flow | Look for freezing/starvation |
| Evaporator Core | Heat transfer to cabin air | Check for drain tube clogs |
| Blower Motor | Forces air through air handler | Test control module voltage |
The A/C compressor on the 2015 Silverado is not a simple on/off device. It utilizes a solenoid-controlled valve to adjust displacement based on the cooling demand calculated by the HVAC control head. When analyzing the 2015 chevy silverado ac system diagram, identify the manifold gauge pressures—typically 30-40 PSI on the low side and 200-250 PSI on the high side, depending on ambient temperature. If the pressure remains static despite the compressor pulley spinning, the control solenoid or the internal valve mechanism is likely failed.
The condenser acts as the primary heat exchanger, positioned in front of the radiator. Debris accumulation between the condenser and radiator is a frequent cause of head pressure spikes. Furthermore, the expansion valve, often located near the firewall, is a common failure point; when it fails to meter refrigerant correctly, you will observe “sweating” at the evaporator inlet or significant pressure imbalances. Always verify that the air handler is clear of obstructions, as the return duct must be unrestricted to ensure efficient evaporator performance.
Refrigerant capacity for the 2015 Silverado is typically 1.6 to 1.8 lbs (approx. 26-29 oz) of R-134a. Always consult the under-hood decal for the exact trim-specific charge weight, as crew cab models may vary slightly from regular cab configurations.
How to Read the 2015 Chevy Silverado Ac System Diagram Step by Step
Navigating the 2015 chevy silverado ac system diagram requires a systematic approach, starting with the electrical path. Because the HVAC system is “smart,” it requires a series of “permissive” signals before the compressor clutch will engage. If you are experiencing a “no-cool” condition, follow these steps to isolate the fault.
1. Verify Electrical Inputs: Using a multimeter, check the voltage at the A/C pressure sensor. This sensor sends a 5V reference signal to the ECM. If the ECM does not receive a voltage signal corresponding to a safe pressure range (typically 0.5V to 4.5V), it will inhibit the compressor signal. Consult your wiring schematic to ensure ground continuity at the sensor harness.
2. Inspect the Compressor Control Signal: The compressor clutch is commanded via a Pulse Width Modulation (PWM) signal. Use an oscilloscope or a high-quality scan tool to monitor the “A/C Compressor Clutch Request” data PID. If the requested status is “ON” but the output voltage at the compressor connector is absent, inspect the HVAC relay and fuse block located in the engine compartment.
3. Evaluate the Serpentine Belt and Pulley: Ensure the belt is tensioned to OEM specifications. A slipping belt can lead to insufficient compressor RPM, causing erratic pressure readings on the high side of the 2015 chevy silverado ac system diagram. Listen for bearing noise, which indicates internal compressor damage that could contaminate the entire refrigerant line system with debris.
4. Assess the High and Low-Pressure Lines: Trace the lines from the compressor to the condenser and finally into the evaporator. Check for oil residue at the crimp fittings, which indicates a slow refrigerant leak. Use an electronic leak detector to verify integrity. When testing the low-pressure service port, verify that the pressure drops when the compressor engages; if it remains high, the system is likely suffering from a restriction at the expansion valve.
5. Confirm Blower Motor Operation: If the cooling circuit is active but no air is exiting the vents, focus on the blower motor and the air handler. The blower motor speed controller often fails due to heat saturation. Use a test light to confirm that the controller is receiving a battery voltage supply and a variable speed signal from the HVAC control head.
When replacing any part of the refrigerant circuit, it is mandatory to flush the lines or replace the accumulator if the compressor has suffered a mechanical failure. Debris from a shredded compressor piston will circulate through the condenser and cause the new unit to fail within hours.
Troubleshooting 2015 Chevy Silverado Ac System Diagram Faults
Recommended Best Deal Products
When the system fails to perform, the 2015 chevy silverado ac system diagram serves as your roadmap for triage. Common faults in the K2XX HVAC architecture are often related to actuator failure or condensate drainage issues rather than strictly refrigerant leaks.
Blend Door Actuator Failure: This is the most common reason for “dual-zone” temperature imbalances. If the driver’s side is cold but the passenger side is blowing warm, the actuator gear is likely stripped. You will need to calibrate the actuators via a professional-grade scan tool after replacement.
Evaporator Drain Tube Obstruction: If you notice water accumulation on the passenger-side floorboard, the evaporator drain tube is clogged. This leads to moisture buildup inside the air handler, which can promote mold growth and corrode the internal components of the blower motor assembly.
Compressor Control Solenoid Failure: On the variable displacement compressor, the solenoid regulates the stroke of the internal pistons. If this solenoid fails, the compressor may continue to spin, but it will not build pressure. Verify the PWM signal before condemning the entire compressor unit.
Vacuum Leaks and Air Distribution: While the 2015 Silverado uses electronic actuators, any air handler housing leaks can lead to poor air volume. Ensure the return duct is properly sealed to the evaporator housing to maximize heat transfer efficiency.
* ECM/BCM Communication Errors: Occasionally, the HVAC control head fails to communicate with the BCM. Perform a master reset by disconnecting the negative battery terminal for 15 minutes to clear volatile memory in the HVAC modules.
Never attempt to service the high-pressure side of the A/C system while the vehicle is running and the compressor is engaged. Pressures can exceed 300 PSI, which can cause severe injury if a hose fails or a service coupler detaches unexpectedly.
2015 Chevy Silverado Ac System Diagram Questions Answered
Why does my compressor cycle on and off rapidly when the system is low on refrigerant?
When the refrigerant charge is insufficient, the low-pressure switch detects a pressure drop below the threshold (typically ~25 PSI). To prevent the compressor from running without adequate oil return, the ECM shuts down the system. The subsequent pressure equalization causes the switch to close again, resulting in rapid cycling.
Is it necessary to replace the orifice tube when replacing the condenser?
In the 2015 Silverado, the expansion valve is the primary metering device. If you are performing a major repair involving a compressor failure, it is considered industry best practice to replace the expansion valve, as metal filings can easily lodge in the valve seat and cause future restriction.
Where is the cabin air filter located in relation to the blower motor?
The cabin air filter is situated directly behind the glove box. It is upstream of the blower motor. If this filter is heavily soiled, it restricts airflow through the evaporator core, which can cause the evaporator to ice over, leading to a temporary loss of cooling and restricted airflow from the vents.
How do I calibrate the HVAC actuators after disconnecting the battery?
The K2XX HVAC system initiates a self-calibration routine upon the first power-up following a battery disconnect. Ensure the ignition is in the “ON” position but the engine is off. Allow the system to run for 60 seconds without adjusting the controls. You may hear the actuators moving; this is the system finding the “open” and “closed” limits for the doors.
Can I use a generic manifold gauge set to check the pressure?
Yes, however, ensure your couplers are compatible with the R-134a service ports on the K2XX platform. Since the system uses a variable displacement compressor, you may notice that pressure readings do not change as drastically as they do in fixed-displacement systems when the engine RPM increases. Monitor the “A/C Compressor Command” PID on your scan tool to ensure the ECM is actually requesting the load.
Step-by-Step Guide to Understanding the 2015 Chevy Silverado Ac System Diagram
Recommended Best Deal Products
Identify – Review the diagram to locate the specific electrical path for the AC compressor clutch relay and the blower motor circuit.
Locate – Find the AC compressor assembly at the front of the engine, driven by the serpentine belt, and the high/low pressure service ports near the passenger side firewall.
Reference – Cross-reference the wire colors listed in the schematic with the physical harness connections to ensure you are testing the correct signal pins.
Connect/Route – Use a multimeter to verify voltage at the clutch connector while the HVAC control head is set to max A/C.
Verify – Check the system pressures with a manifold gauge set; the low side should typically hover between 30-40 PSI, and the high side between 150-250 PSI at ambient temps.
Troubleshoot – If voltages are present but components fail to engage, inspect the ground connections for corrosion or use a jumper wire to bypass the relay temporarily for testing.
