2016 Ford F150 Exhaust System Diagram: Component Breakdown 2026
The 2016 Ford F150 exhaust system configuration features a modular design starting at the exhaust manifolds, leading to the catalytic converters, Y-pipe or dual-pipe assembly, resonator, and muffler. The system is held by vibration-dampening hangers. Proper routing ensures optimal backpressure and clearance from the driveshaft, fuel lines, and chassis components.
📌 Key Takeaways
- The system utilizes oxygen sensors (O2) upstream and downstream of the catalytic converters to monitor emissions efficiency.
- Ensure all flange gaskets are replaced during service to prevent exhaust gas leaks, which can affect sensor readings.
- Exhaust manifold studs are prone to snapping; use penetrating oil and torque to 18 lb-ft (24 Nm) during reinstallation.
- Common failure points include catalytic converter clogging and rusted exhaust hanger brackets causing rattling.
- Seek professional welding or machining assistance if flange bolts are severely seized to avoid damaging the cylinder head.
The 2016 Ford F150 exhaust system is a sophisticated assembly engineered to balance emission compliance, acoustic dampening, and engine performance. Whether you are dealing with a 2.7L EcoBoost, a 3.5L EcoBoost, or the 5.0L Ti-VCT Coyote V8, understanding the precise layout is essential for effective diagnostics and maintenance. This guide provides a comprehensive 2016 ford f150 exhaust system diagram analysis, mapping out every critical component from the exhaust manifolds to the tailpipe. By leveraging the manufacturer’s technical specifications, you can identify flow restrictions, seal failures, and sensor malfunctions, ensuring your truck maintains peak volumetric efficiency and meets critical OBD-II performance standards.

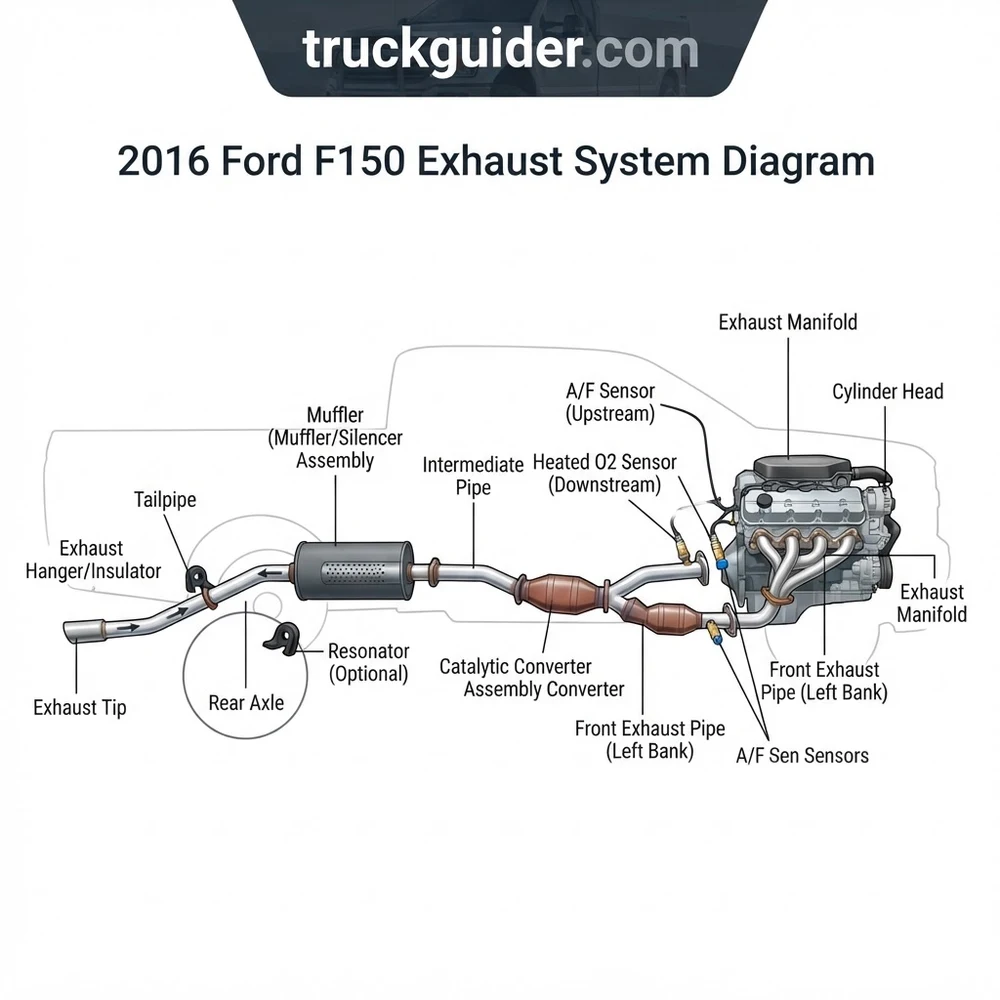

[DIAGRAM_PLACEHOLDER: 2016 Ford F150 Exhaust System Schematic]
2016 Ford F150 Exhaust System Diagram: Component Breakdown
Recommended Best Deal Products
To effectively service the exhaust path, you must accurately identify the interplay between various hardware sections. The following table maps the fundamental parts found in a standard 2016 F150 configuration, detailing their specific operational functions within the system structure.
| Component | Primary Function | Technical Significance |
|---|---|---|
| Exhaust Manifold | Collects gas from cylinders | Engine-specific design; directs pulse energy |
| Catalytic Converter | Chemical emissions reduction | Monitored by upstream/downstream O2 sensors |
| O2 Sensor | Air/Fuel ratio monitoring | Provides feedback loop to the PCM |
| Resonator | Acoustic frequency cancellation | Reduces cabin drone; flow-critical |
| Hanger Isolator | Vibration dampening | Prevents chassis resonance and pipe stress |
The exhaust manifold serves as the primary collection point. On the 3.5L EcoBoost, these manifolds are integrated directly into the turbocharger assembly, whereas the 5.0L Coyote uses a tubular or cast design. Once the gas exits the manifold, it passes through the catalytic converter, which uses a ceramic honeycomb structure coated with precious metals to facilitate an oxidation-reduction reaction.
The O2 sensor configuration is critical to the schematic. Upstream sensors (Bank 1/2 Sensor 1) measure the oxygen content before the converter, while downstream sensors (Bank 1/2 Sensor 2) verify converter efficiency. Any leak in the flange gaskets or a malfunctioning sensor bung will skew these readings, leading to a lean or rich diagnostic trouble code (DTC). The resonator acts as an expansion chamber designed to target specific sound frequencies, acting as a final tuning point before the exhaust gas exits through the tailpipe. Identifying these parts on the blueprint allows you to isolate noises—such as “ticking” from a cracked manifold versus a “hollow” sound from a loose resonator bracket.
Always replace the multi-layer steel (MLS) exhaust gaskets whenever the manifold or downpipe is removed. Once compressed, these gaskets lose their ability to create an airtight seal upon re-installation, risking exhaust leaks that trigger check engine lights.
Engine-Specific 2016 Ford F150 Exhaust System Layout Variations
The 2016 F150 utilizes varying exhaust configurations depending on the displacement and forced induction setup. The layout changes significantly between the EcoBoost engines and the naturally aspirated engines, impacting your approach to modifications or repairs.
For the 3.5L and 2.7L EcoBoost engines, the exhaust layout begins at the turbocharger outlet flange. Because these engines rely on exhaust gas velocity to drive the turbo impellers, the downpipes are intricately shaped to maintain heat retention and prevent turbulence. A primary difference here is the use of mandrel-bent tubing in the aftermarket, though OEM pipes often use press-bends. When reviewing the system configuration, note that the EcoBoost downpipes contain the primary catalytic converters in close proximity to the engine to expedite “light-off” during cold starts.
The 5.0L Ti-VCT Coyote engine features a dual-exhaust manifold setup that merges into a Y-pipe configuration. This layout is designed for high-flow scavenging. Unlike the EcoBoost, the 5.0L relies on exhaust pulse tuning rather than turbo backpressure requirements. The physical blueprint for this engine emphasizes pipe diameter consistency across the length of the system to prevent exhaust gas reversion.
Proper exhaust backpressure is essential for engine longevity. For the 3.5L EcoBoost, altering the downpipe diameter by more than 0.5 inches without an ECU reflash can disrupt the turbine speed, potentially causing an overboost condition or an engine lean-out condition.
Mandrel-bent tubing is the preferred standard for minimizing backpressure. In the 2016 layout, you will find that the piping travels along the chassis frame rails, secured by rubber hanger isolators. When inspecting this layout, ensure the clearance between the exhaust piping and the fuel lines or electrical harnesses remains at least 1.5 inches to prevent heat soak. If you are upgrading components, refer to the factory blueprint to ensure the new exhaust path maintains the original hanger positions, preventing structural fatigue on the exhaust manifolds.
How to Inspect and Repair the 2016 Ford F150 Exhaust System
Recommended Best Deal Products
When performing maintenance, a systematic approach prevents hardware damage, particularly with seized exhaust fasteners common in high-mileage trucks. Before beginning, soak all flange bolts in a high-penetration catalyst lubricant for at least 24 hours.
1. Safety and Preparation: Raise the vehicle on a certified frame hoist or use jack stands on the factory lift points. Never work under a truck supported solely by a hydraulic floor jack. Ensure the exhaust system is completely cool to avoid thermal burns.
2. Component Inspection: Using the 2016 ford f150 exhaust system diagram as a visual aid, inspect all gasket surfaces for carbon tracking (sooty marks), which indicates a leak. Examine the resonator and muffler shells for structural rust-through.
3. Flange and Gasket Removal: Use a six-point socket or an induction heating tool to remove rusted manifold studs. If a stud shears, use an extraction tool carefully. Before installing new gaskets, ensure the mating surfaces are cleaned of old material using a wire wheel or carbide scraper to ensure a flat, leak-free surface.
4. Hanger Isolator Replacement: Over time, the rubber hangers become brittle or stretched. If the exhaust system appears to be sagging or knocking against the chassis, replace all isolators simultaneously. Silicone-based spray can assist in removing the rubber from the metal pins.
5. Torque Sequence: Tighten exhaust manifold bolts in a center-outward pattern to prevent warping. Refer to the manufacturer’s torque specifications (typically 18–22 lb-ft for manifold studs, though values vary by cylinder head material). Ensure the flanges are seated evenly before applying full torque.
Do not use anti-seize compound on the O2 sensor threads unless specified by the sensor manufacturer. Most sensors come with a specialized coating pre-applied. Contamination of the sensor tip with anti-seize or silicone-based sealants will result in permanent sensor failure and inaccurate PCM data.
Common 2016 Ford F150 Exhaust System Diagram Troubleshooting
Using the schematic as a reference tool, you can diagnose performance issues by linking symptoms to specific areas of the exhaust path. The following list highlights common failures encountered during routine diagnostics.
Catalytic Converter Efficiency (P0420/P0430): If the check engine light illuminates with these codes, check the downstream O2 sensor voltages. If the sensor reading is “flat-lining” or not fluctuating in response to load, the converter’s catalyst bed may be degraded. Consult the diagram to ensure all exhaust leaks ahead of the converter are sealed, as oxygen ingress can trick the sensor.
Exhaust Manifold Ticking: A metallic ticking sound that increases with engine RPM is a classic sign of a broken manifold stud or a warped manifold flange. Check the manifold-to-head interface shown in the schematic. If you identify soot on the cylinder head, the exhaust gas is bypassing the gasket.
Hanger Isolator Vibration: If you hear a clunking noise when traversing bumps, check the hangers indicated in the diagram. A loose or torn isolator allows the pipe to strike the heat shield or frame rails. Replace them with high-density polyurethane isolators for a more rigid, durable solution.
O2 Sensor Bung Corrosion: On older models, the O2 sensor bungs can rust, making the sensor difficult to remove. If the threads are stripped, a shop must weld on a new bung. Reference the blueprint to ensure the new bung is positioned to maintain the original sensor angle, preventing interference with the flow path.
* Resonator Drone: If the exhaust tone suddenly becomes hollow or overly loud at highway speeds, the internal baffles of the resonator have likely collapsed. Referencing the system schematic, look for localized discoloration or denting on the resonator housing.
2016 Ford F150 Exhaust System Diagram Questions Answered
Recommended Best Deal Products
Does the exhaust system diagram change if my F150 has a lift kit?
While the primary routing of the exhaust remains identical to the factory blueprint, many lift kits require the relocation of the resonator or the tailpipe section to prevent interference with the rear suspension components. Always verify that your aftermarket exhaust maintains the required clearance from shock absorbers and brake lines to prevent heat damage.
Can I identify which O2 sensor is bank 1 sensor 2 using the schematic?
Yes. The 2016 Ford F150 exhaust system diagram labels sensors based on their location. Bank 1 is the passenger side (closest to the #1 cylinder). Sensor 1 is upstream (before the catalyst), and Sensor 2 is downstream (after the catalyst). Bank 2 is the driver side. Identifying these on the diagram is critical before purchasing replacement sensors.
Is the exhaust system stainless steel on all 2016 models?
Most components, including the resonator and muffler, are constructed from aluminized steel in the factory setup to manage costs. However, high-performance trims or specific regional packages may use 409-grade stainless steel. If you are welding or replacing sections, verify the material to ensure compatible welding rods or clamps are used.
Why does my exhaust rattle even after replacing the muffler?
The rattle is likely coming from a loose heat shield. Often, the spot welds holding the aluminum heat shields to the pipe fail due to rust. Review the system diagram for the specific location of these shields. Use large stainless steel hose clamps to secure loose shields back to the pipe if the original welds have detached.
How do I ensure my exhaust modifications remain legal?
Always keep the catalytic converters in their original locations as depicted in the official diagram. Removing or tampering with these components is a violation of federal emission regulations. Ensure any aftermarket performance exhaust is marked with appropriate DOT or EPA-compliance stamps, as unauthorized “off-road” setups will trigger continuous ECU error codes.
Step-by-Step Guide to Understanding the 2016 Ford F150 Exhaust System Diagram
Identify – Match your specific engine code to the correct exhaust configuration diagram.
Locate – Position the vehicle on a lift or jack stands to access the entire exhaust layout.
Reference – Inspect the diagram for hidden hanger locations and flange bolt sizing.
Connect/Route – Align the exhaust segments according to the system configuration, ensuring proper clearance from the chassis.
Verify – Torque all flange bolts to specification and check for leaks using a soapy water test while idling.
Troubleshoot – Check for rattle or resonance; adjust the hanger alignment if contact with the frame occurs.
