2017 Ford F150 Exhaust System Diagram: Component Breakdown 2026

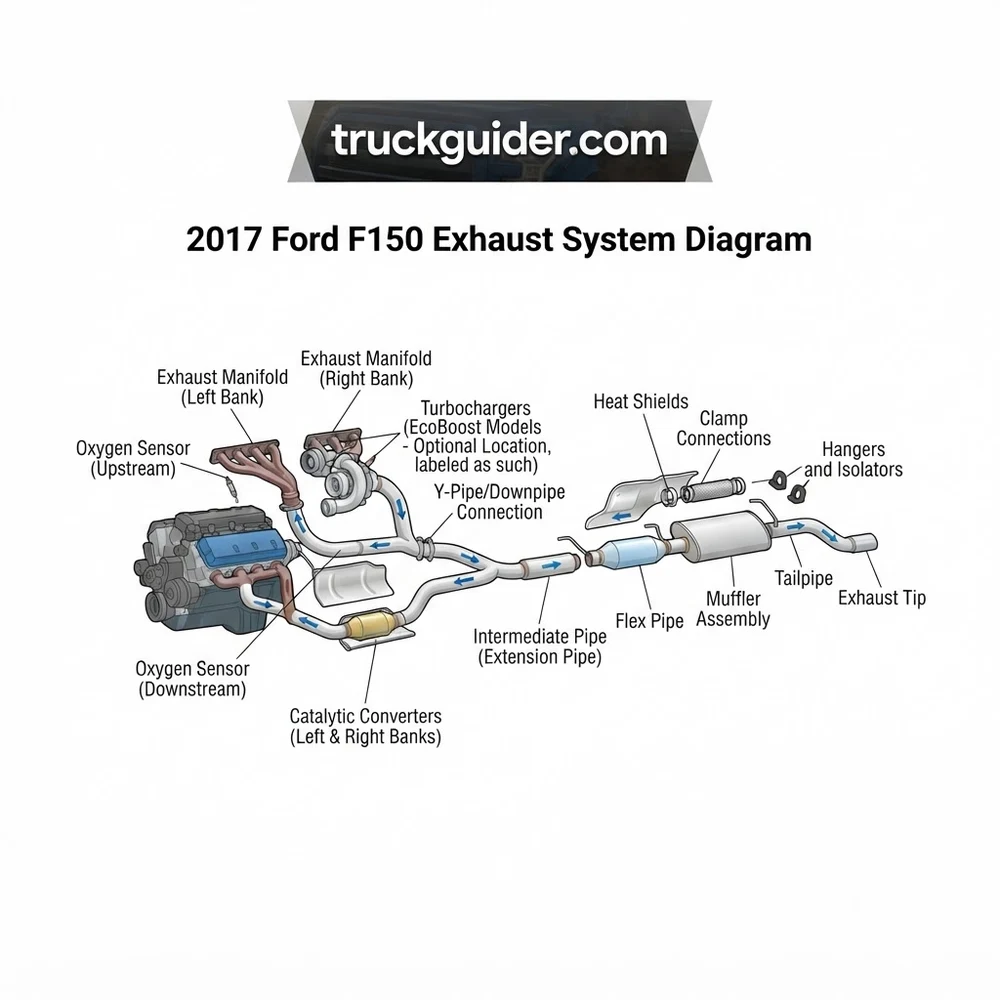

The 2017 Ford F150 exhaust system configuration features dual-bank manifolds leading to catalytic converters, followed by Y-pipe or resonator sections, a muffler, and a tailpipe assembly. Key elements include oxygen (O2) sensors at pre- and post-catalytic positions, critical for monitoring fuel-to-air ratios and emissions system performance.
📌 Key Takeaways
- Exhaust manifold bolts are prone to snapping; use a torque specification of 18 lb-ft during installation.
- Oxygen sensors identify bank 1 vs bank 2; sensor 1 is upstream of the catalytic converter, sensor 2 is downstream.
- Always use new gaskets when replacing system segments to prevent exhaust leaks and failed emissions tests.
- The most common failure point is the flex pipe section, which loses structural integrity due to heat cycling.
- Seek professional exhaust welding services if rusted flanges require cutting and fabrication beyond basic bolt-on component replacement.
The 2017 Ford F-150 utilizes a sophisticated exhaust architecture designed to balance stringent emissions standards with the high-output requirements of the 2.7L EcoBoost, 3.5L EcoBoost, 5.0L Ti-VCT, and 3.5L NA engines. Understanding the 2017 ford f150 exhaust system diagram is essential for professional technicians and advanced DIYers performing maintenance, manifold replacements, or performance upgrades. This system relies on precise backpressure management and sensor integration to maintain optimal powertrain control module (PCM) communication. By mastering the layout of these components—from the cylinder head mating surface to the tailpipe exit—you can accurately diagnose leaks, vibrations, or sensor-related faults that frequently impact these specific model-year platforms.
Prime for Young Adults — 6 Months Free
Students and 18–24s get six months of Prime free, then half price.
Start 6 Months Free[DIAGRAM_PLACEHOLDER: Insert schematic illustration of F-150 modular exhaust routing showing manifold-to-tailpipe sequence.]
2017 Ford F150 Exhaust System Diagram: Every Part Labeled
Recommended Best Deal Products
The structural integrity of the 2017 Ford F-150 exhaust system is dictated by the specific engine configuration. While the routing varies slightly between the 5.0L V8 and the EcoBoost variants—particularly concerning the position of the turbocharger outlets—the primary components follow a standardized progression. Utilizing the 2017 ford f150 exhaust system diagram allows technicians to isolate specific points of failure, such as thermal fatigue at the manifold or substrate degradation within the catalytic converter.
| Component | Function | Technical Significance |
|---|---|---|
| Exhaust Manifold | Collects gas from cylinders | Prone to stud shearing/warping |
| Catalytic Converter | Reduces emissions via oxidation | Primary point for O2 sensor feedback |
| Oxygen Sensor | Measures air-fuel ratio | Critical for closed-loop fuel trim |
| Resonator | Cancels specific acoustic drones | Often deleted in aftermarket setups |
| Muffler | Reduces exhaust gas noise | Internal baffling configuration |
The exhaust manifold acts as the primary interface between the engine block and the downstream plumbing. On the 2017 model, Ford utilized high-silicon cast iron for the manifolds to resist the intense heat cycling typical of the 3.5L EcoBoost engines. The diagram highlights the gasket placement, which is a common failure point; improper torque sequences here often lead to exhaust leaks that mimic ticking lifter noise.
Moving downstream, the catalytic converters are integrated into the primary downpipes. For the EcoBoost engines, the proximity of the catalytic converters to the turbocharger housing is vital for rapid catalyst heating during cold-start cycles. The oxygen sensors, or Heated Oxygen Sensors (HO2S), are strategically placed in the upstream (before the catalyst) and downstream (after the catalyst) positions. The upstream sensor provides the PCM with data for fuel trim adjustment, while the downstream sensor monitors the catalyst efficiency. A failure or drift in these sensors, identified by referencing the schematic, is the most common cause of a persistent P0420 or P0430 diagnostic trouble code (DTC).
The resonator serves as a tuned harmonic absorber. In the 2017 F-150 configuration, the resonator’s volume and length are precisely matched to the engine’s firing order. Modifying or replacing the resonator often leads to cabin drone during cruising speeds, particularly in the 5.0L V8 models. When reviewing the blueprint, ensure you verify that your aftermarket replacements maintain the appropriate backpressure levels to prevent a loss in low-end torque.
When replacing any component listed in the 2017 ford f150 exhaust system diagram, always replace the hardware (nuts, studs, and gaskets). The original equipment fasteners are prone to galvanic corrosion due to the extreme heat-cool cycles and road salt exposure common in this vehicle class.
How to Read the 2017 Ford F150 Exhaust System Diagram
Interpreting the 2017 ford f150 exhaust system diagram requires a logical, top-down diagnostic approach. By treating the exhaust as a series of pressure zones, you can identify where failures originate. Start by identifying the exhaust manifold gasket seating surface. Use a straight-edge to verify the manifold flange flatness; factory specifications generally require a variance of less than 0.005 inches across the plane. If the manifold is warped, the gasket will be unable to seal, resulting in hot gas bypass.
Next, inspect the collector and downpipe junction. The downpipes are where most mechanics find evidence of leaks. Use a soap-and-water spray while the exhaust is cold to identify bubbles under idle conditions, or inspect the flange connections for carbon tracking, which indicates a leaking seal.
Follow these steps for accurate identification:
Audible — Listen Free for 30 Days
One free credit a month and thousands of titles included.
Listen Free for 30 Days1. Locate the engine cylinder heads and verify the mounting stud integrity. Ensure no studs are snapped, as this is a specific failure mode for the 2017 model year 3.5L engines.
2. Trace the path to the turbocharger wastegate actuators (if equipped). The diagram shows the specific vacuum routing that can influence exhaust pressure.
3. Identify the HO2S connectors. Verify wiring integrity up to the harness, ensuring no thermal degradation of the wire loom insulation.
4. Examine the catalytic converter heat shields. Missing or loose heat shields are common sources of rattle that are often misdiagnosed as internal catalyst failure.
5. Inspect the muffler and tailpipe hangers. The 2017 F-150 uses rubber isolators that degrade over time, leading to exhaust system sagging and potential contact with the frame, which causes secondary vibration.
When referencing the schematic, pay close attention to the transition zones where pipes widen or narrow. These changes in diameter are engineered to maintain gas velocity. If you are inspecting a vehicle with an aftermarket exhaust, compare the pipe diameter to the OEM diagram. Significant increases in diameter can lead to a drop in exhaust gas velocity, causing the PCM to register errors in the fuel trim, as the scavenged air mass no longer aligns with the factory lookup tables.
Exhaust manifold-to-cylinder-head nut torque specification is 22 lb-ft. Ensure the engine is at ambient temperature during installation to prevent thread galling on the cylinder head studs.
Common 2017 Ford F150 Exhaust System Diagram Problems and Fixes
Recommended Best Deal Products
Even with regular maintenance, the 2017 F-150 exhaust system can develop specific issues that impact performance and fuel economy. Using the exhaust system diagram as a reference, you can isolate these problems effectively.
Exhaust Manifold Leaks: The most reported issue. The symptoms include a ticking noise that increases with engine RPM, often localized to the rear cylinders. Fix: Remove the manifold, machine the flange flat, or replace it with an upgraded stainless steel manifold, and use high-grade locking fasteners.
Catalytic Converter Efficiency Codes (P0420/P0430): While these can indicate a failing catalyst, they are often caused by faulty upstream oxygen sensors or exhaust leaks upstream of the sensor. Before replacing the catalytic converter, inspect the flange seals and test the O2 sensor voltage range with a scan tool.
Resonator Drone: Many owners replace the factory resonator with a straight pipe for more sound. This creates unwanted drone at 1,500–2,000 RPM. Fix: Reinstall a factory-style resonator or install a J-pipe (Helmholtz resonator) to cancel the specific frequency causing the cabin noise.
PCM Fuel Trim Errors: Aftermarket exhaust kits that alter the diameter of the piping near the O2 sensors can confuse the PCM. The oxygen sensor calibration is sensitive to the gas flow velocity. If you have modified the system, you may need a custom ECU reflash to adjust the fuel trim tables to compensate for the change in exhaust scavenge.
* Broken Hangers and Mounting Hardware: The 2017 model’s weight and engine torque can fatigue the rubber hangers. An inspection should include pulling on the exhaust system while cold to check for contact with the driveshaft or frame cross-members.
When diagnosing, connect an OBDII scanner to monitor the Live Data stream from the oxygen sensors. A healthy sensor should toggle between 0.1 and 0.9 volts rapidly. If the downstream sensor output mirrors the upstream sensor, the catalyst efficiency has likely dropped below the threshold, and the substrate has reached the end of its chemical life.
Never modify or remove the catalytic converters for off-road use unless authorized by local regulations. Tampering with emissions equipment is a violation of federal law and will result in permanent DTCs that cannot be cleared without restoring factory hardware or utilizing specific software calibration.
2017 Ford F150 Exhaust System Diagram Questions Answered
Can I upgrade to a larger diameter exhaust without affecting PCM tuning?
Generally, no. The 2017 Ford F-150 PCM is calibrated for the factory exhaust backpressure and gas velocity. Increasing the diameter significantly reduces backpressure, which can cause lean-running conditions, triggering the Check Engine Light and potentially causing engine knock. Any exhaust upgrade exceeding 0.5 inches in diameter over stock usually requires a tune update.
Audible Premium Plus — Annual Membership
12 audiobook credits up front, plus the full Audible catalogue.
See Annual PlansWhere is the most common leak location on this system?
Based on the 2017 ford f150 exhaust system diagram, the most common leak point is the exhaust manifold-to-cylinder-head flange. The manifold studs are susceptible to thermal expansion and contraction, which can lead to stud snapping or flange deformation over 60,000 to 100,000 miles.
Does the exhaust layout change between 2WD and 4WD models?
Yes, the 2017 F-150 exhaust layout varies to accommodate the front driveshaft in 4WD configurations. While the manifold and primary downpipe routing are similar, the mid-pipe assembly is distinct to clear the transfer case and front differential. Always verify your specific VIN before ordering replacement pipe segments.
Why does my 5.0L engine pop on deceleration after an exhaust mod?
This is often caused by an air leak in the exhaust system or an increase in scavenging. If the connection at the collector or the O2 sensor bung is not perfectly sealed, air is drawn into the exhaust stream during deceleration, causing the unburned fuel to ignite in the pipe. Inspect all flange gaskets and ensure O2 sensor bungs are properly seated.
How do I test if my catalytic converter is clogged?
Use an exhaust backpressure gauge installed in place of the upstream oxygen sensor. At idle, the pressure should be near zero, and at 2,500 RPM, it should not exceed 1.5 to 2.0 psi. If the pressure readings exceed these values, the catalyst substrate is likely restricted and requires replacement according to the diagnostic schematic.
Step-by-Step Guide to Understanding the 2017 Ford F150 Exhaust System Diagram
Recommended Best Deal Products
Identify – Locate the specific exhaust leak or damaged component using the diagram as a visual reference.
Locate – Secure the vehicle on jack stands and spray all mounting hardware with penetrating oil to prevent bolt shear.
Reference – Consult the diagram to confirm the sequence of gaskets and the specific orientation of the O2 sensors.
Connect/Route – Align the replacement component according to the diagram, ensuring all rubber hangers are seated correctly to prevent vibration.
Verify – Start the engine and inspect for leaks at each flange connection; ensure oxygen sensor wiring is clear of hot exhaust surfaces.
Troubleshoot – If a check engine light persists, re-check O2 sensor connections for proper seating and check the diagram for potential vacuum or exhaust manifold leaks.
