2019 Ram 2500 Blend Door Actuator Location And Repair Guide

When the climate control in your 2019 Ram 2500 starts blowing hot air on a summer day or begins making a persistent clicking sound behind the dash, a failed blend door actuator is the most likely culprit. The complex HVAC system of the fifth-generation Ram Heavy Duty trucks relies on several small motors to direct airflow, and these components are prone to gear failure, leaving owners without reliable temperature control. In this guide, you will learn the exact location of every blend door actuator in your 2019 Ram 2500, how to diagnose the specific failure, and the steps required to replace the part yourself or find professional help nearby.

Recognizing Symptoms of a Failing 2019 Ram 2500 HVAC Actuator

📤 Share


💾 Download

Diagnosing a failing HVAC actuator in a heavy-duty truck requires an ear for mechanical nuance. The most common red flag is a distinct clicking or rhythmic knocking sound emanating from deep within the dashboard. This occurs when the internal plastic gears of the actuator strip or skip, preventing the door from reaching its commanded position. This sound is often most prominent immediately after starting the engine or when adjusting the temperature or vent settings.

Inconsistent temperature regulation is another hallmark of failure. In the 2019 Ram 2500, especially models equipped with dual-zone climate control, you may find the driver’s side blowing ice-cold air while the passenger side remains stuck on full heat. This discrepancy occurs because each side of the cabin is served by a dedicated actuator. If the driver-side blend door actuator fails, no amount of adjustment on the Uconnect screen will change the vent output temperature. For instance, a driver might set the climate to a comfortable 65 degrees, yet the vents continue to pump out 90-degree air—a scenario frequently discussed within the Ram community.

Airflow and Mode Discrepancies

Beyond temperature, the mode door actuator controls where the air goes. If you switch the settings to “Defrost” but the air continues to blow from the face vents, that specific actuator has likely seized. Furthermore, a failure in the recirculation door can lead to fluctuating airflow volume or a persistent “musty” smell, as the system remains stuck in “fresh air” mode, allowing outside humidity to saturate the cabin filter. Anecdotal evidence from Ram owner forums suggests that actuator gear stripping is a top-five reported interior mechanical failure for the 2019-2022 model years.

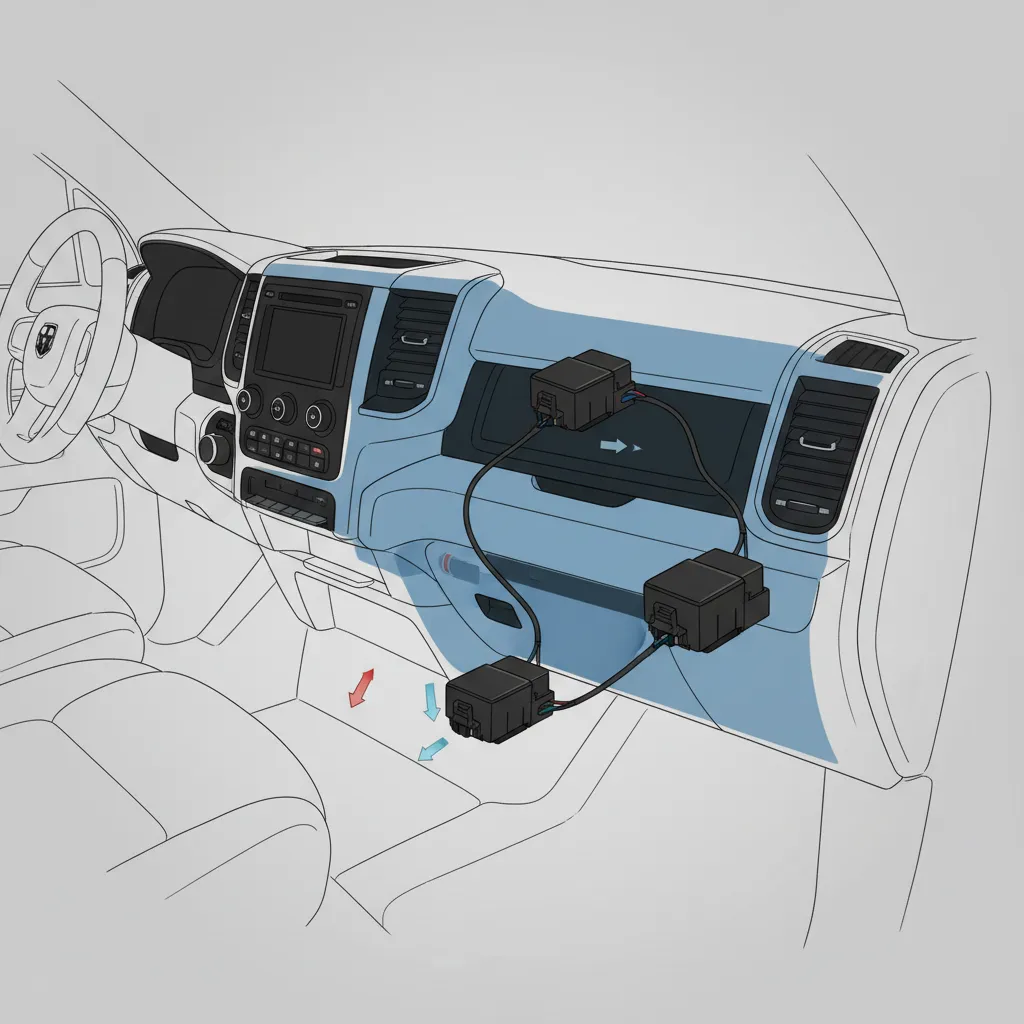

Exact 2019 Ram 2500 Blend Door Actuator Location and Access Points

Locating the correct actuator is the most difficult part of the repair. The 2019 Ram 2500 utilizes a sophisticated HVAC plenum where three to four different actuators are mounted. Knowing which one to target depends on your specific symptom. The 2019 Ram 2500 utilizes a ‘can-bus’ communication system for these actuators, meaning they are not just simple motors but networked components that report their position back to the Body Control Module (BCM).

1. Primary Temperature Blend Door Actuator

The primary temperature blend door actuator is situated behind the center stack, slightly toward the passenger side. To see this unit, you must remove the lower dash trim panels and, in many cases, the glove box assembly. It is mounted vertically on the side of the heater box. When troubleshooting, use a bright flashlight to look through the glove box cavity; you will see a white plastic cam that the actuator rotates to mix hot and cold air.

2. Recirculation Door Actuator

This actuator is positioned high on the passenger side of the HVAC housing. Accessing it requires the complete removal of the upper and lower glove box bins. It is tucked near the firewall and is responsible for opening and closing the flap that draws air from inside the cabin. This is a common failure point for trucks used in dusty environments, as debris can bind the door and put extra strain on the motor.

3. Mode Door Actuator

Found on the driver side of the HVAC unit, the mode door actuator is located near the accelerator pedal assembly. Accessing this requires you to lie on the floorboard and look upward. It is often hidden behind a plastic duct. This actuator is responsible for switching airflow between the floor, dash vents, and defrost settings. On higher trim levels like the Laramie or Limited, there may be an additional “distribution” actuator depending on the dual-zone configuration.

Step-by-Step Replacement Procedure for Ram 2500 Actuators

Replacing the actuator is a task that requires patience and precision. While the part itself is small, the workspace is cramped. Ensure you have a 7/32″ (or 5.5mm) socket and a T20 Torx driver, as these are the standard fasteners used by Stellantis for interior components. For a guaranteed fit, refer to the official guide for part numbers specific to your VIN.

HVAC System Recalibration and Final Testing

Once the physical installation is complete, the vehicle’s computer needs to learn the “stop points” of the new motor. Because the 2019 Ram 2500 uses a digital communication bus for HVAC, the system needs to know where fully closed and fully open are to prevent the motor from over-torquing and breaking the new gears.

The Automatic Calibration Routine

You can often trigger a self-test by cycling the ignition to the “ON” position (without starting the engine) and waiting for 60 seconds. You will hear the actuators moving through their full range of motion. Some technicians recommend pulling the HVAC fuse (refer to your manual for the specific location, often Fuse F44) to force a hard reset of the module. However, the “battery disconnect” myth is largely ineffective on 2019+ models, as the BCM retains fault codes in non-volatile memory.

Advanced Software Calibration

For a truly professional result, using an OBDII scan tool with bi-directional control, such as AlfaOBD or a expert tips guide from a certified shop, is recommended. These tools allow you to run a “Calibrate HVAC Doors” command. This ensures the motor applies the exact amount of torque needed, which is the leading cause of avoiding premature failure. Finish by performing a “door sweep” test: cycle the temperature from “Lo” to “Hi” and listen for the soft thud of the door hitting its seal at both ends of the spectrum.

Professional Repair Services Available in Your Community

If the DIY route feels overwhelming, there are many expert technicians nearby who specialize in Heavy Duty Ram HVAC systems. Modern dashboards are held together with dozens of hidden clips and delicate wiring harnesses; a trusted local shop serving your community will have the specialized tools to perform the work without causing secondary rattles or trim damage. This is especially important for 2019+ trucks, where the 12-inch Uconnect screen requires specific handling during disassembly.

Professional diagnosis is highly recommended if you replace the actuator and the problem persists. In rare cases, the internal blend door itself—the physical flap inside the heater box—can snap at the hinge. If this occurs, the entire dashboard must be removed to replace the HVAC plenum, a job that dealership labor rates for Ram 2500 trucks typically price at $120 to $190 per hour. A convenient and accessible technician can use a borescope to inspect the internal door before recommending such an expensive repair, ensuring you only pay for what is truly broken.

Identifying the specific actuator location is the first step toward restoring your cabin comfort. While DIY replacement is possible with basic tools, precise calibration is necessary to prevent future failures. Understanding the cost of parts versus professional labor helps you make an informed decision on how to proceed. If you are uncomfortable navigating the delicate wiring and plastic components behind your dashboard, contact a specialized HVAC technician nearby to ensure your 2019 Ram 2500 is repaired to factory specifications.
