2026 Chevy Silverado Bank 2 Sensor 2 Diagram: Troubleshooting Guide
Bank 2 Sensor 2 is the downstream oxygen sensor located after the catalytic converter on the driver’s side exhaust pipe. It typically utilizes a four-wire configuration (Heater+, Heater-, Signal, Ground). Ensure the harness is routed away from the exhaust manifold heat to prevent wiring shorts that trigger the check engine light.
📌 Key Takeaways
- Bank 2 represents the cylinder bank on the driver’s side of the Silverado engine.
- Sensor 2 refers specifically to the O2 sensor located downstream of the catalytic converter.
- Oxygen sensor replacement requires a torque spec of approximately 30-35 ft-lbs for a proper seal.
- Check engine light codes like P0157 or P0158 often indicate a failed heater circuit or sensor degradation.
- Always use a professional-grade OBD-II scanner to monitor live ECU sensor voltage data before replacing the unit.
Navigating the complex emissions architecture of a modern Chevy Silverado requires more than just a code reader; it demands a precise understanding of the exhaust stream geometry. When the Engine Control Module (ECM) triggers a fault related to the downstream monitoring system, identifying the correct component is critical to preventing unnecessary repairs. The diagram bank 2 sensor 2 Chevy Silverado serves as your primary roadmap for identifying the oxygen sensor located on the passenger side, post-catalytic converter. By utilizing this visual reference alongside OBD-II diagnostic parameters, technicians can distinguish between a degraded sensor element, a malfunctioning catalytic converter, or a compromise in the wiring harness integrity.
Prime for Young Adults — 6 Months Free
Students and 18–24s get six months of Prime free, then half price.
Start 6 Months Free
Diagram Bank 2 Sensor 2 Chevy Silverado: Component Identification
Recommended Best Deal Products
To perform accurate service, you must first distinguish between the various oxygen sensors in the exhaust system. On V6 and V8 Chevy Silverado configurations, Bank 1 refers to the side of the engine containing the #1 cylinder, while Bank 2 corresponds to the opposing side. In most domestic truck platforms, Bank 2 is the passenger side. The Sensor 2 designation refers to the downstream sensor, which is positioned after the catalytic converter. Unlike upstream sensors (Sensor 1) that dictate air-fuel ratios, Sensor 2 is primarily responsible for monitoring catalytic converter efficiency.

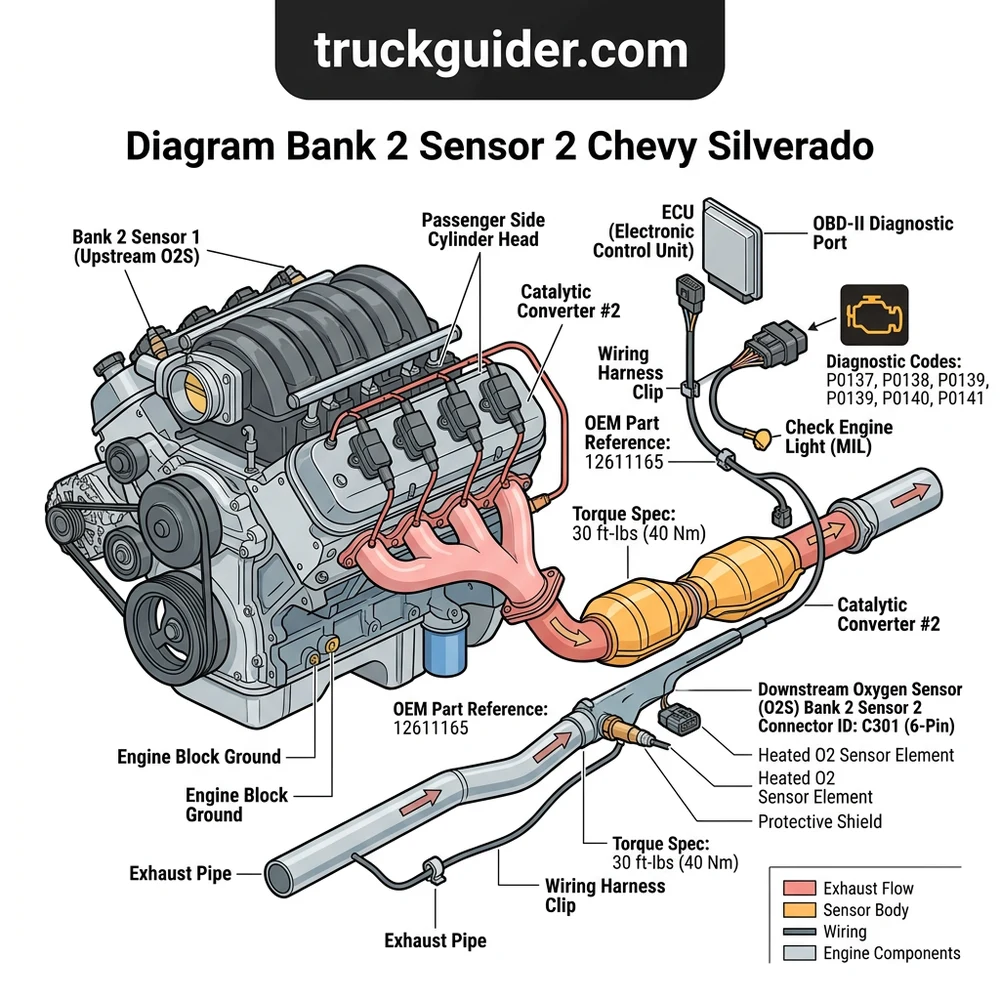

The diagram bank 2 sensor 2 Chevy Silverado reveals the critical proximity of this sensor to the catalytic converter housing. As shown in the diagram, the sensor is threaded into an O2 bung welded directly to the exhaust pipe. Because this sensor remains in a high-heat, high-vibration environment, the wiring harness is often routed along the frame rail, secured by plastic clips to prevent contact with heat shields. Understanding this routing is vital because thermal degradation of the harness is a frequent mimic of internal sensor failure.
