Ford F-150 Evap Canister Location Diagram: Troubleshooting 2026
The Ford F-150 EVAP canister is typically located on the driver’s side inner frame rail, positioned forward of the fuel tank. It is held by a mounting bracket and connected via quick-connect vapor lines. Identify it by the charcoal housing and the attached solenoid assembly with a two-pin electrical connector.
📌 Key Takeaways
- The EVAP canister uses a 2-pin electrical connector for the vent solenoid.
- Crucial identification: look for the charcoal-filled plastic box near the fuel tank frame rail.
- Always verify the O-ring seal on the vapor lines; torque requirements for bracket bolts are typically 18 lb-ft.
- The most common failure point is a stuck-open vent solenoid causing P0442 or P0455 codes.
- Seek professional diagnostic assistance if you encounter active fuel leaks or electrical short circuits near the pump assembly.
The evaporative emission control system on your Ford F-150 is a sophisticated assembly engineered to capture fuel vapors before they escape into the atmosphere. For technicians and advanced DIYers, locating the primary collection point—the EVAP canister—is essential when troubleshooting persistent Check Engine lights, specifically those related to P0442, P0446, or P0456 diagnostic trouble codes. While the general configuration has remained consistent across generations, the precise mounting points shift slightly between the steel-frame chassis variants of the mid-2000s and the newer aluminum-bodied platforms. This guide provides the technical clarity required to navigate the vehicle’s underside, utilize the manufacturer’s schematic, and restore the integrity of the fuel vapor recovery circuit.
Prime for Young Adults — 6 Months Free
Students and 18–24s get six months of Prime free, then half price.
Start 6 Months Free[DIAGRAM_PLACEHOLDER: EVAP System Schematic for Ford F-150]

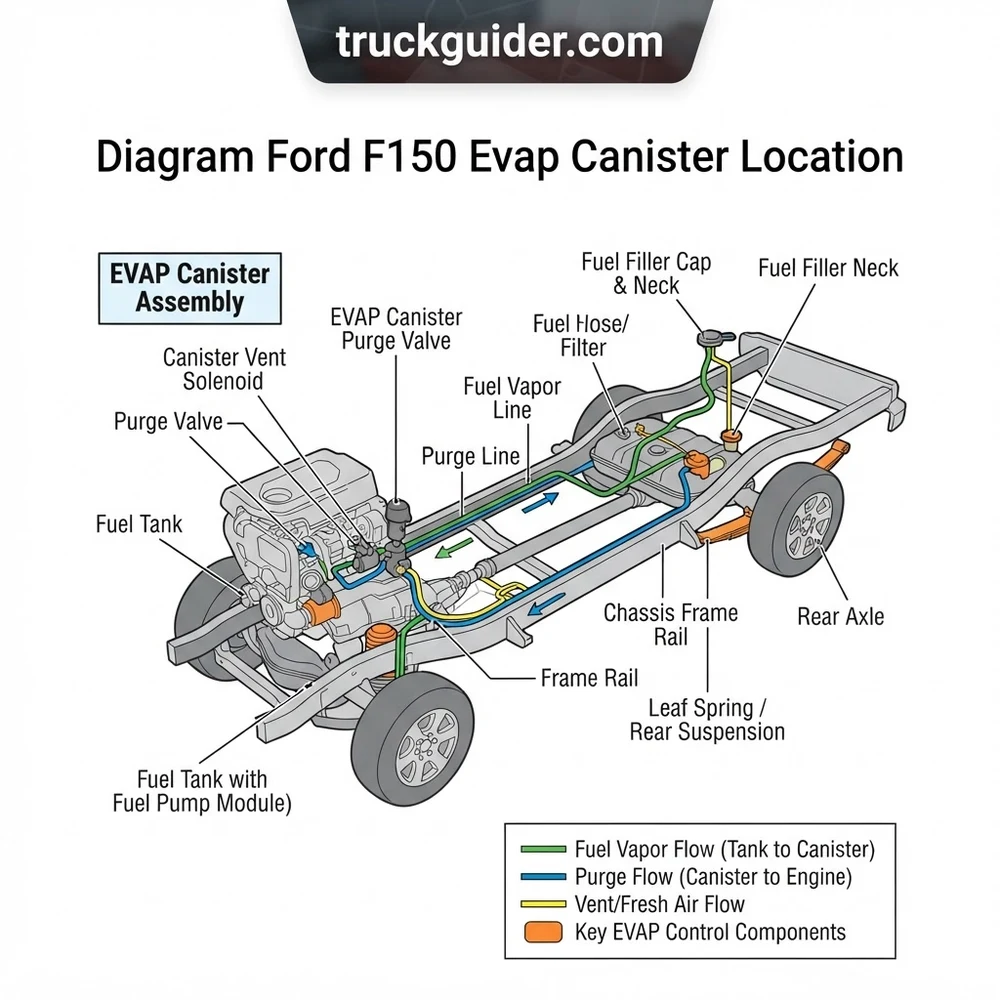

Reference Diagram: High-level layout of fuel lines, EVAP canister location, and vent solenoid routing relative to the fuel pump assembly.
Diagram Ford F150 Evap Canister Location: Understanding the System
Recommended Best Deal Products
The Ford F-150 EVAP system operates as a closed loop designed to store gasoline vapors in an activated charcoal bed located within the canister. Under engine vacuum conditions, these vapors are purged into the intake manifold to be burned during the combustion cycle. Understanding the location of these components requires a solid grasp of the system’s architecture. The canister itself is not a standalone part; it is the central hub for vapor management, connected by nylon lines to the fuel tank, the fuel tank pressure sensor (FTPS), and the purge valve located near the engine block.
The Role of the Charcoal Bed and Vent Solenoid
The core component is the charcoal canister, which houses a bed of activated carbon. This material has an immense surface area that traps hydrocarbon molecules when the engine is off. The canister is physically anchored to the chassis, typically near the fuel tank. Connected to this assembly is the Canister Vent Solenoid. This valve is normally open, allowing the system to “breathe” during refueling and as fuel temperature fluctuates. If this solenoid fails in the closed position, the vehicle will encounter difficulties during refueling, often causing the fuel pump nozzle to click off repeatedly. Conversely, a failure in the open position will trigger a small leak code due to the inability of the system to hold a vacuum during the PCM-commanded leak check.
On later model F-150s (2015-present), the canister is often integrated into a more compact module located on the driver’s side frame rail. Always consult the specific wiring diagram for your VIN, as pinouts for the vent solenoid connector may vary between the 2.7L EcoBoost and 5.0L Coyote configurations.
Purge Valve Function and System Configuration
While the canister is at the rear of the vehicle, the purge valve acts as the system’s regulator at the engine bay. It receives a Pulse Width Modulation (PWM) signal from the Powertrain Control Module (PCM). When the vehicle reaches operating temperature and enters closed-loop operation, the PCM modulates the purge valve to draw a controlled amount of vapor into the intake. If this valve becomes stuck open, you will experience a rough idle or a lean condition immediately after fueling. The diagram of the F-150 EVAP system highlights this critical pathway, showing that a leak in the rear canister assembly often masks problems that may actually originate with a faulty purge valve seal.
How to Identify the Diagram Ford F150 Evap Canister Location
Locating the canister on your F-150 requires a systematic approach, as the frame rail is often obscured by protective shielding or electrical harnesses. For most F-150 models from 2004 through the latest production years, the canister is situated between the fuel tank and the rear axle assembly on the driver’s side of the frame. To identify the exact position, you must first secure the vehicle on a lift or jack stands. Never attempt to access the fuel system components while the vehicle is parked on an incline, as fuel pressure or residual vapor could pose a safety risk if the lines are disconnected prematurely.
Visual Landmarks and Frame Rail Access
Once you are underneath the vehicle, locate the fuel tank assembly. The charcoal canister is usually mounted via a plastic or steel bracket directly to the inside of the driver’s side frame rail. Look for a rectangular plastic box with at least three primary connections: a vapor line coming from the fuel tank, a vent line running to the atmosphere (often terminating in a filter element), and an electrical connector for the vent solenoid. If you are struggling to identify the component, trace the larger-diameter nylon fuel supply lines. The EVAP vapor line is typically a smaller diameter, often colored green or black, and runs parallel to the main fuel lines.
Testing the Fuel Tank Pressure Sensor Configuration
The fuel tank pressure sensor (FTPS) is frequently mounted on top of the fuel pump module, which is part of the broader EVAP system footprint. When using a diagram for the F-150, note that the FTPS wiring shares the same harness bundle as the canister vent solenoid. If your scan tool reports a voltage signal issue, check the integrity of the harness at the point where it clips onto the frame rail, as this area is prone to chafing due to vibrations from the rear suspension. Confirming the wiring color codes—typically a 5-volt reference, a ground, and a signal return—is a prerequisite before condemning the canister assembly itself.
Audible — Listen Free for 30 Days
One free credit a month and thousands of titles included.
Listen Free for 30 DaysTypical resistance for the EVAP canister vent solenoid at 70°F (21°C) ranges between 20-30 ohms. If your digital multimeter reads “OL” or near-zero resistance, the internal coil is compromised, and the unit must be replaced.
Common Diagram Ford F150 Evap Canister Location Faults
Diagnosing the EVAP system requires a methodical approach, transitioning from software-based analysis to physical inspection. The OBDII monitor status is your first diagnostic indicator. If the monitor remains “Incomplete,” the PCM has not performed its self-test, likely due to a persistent pending code. A diagnostic schematic reveals that most F-150 EVAP faults involve the canister vent solenoid’s inability to cycle or a restricted atmospheric vent. Physical symptoms often include the “Check Engine” lamp, an inability to refuel without the pump handle clicking, and, in severe cases, the smell of raw fuel near the rear of the truck.
| Diagnostic Code | Likely Component Fault | Physical Location Reference |
|---|---|---|
| P0442 | Minor System Leak | Canister port o-rings or dry-rotted lines |
| P0446 | Vent Solenoid Circuit | Wiring harness at the frame rail bracket |
| P0455 | Gross System Leak | Damaged canister housing or loose fuel cap |
| P1450 | Excessive Vacuum | Purge valve stuck open (Front) or Vent blockage |
Leak Detection and Monitoring
To pinpoint the source, use a smoke machine connected to the vapor line at the purge valve service port. By introducing low-pressure smoke into the system, you can visually observe leaks at the canister, the rubber hose connections, or the fuel tank seals. This is significantly more effective than “parts-swapping” based on code definitions alone. If you detect smoke escaping from the canister assembly, inspect the plastic housing for stress cracks, which occur frequently in climates with extreme temperature swings. Remember that the canister vent solenoid is a common failure point that mimics a system-wide leak; check its seal against the canister body for degradation.
Do not exceed 1.0 PSI when smoke testing the EVAP system. Higher pressures can damage the fuel tank pressure sensor (FTPS) and rupture the charcoal bed internals, leading to debris entering the purge valve and causing secondary system failures.
Component Troubleshooting Summary
If you encounter a P1450 code (Unable to Bleed Up Vacuum), the problem is usually a restriction in the atmospheric path. This often points to the canister vent filter. If this filter is clogged with dust or mud—a common issue for F-150 owners who utilize their trucks off-road—the PCM cannot relieve the vacuum generated by the engine. Ensure the vent line is free of debris. If cleaning does not resolve the issue, verify the electrical signal at the vent solenoid connector. Using an oscilloscope, you should see the PCM grounding the solenoid to close the circuit. If the signal is absent, inspect the wiring back to the PCM bulkhead connector for corrosion or open circuits.
Diagram Ford F150 Evap Canister Location Questions Answered
Where is the canister located on a 2018 Ford F-150?
On 2018 models, the EVAP canister is mounted on the driver’s side of the frame rail, forward of the rear axle and adjacent to the fuel tank. Access is generally clear once the underbody plastic skid plates are removed. Refer to the manufacturer’s body shop manual for specific torque specs on the bracket mounting bolts to avoid cracking the plastic canister housing during reinstallation.
Can a faulty canister cause a bad odor outside the vehicle?
Yes. If the charcoal bed becomes saturated or the canister housing sustains a physical crack, fuel vapors will leak directly into the atmosphere rather than being routed through the charcoal filter. This often results in a distinct gasoline smell around the driver’s side rear wheel well, especially after the vehicle has been parked in direct sunlight, causing fuel tank pressure to rise.
How do I differentiate between a bad vent solenoid and a bad purge valve?
A bad vent solenoid typically causes refueling issues (pump clicking off) and P0446 codes. A bad purge valve, located in the engine bay, typically causes idle fluctuations, P0496 codes, or a lean condition upon startup. If you suspect a purge valve failure, perform a vacuum hold test on the valve itself; if it leaks while de-energized, it is faulty.
Audible Premium Plus — Annual Membership
12 audiobook credits up front, plus the full Audible catalogue.
See Annual PlansIs it necessary to reset the PCM after replacing the canister?
While clearing the codes with a scan tool is standard, you must perform an “EVAP Drive Cycle” to allow the monitor to complete. This usually involves cold-soaking the vehicle for several hours, followed by a steady-state highway drive. Without this cycle, the vehicle will not pass an emissions test, even if the physical component installation was performed correctly.
Why does my fuel pump nozzle keep clicking off while fueling?
This is a classic symptom of a restricted EVAP system. If the vent line or the canister vent solenoid is stuck closed, air trapped in the fuel tank cannot escape as fuel enters, creating backpressure that triggers the fuel pump’s automatic shut-off mechanism. Inspect the vent line for blockages and ensure the vent solenoid is opening when the ignition is in the accessory position.
Step-by-Step Guide to Understanding the Diagram Ford F150 Evap Canister Location
Identify – Locate the canister under the vehicle near the fuel tank frame rail.
Locate – Verify the component structure by finding the vent solenoid attached to the canister.
Reference – Use the diagram to map the path of the vapor hoses to the engine purge valve.
Connect/Route – Secure all quick-connect fittings and ensure the electrical harness is clicked into the solenoid.
Verify – Clear diagnostic codes with an OBDII scanner and check for leaks using a smoke test.
Troubleshoot – If codes persist, inspect the canister purge valve configuration for blockages.
