The assembly is located behind the interior door panel. It integrates the door handle linkage, power actuator, and latch release cable. To access, remove the door card and vapor barrier. The latch unit is secured by three T30 Torx bolts. Ensure the child safety lock lever is disengaged before final panel reinstallation.
📌 Key Takeaways
- The latch assembly requires removing three T30 Torx bolts and two 10mm cable retainers.
- Crucial identification: Ensure the central power actuator wiring harness is disconnected before pulling the latch.
- Torque specification: Tighten the three T30 mounting bolts to exactly 6.5 Nm to prevent casing cracks.
- Most common failure: Seized internal return springs caused by moisture ingress and lack of lubrication.
- Professional help is recommended if the electronic actuator fails during cold-soldering cycles.
When the door system on your Toyota Tacoma begins to malfunction, understanding the mechanical hierarchy is essential for effective repair. A precise diagram toyota tacoma door latch assembly provides the necessary blueprint to navigate the complex interplay between the locking actuator, physical linkage rods, and the interior handle mechanism. Whether you are dealing with a seized latch or a failed central locking motor, utilizing the factory schematic prevents unnecessary damage to the door card and delicate interior trim clips. This technical guide examines the structural anatomy of the door latch system, integration with the vehicle’s cabin security, and the specific diagnostic procedures required to restore factory-level functionality to your Tacoma.
Prime for Young Adults — 6 Months Free
Students and 18–24s get six months of Prime free, then half price.
Start 6 Months Free

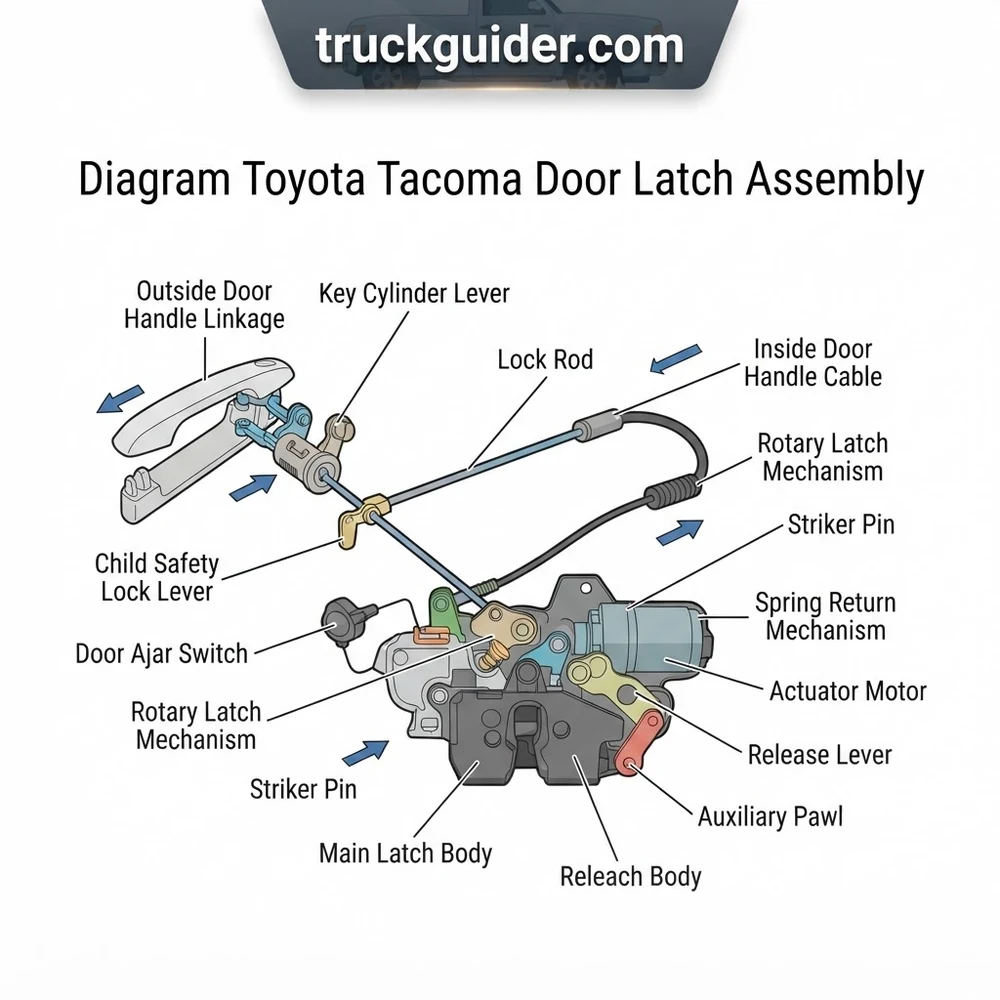

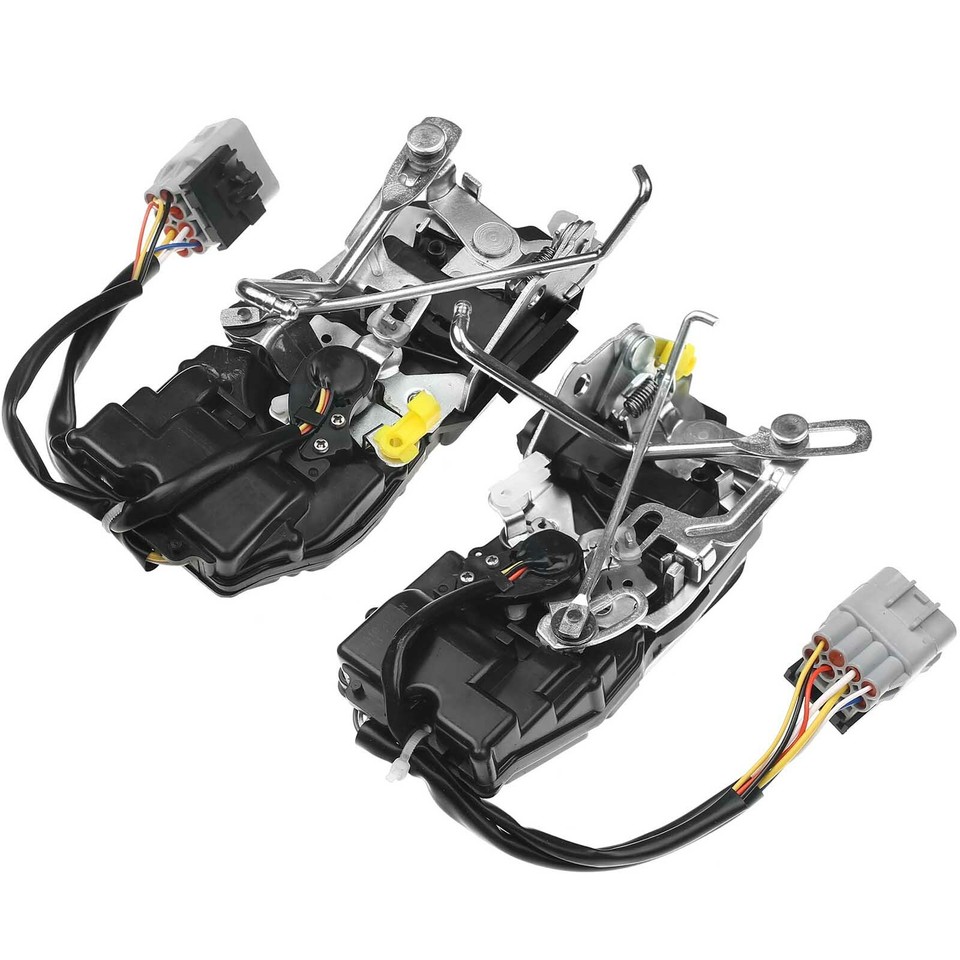

Diagram Toyota Tacoma Door Latch Assembly: Key Components
