Duramax Fuel Filter Location: Find & Replace Step-by-Step Guide 2026
The Duramax fuel filter location depends mainly on whether your Chevrolet Silverado HD or GMC Sierra HD has a 2001 to 2016 engine or the 2017 and newer L5P. On 2001 to 2016 6.6L Duramax V8 Turbo Diesel pickups, the filter sits in the passenger-side engine compartment. On 2017 to 2026 L5P pickups, it sits underneath the truck on the driver side, inside the frame rail.
That generation break matters. Following a fuel-filter video for the wrong Duramax generation can send you to the opposite side of the truck.
This guide covers 6.6L Duramax-equipped Silverado 2500HD, Silverado 3500HD, Sierra 2500HD, and Sierra 3500HD pickups. The 2.8L and 3.0L Duramax engines use different layouts.

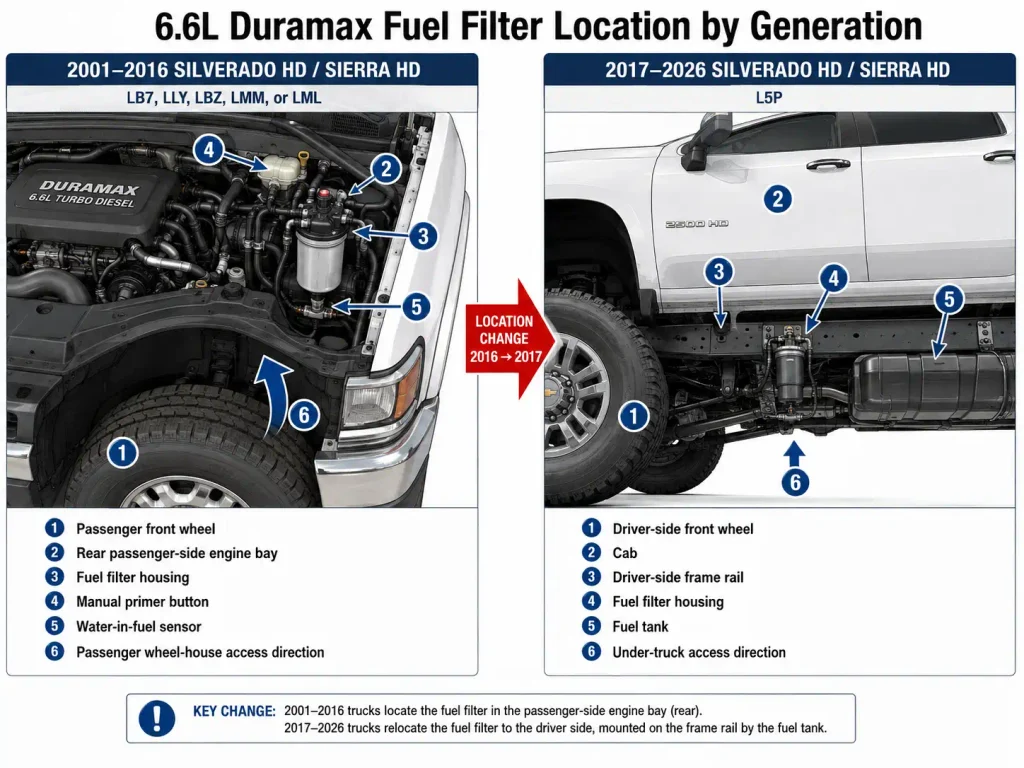

6.6L Duramax Fuel Filter Location by Generation
The major location change happened for the 2017 L5P generation.
Recommended Best Deal Products
LB7 Through LML
- Look on the passenger side under the hood
- Wheel-house access usually provides more working room
- Uses an under-hood filter head and manual primer
- Water-in-fuel sensor is part of the filter assembly
L5P Duramax
- Start underneath the driver side of the truck
- Follow the inside edge of the frame rail
- Filter is serviced from below rather than from the engine bay
- L5P trucks use an electric fuel-system priming procedure
| Model Years | Engine | Location | Main Access |
|---|---|---|---|
| 2001 to 2004 | LB7 | Passenger-side engine compartment | Engine bay or wheel house |
| 2004.5 to 2005 | LLY | Passenger-side engine compartment | Passenger wheel house |
| 2006 to 2007 | LBZ | Passenger-side engine compartment | Passenger wheel house |
| 2007.5 to 2010 | LMM | Passenger-side engine compartment | Passenger wheel house |
| 2011 to 2016 | LML | Passenger-side engine compartment | Passenger wheel house |
| 2017 to 2026 | L5P | Driver-side inside frame rail | Under truck |
Where Is the Duramax Fuel Filter by Year
Your model year is the fastest way to find the correct filter. GM changed the 6.6L Duramax from an engine-mounted spin-on filter arrangement to a frame-mounted cartridge-style arrangement for the L5P generation.
| Model Years | Duramax Code | Fuel Filter Location | Best Access Point |
|---|---|---|---|
| 2001 to 2004 | LB7 | Passenger side of engine compartment | Engine bay or passenger wheel well |
| 2004.5 to 2005 | LLY | Passenger side of engine compartment | Passenger wheel well |
| 2006 to 2007 | LBZ | Passenger side of engine compartment | Passenger wheel well |
| 2007.5 to 2010 | LMM | Passenger side of engine compartment | Passenger wheel well |
| 2011 to 2016 | LML | Passenger side of engine compartment | Passenger wheel well |
| 2017 to 2019 | L5P | Driver side inside frame rail | From underneath truck |
| 2020 to 2023 | L5P | Driver side inside frame rail | From underneath truck |
| 2024 to 2026 | L5P | Driver side inside frame rail | From underneath truck |
GM’s 2006 Duramax supplement places the pickup filter in the passenger-side engine compartment, and the 2011 and 2015 documentation gives the same passenger-side location.
The change is clear in GM’s 2017 Duramax supplement. For the new L5P, GM identifies the filter on the driver side inside the frame rail. The 2020 and 2025 6.6L manuals confirm that same general frame-rail layout.
Where Is the 2001 to 2016 Duramax Fuel Filter
On 2001 to 2016 Silverado HD and Sierra HD pickups, start at the passenger side of the engine compartment. The filter assembly sits toward the rear passenger side of the engine and can be difficult to see from directly above.
This location applies across the LB7, LLY, LBZ, LMM, and LML generations. DieselHub also identifies the 2001 to 2016 housing on the passenger side of the engine, below the intake area.
If you are identifying components around the engine before starting service, Truck Guider’s 6.6 Duramax cylinder numbers guide can help you orient the left and right banks correctly.
Recommended Best Deal Products
Passenger Side Engine Bay Location
Look between the passenger-side inner fender and the rear portion of the engine bay.
The assembly on these trucks includes the fuel filter, filter head, manual primer, air bleed screw, and water-in-fuel sensor. The primer button on top of the filter head is one of the easiest visual identifiers.
MotorTrend describes the 2001 to 2016 filter as attached toward the rear of the passenger side of the engine.
Passenger Wheel Well Access
Reaching the filter through the passenger wheel well is usually easier than working entirely from above.
GM’s 2011 procedure instructs owners to access the fuel filter through the passenger-side wheel-house opening. Only enough wheel-liner fasteners need to be removed to lower the rear portion of the liner and expose the filter.
The 2015 supplement gives essentially the same procedure. GM places the filter in the passenger-side engine compartment and directs access through the passenger wheel house.
Recommended Best Deal Products
If you are standing beside a 2001 to 2016 truck and cannot see the filter from above, checking behind the passenger-side wheel liner is usually the quickest next move.
Where Is the 2017 to 2026 L5P Fuel Filter
The L5P generation moved the serviceable fuel filter away from the passenger-side engine compartment.

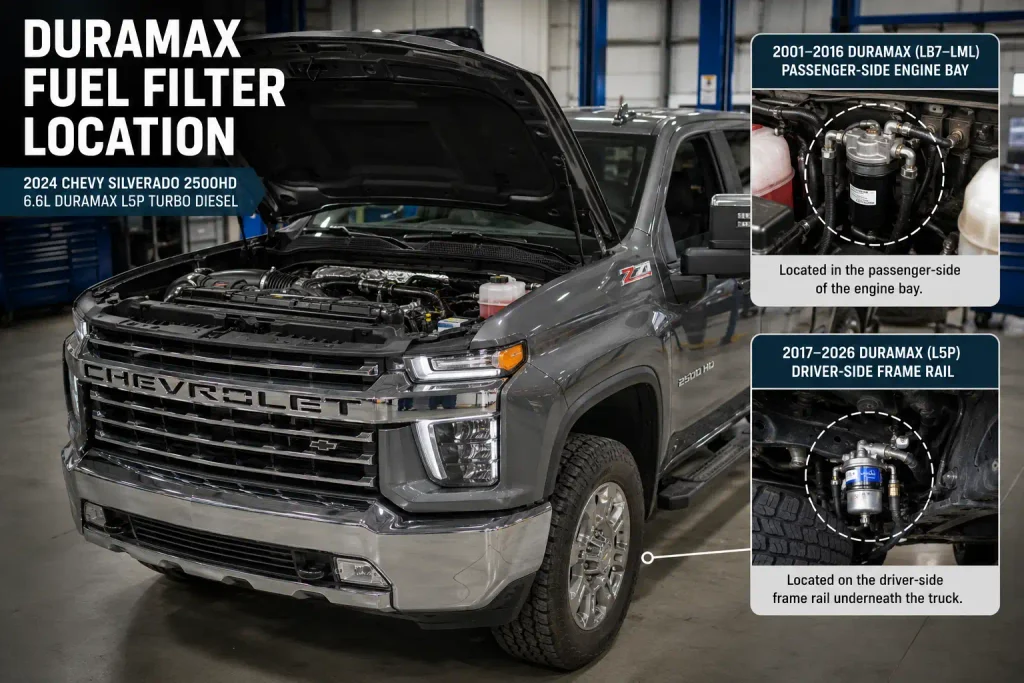

On 2017 to 2026 Silverado HD and Sierra HD pickups with the 6.6L Duramax V8 Turbo Diesel, look underneath the truck on the driver side, inside the frame rail.
GM’s first 2017 L5P supplement states that the filter is on the driver side inside the frame rail in front of the fuel tank.
That location is not a one-year arrangement. The official 2020 6.6L Duramax supplement again places the filter underneath the truck on the driver side inside the frame rail.
GM’s 2025 supplement still describes the pickup filter as being on the driver side inside the frame rail, confirming that the basic location continued through the current L5P design.
What the L5P Filter Housing Looks Like
The L5P does not use the large white spin-on filter hanging below an under-hood primer head like earlier trucks.
Instead, you are looking for a frame-mounted filter housing containing a replaceable filter element. The housing is accessible from underneath and has its service cap at the bottom area of the assembly.
GM also lists OE fuel-filter components for late-model Silverado HD trucks through the 2026 model year. For example, its current parts catalog lists diesel fuel-filter applications covering 2020 to 2026 Silverado 2500HD and 3500HD configurations.
Do not use the oil filter as your visual reference. Identify the frame rail first, then follow the driver side until you locate the dedicated fuel-filter housing.
How to Identify the Correct Duramax Fuel Filter
Finding a cylindrical housing is not enough. Several components under a diesel truck can look similar when viewed from the ground.
Use this sequence before loosening anything:
- Confirm the model year. The major location change occurs between 2016 and 2017.
- Confirm the engine. This guide covers the 6.6L Duramax V8 Turbo Diesel.
- Identify the generation. LB7 through LML use the older engine-bay arrangement. L5P uses the frame-rail arrangement.
- Check the correct side. Older pickups lead you to the passenger-side engine bay. L5P pickups lead you underneath on the driver side.
- Match the filter housing. Confirm the filter cap, fuel lines, water-separation components, and surrounding landmarks.
- Check the owner’s supplement before removal. Filter designs and service procedures differ by generation.
For a broader explanation of how fuel-filter position varies between different truck platforms, Truck Guider also has a fuel filter location guide.
This quick identification process prevents one of the most common mistakes, following instructions for the correct engine family but the wrong model year.
What Changed Between LML and L5P Fuel Filters
The 2016 to 2017 transition is the most important split in this guide.
A 2016 LML pickup still uses the passenger-side engine-compartment filter. GM directs access through the passenger wheel house.
Starting with the 2017 L5P, GM places the filter underneath the truck inside the driver-side frame rail.
| Feature | 2001 to 2016 LB7 Through LML | 2017 to 2026 L5P |
|---|---|---|
| General location | Engine compartment | Under truck |
| Side of truck | Passenger side | Driver side |
| Mounting area | Rear passenger side of engine | Inside frame rail |
| Main access | Wheel well or engine bay | From underneath |
| Filter style | Spin-on style assembly | Replaceable element in housing |
| Priming setup | Manual filter-head priming | Electric fuel-system priming |
The priming difference is especially important. Earlier Duramax trucks use the manual primer built into the filter head.
The 2020 L5P supplement describes an electric priming pump. GM instructs the operator to switch the ignition on for 30 seconds without starting the engine so the pump can begin priming.
How to Find Your Duramax Fuel Filter Fast
You can narrow the location down in seconds if you know the truck year.
If your Silverado HD or Sierra HD is a 2001 to 2016 model: open the hood and work from the passenger side. Look toward the rear of the engine near the passenger-side wheel house.
If your truck is a 2017 to 2026 L5P: get underneath the driver’s side and inspect the inside of the frame rail.
The quick rule is:
2001 to 2016 = passenger-side engine bay.
2017 to 2026 = driver-side frame rail.
That distinction solves most Duramax fuel filter location searches without removing unnecessary components.
Which Duramax Engines Have Different Fuel Filter Locations
“Duramax” describes several GM diesel engines, not one universal fuel-system layout.
This guide focuses on the 6.6L V8 used in Silverado HD and Sierra HD pickups.
2.8L Duramax Four Cylinder
The 2.8L Duramax found in vehicles such as the Chevrolet Colorado and GMC Canyon should not be confused with the 6.6L HD engine.
GM’s 2020 2.8L Duramax supplement places its pickup fuel filter on the driver side, inside the frame rail in front of the fuel tank.
That description sounds similar to the newer 6.6L layout, but the filter assembly, engine, parts, and service procedure are different.
3.0L Duramax Inline Six
The 3.0L Duramax used in newer Silverado 1500 and Sierra 1500 trucks is another separate platform.
Do not order a 6.6L L5P filter or follow a Silverado HD replacement procedure simply because both trucks carry a Duramax badge. Confirm engine displacement and model before buying parts.
What to Check Before Replacing a Duramax Fuel Filter
Once you locate the filter, cleanliness becomes critical.
Diesel fuel-system components operate with extremely tight clearances. Dirt introduced while the housing is open can create problems far more expensive than the filter itself.
Before starting:
- Park on a stable, level surface.
- Turn the engine off.
- Apply the parking brake.
- Keep ignition sources away from diesel fuel.
- Position a suitable container for drained fuel.
- Clean dirt from the filter housing and surrounding area.
- Use the correct replacement filter and seals for your exact year.
- Prime the fuel system using the procedure for that generation.
- Start the engine and inspect carefully for leaks.
- Reset the fuel-filter life monitor where equipped.
GM specifically warns L5P owners to clean the filter area before opening the housing so dirt cannot enter the fuel system. The 2025 procedure also directs owners to prime the system, idle the engine, and check the filter for leaks after replacement.
Older trucks need a different priming process. Follow the procedure in the Duramax supplement for your model year rather than applying L5P instructions to an LB7 through LML truck.
Which Duramax Fuel Filter Location Applies to Your Truck
The Duramax fuel filter location becomes simple once you split the 6.6L engine family at the 2017 model year.
For 2001 to 2016 LB7, LLY, LBZ, LMM, and LML pickups, look in the passenger-side engine compartment. Access through the passenger wheel house gives you more working room.
For 2017 to 2026 L5P pickups, look underneath the truck on the driver side, inside the frame rail.
Before removing the filter, match the model year, engine code, filter housing, and replacement part. That takes only a few minutes and prevents following the wrong generation’s service procedure.
5 Common Duramax Fuel Filter Location Questions
Where Is the Fuel Filter on a 6.6 Duramax
It depends on the model year. A 2001 to 2016 6.6L Duramax pickup has the filter in the passenger-side engine compartment, while a 2017 to 2026 L5P has it underneath the truck on the driver side inside the frame rail.
Where Is the Fuel Filter on a 2011 Duramax
The 2011 LML fuel filter is in the engine compartment on the passenger side. GM recommends accessing it through the passenger-side wheel-house opening by lowering the rear portion of the inner liner enough to reach the filter.
Where Is the Fuel Filter on a 2016 Duramax
A 2016 6.6L Duramax pickup uses the older passenger-side engine-compartment location. The fuel filter is most easily reached through the passenger wheel-house area rather than completely from above.
Where Is the Fuel Filter on a 2020 Duramax
The 2020 L5P fuel filter is underneath the truck on the driver side, inside the frame rail. GM’s 2020 6.6L Duramax supplement also identifies the drain valve under the vehicle in this same area.
Where Is the Fuel Filter on a 2025 Duramax
The 2025 6.6L L5P fuel filter is on the driver side inside the frame rail. GM’s 2025 Duramax supplement confirms the location and specifies cleaning the housing area before opening it for service.
