Ford F150 Shift Linkage Diagram: 2026 Troubleshooting Guide
The shift linkage system connects the steering column shifter to the transmission range sensor via a cable assembly. It consists of a transmission control selector lever, retaining clips, and the shift cable bushing. Proper calibration requires placing the transmission in Neutral and verifying the shift indicator alignment against the gear position.
📌 Key Takeaways
- The shift cable uses a nylon bushing at the transmission end, which is the most frequent point of failure.
- Ensure the shift cable is locked into the bracket with the metal retainer clip fully seated to prevent unintended movement.
- Torque the transmission shift lever nut to 18 lb-ft (24 Nm) during any reinstallation or adjustment procedure.
- A worn steering column actuator or loose cable bracket can result in an inaccurate gear position display on the instrument cluster.
- Always engage the parking brake before inspecting the linkage system to prevent vehicle roll during the diagnostic process.
Understanding the mechanical configuration of your truck is essential for maintaining driveline integrity and ensuring reliable gear engagement. The Ford F150 shift linkage diagram serves as the primary technical blueprint for diagnosing transmission selection issues, ranging from loose shifter feel to complete failure to enter Park or Drive. Whether you are dealing with a cable-actuated system in older models or the updated solenoid-controlled architectures found in newer iterations, the linkage remains the critical interface between your physical input at the column or console and the transmission’s manual valve lever. This guide provides a deep dive into the system structure, calibration procedures, and the specific failure points that necessitate a formal inspection of the shifting layout.
Prime for Young Adults — 6 Months Free
Students and 18–24s get six months of Prime free, then half price.

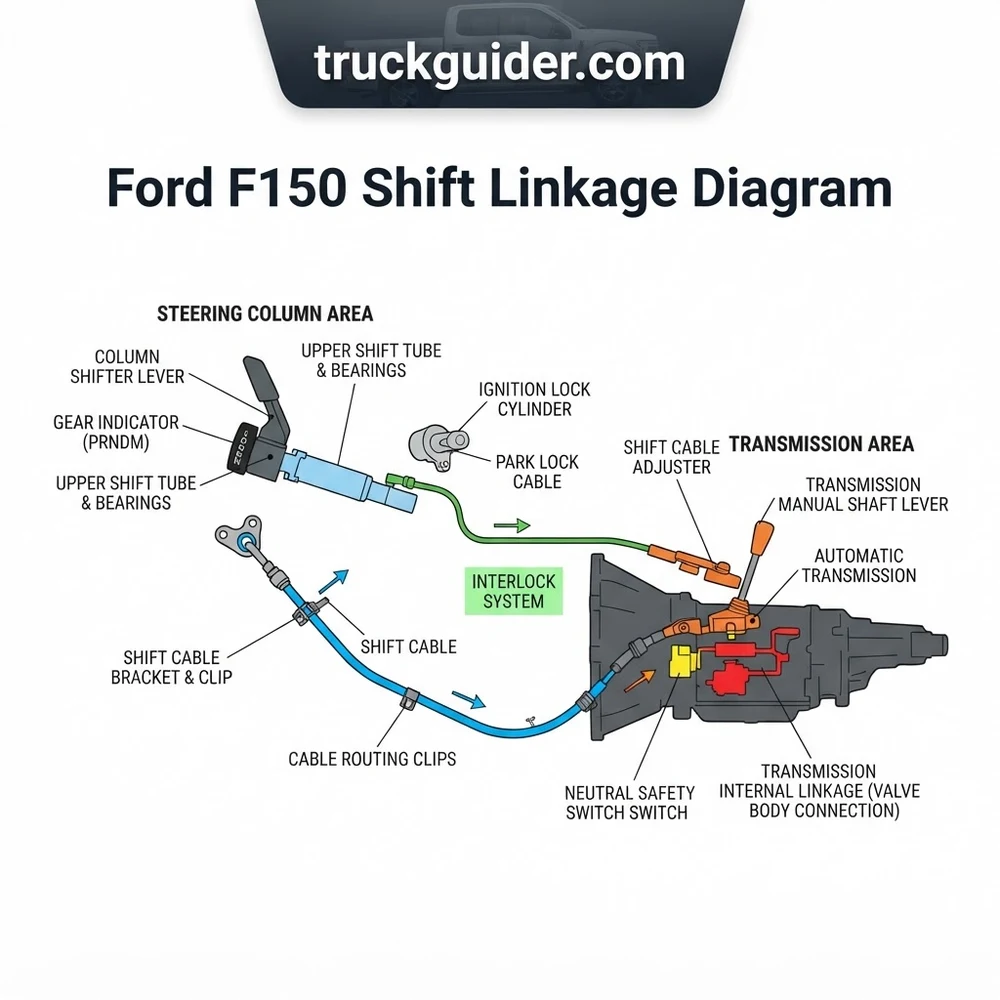

Start 6 Months Free[DIAGRAM_PLACEHOLDER: A professional technical schematic illustrating the F150 shift cable routing from the transmission tunnel through the fire-wall to the shifter assembly, highlighting bushing attachment points and the manual valve lever position.]
