Ford F-150 2026 Transmission Interchange Chart: Component Breakdown
The ford f150 transmission interchange chart maps gearbox compatibility by model year, engine displacement, and bell housing bolt patterns. Cross-reference your transmission tag number against your VIN to ensure ECU communication. Match gear ratios and torque converter stall speeds to prevent triggering a check engine light after installation.
📌 Key Takeaways
- Transmission pan bolts typically require a final torque spec of 8-10 ft-lbs to ensure a proper seal.
- Always verify the solenoid body ID matches your ECU calibration; mismatched units cause immediate limp mode.
- Ensure the torque converter is fully seated into the front pump, usually confirmed by three distinct clicks during installation.
- The most common failure point is the lead frame assembly, leading to erratic shifting and loss of gear position data.
- Professional programming is required if the transmission control module serial does not handshake with the vehicle’s gateway module.
When executing a drivetrain replacement, relying on an accurate Ford F150 transmission interchange chart is non-negotiable for success. Modern Ford architecture demands precise compatibility between the transmission housing, electronic control modules, and the vehicle’s communication bus. Attempting to swap a unit based solely on physical bolt pattern matches often results in catastrophic failure or persistent communication faults. Whether you are dealing with an E4OD, 4R70W, or the complex 10R80 units found in later models, understanding the nuances of internal gear ratios, solenoid pack wiring, and electronic handshake protocols is essential for avoiding a dead vehicle in the shop. This guide provides the technical data necessary to ensure your replacement transmission integrates perfectly with your truck’s existing ECU and powertrain systems.

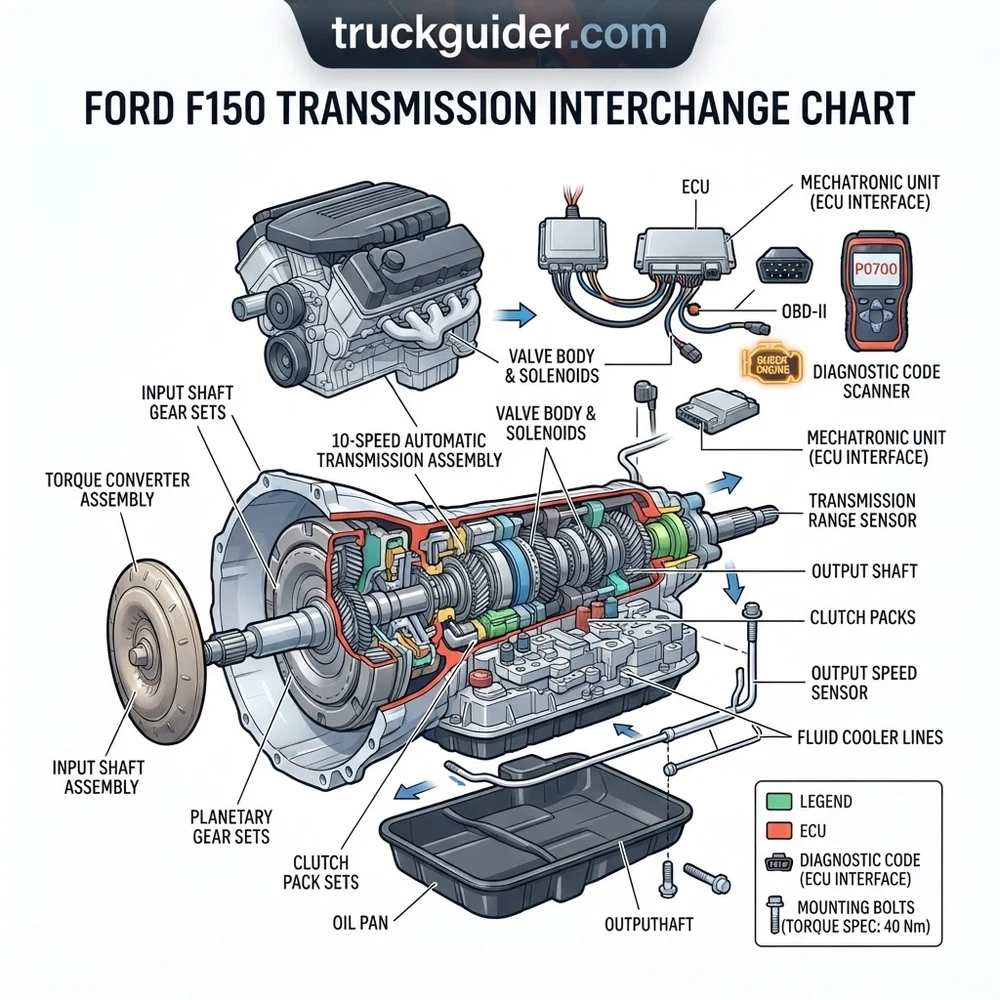

[DIAGRAM_PLACEHOLDER: A schematic view of an F-150 transmission assembly showing the bellhousing, tailshaft housing, OSS (Output Speed Sensor), TCM (Transmission Control Module), and cooling line ports.]
Decoding the Ford F150 Transmission Interchange Chart Parameters
Recommended Best Deal Products
To utilize a Ford F150 transmission interchange chart effectively, you must understand how Ford engineers designed these units to interface with the vehicle’s electrical environment. Compatibility is dictated by far more than just the external casing dimensions. The transition from hydraulic-heavy transmissions to computer-controlled units has introduced variables that render seemingly identical units incompatible if the internal electronics do not match.
Analyzing the Transmission Case and Bellhousing Geometry
The transmission case serves as the primary structural interface between the engine block and the driveshaft. For Ford trucks, the bellhousing bolt pattern is specific to the engine family. For instance, a 5.0L Coyote engine bellhousing pattern is distinct from the 3.5L EcoBoost or the 5.4L Triton. Beyond the bolt pattern, you must consider the starter motor orientation and the dowel pin positioning. The interchange chart explicitly highlights these variations, as a mismatch here will result in immediate alignment failure, risking damage to the torque converter or the flexplate.
Electronic Compatibility and Valve Body Logic
Modern Ford transmissions, particularly the 6R80 and 10R80, utilize a Mechatronic unit that houses both the TCM and the solenoid pack. This unit communicates directly with the ECU via the CAN bus. If the donor transmission’s valve body calibration does not match your truck’s specific PCM (Powertrain Control Module) software version, the system will trigger a check engine light and likely force the transmission into limp mode. You cannot simply install a transmission from a different year and expect the ECU to recognize it without proper flash calibration.
Output Shaft and Tailshaft Variations
The interchange chart also requires scrutiny of the output shaft length and the OSS (Output Speed Sensor) configuration. Four-wheel-drive (4WD) units differ significantly from two-wheel-drive (2WD) models. Furthermore, the number of splines on the output shaft must match your transfer case input or your driveshaft yoke. Failure to verify this spline count during the interchange process will render the vehicle immobile, as the driveshaft will either not engage or will lack the necessary clearance for suspension articulation.
Master Ford F150 Transmission Interchange Chart Reference Table
The following table provides a high-level reference for the most common F-150 transmission families across the last three decades. Note that gear counts and bellhousing patterns are generalized; always cross-reference the specific engineering part number stamped on the transmission tag.
| Transmission Model | Production Years | Key Identifying Features |
|---|---|---|
| E4OD / 4R100 | 1989-2003 | Heavy-duty 4-speed, solenoid pack external harness |
| 4R70W / 4R75E | 1993-2008 | Modular transmission, 4-speed, varied internal OSS |
| 6R80 | 2009-2017 | 6-speed, integrated TCM, Mechatronic unit |
| 10R80 | 2017-Present | 10-speed, highly sensitive to PCM flash compatibility |
Always verify the transmission tag number. Ford uses engineering numbers (e.g., AL3P-7000-AB) that provide the exact ratio and torque rating specifications. Do not rely solely on the exterior appearance of the transmission case.
Identifying Common Issues and Symptoms of Transmission Failure
Before proceeding with a swap based on the transmission interchange chart, perform a rigorous diagnostic scan. Often, transmission symptoms are incorrectly attributed to internal mechanical failure when the root cause is external electrical interference.
Check Engine Light (CEL) and Diagnostic Codes: Use a professional-grade OBD-II scanner to pull specific transmission codes. P07xx series codes point to solenoid, sensor, or circuit malfunctions.
Solenoid Pack Failure: A common issue in 4R70W and 6R80 units. If the diagnostic code indicates a solenoid circuit fault, replacing the internal solenoid pack or the external wiring harness often resolves the issue without needing a full transmission replacement.
PCM/TCM Communication Errors: If the ECU loses communication with the transmission, check for frayed wiring near the chassis or corrosion at the main bulkhead connector. Moisture intrusion in the connector pins is a frequent culprit.
Coolant Flow and Thermal Management: Ensure the auxiliary transmission cooler is not clogged. Restricted coolant flow leads to rapid overheating, which eventually damages the valve body and friction plates.
* Oil Pressure Fluctuations: If you observe abnormal oil pressure readings via the live data stream, investigate the pump assembly. In some cases, a failing timing chain can cause erratic engine idle that manifests as shifting irregularities, so verify engine health before condemning the transmission.
Do not operate the vehicle if the transmission fluid exhibits a burnt odor or contains metallic shavings. This indicates catastrophic internal component wear and requires an immediate teardown or unit replacement.
Diagnostic Steps for Validating F-150 Transmission Swaps
Replacing a transmission is an intensive task. Follow these validation steps to ensure your swap meets all mechanical and electronic requirements before you commit to the final installation.
1. Verify Compatibility with Donor VIN: Use your scan tool to pull the donor vehicle’s VIN if available. Run this through an official Ford service portal to confirm that the transmission calibration software matches your current truck’s ECU architecture.
2. Inspect the Torque Converter: Ensure the torque converter is fully seated in the pump. You should feel three distinct stages of engagement. If the converter is not seated to the manufacturer’s depth specification, you will crack the pump gear upon bolting the transmission to the engine.
3. Validate Electrical Pin-Outs: Compare the wiring harness connector on the donor unit to your original. While many transmissions look the same, Ford frequently changed pin-out configurations within the same production generation. Use a multimeter to verify continuity between the transmission bulkhead connector and the vehicle-side harness.
4. Check Fluid and Cooling System: Always flush the external cooler lines and the radiator cooler portion. If your previous transmission failed due to heat or internal debris, failure to flush the cooling system will contaminate your replacement unit within the first few miles.
5. Perform ECU Re-Learn/Flash: After installation, use a dealer-level diagnostic tool (like IDS or FJDS) to clear existing transmission adaptive learning tables. You must perform a “Keep Alive Memory” (KAM) reset. Without this, the ECU will attempt to shift according to the wear patterns of the old transmission, causing harsh or slipping shifts.
6. Observe Fluid Pressure and Temperatures: Monitor live data for line pressure and transmission fluid temperature. If the temperature spikes rapidly or pressure deviates from the spec provided in the factory manual, shut down immediately and inspect for internal leaks or restriction.
Refer to your specific model’s service manual for exact torque specs. For instance, the transmission-to-engine block bolts on a 6R80 typically require 35 lb-ft, while the cooler line fittings often require 15-20 lb-ft. Never exceed these specs to avoid stripping aluminum threads.
Ford F150 Transmission Interchange Chart Questions Answered
Can I use a 2WD transmission in a 4WD F-150?
No. The main case casting on 2WD and 4WD transmissions is typically different. A 2WD transmission lacks the mounting point for the transfer case adapter and has a different output shaft length and spline count. Converting one to the other requires a complete teardown and shaft swap, which is rarely cost-effective.
Will a transmission with a different engineering code work?
Generally, you must match the engineering code (e.g., JL3P-7000-AA). Even within the same model year, Ford may change the valve body design or the solenoid pack architecture. Installing a unit with a different code will almost certainly trigger a diagnostic code and prevent the transmission from functioning in its optimized state.
Is it necessary to program the ECU after a transmission swap?
Yes. Modern F-150s require the TCM to be “married” to the PCM through the vehicle’s diagnostic port. If the unit is not properly calibrated and the adaptive learning tables are not cleared, you will experience poor shift quality, flared shifts, or a permanent check engine light related to shift solenoid performance.
What happens if I ignore the torque spec during installation?
The transmission case is made of aluminum alloy. Overtorquing the bellhousing or crossmember bolts can crack the casing or distort the internal valve body bores. Conversely, undertorquing can lead to harmonic vibration, which will eventually shear the bolt heads or cause a fluid leak between the engine and transmission block. Always use a calibrated torque wrench for every fastener.
Step-by-Step Guide to Understanding the Ford F150 Transmission Interchange Chart
Identify – Locate the transmission model tag on your existing unit and record the full part number.
Locate – Access your vehicle’s build date and engine specs to filter the interchange chart.
Reference – Match your recorded part number against the chart to find compatible replacement unit codes.
Connect/Route – Ensure all cooling lines and electrical harnesses are routed without tension to prevent future leaks.
Verify – Use an OBD-II scanner to monitor live data and check for a clean bill of health regarding solenoid operation.
Troubleshoot – If a check engine light persists, perform a global reset of the TCM to re-learn shift strategies.
