Ford F-150 Fuel System Diagram: Component Troubleshooting 2026
The F-150 fuel system utilizes an in-tank electric pump sending fuel through the high pressure fuel pump (HPFP) assembly. The system maintains pressure via the injection pressure regulator. Refer to the fuel bowl for sediment checks. Fuel lines are color-coded; verify flow using a gauge at the test port, typically at 55-65 PSI.
📌 Key Takeaways
- Operating fuel pressure ranges between 55 and 65 PSI depending on engine load.
- The HPFP serves as the critical transition point from low-pressure lift to high-pressure rail delivery.
- Always relieve system pressure via the inertia switch or fuel pump driver module before loosening any fuel return line.
- A deteriorating fuel bowl seal is the most common cause of air intrusion and hard starts in diesel variants.
- Seek professional diagnostic services if OBD-II codes indicate internal HPFP mechanical failure to avoid metal contamination.
Understanding the intricate architecture of the Ford F150 fuel delivery system is essential for any technician tasked with diagnosing performance irregularities or power loss. Whether you are addressing a P0191 fuel rail pressure sensor code or a crank-no-start condition, your diagnostic foundation begins with the gas tank Ford F150 fuel system diagram. Modern F150 systems, particularly those utilizing Gasoline Direct Injection (GDI) and modular fuel pump driver modules, require a precise grasp of low-pressure supply lines, pump modulation, and the integration of the evaporative emissions components. This guide provides the technical breakdown necessary to navigate the fuel path from the tank to the high-pressure fuel rail.
Prime for Young Adults — 6 Months Free
Students and 18–24s get six months of Prime free, then half price.

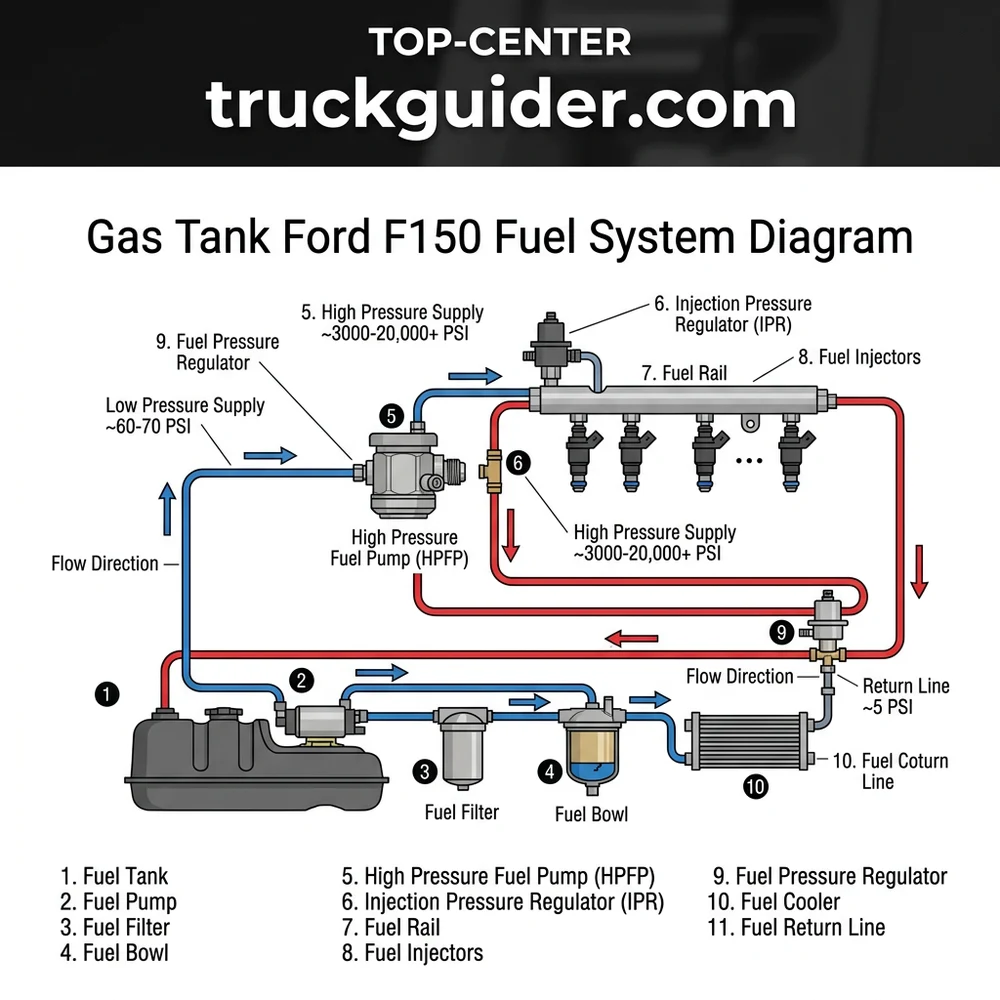

Start 6 Months Free[DIAGRAM_PLACEHOLDER: F150_FUEL_SYSTEM_SCHEMATIC_2015_2022]
Mapping the Gas Tank Ford F150 Fuel System Diagram
Recommended Best Deal Products
To effectively service the F150, you must treat the fuel system as a multi-stage delivery architecture. The physical layout consists of the fuel tank assembly, the sender module, the FPDM (Fuel Pump Driver Module), and the supply lines leading to the engine bay. In GDI-equipped engines, the system transitions from the low-pressure in-tank pump to the mechanical high-pressure fuel pump (HPFP) mounted on the engine block.
| Component | Function | Diagnostic Focus |
|---|---|---|
| Fuel Tank Module | Houses pump, sender, and regulator | Voltage drop at connector |
| FPDM | Pulse Width Modulation signal to pump | Corrosion of module casing |
| EVAP Canister | Captures fuel vapor | Vent valve restriction |
| Fuel Supply Line | Delivers fuel to HPFP | Kinks or pressure leaks |
The tank itself typically utilizes a high-density polyethylene construction, incorporating an internal baffle system to prevent fuel starvation during aggressive maneuvers. The fuel pump module is a sealed unit containing the pump, filter, and the fuel level sending unit. When inspecting the gas tank Ford F150 fuel system diagram, note that the fuel return line configuration has shifted over various model years, moving from an external return to a returnless system in many late-model trucks to reduce vapor generation.
Common Gas Tank Ford F150 Fuel System Diagram Problems and Fixes
Troubleshooting the F150 fuel system requires differentiating between electrical signal errors and mechanical component failures. One of the most frequent points of failure is the Fuel Pump Driver Module (FPDM). Unlike older systems that used a simple relay, the FPDM receives a signal from the PCM to modulate the pump voltage based on engine load.
FPDM Corrosion: Often mounted on the frame rail, these modules suffer from aluminum housing oxidation, leading to erratic fuel pressure or total system shutdown. If the PCM signals exist but the pump remains silent, check the FPDM ground circuit.
Intermittent Pump Operation: A failing pump often exhibits resistance spikes before failing entirely. Use a lab scope to monitor the current draw; a healthy pump typically displays a consistent ripple pattern, whereas a failing motor shows erratic spikes.
Injection Pressure Regulator (IPR) Complications: In diesel variants or high-pressure direct injection systems, the IPR controls the pressure directed to the rail. If the fuel pressure does not match the requested values in the PCM, check for debris clogging the screen.
PCM Command Issues: If voltage is not reaching the FPDM, verify the continuity of the fuel pump relay in the Power Distribution Box. Always reference your specific model year’s wiring schematic, as pin assignments often change between 5.0L and 3.5L EcoBoost platforms.
Never apply 12V directly to the fuel pump motor for extended periods during testing; high-pressure systems require specific PWM signal frequencies. Exceeding rated voltages can lead to catastrophic damage of the internal fuel pressure regulator.
How to Replace F150 Fuel System Parts Safely
Replacing the fuel pump assembly or clearing lines requires stringent adherence to safety protocols, specifically regarding pressure relief. Before disconnecting any fittings, you must depressurize the system.
1. Relieve System Pressure: Remove the fuel pump fuse or relay and crank the engine until it dies. This reduces the risk of high-pressure fuel spray when disconnecting the lines.
2. Empty and Drop the Tank: Support the tank with a transmission jack. Disconnect the electrical harnesses, EVAP lines, and the primary fuel feed line. Use a release tool for the plastic quick-connect fittings; metal clips can be brittle after years of heat cycling.
3. Module Removal: Once the tank is lowered, clean the surrounding area to prevent debris from entering the tank during removal. Unlock the locking ring—this often requires a specialized spanner wrench to avoid sparking on the metal ring.
4. Verification: Before reinstalling, check the O-ring seal for signs of compression set or cracking. Always apply a thin layer of clean fuel or silicone grease to the new O-ring to ensure a proper seat.
5. Primer Pump Cycle: After installation, do not attempt to start immediately. Turn the ignition to the ‘ON’ position (do not crank) for 10 seconds to allow the primer pump to fill the lines and purge air. Repeat this three times to ensure the system is primed.
For technicians working on diesel-equipped F150 models, the fuel bowl and fuel heater are critical diagnostic points. A clogged fuel heater circuit can lead to gelling in cold climates, which mimics a restricted fuel supply.
Audible — Listen Free for 30 Days
One free credit a month and thousands of titles included.
Listen Free for 30 DaysFord F150 Fuel System Pressure and Capacity Specs
Technical specifications are paramount when calibrating your scan tool for fuel pressure diagnostic tests. The HPFP must generate significant pressure for direct injection, often exceeding 2,000 PSI under load.
| Measurement Point | Typical Spec (Idle) | Tolerance Range |
|---|---|---|
| Low Pressure (Tank) | 55-65 PSI | +/- 5 PSI |
| High Pressure (Rail) | 400-600 PSI | Depends on Map/Load |
| Injection Regulator | Variable/PWM | PCM Controlled |
Regarding the fuel cooler, ensure it remains free of external debris. A restricted cooler can cause fuel temperatures to exceed limits, resulting in a loss of power or elevated vapor pressure in the tank. If you observe fuel temperatures exceeding 160°F during standard operation, inspect the fuel cooler path for obstructions or bent fins.
HPFP flow rates for the 3.5L EcoBoost are rated at approximately 1.5 to 2.0 liters per minute at peak engine demand. Ensure the supply line from the gas tank maintains a constant volume to prevent cavitating the HPFP intake.
Gas Tank Ford F150 Fuel System Diagram Questions Answered
What signifies a failing fuel pump in the F150?
A failing fuel pump often presents as a long crank time before ignition. By monitoring the fuel rail pressure via a scan tool while cranking, you can identify if the pump is failing to maintain the minimum prime pressure (typically above 50 PSI). If the pressure drops instantly after the pump stops, check for a faulty check valve within the fuel pump module.
Does the fuel return line require special maintenance?
In returnless systems, the “return” process happens internally within the tank assembly. If you find debris in the fuel lines, it usually indicates a failure of the internal fuel filter integrated into the pump module. Since these filters are non-serviceable, the entire module must be replaced to prevent HPFP damage from contaminants.
How do I differentiate between a bad FPDM and a bad pump?
Perform a voltage check at the connector leading to the fuel tank. If you have 12V at the module input but no voltage at the pump motor output pins, the FPDM has likely failed internally. Ensure that the FPDM ground wire is clean and free of corrosion, as this is a primary cause of module “false negatives.”
Is it necessary to replace the Injection Pressure Regulator (IPR) if I replace the pump?
No, they are distinct components. However, if your diagnostic chart shows high-pressure spikes or inability to reach target rail pressures, the IPR is the first component to inspect. Always ensure the wiring harness to the regulator is free of oil contamination, which can cause intermittent electrical resistance.
Can a blocked fuel heater impact cold start performance?
Yes, on diesel-equipped F150s, the fuel heater ensures fuel viscosity remains optimal. If the heater fails, fuel flow restriction occurs, often triggered by paraffin wax build-up. This will frequently set a fault code related to fuel temperature or pressure, which should lead you to test the heater element resistance according to your specific engine service manual.
Audible Premium Plus — Annual Membership
12 audiobook credits up front, plus the full Audible catalogue.
See Annual PlansStep-by-Step Guide to Understanding the Gas Tank Ford F150 Fuel System Diagram
Identify – Inspect the fuel pump driver module and wiring harness for signs of corrosion or heat damage.
Locate – Access the fuel tank assembly by lowering the tank or removing the bed for easier component clearance.
Reference – Use the factory fuel system diagram to verify the routing of the fuel return line and pressure supply lines.
Connect/Route – Secure all quick-connect fittings until an audible click is heard, ensuring O-rings are seated and undamaged.
Verify – Cycle the ignition to the ‘on’ position three times to prime the HPFP and check for leaks at each connection point.
Troubleshoot – Clear any existing diagnostic trouble codes with a scan tool and perform a road test to confirm proper rail pressure.
