Jeep Gladiator Tow Capacity Towing Capacity Chart By Year
Quick Answer
The Jeep Gladiator offers a maximum towing capacity ranging from 4,000 lbs to 7,700 lbs depending on the model year, engine, and equipment. The 3.6L Pentastar V6 engine with the Max Tow Package achieves the highest rating. The critical caveat is that your specific vehicle’s capacity is governed by the Gross Combined Weight Rating (GCWR) and your unique payload sticker located on the driver-side door jamb.
Searching for your Jeep Gladiator’s towing capacity can be confusing because the numbers shift significantly depending on how your specific truck left the factory. Many owners mistakenly assume their specific trim or engine matches the maximum marketing number, leading to potentially dangerous overloads. In this guide, we provide a definitive year-by-year chart and the exact configuration breakdown you need to determine your specific Jeep Gladiator’s safe towing limits.
Prime for Young Adults — 6 Months Free
Students and 18–24s get six months of Prime free, then half price.
Start 6 Months Free

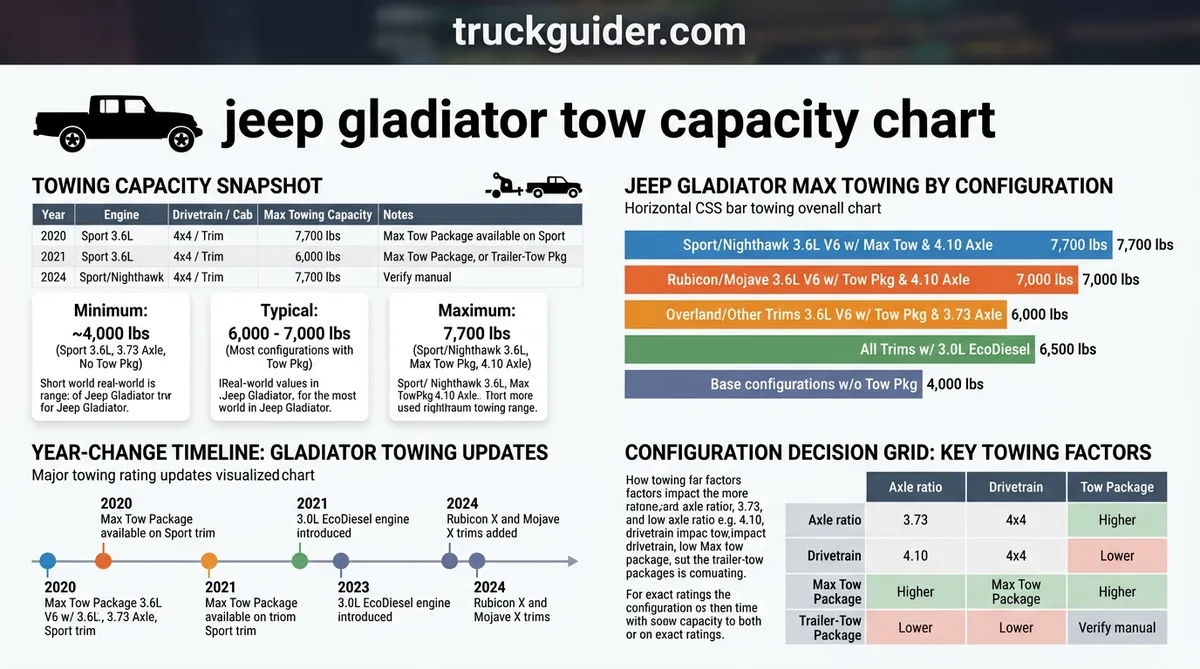

Jeep Gladiator Tow Capacity Chart: Model Years 2020-2026
Recommended Best Deal Products
📤 Share Image
This data covers model years 2020 through 2026. Because towing capacity is determined by specific factory-installed equipment (such as the Max Tow Package, axle ratios, and transmission type), these figures are generalized ranges. Always verify your vehicle’s specific GCWR in the owner’s manual and check your driver’s door pillar sticker for payload limits. Last reviewed: August 2026.
| Year | Engine / Trim | Max Capacity | Notes |
|---|---|---|---|
| 2020–2026 | 3.6L V6 (Standard) | 4,000–4,500 lbs | Depends on axle ratio |
| 2020–2026 | 3.6L V6 (Max Tow) | 7,650 lbs | Requires 4.10 axle ratio |
| 2021–2023 | 3.0L EcoDiesel | 6,000–6,500 lbs | Trim/Axle dependent |
Reading the Jeep Gladiator Capacity Table
To interpret this chart, identify your engine type and check your build sheet for the “Max Tow Package.” If your vehicle is not equipped with the 4.10 rear axle ratio, your capacity is limited to the base rating, regardless of the engine. Do not assume your truck can tow 7,650 lbs unless it has the factory Class IV hitch and the cooling enhancements included in the Max Tow package.
4,000 lbs
7,650 lbs
How Configuration Changes Jeep Gladiator Towing Limits
The Jeep Gladiator’s tow rating is a product of mechanical leverage and cooling efficiency. The jump from a 4,000 lb limit to a 7,650 lb limit is not achieved through engine power alone, but through a combination of axle gear ratios, suspension dampening, and drivetrain cooling.
Max Tow Package Enhancements
The Max Tow Package includes critical hardware upgrades: heavy-duty engine cooling, a 240-amp alternator, and a 4.10 rear axle ratio. These components allow the truck to handle the increased thermal load and mechanical stress associated with pulling heavier trailers without exceeding the Gross Combined Weight Rating (GCWR).
Axle Ratios and Engine Torque
The 4.10 axle ratio provides the mechanical advantage necessary to move the vehicle and trailer from a stop without excessive transmission slip. While the EcoDiesel engine offers superior torque, its tow rating is uniquely capped due to the vehicle’s weight and payload distribution characteristics, distinguishing it from the V6 gas-powered maximum tow configurations.
Critical Safety Factors: Payload, Tongue Weight, and GCWR
Recommended Best Deal Products
Towing isn’t just about what the engine can pull; it’s about what the suspension and chassis can safely manage. When you hook up a trailer, you are effectively using a portion of your truck’s payload capacity.
- Gross Combined Weight Rating (GCWR): This is the maximum allowable weight of your loaded truck plus the loaded trailer. Exceeding this figure risks severe mechanical strain and voided insurance coverage.
- Tongue Weight: This is the downward force the trailer coupler exerts on the hitch. It must be included in your vehicle’s total payload. If your payload capacity is 1,200 lbs and your tongue weight is 700 lbs, you only have 500 lbs left for passengers and cargo.
- Weight Distribution Hitch: Required for heavier trailers, this equipment redistributes the tongue weight across all axles of the tow vehicle and trailer, ensuring level towing and improved steering authority.
- Trailer Sway Control: While standard on most modern Gladiators, this electronic system is a safety intervention tool—not a license to exceed your vehicle’s towing capacity ratings.
Common Mistakes When Using a Jeep Gladiator Tow Capacity Chart
Never rely on online forum advice or general trim names for your specific tow capacity. Always check the physical weight sticker on your driver’s side door jamb for the definitive payload limit unique to your vehicle’s specific options.
📋
How to Properly Verify Your Capacity
Recommended Best Deal Products
Open your driver’s side door and look for the yellow and white sticker labeled “Tire and Loading Information.” This gives you your exact payload capacity.
Audible — Listen Free for 30 Days
One free credit a month and thousands of titles included.
Listen Free for 30 DaysIf you are unsure of your specific equipment, use a Jeep VIN decoder or contact a local dealership service department to confirm your truck’s axle ratio and factory-equipped towing features.
Aftermarket tires and lift kits effectively lower your towing performance. The added drag, altered geometry, and changed final drive ratio make your truck less efficient at towing than it was when it left the assembly line.
Always check your specific door sticker and VIN for accurate payload and towing numbers. Remember that max towing capacity is dependent on specific hardware—not just the trim level. Ensure your tongue weight is accounted for within your payload limits, and always verify that your trailer brake controller is calibrated for your specific load before departure.
Jeep Gladiator Tow Capacity Chart: Frequently Asked Questions
Does my specific Jeep Gladiator trim affect towing capacity?
Yes, significantly. Trims like the Sport with the Max Tow Package are optimized for higher towing, whereas off-road-focused trims like the Mojave or Rubicon often have lower ratings. These differences are due to suspension tuning, axle gear ratios, and factory-installed heavy-duty cooling components that vary by trim configuration.
How do I find the exact towing capacity for my specific VIN?
To find your exact capacity, check the Tire and Loading Information placard on your driver-side door jamb. While the owner’s manual provides maximums for your model, your specific truck’s payload capacity must be subtracted from the GCWR to determine your true maximum trailer weight. Entering your VIN into the Mopar Owner’s portal can also yield your truck’s original build sheet.
Do I need a weight distribution hitch for my trailer?
Jeep recommends a weight distribution hitch for trailers weighing over 2,000 lbs if your Gladiator is equipped with the tow package. This device helps distribute the tongue weight across both the truck and trailer axles, significantly improving steering control, braking, and overall vehicle stability while towing near your capacity limits.
How does the engine choice (Gas vs Diesel) change towing limits?
The 3.6L Pentastar V6, when paired with the proper towing package and 4.10 gears, offers the highest towing capacity of up to 7,700 lbs. The 3.0L EcoDiesel, while providing superior low-end torque for easier acceleration, is generally rated for lower maximum trailer weights (typically capped at 6,500 lbs) due to the engine’s increased curb weight reducing total available payload.
What is the importance of the GCWR?
The Gross Combined Weight Rating (GCWR) is the maximum allowable weight of your loaded truck plus your fully loaded trailer. Even if your trailer is under the maximum tow rating, you must ensure the total weight does not exceed the manufacturer’s GCWR. If you overload your truck with cargo, you must reduce your trailer’s weight accordingly to stay within safe GCWR limits.
