Ram 1500 Wheelbase Chart by Year and Cab Through 2026
The Ram 1500 wheelbase chart depends on model year, body generation, cab style, and bed length. For example, the 2026 Ram 1500 has a 140.6-inch wheelbase with the Quad Cab and 6-foot-4-inch box, a 144.6-inch wheelbase with the Crew Cab and 5-foot-7-inch box, and a 153.5-inch wheelbase with the Crew Cab and 6-foot-4-inch box.
Older Dodge Ram 1500 pickups used different configurations, including Regular Cab trucks with 120.5-inch wheelbases and Quad Cab trucks reaching 160.5 inches. The charts below separate the older DS-based Ram 1500 Classic from the redesigned DT model introduced for 2019. All figures are in inches and refer to US-market trucks unless otherwise stated.
TruckGuider | 2026 Dimension Reference
Ram 1500 Wheelbase vs Overall Length
Compare four US-market 2026 configurations. Measurements show axle-to-axle wheelbase versus bumper-to-bumper overall length, in inches.
Quad Cab | 6’4″ box
Crew Cab | 5’7″ box
Crew Cab | 6’4″ box
RHO Crew Cab | 5’7″ box, special model
Ram 1500 Wheelbase Chart by Year From 2002 to 2018
Recommended Best Deal Products
The third- and fourth-generation Ram 1500 trucks used different cab and box combinations. This chart shows the documented nominal wheelbases, rather than suggesting that every cab was offered with every bed length.
| Model Year | Generation | Regular Cab | Quad Cab | Crew Cab or Mega Cab |
|---|---|---|---|---|
| 2002 | Third | 120.5 / 140.5 | 140.5 / 160.5 | Not offered |
| 2003 | Third | 120.5 / 140.5 | 140.5 / 160.5 | Not offered |
| 2004 | Third | 120.5 / 140.5 | 140.5 / 160.5 | Not offered |
| 2005 | Third | 120.5 / 140.5 | 140.5 / 160.5 | Not offered |
| 2006 | Third | 120.5 / 140.5 | 140.5 / 160.5 | Mega Cab: 160.5 |
| 2007 | Third | 120.5 / 140.5 | 140.5 / 160.5 | Mega Cab: 160.5 |
| 2008 | Third | 120.5 / 140.5 | 140.5 / 160.5 | Mega Cab: 160.5 |
| 2009 | Fourth | 120.5 / 140.5 | 140.5 | Crew: 140.5 |
| 2010 | Fourth | 120.5 / 140.5 | 140.5 | Crew: 140.5 |
| 2011 | Fourth | 120.5 / 140.5 | 140.5 | Crew: 140.5 |
| 2012 | Fourth | 120.5 / 140.5 | 140.5 | Crew: 140.5 |
| 2013 | Fourth | 120.5 / 140.5 | 140.5 | Crew: 140.5 / 149.5 |
| 2014 | Fourth | 120.5 / 140.5 | 140.5 | Crew: 140.5 / 149.5* |
| 2015 | Fourth | 120.5 / 140.5 | 140.5 | Crew: 140.5 / 149.4* |
| 2016 | Fourth | 120.5 / 140.5 | 140.5 | Crew: 140.5 / 149.4 |
| 2017 | Fourth | 120.5 / 140.5 | 140.5 | Crew: 140.5 / 149.4 |
| 2018 | Fourth | 120.5 / 140.5 | 140.5 | Crew: 140.5 / 149.4 |
How to read this chart: A slash separates alternative wheelbases for different bed configurations, not a continuous measurement range. For third-generation trucks, Regular Cab used a shorter or longer box, while Quad Cab offered both short and 8-foot long-box versions. The third-generation Mega Cab was a separate 160.5-inch configuration.
In 2013, Ram introduced a Crew Cab with a 6-foot-4-inch box. The 2013 specification sheet lists 149.5 inches; later US brochures commonly list 149.4 inches. The asterisk indicates that source-year precision differs, not that the owner can choose between two chassis lengths.
For the early trucks, consult Dodge’s 2005 factory specifications. For the newer fourth-generation trucks, compare the 2013 factory specifications, 2015 US Ram brochure, and 2018 Stellantis Fleet dimensions.
Ram 1500 Wheelbase Chart From 2019 to 2026
Two different Ram 1500 designs were sold beginning in 2019. The carryover Classic (DS) retained fourth-generation dimensions, while the redesigned Ram 1500 (DT) introduced a different Crew Cab wheelbase. Keep their measurements separate.
| Model Year | Model | Quad Cab 6’4″ Box | Crew Cab 5’7″ Box | Crew Cab 6’4″ Box |
|---|---|---|---|---|
| 2019 | Classic DS | 140.5 | 140.5 | 149.4–149.5* |
| 2019 | Redesigned DT | 140.5 | 144.6 | 153.5 |
| 2020 | Classic DS | 140.5 | 140.5 | 149.4* |
| 2020 | Redesigned DT | 140.5 | 144.6 | 153.5 |
| 2021 | Classic DS | 140.5 | 140.5 | 149.4* |
| 2021 | Redesigned DT | 140.5 | 144.6 | 153.5 |
| 2022 | Classic DS | 140.5 | 140.5 | 149.4 |
| 2022 | Redesigned DT | 140.5 | 144.6 | 153.5 |
| 2023 | Classic DS | 140.5 | 140.5 | 149.4 |
| 2023 | Redesigned DT | 140.5 | 144.6 | 153.5 |
| 2024 | Classic DS | 140.5 | 140.5 | 149.4 |
| 2024 | Redesigned DT | 140.5 | 144.6 | 153.5 |
| 2025 | Redesigned DT | 140.5 | 144.6 | 153.5 |
| 2026 | Redesigned DT | 140.6 | 144.6 | 153.5 |
Regular Cab Classic exception: Earlier Classic model years also offered Regular Cab wheelbases of 120.5 inches with the short box and 140.5 inches with the 8-foot box, depending on year and availability. The US-market 2024 Classic lineup omitted Regular Cab, so those figures must not be treated as 2024 options.
Off-road exception: The 2021–2024 Ram 1500 TRX and 2025–2026 Ram 1500 RHO use a 145.1-inch wheelbase rather than the conventional DT Crew Cab’s 144.6 inches. These models belong in a separate reference entry. Ram discontinued Classic production in 2024.
What Is the 2026 Ram 1500 Wheelbase by Cab
Recommended Best Deal Products
For a standard 2026 Ram 1500, the official US Fleet guide identifies three main cab and box combinations:
| Cab and Box | Wheelbase | Overall Length |
|---|---|---|
| Quad Cab with 6’4″ box | 140.6 in | 228.4 in |
| Crew Cab with 5’7″ box | 144.6 in | 232.4 in |
| Crew Cab with 6’4″ box | 153.5 in | 241.3 in |
| RHO Crew Cab with 5’7″ box | 145.1 in | 233.7 in |
The first three rows come directly from the 2026 Stellantis Fleet buyer’s guide. The RHO dimensions are separately confirmed in Edmunds’ 2026 RHO specifications.
One minor documentation discrepancy deserves attention: the 2026 Fleet guide’s exterior-dimensions chart prints 140.6 inches for Quad Cab, while its equipment-availability section calls the platform 140.5 inches. For a published 2026 dimensions table, use the dedicated exterior-dimensions figure of 140.6 inches and disclose the difference rather than silently blending the values.
How Ram 1500 Wheelbases Changed Across Three Generations
Third Generation Ram 1500
The 2002–2008 Dodge Ram 1500 used wheelbases of 120.5, 140.5, and 160.5 inches for conventional Regular Cab and Quad Cab configurations. A Regular Cab with the shorter box was the most compact, while a Quad Cab with an 8-foot box occupied the long end of the range.
The 2006–2008 Ram 1500 Mega Cab also used a 160.5-inch wheelbase, despite its shorter cargo box. Bed length alone therefore cannot identify wheelbase. The 2006 Mega Cab specifications document that measurement.
Fourth Generation Ram 1500
The redesigned 2009 Ram 1500 retained 120.5- and 140.5-inch Regular Cab wheelbases and the 140.5-inch Quad Cab configuration. Its early Crew Cab used a 140.5-inch wheelbase with a 5-foot-7-inch box.
For 2013, Ram added a longer Crew Cab option with a 6-foot-4-inch box. Its published nominal wheelbase is approximately 149.4–149.5 inches, depending on the source year and rounding convention. This is why a 2011 Crew Cab must not be assigned the long-box figure.
Fifth Generation Ram 1500
The DT truck introduced for 2019 moved the conventional Crew Cab short-box wheelbase to 144.6 inches, while the long-box Crew Cab measured 153.5 inches. The Quad Cab remained close to 140.5 inches. Subsequent TRX and RHO performance models introduced their separate 145.1-inch specification.
To distinguish older and newer models by more than their dimensions, compare TruckGuider’s Ram 1500 vs Ram 2500 specifications only when assessing how light-duty and heavy-duty chassis classes differ; it is not a substitute for this wheelbase lookup.
How the 2019 Ram 1500 Classic Wheelbase Differs
Recommended Best Deal Products
A 2019 Ram 1500 Classic is not the same chassis as a redesigned 2019 Ram 1500. A Classic Crew Cab with a 5-foot-7-inch box measures 140.5 inches between axle centers. The redesigned DT Crew Cab with the same nominal box length measures 144.6 inches.
With the longer 6-foot-4-inch Crew Cab box, the Classic uses approximately 149.4–149.5 inches, while the DT measures 153.5 inches. The Quad Cab is the exception: both designs use a nominal 140.5-inch wheelbase with their 6-foot-4-inch box.
For used pickups or chassis-specific parts, identify the Classic (DS) or redesigned (DT) platform first.
How Crew Cab and Quad Cab Bed Sizes Affect Wheelbase
The cab contributes to the distance between the axles, just as the box configuration does. In the 2026 standard Ram 1500 range, a Quad Cab with a 6-foot-4-inch box has a 140.6-inch wheelbase. A Crew Cab with that same nominal box length measures 153.5 inches.
The Crew Cab with a shorter 5-foot-7-inch box is 144.6 inches. Bed length alone cannot establish frame-dependent part fitment.
For cargo-bed floor dimensions, box widths, and earlier bed availability, use TruckGuider’s separate Dodge Ram bed size chart by year. Those measurements describe the box, not the axle spacing.
What Does Ram 1500 Wheelbase Actually Measure
Wheelbase is the straight-line distance between the center of the front axle and the center of the rear axle. It is not the outside length of the cab, the usable length of the bed, or the overall length of the pickup.

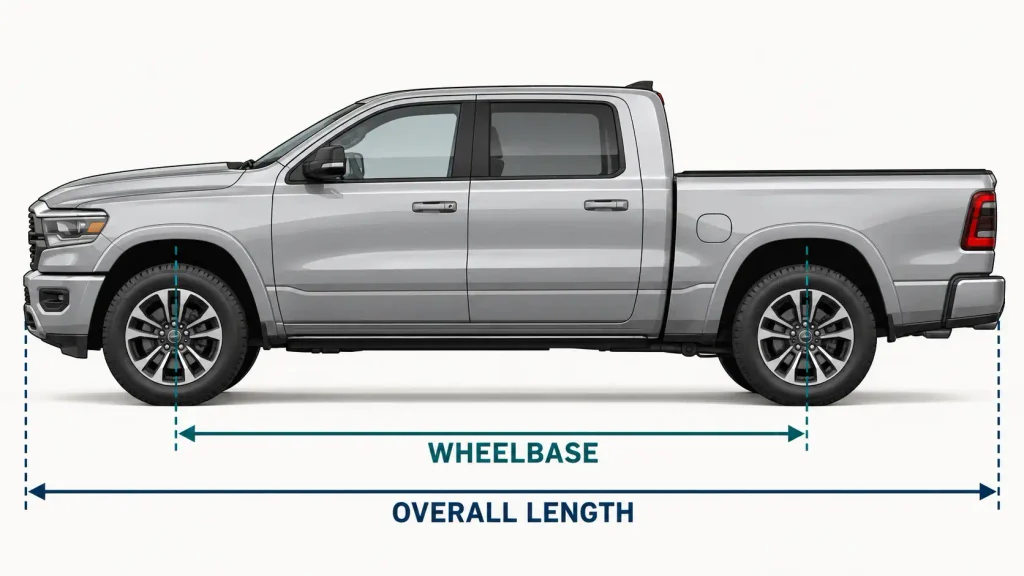

A side-view measurement diagram should mark the two axle centers, draw one horizontal line between them, and label it wheelbase. Mark overall length between the bumpers.
Front and rear overhang add body length without changing wheelbase.
Ram 1500 Wheelbase vs Overall Length for Parking
A 153.5-inch wheelbase does not mean a truck is only 153.5 inches long. The 2026 Crew Cab with the 6-foot-4-inch box has a total length of 241.3 inches, according to the Fleet guide. The shorter Crew Cab/5-foot-7-inch combination measures 232.4 inches overall, despite having a 144.6-inch wheelbase.
For garage fit, check the overall length, mirror clearance, doorway width, and space needed to walk behind or in front of the truck. For tight turns, use the manufacturer’s turning-diameter specification rather than inferring a turning circle from wheelbase alone.
Wheelbase also does not establish a trailer rating. For a specific engine, axle ratio, cab, and drivetrain combination, consult TruckGuider’s Ram 1500 towing capacity chart instead of treating a longer wheelbase as proof of greater towing capacity.
How to Verify Your Ram 1500 Wheelbase in Four Steps
- Confirm the model year and model. Check the vehicle identification number (VIN) on the driver’s dashboard, doorframe label, or ownership documents. The official Mopar VIN guide identifies those locations.
- Identify the generation. For 2019–2024 trucks, establish whether the truck is a Classic DS or redesigned DT before choosing a row.
- Match cab and box. Check whether the vehicle has a Regular, Quad, Crew, or historical Mega Cab, then identify its nominal bed length.
- Match a year-specific specification or measure directly. Use the manufacturer dimension sheet where available. If the truck has been modified or its configuration is uncertain, measure on level ground between the front and rear axle centers along the side of the truck. Do not use the VIN plate as if it directly printed the wheelbase.
Use the value for the exact configuration, not merely the model year.
Which Ram 1500 Wheelbase Fits Your Truck
The Ram 1500 wheelbase chart is most useful when you identify the configuration before reading the number. The older third-generation pickups span conventional 120.5- to 160.5-inch setups, while the standard 2026 Ram 1500 configurations use 140.6, 144.6, and 153.5 inches. Performance models such as the RHO require a separate entry.
Pay particular attention to 2019–2024 trucks because Classic and redesigned versions were sold during overlapping years. For chassis-specific fitment, confirm the body configuration against year-specific manufacturer specifications.
Ram 1500 Wheelbase Frequently Asked Questions
What Is the Wheelbase of a 2026 Ram 1500 Crew Cab?
A standard 2026 Ram 1500 Crew Cab has a 144.6-inch wheelbase with the 5-foot-7-inch box or 153.5 inches with the 6-foot-4-inch box. The 2026 RHO Crew Cab is a special exception at 145.1 inches. Check the trim and box before using either standard figure.
Does a Ram 1500 Quad Cab Have a Shorter Wheelbase?
Compared with a modern Crew Cab using the same 6-foot-4-inch box, yes. The standard 2026 Quad Cab measures 140.6 inches, while the Crew Cab long-box truck measures 153.5 inches. Comparisons across other generations require the exact model year and bed configuration.
Is the 2019 Ram 1500 Classic Wheelbase Different?
Yes, particularly on Crew Cab trucks. The 2019 Classic Crew Cab with a short box uses 140.5 inches, while the redesigned DT Crew Cab short-box truck uses 144.6 inches. Their long-box Crew Cab measurements also differ, even though both models carry the 2019 model year.
Did the Ram 1500 Wheelbase Change in 2019?
Yes, for the newly redesigned DT Crew Cab, but the carryover Classic retained fourth-generation geometry. The DT Quad Cab remained at 140.5 inches, while the redesigned Crew Cab measured 144.6 or 153.5 inches depending on box length. Identify the platform before comparing figures.
What Is the Longest Ram 1500 Wheelbase?
Among the historical factory configurations covered here, 160.5 inches is the longest documented wheelbase. It appears on third-generation Quad Cab long-box trucks and the 2006–2008 Ram 1500 Mega Cab. The longest conventional 2026 Ram 1500 wheelbase in the Fleet chart is 153.5 inches.
Is Ram 1500 Wheelbase the Same as Bed Length?
No. Wheelbase measures the distance between axle centers, while bed length measures the cargo box. For example, a 2026 Crew Cab with a nominal 6-foot-4-inch bed has a 153.5-inch wheelbase. Use the correct dimension when choosing frame-dependent equipment or checking garage clearance.
