Ram Fuel Tank Size Chart by Year: 1994-2026 1500, 2500 & 3500 (All Configs)

Ram fuel tank size varies from 23 to 50 gallons across modern Ram 1500, 2500, and 3500 pickups, depending on the model year and configuration. Older Dodge Ram pickups commonly used 26, 34, or 35-gallon tanks, while newer trucks add 23, 31, 32, 33, and 50-gallon configurations.

You cannot identify the correct capacity from model year alone on many Rams. Cab style, bed length, engine, and factory options can change the tank installed on two trucks built in the same year.

The charts below cover Dodge Ram and Ram pickups from 1994 through 2026 using factory capacity specifications wherever available.

What Ram Fuel Tank Sizes Cover 1994 to 2026

The quickest way to understand Ram fuel capacity is to look at the major specification changes by generation.

These numbers are nominal factory capacities, not a guarantee that every truck from that year has the largest tank shown.

For example, Mopar’s 2011 guide lists a 26-gallon tank for applicable Ram 1500 short-bed configurations and an optional 32-gallon tank for applicable long-bed and other configurations. The same guide lists 34 gallons for Ram 2500/3500 short-bed models and 35 gallons for long-bed models.

If fuel capacity matters because you tow frequently, pair the tank information with Truck Guider’s Ram towing capacity chart by year rather than assuming a larger fuel tank changes the truck’s towing rating.

Ram 1500 Fuel Tank Size Chart by Year

Ram 1500 tank capacity changed less often than the number of trims and engines might suggest. The biggest changes were the move from the older 26/35-gallon combinations to 26/32 gallons, followed by the current 23/26/33-gallon choices.

1994 to 2001 Dodge Ram 1500

Second-generation Dodge Ram 1500 trucks were built with different fuel tanks based largely on wheelbase and bed configuration. A 26-gallon tank was used on smaller configurations, while a 35-gallon tank was available on long-wheelbase applications.

Owners ordering replacement fuel pumps or tanks should verify the original equipment before using the year alone. Parts catalogs for this generation identify both smaller and 35-gallon applications.

2002 to 2008 Dodge Ram 1500

Third-generation trucks retained multiple capacities. Factory documentation from 2006 lists 26 gallons for 1500 short-bed configurations, 34 gallons for applicable Quad Cab short-bed configurations, and 35 gallons for long-bed trucks.

This is one reason a 2006 Ram 1500 owner can find several apparently conflicting capacities online. The numbers can all be correct for different factory builds.

2009 to 2018 Ram 1500

The fourth-generation Ram 1500 largely standardized around 26 and 32-gallon tanks.

Ram’s 2013 factory brochure lists a 26-gallon tank as standard, with a 32-gallon tank on 8-foot-box models.

The 2016 Ram buyer’s guide gives more detail. The 26-gallon tank was standard or included on many configurations, while the 32-gallon tank was included with the 8-foot box and optional with some 5-foot-7-inch and 6-foot-4-inch boxes. Ram also states that the 32-gallon tank was not available with the 3.0L EcoDiesel V6 in that application.

For configuration-specific half-ton capability data, Truck Guider’s Ram 1500 towing capacity guide covers the engine, axle, cab, and drivetrain factors separately.

2019 to 2026 Ram 1500

The fifth-generation Ram 1500 introduced a 23-gallon base capacity on applicable configurations, alongside 26 and 33-gallon tanks.

Mopar’s 2024 owner handbook lists:

• 23 gallons for applicable Regular Cab short-bed, Crew, and Quad Cab configurations
• 26 gallons as an optional capacity on applicable configurations
• 33 gallons for applicable long-bed, optional, and TRX configurations

For 2026, Ram confirms a maximum available fuel tank capacity of 33 gallons.

That “up to” wording matters. It does not mean every 2026 Ram 1500 leaves the factory with a 33-gallon tank.

Ram 2500 Fuel Tank Size Chart by Year

Ram 2500 fuel capacity changes more dramatically because Regular Cab, Crew Cab, Mega Cab, short-bed, and long-bed configurations use different tanks.

1994 to 2012 Ram 2500

For much of this period, Dodge and Ram HD pickups used 34-gallon short-bed and 35-gallon long-bed tanks.

The 2012 Ram user guide confirms 34 gallons for Ram 2500/3500 short-bed models and 35 gallons for long-bed models.

2013 to 2018 Ram 2500

A major capacity change appears for the 2013 model year.

Ram’s 2013 6.7L Cummins Turbo Diesel supplement specifies:

• 28 gallons for 2500/3500 Standard Cab long-bed models
• 31 gallons for Crew Cab and Mega Cab short-bed models
• 32 gallons for Crew Cab long-bed models

The same diesel layout appears in later factory documentation. Mopar’s 2016 material again lists 28, 31, and 32-gallon capacities based on cab and bed combination.

The exact tank matters for HD owners planning long-distance towing. Truck Guider’s Ram 2500 towing capacity guide should be used separately for trailer-weight limits.

2019 to 2026 Ram 2500

The 2019 diesel supplement continues the 28, 31, and 32-gallon arrangement for Ram 2500/3500 pickups. It lists 28 gallons for Standard Cab long-bed trucks, 31 gallons for Crew/Mega short-bed trucks, and 32 gallons for Crew Cab long-bed trucks.

By 2022, Ram also offered a 50-gallon tank on qualifying Crew Cab long-bed pickups. The factory owner’s manual lists the following capacities:

For 2026, Ram continues to list a 31-gallon standard gasoline tank and an available 50-gallon tank for Crew Cab models with the 8-foot bed. Factory 2026 documentation also retains the 28, 31, 32, and 50-gallon diesel capacities according to configuration.

Ram 3500 Fuel Tank Size Chart by Year

Ram 3500 pickup capacities closely track Ram 2500 specifications, but pickup and chassis-cab trucks must not be treated as the same fuel system.

1994 to 2012 Ram 3500

Older Ram 3500 pickups generally followed the HD 34-gallon short-bed and 35-gallon long-bed arrangement.

Mopar’s 2012 documentation groups Ram 2500 and 3500 together, listing 34 gallons for short-bed models and 35 gallons for long-bed models.

2013 to 2021 Ram 3500

From 2013, the 6.7L Cummins Turbo Diesel pickup specifications moved to the cab-specific 28, 31, and 32-gallon system.

That means a Regular Cab long-bed diesel can have a smaller nominal tank than a Crew Cab long-bed diesel from the same model year.

2022 to 2026 Ram 3500

Current Ram 3500 pickups add the available 50-gallon tank to selected Crew Cab long-bed configurations.

Ram states that the 2026 Ram 3500 gasoline model uses a 31-gallon standard tank, while Crew Cab models with the 8-foot bed can be equipped with the 50-gallon factory tank.

For broader weight-rating context, Truck Guider’s Ram payload capacity chart explains how model and configuration affect payload independently of fuel capacity.

Ram 3500 Chassis Cab Fuel Tanks

Do not use Ram 3500 pickup numbers for a Ram 3500 Chassis Cab.

For example, the 2019 6.7L Cummins Turbo Diesel supplement lists a 52-gallon standard rear chassis-cab tank and a 22-gallon optional midship tank. Those are chassis-cab specifications, not Ram 3500 pickup capacities.

Chassis-cab fuel systems should always be checked against the specific wheelbase and upfit configuration.

How to Find Your Exact Ram Fuel Tank Size

Model year narrows the possibilities, but the truck’s factory build tells you which tank it actually has.

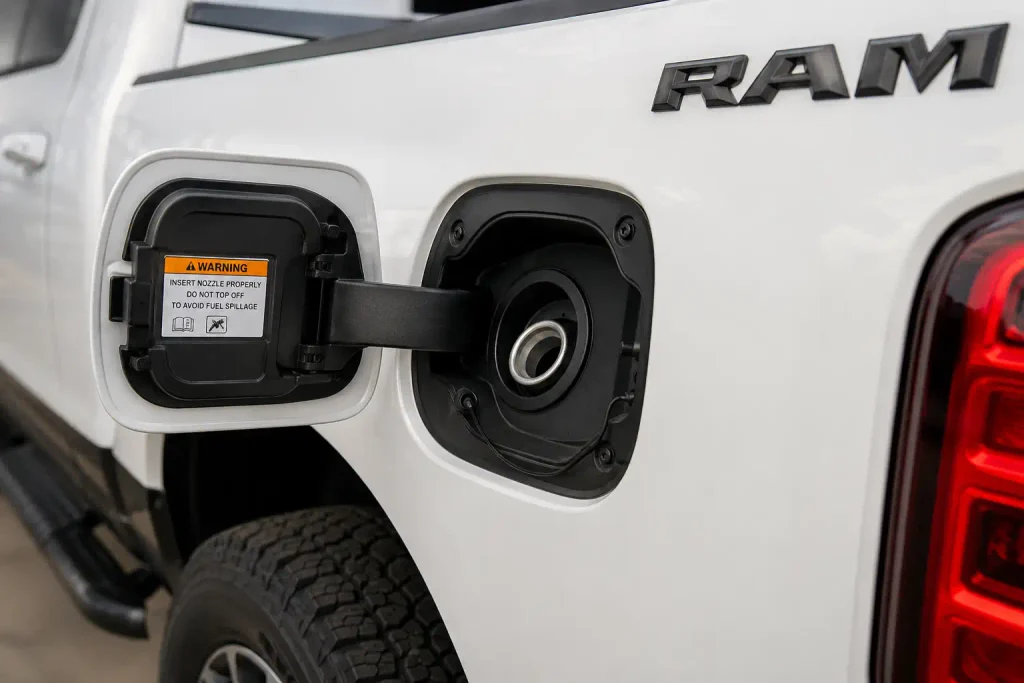

Check the Owner Manual

Look under Fluid Capacities, Technical Specifications, or Fuel in the model-year owner’s manual.

Factory manuals often divide capacities by cab and bed rather than trim name.

Check the Factory Build Sheet

A factory build sheet identifies the equipment installed when the truck was assembled. This is more useful than assuming the largest tank offered that year is installed.

Use your VIN when requesting vehicle equipment information through Ram, Mopar, or an authorized Ram dealer.

Use the VIN With Factory Records

The 17-character VIN does not directly encode “26-gallon” or “33-gallon” in a human-readable digit.

Instead, the VIN connects the truck to its factory build records. That record can identify equipment packages and tank options.

Check for Aftermarket Changes

A used Ram may no longer have its original fuel tank.

Replacement tanks, auxiliary tanks, transfer tanks, and aftermarket high-capacity systems can make the factory specification inaccurate for the truck currently sitting in your driveway.

Why Ram Fuel Tank Size Changes by Configuration

Two Rams from the same year can legitimately have different fuel capacities.

Bed Length Changes Available Tank Options

Bed and wheelbase are among the biggest factors.

Older Ram documentation commonly separates short-bed and long-bed trucks. Newer HD trucks reserve the largest 50-gallon option for specific Crew Cab long-bed configurations.

Cab Style Changes Fuel Capacity

Regular Cab, Quad Cab, Crew Cab, and Mega Cab models do not always share the same tank.

A clear example is the 6.7L Cummins Turbo Diesel HD lineup, where factory specifications separate Standard Cab long bed, Crew/Mega short bed, and Crew Cab long bed.

Engine Choice Can Change Availability

Engine choice does not always change tank size, but it can change which tank option is available.

Ram’s 2016 1500 buyer’s guide lists the 26-gallon tank with the 3.0L EcoDiesel V6 and states that the 32-gallon tank was unavailable with that engine in the listed configuration.

Optional Tanks Change the Maximum Capacity

The largest number advertised for a model is often an available maximum, not its standard tank.

This distinction is critical on newer Ram 1500 and HD trucks. A 33-gallon Ram 1500 or 50-gallon Ram 2500/3500 should not be assumed without checking the actual build.

Which Ram Fuel Tank Size Should Owners Use

Use the fuel capacity that matches your exact year, model, cab, bed, engine, and factory equipment.

Do not calculate range using the largest tank listed for the model year unless you have confirmed that tank is installed.

Published tank capacity is also a nominal specification. A pump fill rarely equals the full published number because fuel remains in the tank before refueling, and the nozzle shuts off once the tank reaches its normal fill level. Mopar specifically instructs owners not to continue topping off after the nozzle shuts off.

5 Common Ram Fuel Tank Size Questions

How Many Gallons Does a Ram 1500 Hold?

A Ram 1500 can hold 23, 26, 32, 33, or 35 gallons, depending on year and configuration. Modern fifth-generation trucks generally use 23, 26, or 33-gallon configurations, while older generations use different combinations.

Does a Ram 1500 Have a 26 or 33 Gallon Tank?

Both are possible on applicable model years. A 26-gallon tank appears across several Ram 1500 generations, while newer fifth-generation trucks can be equipped with a 33-gallon large-capacity tank.

How Many Gallons Does a Ram 2500 Hold?

Ram 2500 pickups commonly use 28, 31, 32, or 50-gallon tanks on newer trucks. Older HD models commonly use 34 or 35 gallons, so always match the capacity to the model year, cab, bed, and engine.

Which Ram Trucks Have a 50 Gallon Fuel Tank?

Newer Ram 2500 and Ram 3500 Crew Cab trucks with an 8-foot bed can be equipped with a factory 50-gallon tank. The 2026 factory documentation specifically confirms this configuration.

Can I Find My Ram Fuel Tank Size From the VIN?

The VIN can help identify the factory build, but the characters themselves do not simply state the tank capacity. Use the VIN to retrieve the truck’s equipment record through Ram, Mopar, or a dealer, then verify the fuel-tank option.

Use the Right Ram Fuel Capacity for Your Truck

A Ram fuel tank size chart by year gives you the possible capacities, but the model year is only the first step.

Ram has used everything from smaller 23 and 26-gallon half-ton tanks to the current 50-gallon HD option. Cab style, bed length, engine, and factory equipment determine which capacity applies to your truck.

Before calculating driving range, ordering a replacement tank, or planning a long towing trip, verify the capacity in the owner’s manual or factory build information.
