6.7 Cummins Throttle Position Sensor Location: A Complete Guide
The throttle position sensor on the 6.7 Cummins engine is located on the driver side of the engine bay between the cylinder head and the battery tray. It is housed within a black cover.
The throttle position sensor (TPS) on a 6. 7 Cummins engine is located on the driver side of the engine bay between the cylinder head and the battery tray. It is housed within a black cover. The TPS is an important component that measures the position of the throttle plate and sends this information to the engine control unit (ECU).
This helps the ECU determine the appropriate fuel and air mixture for optimal engine performance. If the TPS malfunctions, it can cause issues such as limited acceleration, rough idling, and engine service lights. Regular maintenance and prompt replacement of a faulty TPS can help avoid these problems.
Introduction: Understanding The Importance Of The Throttle Position Sensor
In this section, we will delve into the importance of the throttle position sensor in a Cummins engine. Understanding the function and role of this sensor is crucial for optimal performance and avoiding potential consequences of a malfunctioning sensor. Proper maintenance is key to ensure the sensor operates smoothly and efficiently.
Explanation Of The Function And Role Of The Throttle Position Sensor In A Cummins Engine
The throttle position sensor, also known as TPS, plays a critical role in monitoring the position of the throttle plate in a Cummins engine. It provides important data to the engine control unit (ECU), allowing for precise coordination of fuel and air mixture to optimize engine performance.
The TPS works by sending voltage signals to the ECU, which then adjusts fuel injection and ignition timing accordingly. As the driver presses the accelerator pedal, the TPS measures the angle of the throttle plate, determining the engine’s power output. This data is crucial for maintaining a smooth and responsive throttle response.
Emphasize The Significance Of Proper Maintenance For Optimal Performance
To ensure efficient and reliable performance, regular maintenance of the throttle position sensor is essential. Proper maintenance includes cleaning the sensor periodically to remove dirt, carbon deposits, and other contaminants that can hinder its functionality. A clean sensor will provide accurate readings and improve overall engine performance.
In addition to cleaning, it is important to inspect the sensor for any signs of wear or damage. If the sensor is worn out or damaged, it should be replaced promptly to prevent further complications that could lead to engine performance issues.
Highlight The Potential Consequences Of A Malfunctioning Throttle Position Sensor
A malfunctioning throttle position sensor can lead to a range of issues that affect the engine’s performance and drivability. When the TPS fails to provide accurate readings, the ECU may receive incorrect information about the throttle plate’s position, resulting in incorrect fuel and air mixture adjustments.
Some potential consequences of a malfunctioning TPS include:
- Unexplained bucking and jerking of the vehicle
- Sudden idle surges
- Engine stalling without apparent reason
- Hesitation while accelerating
- Surges in speed while driving on the highway
- Intermittent flashing of the check engine light
To avoid these issues, it is crucial to address any TPS problems promptly. Regularly checking and maintaining the throttle position sensor is a proactive measure that ensures optimal engine performance and helps prevent potential complications.
Locating The Throttle Position Sensor On A 6.7 Cummins Engine
Locating the Throttle Position Sensor on a 6.7 Cummins Engine
Step-by-step Guide On Identifying The Throttle Position Sensor
The throttle position sensor (TPS) plays a crucial role in the performance of a 6.7 Cummins engine. It helps the engine control module (ECM) determine the appropriate fuel injection and ignition timing based on the position of the throttle. If you’re experiencing issues with engine performance, it’s essential to locate and inspect the TPS. Here’s a step-by-step guide on how to identify the throttle position sensor:
- Open the hood of your 6.7 Cummins engine and secure it with the prop rod.
- Locate the black cover on the driver side of the engine bay, positioned between the cylinder head and the battery tray. This cover houses the throttle position sensor.
- Carefully remove the black cover by using a suitable tool, such as a screwdriver or socket wrench.
- Once the black cover is removed, you will have direct access to the throttle position sensor.
- Inspect the TPS for any signs of damage, such as corrosion or loose connections.
- Make sure to clean the sensor and its surroundings using a mild cleaning solution and a lint-free cloth if necessary.
Detailed Description Of The Sensor’s Physical Location Within The Engine Bay
The throttle position sensor on a 6.7 Cummins engine is conveniently located within a black cover on the driver side of the engine bay. This black cover is positioned between the cylinder head and the battery tray, ensuring easy access to the TPS for inspection and maintenance.
To locate the throttle position sensor, follow these steps:
- Open the hood of your vehicle.
- Secure the hood with the prop rod to ensure a safe working environment.
- Look for the black cover on the driver side of the engine bay. It is situated between the cylinder head and the battery tray.
- The black cover houses the throttle position sensor and can be removed using a suitable tool such as a screwdriver or socket wrench.
By carefully removing the black cover, you gain direct access to the throttle position sensor for inspection and maintenance purposes. It’s important to visually inspect the sensor for any signs of damage, such as corrosion or loose connections. Additionally, make sure to clean the sensor and its surroundings using a mild cleaning solution and a lint-free cloth if necessary.
Visual Aids Or Diagrams To Assist In Locating The Sensor

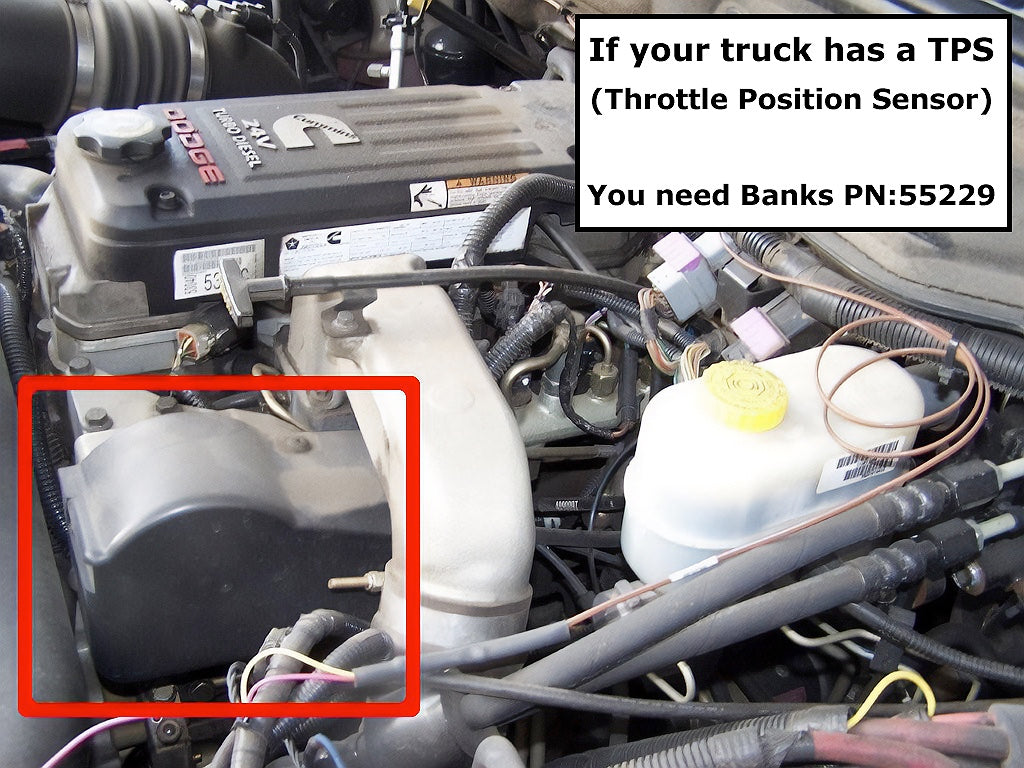

Visual aids or diagrams can be extremely helpful when trying to locate the throttle position sensor on a 6.7 Cummins engine. Here is a simplified diagram showcasing the physical location of the TPS within the engine bay:
As shown in the diagram, the throttle position sensor is situated within the black cover, which is positioned between the cylinder head and the battery tray on the driver side of the engine bay.
Common Symptoms Of A Faulty Throttle Position Sensor
The 6. 7 Cummins throttle position sensor is commonly located on the driver side of the engine bay, between the cylinder head and battery tray. Symptoms of a faulty sensor may include bucking and jerking, sudden idle surges, engine stalling, hesitation while accelerating, surges in speed, and flashing check engine lights.
Proper maintenance is crucial to avoid these issues.
Explanation Of Various Signs That Indicate A Malfunctioning Throttle Position Sensor
If you own a vehicle with a Cummins engine, it’s important to be aware of the common symptoms that may indicate a faulty throttle position sensor. The throttle position sensor is responsible for monitoring the position of the throttle plate and sending signals to the engine control unit (ECU) to adjust the fuel and air mixture for optimal performance. However, over time, this sensor can develop issues that affect its functionality.
Unexplainable Vehicle Bucking And Jerking
One of the most noticeable signs of a faulty throttle position sensor is unexplainable bucking and jerking in your vehicle. You may experience sudden and unexpected jolts while driving at a steady speed, which can be quite unsettling. This can occur when the throttle position sensor fails to accurately detect the position of the throttle plate, causing the engine to receive incorrect signals and leading to inconsistent acceleration.
Sudden Idle Surges And Engine Stalling
If you notice sudden and unexplained increases in your vehicle’s idle speed, it could be a sign of a malfunctioning throttle position sensor. The sensor may fail to communicate the correct throttle plate position to the ECU, leading to irregular idle speeds. Additionally, a faulty throttle position sensor can cause the engine to stall unexpectedly, even when the vehicle is in motion. This can be a dangerous situation, especially if it happens while driving at high speeds or in heavy traffic.
Hesitation While Accelerating And Surges In Speed
Another common symptom of a faulty throttle position sensor is hesitation while accelerating. You may notice a delay in response when pressing down on the accelerator pedal, as the sensor fails to accurately detect the throttle plate opening. This can result in sluggish acceleration and a lack of power, making it difficult to merge onto highways or overtake other vehicles safely. On the other hand, a malfunctioning throttle position sensor can also cause sudden surges in speed while driving, even without any input from the accelerator pedal, posing a potential safety risk.
It is important to address these symptoms promptly to avoid further damage to your vehicle’s engine and ensure your safety on the road. If you experience any of these signs, it is recommended to have your throttle position sensor inspected and replaced if necessary by a qualified mechanic.
Troubleshooting And Diagnosing Throttle Position Sensor Issues
If you own a vehicle equipped with a 6.7 Cummins engine, you may occasionally experience throttle position sensor issues. The throttle position sensor (TPS) is responsible for sending signals to the engine control unit (ECU) to determine the throttle opening. When this sensor malfunctions, it can cause various problems, such as limited acceleration, rough idling, and even engine stalling. In this section, we will discuss the step-by-step process to diagnose a faulty throttle position sensor and the methods for testing its functionality.
Step-by-step Process To Diagnose A Faulty Throttle Position Sensor
- Locate the throttle position sensor: The throttle position sensor is housed within a black cover, typically located on the driver side of the engine bay between the cylinder head and the battery tray.
- Visual inspection: Inspect the TPS for any physical damage, loose connections, or signs of corrosion.
- Check electrical connections: Ensure that all electrical connections to the TPS are secure and free from dirt or debris. Clean the connections if necessary.
- Perform voltage test: Use a multimeter to measure the voltage output of the TPS. With the ignition turned on, but the engine not running, check the voltage at the TPS terminals. Compare the readings to the manufacturer’s specifications.
- Test sensor response: While monitoring the TPS voltage output, slowly open and close the throttle. The voltage reading should increase or decrease smoothly and without any sudden jumps or drops. If there are significant irregularities in the voltage readings, it indicates a faulty TPS.
- Clear error codes: If there are any error codes related to the TPS stored in the ECU, clear them using an OBD-II scanner. Then, restart the vehicle and recheck for any new error codes.
Methods For Testing The Sensor’s Functionality
In addition to the step-by-step process mentioned above, there are a few other methods to test the functionality of the throttle position sensor:
- Live data scanning: Using an advanced diagnostic tool, monitor the live data from the TPS while the engine is running. Look for any abnormal fluctuations or inconsistencies in the readings.
- Resistance test: Disconnect the TPS and measure its resistance using an ohmmeter. Compare the readings to the manufacturer’s specifications. If the resistance is outside the specified range, it indicates a faulty TPS.
It’s important to note that TPS issues can sometimes be caused by other factors, such as wiring problems or a faulty ECU. Therefore, it’s recommended to use the proper tools and techniques for accurate diagnosis to avoid misdiagnosis and unnecessary repairs.
By following these steps and methods, you can effectively troubleshoot and diagnose throttle position sensor issues in your 6.7 Cummins engine. Remember, if you’re unsure or inexperienced with vehicle repairs, it’s always best to consult a professional mechanic for accurate diagnosis and repair.
Proper Maintenance And Best Practices For Throttle Position Sensor
Proper maintenance and best practices for the throttle position sensor of a 6. 7 Cummins include regular inspections, checking for engine service lights, limited acceleration, rough idling, and vehicle shaking while driving. It is crucial to address any issues promptly to avoid malfunctioning and ensure optimal performance.
Essential Tips For Maintaining The Throttle Position Sensor
Proper maintenance of the throttle position sensor (TPS) is crucial to ensure optimal performance and longevity of your 6.7 Cummins engine. By following these essential tips, you can avoid potential issues and keep your TPS in top shape.
- Frequent Cleaning: Regular cleaning of the TPS is necessary to remove any dirt, grime, or debris that may accumulate over time. Use a gentle cleaner and a soft cloth to wipe away any build-up, ensuring that you do not damage the delicate sensor.
- Inspection for Wear and Tear: Perform a visual inspection of the TPS for any signs of physical damage or wear. Look for cracks, corrosion, or loose connections. If you notice any issues, it is crucial to address them promptly to prevent further damage.
- Check Voltage and Resistance: Occasionally, it is recommended to test the TPS’s voltage and resistance using a multimeter. Refer to your vehicle’s manual for specific instructions on how to perform this test accurately.
- Ensure Proper Alignment: Make sure that the TPS is properly aligned with the throttle body. Incorrect alignment can lead to inaccurate readings and potential performance issues. Refer to your vehicle’s manual for guidance on aligning the TPS correctly.
Regular Cleaning And Inspection Procedures
Regular cleaning and inspection procedures are essential for maintaining a healthy throttle position sensor. By following these steps at regular intervals, you can prevent any potential issues and ensure the longevity of your TPS.
- Cleaning: Use a gentle cleaner and a soft cloth to clean the TPS, ensuring that all dirt and debris are removed. Be careful not to use any abrasive materials that may damage the sensor’s delicate components.
- Inspection: Perform a visual inspection of the TPS for any signs of physical damage, such as cracks, corrosion, or loose connections. Ensure that all electrical connections are secure and free from any debris or moisture.
- Testing: Test the TPS’s voltage and resistance using a multimeter to ensure it is functioning correctly. Consult your vehicle’s manual for proper testing procedures.
- Alignment: Check the alignment of the TPS with the throttle body, ensuring it is positioned correctly. Improper alignment can lead to inaccurate readings and affect your vehicle’s performance.
Importance Of Addressing Any Underlying Issues Promptly
When it comes to the throttle position sensor, addressing any underlying issues promptly is of utmost importance. Ignoring or delaying necessary maintenance or repairs can lead to severe consequences, including diminished engine performance and potential engine damage.
If you notice any signs of a faulty TPS, such as engine service lights, limited acceleration, rough idling, or shaking while driving, it is crucial to take immediate action. Ignoring these symptoms can lead to further complications and potentially costly repairs.
By addressing any underlying issues promptly, you can prevent further damage to your TPS and ensure the smooth operation of your 6.7 Cummins engine.
Credit: bankspower.com
Frequently Asked Questions For 6.7 Cummins Throttle Position Sensor Location
Does A Cummins Have A Throttle Position Sensor?
Yes, a Cummins does have a throttle position sensor. It is located on the driver side of the engine bay between the cylinder head and the battery tray. If not properly maintained, it can malfunction, causing symptoms such as engine service lights, limited acceleration, rough idling, and vehicle shaking while driving.
It is important to address these issues to avoid further problems.
What Are The Symptoms Of The Throttle Body On A 6.7 Cummins?
The symptoms of a throttle body issue on a 6. 7 Cummins can include engine service lights, limited acceleration, rough idling, and shaking while driving.
What Are The Symptoms Of A Bad Tps Sensor?
Symptoms of a bad TPS sensor include bucking and jerking, sudden idle surges, engine stalling, hesitation while accelerating, surges in speed, and intermittent check engine light flashing.
Does A 12 Valve Cummins Have A Throttle Position Sensor?
No, a 12 valve Cummins does not have a throttle position sensor.
Conclusion
To ensure your 6. 7 Cummins engine runs smoothly, it’s important to be aware of the throttle position sensor location. This sensor plays a crucial role in the engine’s performance, detecting the position of the throttle plate and providing the necessary information to the engine control unit.
By keeping an eye on your TPS and addressing any issues promptly, you can avoid problems such as limited acceleration, rough idling, and engine service lights. Remember, proper maintenance goes a long way in ensuring your Cummins engine operates at its best.
