Diagram Toyota Tacoma Rear Drum Brake Assembly: Components Visualized

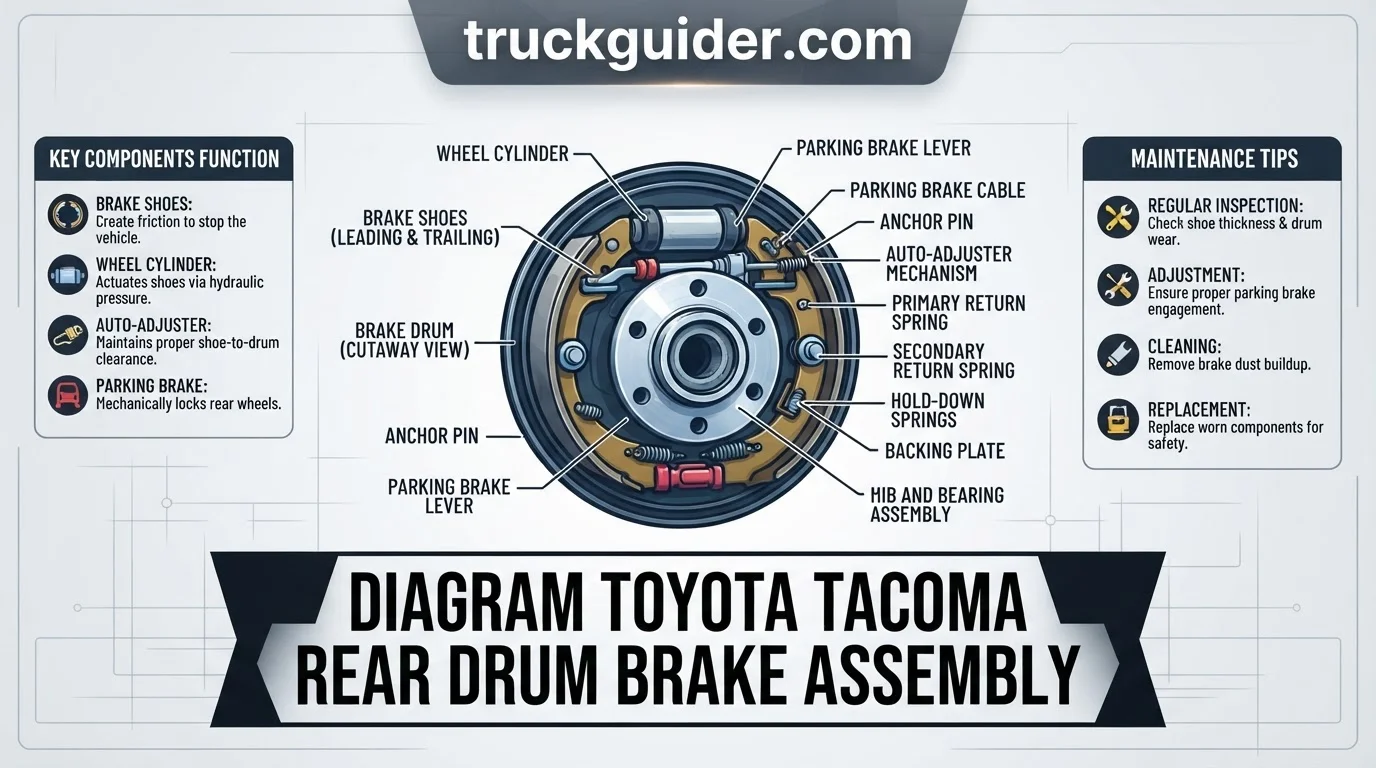

Understanding the mechanical layout of the rear drum brake system is essential for maintaining your truck’s stopping performance. By reviewing a diagram Toyota Tacoma rear drum brake assembly, you can identify the location of return springs, adjusters, and wheel cylinders. This overview provides the technical information needed to differentiate between components across various model years.
Reference Data: Components in the Diagram Toyota Tacoma Rear Drum Brake Assembly
How to Read This Chart
This table summarizes the core mechanical parts visible in a typical diagram Toyota Tacoma rear drum brake assembly. The “Primary Function” column details how each part interacts within the drum to stop the wheel. The “Maintenance Interval” identifies that, unlike front pads, there is no set mileage for these parts; they should be inspected based on the thickness of the friction material and signs of hydraulic weeping at the wheel cylinder.
Recommended Best Deal Products
Insights into the Evolution of the Rear Drum Brake Assembly
Toyota Tacoma models manufactured between 2005 and 2015, and continuing into later generations, utilize a self-adjusting drum system. While digital diagrams for these years may appear identical, slight variations exist in hardware kits, such as tension spring lengths or the specific design of the hold-down pins, depending on whether the truck is equipped with TRD or base suspension packages.
Understanding these facts helps when sourcing parts. Always match your specific VIN to the parts catalog, as some late-model Tacomas feature updated emergency brake cable brackets that do not appear in older 2005-era diagrams. Utilizing the correct schematic for your specific build year prevents installation errors where improper spring tension leads to premature wear.
How to Read the Diagram Toyota Tacoma Rear Drum Brake Assembly Step by Step
To successfully navigate an assembly diagram, begin by identifying the anchor pin at the top of the backing plate. This is the origin point for the majority of the hardware. The primary and secondary shoes are then pinned to the plate, followed by the installation of the wheel cylinder at the 12 o’clock position.
Recommended Best Deal Products
Next, install the star-wheel adjuster at the base of the shoes. The springs are the most critical aspect of the diagram; always confirm the orientation of the hooks. The thicker return springs typically occupy the upper position, while the lighter adjustment springs handle the bottom cable-driven mechanism. If you are unsure of the path, compare one side of the vehicle against the other.
📋
General Maintenance Guide
Always lift the truck using a frame-contact jack and secure it with heavy-duty jack stands. Never rely on the emergency brake, as it will be disconnected during this service.
Remove the drum carefully. Use a brake-cleaning spray to remove dust before inspecting the shoes for glazing or uneven wear patterns that indicate sticking adjusters.
Recommended Best Deal Products
Follow the diagram order precisely. Ensure the star-wheel adjuster is lubricated with high-temperature brake grease to prevent it from seizing in the future.
Common Problems in the Diagram Toyota Tacoma Rear Drum Brake Assembly
One of the most frequent issues is the failure of the auto-adjuster mechanism. If the star wheel becomes seized due to corrosion, the brake shoes will no longer advance toward the drum as they wear. This leads to a low, “spongy” brake pedal feel, as the wheel cylinder must travel further to initiate contact.
Another common concern is leaking wheel cylinders. When the rubber seals inside the cylinder fail, brake fluid leaks into the drum area. This contaminates the friction material, rendering the shoes useless and potentially causing the rear wheels to “grab” or lock up during braking. Regular inspections according to your maintenance schedule are the best way to prevent this.
Brake dust can contain harmful particulates. Always wear an N95-rated respirator and safety goggles when cleaning out drum assemblies. Never use compressed air, which can aerosolize these particles.
What If the Rear Drum Assembly Still Performs Poorly?
If you have replaced the shoes and hardware but the braking remains ineffective, consider these professional diagnostic steps:
- Check the parking brake cable tension; an over-stretched cable will prevent the self-adjuster from functioning.
- Bleed the rear hydraulic system to ensure no air bubbles are trapped near the wheel cylinders.
- Measure the internal diameter of the brake drums; if they exceed the service limit, they must be replaced, not just cleaned.
If these steps do not restore performance, consult a certified technician. Professional diagnostic work for a full brake system overhaul typically ranges from $300 to $600 depending on parts quality and labor rates in your area.
Frequently Asked Questions About Tacoma Brakes
Can I convert my rear drums to discs?
While conversion kits exist, they are complex and require replacing the backing plates and parking brake configurations. For most users, the standard drum system is more than sufficient for Tacoma towing and hauling needs when properly serviced.
Are the left and right sides different?
Yes. Many springs are side-specific. Always work on one side at a time, using the untouched side as your reference to ensure all parts are mirrored correctly.
Maintaining the rear drum system is a manageable task for most DIY owners with basic hand tools. By relying on an accurate diagram Toyota Tacoma rear drum brake assembly and performing regular inspections, you ensure your truck maintains consistent stopping power. Always prioritize safety and verify your parts list with your vehicle’s specific year and trim before beginning any service.
Key Takeaways
-
✓
Identify the individual roles of the primary and secondary brake shoes within the drum. -
✓
Understand the specific function of the self-adjuster mechanism in maintaining pedal feel. -
✓
Learn how the wheel cylinder converts hydraulic pressure into mechanical shoe movement. -
✓
Recognize signs of wear, including uneven friction material thickness and hardware corrosion. -
✓
Compare the efficiency and durability of drum brakes versus modern disc brake conversions.
❓ Frequently Asked Questions
1
What is the Toyota Tacoma rear drum brake assembly?
The rear drum brake assembly is a mechanical stopping system where brake shoes expand outward against the interior of a spinning metal drum. It is a reliable design that provides significant surface area for stopping heavy loads, which is why it remains a common feature on many Tacoma model years.
2
How does the Toyota Tacoma rear drum brake work?
When you press the brake pedal, hydraulic fluid pushes the pistons inside the wheel cylinder outward. This forces the brake shoes to press against the inner wall of the rotating drum, creating the friction necessary to slow or stop the vehicle’s rear wheels.
3
Why is drum brake maintenance important?
Maintenance is vital because dirt and brake dust accumulate inside the enclosed drum, causing components to stick or fail. Regular inspections and cleanings ensure that your Tacoma brakes maintain consistent stopping power and prevent costly damage to the drums and wheel cylinders over time.
4
What are the benefits of drum brakes on a Tacoma?
Drum brakes offer excellent resistance to harsh off-road elements like mud and grit because the assembly is sealed. Additionally, they provide a powerful, self-energizing braking effect and are typically more cost-effective to service compared to complex rear disc brake setups.
5
How can I get started with drum brake inspection?
Begin by safely jacking up your Tacoma and securing it on jack stands. Remove the rear tire, then slide off the brake drum. Use the diagram provided in this guide to verify all springs are present and correctly oriented, and measure the shoe thickness for safety.
6
How do I adjust the parking brake on a Tacoma?
The parking brake often integrates with the rear drum brake system, requiring adjustment typically at the cable or directly at the star wheel adjuster within the drum.
