GMC Sierra 1500 Payload Capacity Chart: All Years, Cabs & Beds (2007–2026)

The GMC Sierra 1500 payload capacity ranges from 1,350 lbs to 2,230 lbs depending on model year, cab, bed, engine, and drivetrain. Four variables move that number more than anything else: cab size, bed length, engine choice, and whether you’re running 2WD or 4WD.

This chart breaks down every current-generation configuration by exact payload rating, then covers legacy model years so owners of older trucks aren’t left guessing.

GMC Sierra 1500 Payload Capacity Explained

Payload capacity is your truck’s Gross Vehicle Weight Rating (GVWR) minus its curb weight. GVWR is the maximum total weight GM certifies the truck to carry, including the vehicle itself, every passenger, and all cargo.

Subtract curb weight from GVWR and what’s left is your payload. Passengers, tools, a camper shell, and trailer tongue weight all count against that number, not just what sits loose in the bed.

Your specific truck’s exact rating is stamped on the Tire and Loading Information label inside the driver-side door jamb. Chart figures below are maximum available ratings for comparison. Your build’s actual number may be lower depending on options and accessories.

2019 to 2026 GMC Sierra 1500 Payload Chart by Cab, Bed, Engine and Drivetrain

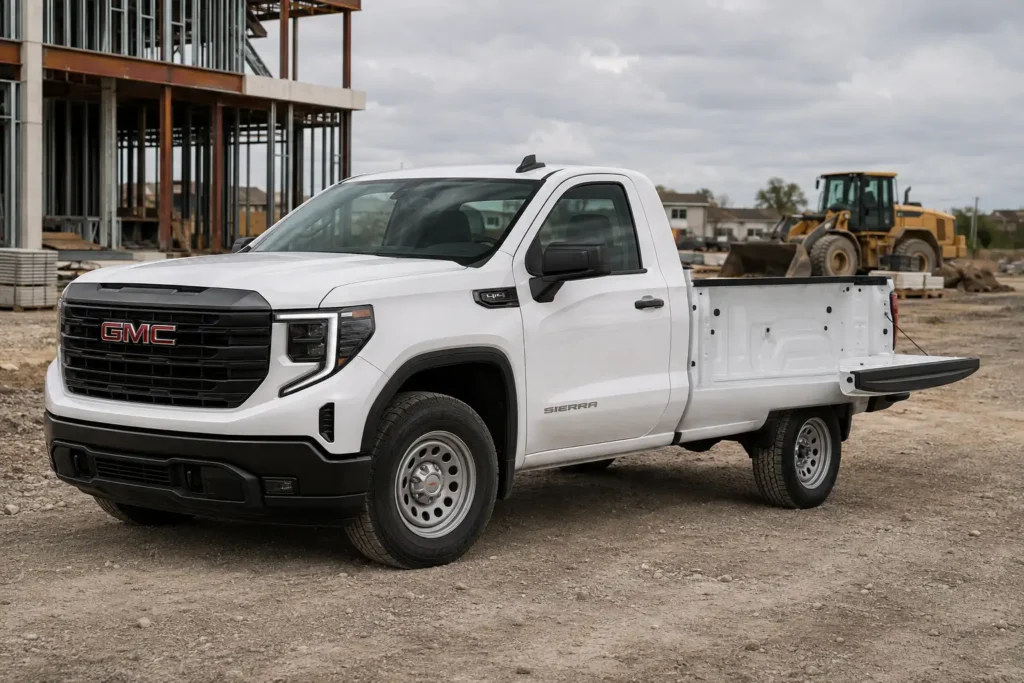

The highest payload in the current generation belongs to the Regular Cab, Standard or Long Bed, 2WD, with the 2.7L Turbo I4 TurboMax engine, at 2,230 lbs. The lowest belongs to the Crew Cab Short Bed AT4X in 4WD with the 6.2L V8, at 1,350 lbs. Two-wheel drive configurations consistently out-carry their 4WD counterparts by roughly 100 to 200 lbs across the lineup, since the transfer case and front axle hardware add curb weight without raising GVWR.

[HTML DATA VISUAL INSERTION POINT — full cab x bed x engine x drivetrain matrix generated in Step 4]

Underlying data for the visual, verified against gmc.com and cross-checked with GM Authority:

Figures marked with ~ are cross-referenced against a single secondary source (GM Authority’s configuration breakdown) rather than gmc.com directly, since GMC’s public spec pages don’t itemize every diesel-plus-cab combination. Confirm against your build sheet or door-jamb label before relying on them for a work application.

GMC Sierra 1500 Payload Capacity by Year 2007 to 2018

Payload data for the third and second-generation Sierra 1500 is thinner than current-year GMC publications, but the overall pattern holds. The 2014 redesign onto the GMT K2XX platform marked a clear step up in payload range across the lineup.

This range data is single-sourced from an aggregator site (AutoPadre) rather than an archived GMC brochure, so treat it as directional for pre-2019 trucks. If you’re buying a used Sierra from this era for work use, the door-jamb label on that specific truck is the only number that matters.

2WD vs 4WD Sierra 1500 Payload How Much Do You Lose

Four-wheel drive adds a transfer case, front differential, and front axle shafts. That hardware adds roughly 150 to 250 lbs of curb weight without changing GVWR, so payload drops by the same amount.

On the 2026 Regular Cab Standard Bed with the 2.7L Turbo, 2WD carries 2,230 lbs and 4WD carries 2,110 lbs, a 120-lb gap. If your work doesn’t require 4WD traction, staying with 2WD is the simplest way to reclaim real payload capacity without changing cab or bed.

GMC Sierra 1500 vs Chevy Silverado 1500 Payload

The Sierra 1500 and Chevy Silverado 1500 share the same GM T1 platform, frame, and drivetrain options. Payload numbers still differ slightly between them because of trim-specific equipment.

Chevrolet lists the 2026 Silverado 1500’s top payload at ~2,260 lbs on a comparable TurboMax 2WD configuration, about 30 lbs higher than the Sierra’s 2,230-lb max. The gap comes down to badge and interior trim weight rather than any mechanical difference, since Denali-adjacent Sierra trims tend to carry more standard content than their Silverado WT or Custom equivalents.

What Counts Against Sierra 1500 Payload

Payload isn’t just what’s loose in the bed. Every passenger, every tool in the cab, and the tongue weight of anything you’re towing all subtract from your available number.

A driver and one passenger at 200 lbs each already use 400 lbs of a 2,230-lb rating before a single box goes in the bed. Add a loaded 5th-wheel or gooseneck hitch, where tongue weight commonly runs 15 to 25 percent of total trailer weight, and the remaining cargo room shrinks fast.

The Sierra 1500 bed includes 12 fixed tie-down points and 9 additional holes for aftermarket anchors. Maximum load is 500 lbs per bed corner and 250 lbs per individual tie-down point, per GMC’s published cargo specifications. The Sierra 1500 can also accept a slide-on camper on select configurations, subject to conditions in the owner’s manual.

How to Check Your GMC Sierra 1500’s Actual Payload Rating

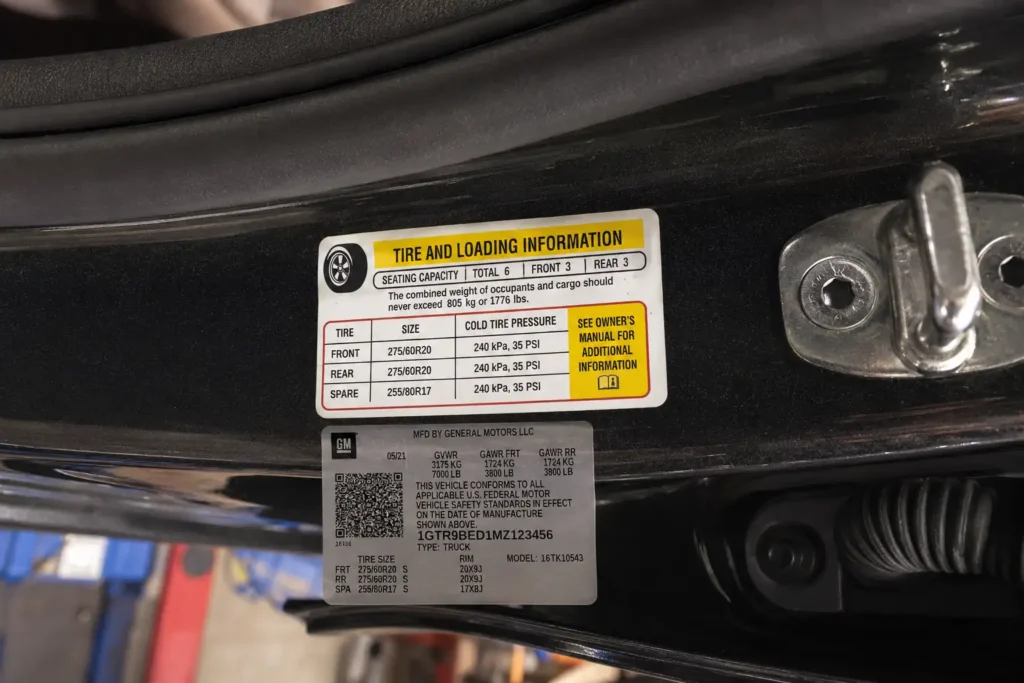

1. Open the driver-side door and locate the yellow Tire and Loading Information label on the door jamb.
2. Find the number listed next to “Combined Weight of Occupants and Cargo Should Never Exceed.”
3. That figure is your specific truck’s real payload rating, already adjusted for the exact trim, options, and accessories on your build.
4. Subtract passenger weight and cab cargo first, then compare what’s left against your intended bed load.

Chart figures throughout this guide are maximum available ratings intended for comparison across configurations. They are not a substitute for the number on your own truck’s label.

If you’re planning a 4WD lift or leveling install, check your payload rating first since added suspension height and unsprung weight can shift your effective carrying capacity.

Choosing the Right Sierra 1500 Configuration for Your Payload Needs

Regular Cab, 2WD configurations carry the most weight in every model year covered here, topping out at 2,230 lbs on the current generation. Crew Cab 4WD trims, especially AT4X, sacrifice the most payload in exchange for passenger space and off-road hardware.

Match your configuration to your actual use case rather than the headline number. A contractor hauling material daily benefits from the lighter Regular Cab 2WD setup, while a family that occasionally tows a camper may find the Crew Cab’s lower payload perfectly adequate once real-world loads are accounted for.

Whatever configuration you’re running, the best GMC Sierra 1500 accessories for your build should never push you past the number stamped on your door jamb.

Frequently Asked Questions

What is the maximum payload capacity of a GMC Sierra 1500?

The maximum GMC Sierra 1500 payload capacity is 2,230 lbs, available on a Regular Cab, Standard or Long Bed, 2WD model with the 2.7L Turbo I4 engine. Lower trims and 4WD configurations carry less.

Does 4WD reduce GMC Sierra 1500 payload capacity?

Yes. Four-wheel drive adds roughly 150 to 250 lbs of curb weight from the transfer case and front axle hardware, which reduces payload by a matching amount. A Regular Cab 2WD model with the 2.7L Turbo carries about 120 lbs more than its 4WD equivalent.

How do I find my Sierra 1500’s exact payload rating?

Check the Tire and Loading Information label inside your driver-side door jamb. It lists the exact combined weight of occupants and cargo your specific truck can carry, already adjusted for its actual options and accessories.

Does the GMC Sierra 1500 or Chevy Silverado 1500 have more payload?

The Chevy Silverado 1500 edges out the Sierra 1500 by about 30 lbs at the top end, with a ~2,260-lb maximum versus the Sierra’s 2,230 lbs. Both share the same GM T1 platform, so the small gap comes from trim-level equipment rather than mechanical differences.

What counts against GMC Sierra 1500 payload capacity?

Payload includes every passenger, all cargo in the cab and bed, and any trailer tongue weight from a 5th-wheel or gooseneck hitch. It is separate from towing capacity, which measures what the truck can pull rather than what it carries.
