Ram 1500 ABS Sensor Location: Year 2002-2026
The Ram 1500 ABS sensor location depends on the model year and ABS system fitted to the truck. Front sensors are normally mounted at each front wheel hub or steering-knuckle area, while the rear layout changed significantly across Ram generations.
Early trucks can use one rear wheel-speed sensor on the differential housing. Some 2006 to 2008 trucks with Electronic Stability Program use individual rear sensors instead. Starting with the fourth-generation Ram 1500, individual left and right rear wheel-speed sensors became the normal layout.
Use the year chart below before ordering a sensor or removing any parts.

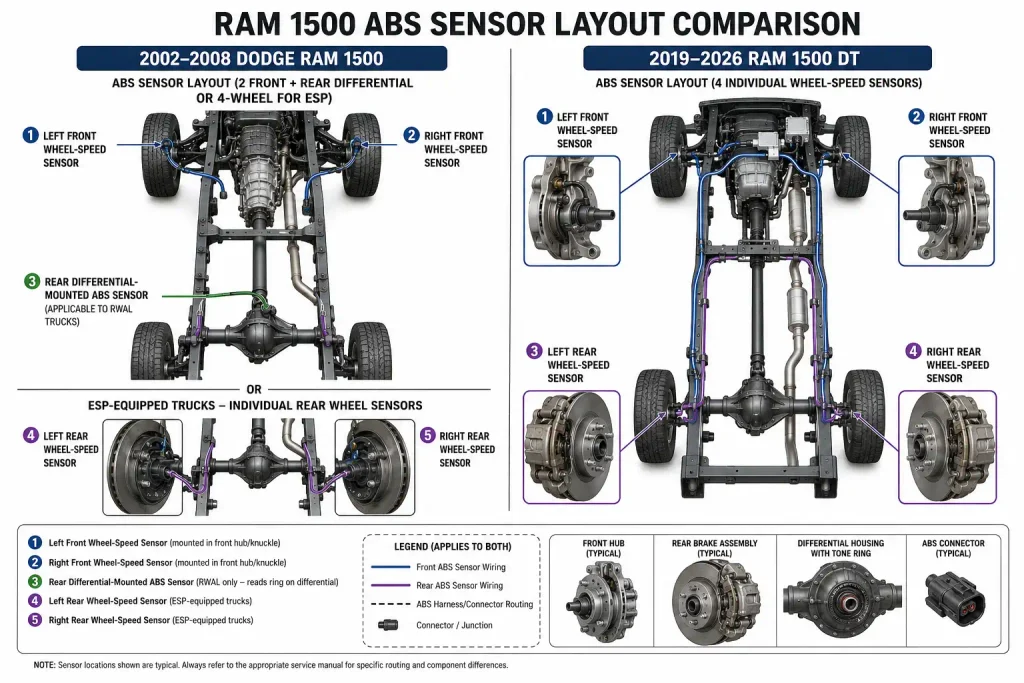

Ram 1500 ABS Sensor Location by Generation
The rear ABS sensor layout changed across Ram 1500 generations. Use the model year and braking system before deciding where to inspect.
Recommended Best Deal Products
Quick ABS Sensor Location Guide
What Ram 1500 ABS Sensor Location Matches Your Year
The quickest way to find the correct sensor is to identify your model year and rear ABS configuration first.
| Ram 1500 Model Years | Front ABS Sensor Location | Rear ABS Sensor Location | Key Note |
|---|---|---|---|
| 2002 to 2005 | One sensor at each front hub or bearing assembly | One sensor on top of the rear differential housing | Three wheel-speed sensors on typical ABS configurations |
| 2006 to 2008 RWAL | One sensor at each front wheel | One sensor in the rear differential housing | RWAL uses one rear axle speed signal |
| 2006 to 2008 ESP | One sensor at each front wheel | Individual left and right rear sensors near the rear brake assemblies | Check whether the truck has ESP |
| 2009 to 2018 DS | Individual left and right front sensors | Individual left and right rear sensors | Four-wheel sensing |
| 2019 to 2026 DT | Individual front wheel sensors | Individual rear wheel sensors | Exact sensor part number can vary by configuration |
Factory service information for the 2002 Ram 1500 describes three wheel-speed sensors, with one at each front hub and a third sensor mounted on the rear differential housing.
The layout becomes more complicated in the later third-generation trucks. Service information for 2007 and 2008 distinguishes trucks with individual rear sensors under ESP from trucks using a single rear sensor without ESP.
Where Is the 2002 to 2008 Ram 1500 Rear ABS Sensor
Older Dodge Ram 1500 trucks are the main reason a generic answer such as “the ABS sensor is behind each wheel” can be wrong.
Rear Differential Sensor Location
On applicable 2002 to 2008 Ram 1500 trucks using a Rear Wheel Anti-Lock system, the rear wheel-speed sensor is mounted directly in the rear differential housing.
Look at the center section of the rear axle where the differential cover is located. The sensor enters the upper portion of the differential housing and connects to an electrical harness.
Recommended Best Deal Products
The 2006 service procedure specifically describes removing the rear sensor from the differential housing.
On these trucks, you will usually find:
- One left front wheel-speed sensor
- One right front wheel-speed sensor
- One rear differential wheel-speed sensor
The sensor reads an exciter or tone ring inside the axle to determine rear axle speed.
ESP Rear Wheel Sensor Location
Some 2006 to 2008 Ram 1500 trucks equipped with Electronic Stability Program, or ESP, use a different rear arrangement.
Instead of relying only on one center differential sensor, ESP-equipped configurations can have a separate wheel-speed sensor at each rear wheel. The 2008 service procedure places these sensors in the rear brake caliper-adapter area.
This means a 2008 Ram 1500 owner should identify the braking system before buying a “rear ABS sensor.”
Recommended Best Deal Products
A truck with RWAL can lead you to the differential. An ESP-equipped truck can lead you to the left or right rear brake assembly.
Front Wheel Sensor Location
The front ABS sensors sit at the front wheel hub or bearing area.
Remove the wheel for a clearer view. Look behind the brake rotor and follow the small electrical harness running from the hub or steering-knuckle area toward the frame or engine compartment.
The harness location is often easier to identify than the sensor tip itself.
Where Are the 2009 to 2018 Ram 1500 ABS Sensors
The fourth-generation Ram 1500 uses individual rear wheel-speed sensing rather than the older three-sensor arrangement.
A 2009 service diagram identifies separate left rear and right rear ABS wheel-speed sensor circuits.
Front Left and Right Sensors
Each front wheel has a wheel-speed sensor around the hub and steering-knuckle area.
The sensor wiring runs away from the rotating hub through retainers or clips. Follow this harness if the sensor body is difficult to see behind the rotor.
Check both the sensor and wiring before ordering a replacement. Wires can become damaged by road debris, suspension movement, corrosion, or previous brake work.
Rear Left and Right Sensors
Each rear wheel has its own sensor around the rear brake and axle assembly.
A 2010 Ram 1500 service procedure shows the rear wheel-speed sensor mounted in the brake caliper adapter. The electrical connector is disconnected before the sensor mounting bolt is removed.
That makes the 2009 to 2018 layout very different from an early Ram using one differential-mounted rear sensor.
If you are troubleshooting recurring sensor faults, our guide to Dodge Ram wheel speed sensor problems covers common wiring, signal, and sensor-related failures.
Where Are the 2019 to 2026 Ram 1500 DT ABS Sensors
The fifth-generation Ram 1500 DT uses individual wheel-speed sensors at the front and rear wheels.
Do not use a location guide written for an early Dodge Ram with one rear differential sensor.

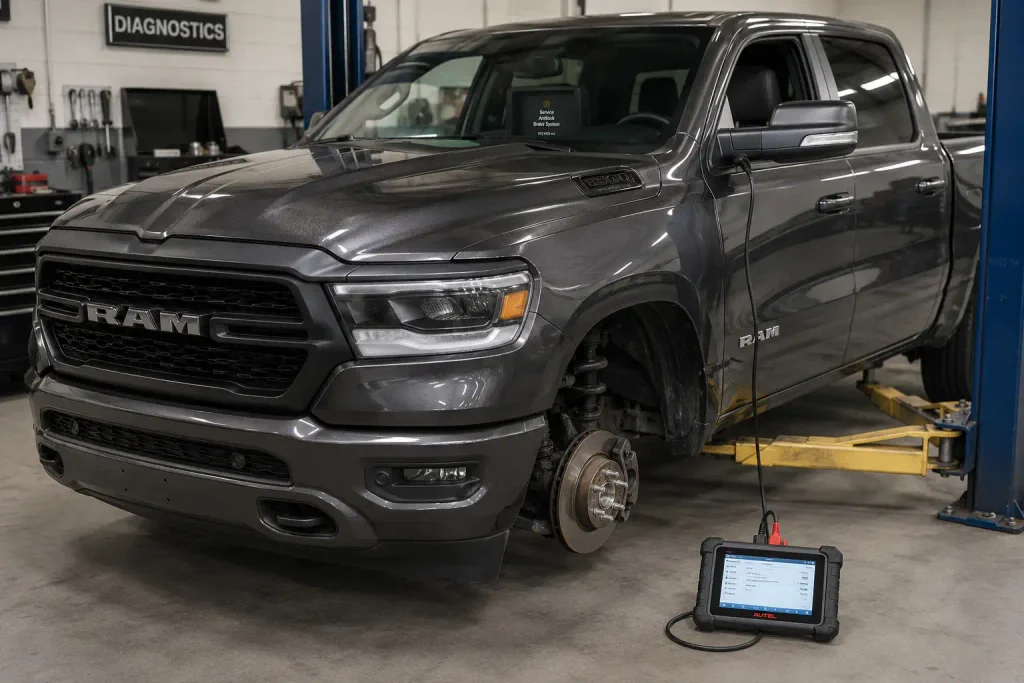

Front ABS Sensor Location
The front sensor is mounted at the front brake, hub, and steering-knuckle assembly.
Look behind the brake rotor near the hub bearing. A small electrical wire runs from the sensor and follows the suspension or brake area toward its connector.
The official Mopar catalog for the 2024 Ram 1500 lists wheel-speed sensors within the front brake assembly and identifies front left and front right applications.
Current 2025 Ram 1500 front brake catalogs continue to list wheel-speed sensors alongside the hub and bearing components.
Rear ABS Sensor Location
The rear sensors are located at the left and right rear wheel or brake assemblies.
The official Mopar rear brake catalog for a 2019 Ram 1500 lists the wheel-speed sensor directly with the rear brake hardware.
The 2026 Ram 1500 catalog continues to list rear wheel-speed sensors and separate left and right sensor brackets within the rear brake assembly.
This confirms that late-model DT trucks should not be diagnosed using the old single rear differential-sensor layout.
DT Sensor Fitment Differences
Physical location can be similar while the actual replacement part differs.
For example, current Mopar catalogs list several wheel-speed sensor part numbers for 2025 Ram 1500 configurations. Different trim, axle, suspension, and production combinations can affect the exact sensor used.
Use the VIN when ordering an OEM or aftermarket replacement sensor.
How to Find the Ram 1500 ABS Sensor in 5 Steps
Finding the physical sensor becomes easier when you know which wheel the ABS module is reporting.
1. Confirm Your Ram Model Year
Identify whether you have an older Dodge Ram, a fourth-generation DS truck, or a fifth-generation DT Ram 1500.
A 2019 Ram 1500 Classic is based on the older DS platform, while the 2019 New Style truck is the DT generation.
2. Scan the ABS Module
Use a scan tool capable of reading ABS or chassis diagnostic trouble codes.
A basic engine-only OBD-II reader may not show ABS faults.
Look for a code identifying:
- Left front
- Right front
- Left rear
- Right rear
- Rear wheel-speed circuit on applicable older trucks
3. Go to the Reported Wheel
If the scanner reports the left front circuit, start at the left front wheel.
On an older RWAL truck with a rear sensor fault, move to the center of the rear differential instead.
This saves time compared with inspecting every sensor.
4. Follow the Sensor Harness
Find the small electrical harness near the hub, brake assembly, or differential.
Follow it carefully toward the connector.
Look for:
- Broken insulation
- Stretched wiring
- Loose retaining clips
- Bent connector pins
- Water intrusion
- Road debris
- Corrosion
5. Inspect More Than the Sensor
A wheel-speed fault does not automatically prove the sensor itself has failed.
Factory diagnostic procedures also direct technicians to inspect sensor mounting, wiring, connectors, tone wheels, sensor air gap, and wheel-bearing condition.
If your truck has several warning lamps together, the Brake ABS and traction light causes and repairs guide can help narrow the fault before parts are replaced.
What Is Not the Ram 1500 ABS Sensor
Several components use the word “speed sensor,” but they do different jobs.
Transmission Speed Sensor
A transmission speed sensor measures the rotational speed of an internal transmission shaft.
It is located on or inside the transmission, depending on transmission design. It is not the same component as the wheel-speed sensor used by the ABS system.
If you are diagnosing an ABS wheel-specific fault, do not order a transmission input or output speed sensor simply because the listing says “speed sensor.”
TPMS Sensor
The Tire Pressure Monitoring System sensor measures air pressure inside the tire.
The TPMS sensor is mounted with the valve stem or inside the wheel. It does not measure wheel rotation for the ABS system.
ABS Control Module
The ABS control module processes wheel-speed information and controls anti-lock braking operation.
It is a separate component from the sensors at the wheels. If you need to understand the control side of the system, see our Service Antilock Brake System guide.
Which Warning Lights Point to a Wheel Speed Sensor Problem
An ABS warning light can appear when the module loses a believable signal from one or more wheels.
Other warning lamps may appear at the same time because stability and traction systems also depend on accurate wheel-speed information.
| Symptom | What to Check First |
|---|---|
| ABS light only | Scan ABS module for stored codes |
| ABS and traction-control lights | Compare individual wheel-speed readings |
| Intermittent ABS warning | Inspect wiring and connectors |
| One wheel reads zero | Inspect sensor, harness, tone ring, and bearing |
| Older truck with rear sensor fault | Identify RWAL or ESP system first |
Do not replace a sensor only because the ABS warning lamp is illuminated.
A damaged wire, contaminated sensor mounting surface, tone-ring problem, loose bearing, or connector fault can produce similar symptoms.
Which Ram 1500 ABS Sensor Should You Inspect First
Use the ABS code or live wheel-speed data whenever possible.
| Scan Result | First Area to Inspect |
|---|---|
| Left front wheel-speed fault | Left front hub and sensor harness |
| Right front wheel-speed fault | Right front hub and sensor harness |
| Left rear wheel-speed fault | Left rear brake and axle area |
| Right rear wheel-speed fault | Right rear brake and axle area |
| Rear sensor fault on older RWAL truck | Rear differential housing and harness |
| No wheel-specific code | Compare live wheel-speed values |
If one wheel suddenly drops to zero while the other three continue reading normally, start with that sensor circuit.
If all four readings look correct, further ABS module or wiring diagnosis may be necessary.
Key Ram 1500 ABS Sensor Location Takeaways
The correct Ram 1500 ABS sensor location depends on the model year and braking system.
Early 2002 to 2005 trucks typically use two front hub sensors and one rear differential sensor. From 2006 to 2008, ESP-equipped trucks can use individual rear wheel sensors while RWAL trucks retain the differential-mounted sensor.
The 2009 to 2018 Ram 1500 DS and 2019 to 2026 Ram 1500 DT use individual wheel-speed sensing at the rear.
Before replacing anything, scan the ABS module, identify the affected wheel, and inspect the wiring, connector, tone ring, and bearing around that circuit.
Ram 1500 ABS Sensor Location FAQs
Where Is the ABS Sensor on a Ram 1500?
The front ABS sensors are located around the front wheel hubs or steering knuckles. Rear location depends on the year, with older trucks using a differential-mounted sensor and later trucks using individual left and right rear sensors.
Where Is the Rear ABS Sensor on a Dodge Ram 1500?
On many early Dodge Ram 1500 trucks, the rear ABS sensor sits on top of the rear differential housing. Some 2006 to 2008 ESP-equipped trucks and later Ram 1500 models use individual sensors at each rear wheel instead.
Does a Ram 1500 Have Four ABS Sensors?
Most 2009 and newer Ram 1500 trucks use four individual wheel-speed sensors. Earlier configurations can use two front sensors and one rear differential sensor, so the sensor count depends on model year and ABS system.
Where Is the Front ABS Sensor on a Ram 1500?
The front ABS sensor is mounted near the wheel hub, bearing, or steering-knuckle assembly behind the brake rotor. Follow the small electrical harness from the hub area toward its connector to locate it.
Is the ABS Sensor the Same as the Speed Sensor?
An ABS wheel-speed sensor is not the same as a transmission input or output speed sensor. The ABS sensor monitors wheel rotation, while transmission speed sensors monitor internal transmission shaft speed.
Can a Bad Wheel Bearing Cause a Ram ABS Light?
Yes. Excessive wheel-bearing play can affect the relationship between the wheel-speed sensor and tone ring, producing an inaccurate signal. Factory ABS diagnostic procedures include checking wheel-bearing condition when troubleshooting wheel-speed sensor faults.
How Do I Know Which Ram 1500 ABS Sensor Is Bad?
Use an ABS-capable scan tool to read wheel-specific trouble codes and live wheel-speed data. The sensor or circuit whose reading disappears, becomes erratic, or differs significantly from the other wheels should be inspected first.
