Service Antilock Brake System: The Definitive Diagnostic and Repair Guide 2026

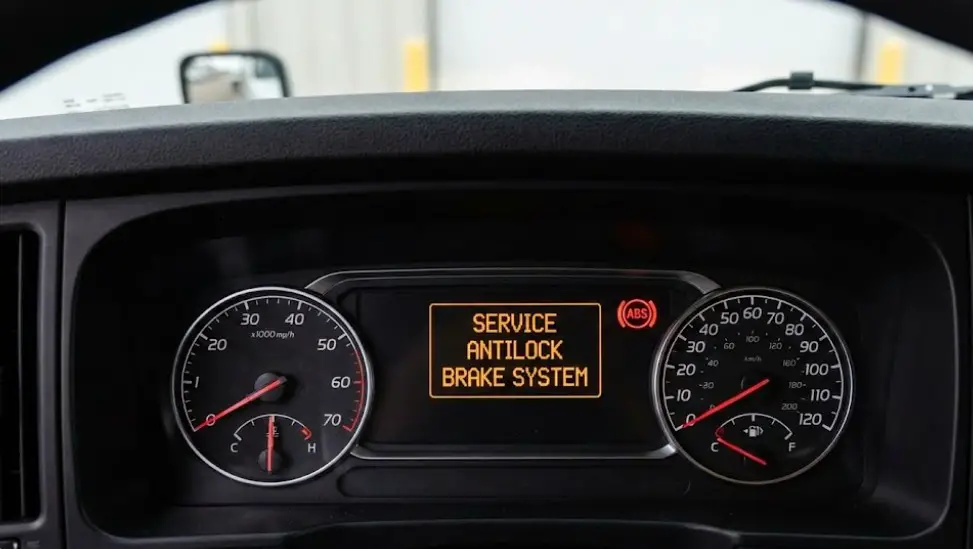

The illumination of the “service antilock brake system” warning light on a truck dashboard signals a critical interruption in one of the vehicle’s primary active safety networks. The Antilock Braking System (ABS) represents a complex integration of electronic sensors, hydraulic or pneumatic modulators, and high-speed computational modules designed to prevent wheel lock-up during aggressive or emergency deceleration.

By autonomously modulating brake pressure to individual wheels at speeds vastly exceeding human capability—frequently pulsing up to fifteen times per second—the system preserves the driver’s ability to maintain steering control and directional stability.

For operators and fleet managers alike, understanding the intricacies of ABS architecture is no longer optional. As commercial and passenger vehicles have evolved, the ABS module has transformed from a standalone traction aid into the foundational framework for broader stability networks, including Electronic Stability Control (ESC), Roll Stability Control (RSC), and Advanced Driver Assistance Systems (ADAS).

When the ABS control unit detects a malfunction and deactivates the system, it inherently disables these secondary safety nets, fundamentally altering the vehicle’s handling dynamics under load.

The integration of these systems has had a profound impact on road safety. According to statistical evaluations conducted by the implementation of ABS in light trucks has successfully reduced nonfatal crashes by approximately eight percent, while simultaneously decreasing stopping distances by ten to fifteen percent under normal conditions compared to vehicles lacking the technology. Consequently, addressing an ABS warning is not merely a maintenance task; it is an urgent safety and compliance mandate.

The Regulatory Framework: FMVSS 105 and FMVSS 121

The architectural design and performance requirements of truck braking systems are strictly governed by federal regulations. These mandates dictate not only the mechanical capabilities of the brakes but also the specific behaviors of the electronic monitoring systems.

Federal Motor Vehicle Safety Standard (FMVSS) 105 governs hydraulic brake systems, which are standard in light-duty trucks such as the Chevrolet Silverado 1500, Ford F-150, and Ram 1500. Conversely, heavy commercial vehicles equipped with air brakes must adhere to FMVSS 121. A critical component of these regulations is the mandate for continuous electronic monitoring. According to FMVSS 121, commercial vehicles must be equipped with an antilock brake system that automatically controls the degree of rotational wheel slip. The system must sense the rate of angular rotation, transmit signals to a controlling device, and generate responsive output signals to modulators that adjust braking force.

Furthermore, FMVSS regulations require specific diagnostic warning behaviors. Since March 2001, towing vehicles have been required to feature an in-cab trailer ABS indicator lamp, utilizing Power Line Carrier (PLC) communications over the blue wire of the J560 connector to transmit fault statuses from the trailer to the tractor dashboard. This regulatory environment ensures that fleet operators are immediately visually notified of any systemic fault that could compromise heavy-duty braking stability.

Architectural Divergence: Light-Duty vs. Heavy-Duty ABS

The mechanical implementation of an antilock braking system varies drastically depending on the vehicle's Gross Vehicle Weight Rating (GVWR) and operating medium. Understanding whether a truck utilizes hydraulic fluid or compressed air is the first step in accurate system diagnostics.

Hydraulic ABS Configurations

Light-duty trucks rely on incompressible hydraulic fluid (typically DOT 3 or DOT 4) to actuate brake calipers. The ABS mechanism in these vehicles consists of a motorized hydraulic return pump and a valve block. When the ABS ECU detects an impending wheel lock-up, it commands the shift valves to isolate, reduce, or increase hydraulic pressure to the specific wheel. While highly responsive and capable of generating immense stopping force, hydraulic systems possess a critical vulnerability: brake fade. Sustained downhill braking under heavy loads can cause friction-induced heat to boil the brake fluid, resulting in a sudden and catastrophic loss of hydraulic pressure.

Pneumatic Air ABS Configurations

Heavy-duty commercial trucks utilize compressed air, featuring engine-driven compressors, high-capacity storage reservoirs, and air-actuated brake chambers. Unlike hydraulic systems, minor leaks in an air brake system do not result in total failure, as the onboard compressor continually replenishes the air supply. Furthermore, pneumatic systems are highly resistant to the heat-induced fade that plagues hydraulic fluids. In an air ABS setup, the ECU interfaces with electro-pneumatic Pressure Modulator Valves (PMVs), which are the final directional valves air passes through before reaching the brake chambers.

Diagnostic Trouble Codes (DTCs) and Primary Failure Points

When an anomaly is detected, the Electronic Control Unit generates a Diagnostic Trouble Code (DTC) and stores it in the system memory. In standardized OBD-II systems used by light trucks, ABS faults fall under "Chassis Codes," denoted by the prefix "C".

Universal Chassis Fault Codes

Retrieving codes via an OBD-II scanner is the definitive starting point for troubleshooting hydraulic systems. The most frequently encountered diagnostic codes include:

Brand-Specific Vulnerabilities: Chevrolet, GMC, and Ford

While DTCs provide a universal language, specific vehicle platforms suffer from documented, systemic vulnerabilities.

Chevrolet Silverado and GMC Sierra (2007-2014): General Motors trucks from this production era are widely documented for suffering catastrophic ABS control module failures. The root cause is traced back to shortcomings in the original manufacturing process, specifically regarding insufficient heat dissipation. The continuous thermal cycling experienced in the engine bay degrades internal electrical connections and micro-solder joints. Technicians frequently encounter symptoms such as a total loss of scan tool communication, the generation of proprietary codes like C2200, or scenarios where the ABS pump remains stuck in the "on" position, continuously humming even after the ignition key is removed.

Ford F-150 Series: Ford platforms also exhibit specific programmatic issues. According to Technical Service Bulletins (TSBs), 2018-2019 Ford F-150 models equipped with the 3.5L EcoBoost engine and max trailer tow packages frequently exhibit erroneous AdvanceTrac warning messages alongside ABS DTCs C0051:54 or C0051:64. These issues generally require dealership-level reprogramming or targeted module replacement to rectify communication errors between the traction control system and the ABS ECU.

Commercial Diagnostics: Bendix vs. WABCO Systems

In the heavy-duty commercial sector, the ABS landscape is overwhelmingly dominated by two manufacturers: Bendix Commercial Vehicle Systems and Meritor WABCO. While both systems fulfill FMVSS 121 requirements, their software interfaces, hardware shapes, and testing protocols are distinct.

Identifying and Interfacing with the Hardware

A technician can often identify the system at a glance; Bendix ABS connectors are typically square, whereas WABCO connectors are round. Interfacing with these systems requires universal communication adapters, such as the Nexiq USB Link, which bridge the physical connection between the truck's J1939 or J1708 serial data links and the diagnostic laptop.

Bendix systems utilize the ACom® PRO™ Diagnostics software, which provides real-time sensor data, active component testing, and firmware flashing capabilities for their EC-60 and EC-80 controllers. Bendix differentiates its Electronic Stability Program (ESP) by utilizing advanced steer angle and load sensors to calculate lateral forces preventatively, intervening before a rollover event physically manifests. Conversely, WABCO systems are diagnosed using the TOOLBOX™ Software. WABCO's Roll Stability Control (RSC) functions reactively, responding to lateral forces as they occur by applying individual wheel-end braking.

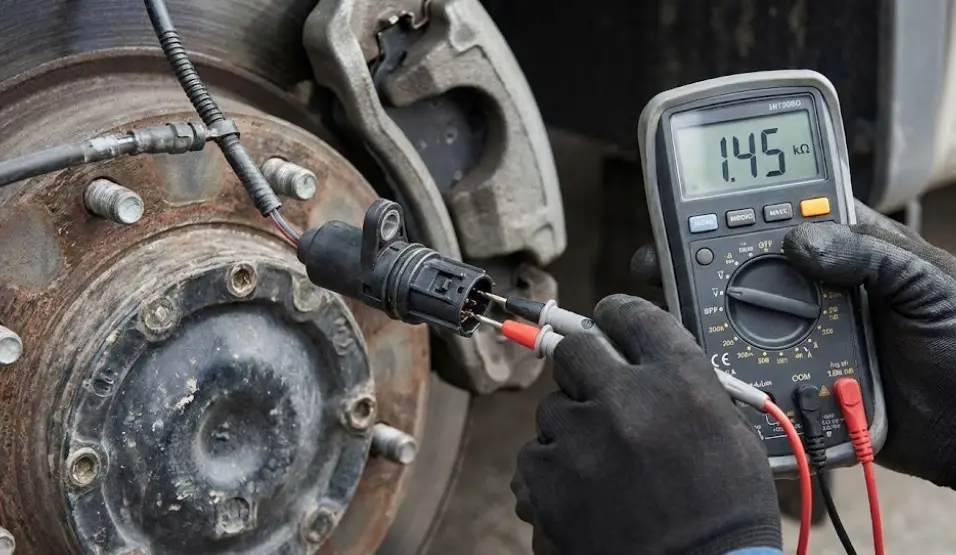

Rigorous WABCO Sensor Testing Protocols

To prevent the costly and unnecessary replacement of functional parts, WABCO publishes strict electrical parameters for diagnosing wheel speed sensors prior to condemning the unit. Because these sensors rely on magnetic induction, they must pass two distinct evaluations using a digital multimeter:

1. Sensor Resistance and Short to Ground Test: With the ignition off and the harness disconnected from the ECU, technicians must measure the resistance across the sensor's terminal pins. A functional sensor will display a resistance value strictly between 900 and 2000 ohms. A secondary measurement taken from the pins to the sensor casing (vehicle ground) must yield infinite resistance, confirming there is no electrical short.
2. AC Voltage Output Test: This test diagnoses erratic speed signals or excessive air gaps between the sensor and the tone ring. The vehicle is elevated, and the wheel is rotated by hand at approximately 30 revolutions per minute (one-half revolution per second). During this rotation, the multimeter must register a minimum output of 0.2 volts AC. If the voltage falls below this threshold, the technician must manually push the sensor deeper into its holder until it contacts the tooth wheel to correct the air gap.

Economic Realities: Component Failure Rates and Repair Costs

The financial impact of an ABS failure varies significantly based on the component involved, the vehicle's class, and the chosen repair methodology. Automotive failure data indicates that wheel speed sensors are the most frequently replaced components, primarily due to their exposed location at the wheel hub, where they suffer continuous bombardment from road debris, moisture, and corrosive salts.

However, as vehicles surpass the 100,000-mile threshold, failures within the ABS control module and the hydraulic valve block become statistically prominent. The ABS module, functioning as the system's brain, processes immense amounts of data and controls the high-amperage hydraulic pump; consequently, moisture ingress and electrical overload frequently cause these units to fail long before the vehicle reaches the end of its serviceable life.

Estimated Repair Cost Matrix for Light-Duty Trucks

The Strategic Advantage of Module Remanufacturing

For high-failure components, such as the previously mentioned 2007-2014 GM truck modules, purchasing a brand-new replacement presents two distinct disadvantages. First, new modules are prohibitively expensive, often pushing total repair bills near $1,500. Second, a virgin module must be digitally paired to the vehicle's network by a dealership to program the VIN, tire size, and gear ratios into the ECU memory.

To circumvent these costs, the automotive industry increasingly relies on specialized electronics firms, which offer certified remanufacturing services. By opening the original module, reflowing fractured solder joints, and replacing factory components with upgraded, heat-resistant variants, technicians can restore the unit to an "as-new" or superior condition. Crucially, because the vehicle's original logic board is retained, the unit remains perfectly programmed to the truck, allowing for a seamless, plug-and-play installation that completely bypasses the dealership.

Safety Degradation and Insurance Liabilities

A dangerous and pervasive myth within the trucking community suggests that because a vehicle's conventional hydraulic or air brakes continue to halt the vehicle when the ABS light is illuminated, the truck remains perfectly safe for regular operation. From a mechanical engineering, legal, and risk-management perspective, this assumption is profoundly flawed.

Dynamic Safety Deficits

When the ECU deactivates the antilock brake system, the vehicle instantly loses its ability to prevent wheel lock-up during a panic stop. On dry, high-friction pavement, a skilled driver might not notice a severe degradation in stopping power. However, under adverse conditions—such as rain, snow, or loose gravel—locked wheels completely eliminate lateral traction. A driver with locked front wheels cannot steer around an obstacle, turning a potentially avoidable collision into an inevitable impact. Furthermore, because the ABS module acts as the primary data hub for modern stability networks, its failure disables Traction Control and Electronic Stability Control, leaving high-center-of-gravity trucks dangerously susceptible to jackknifing and rollover events.

Compliance and Roadside Inspections

Operating a commercial motor vehicle with an active ABS fault is a direct violation of federal and state compliance standards. Commercial vehicle regulations require functional warning lamps and active ABS networks on tractors and trailers. A persistent dashboard warning will unequivocally result in a violation during a standard Department of Transportation (DOT) roadside inspection, potentially placing the vehicle out of service. For passenger trucks, state vehicle safety inspections routinely classify an illuminated ABS or brake warning light as "defective equipment," instantly failing the vehicle and barring it from legal registration renewal.

Forensic Liabilities and Voided Insurance Policies

The legal and financial ramifications of ignoring an ABS warning extend deep into the realm of insurance liability. In the modern era of accident reconstruction, forensic investigators and insurance adjusters routinely download telematics and Event Data Recorder (EDR) information from a vehicle's ECU following a severe collision.

If digital forensics reveal that the antilock braking system was non-functional at the moment of impact, liability can shift entirely. In one documented case study, a driver claimed an intermittent ABS failure caused a loss of control and a severe accident during a rainstorm. Investigation revealed that the driver had previously brought the vehicle in for service regarding the ABS light, establishing a documented history of a known safety defect.

Insurance policies carry strict clauses requiring policyholders to maintain their vehicles in safe, roadworthy conditions. If an insurance provider determines that a driver or fleet manager willfully ignored severe ABS maintenance warnings, or intentionally disabled the system to avoid repair costs, the provider has legal grounds to completely void the auto insurance policy. In such instances, the operator becomes personally liable for all resultant property damage, medical bills, and potential negligence lawsuits filed by injured parties.

FAQs

Conclusion:

The sudden appearance of the "Service Antilock Brake System" message on a driver's dashboard represents far more than a simple electronic glitch; it is an immediate notification that the vehicle's primary dynamic safety network has been fundamentally compromised. In light-duty applications, these failures frequently stem from the thermal degradation of control modules or the fouling of exposed wheel speed sensors. For these trucks, rebuilding the original module offers a highly economical repair path that circumvents dealership programming fees.

For heavy-duty commercial fleets utilizing complex pneumatic networks engineered by Bendix or WABCO, the diagnostic process demands rigorous adherence to manufacturer testing protocols. Technicians must leverage universal adapters and proprietary software interfaces to differentiate between localized sensor faults, electro-pneumatic valve failures, and broader J1939 communication breakdowns.

Regardless of the vehicle's size or operating medium, driving with a disabled ABS network is a severe safety and financial risk. Beyond the physical dangers of extended stopping distances and total steering loss during emergency maneuvers, the associated legal violations and insurance liabilities make immediate intervention an absolute necessity. By utilizing precise diagnostic trouble codes, adhering to proper sensor resistance testing parameters, and embracing component remanufacturing, fleet managers and independent owners can effectively restore their vehicles to optimal safety and full regulatory compliance.
