The 2015 Toyota Tacoma serpentine belt routing path typically winds around the crankshaft, alternator, water pump, power steering pump, and A/C compressor. Use a 14mm socket on the belt tensioner located below the alternator to relieve pressure. Ensure the grooved side of the belt aligns with grooved pulleys for proper friction.
📌 Key Takeaways
- The standard serpentine belt length for the 4.0L 1GR-FE engine is approximately 2,280mm (89.75 inches).
- Identify proper orientation by ensuring the ribbed side of the belt contacts the grooved pulleys while the smooth side contacts the idler pulley.
- Always confirm the belt is seated centrally on the pulley grooves; a single groove offset causes rapid belt shredding.
- The automatic belt tensioner is a common failure point; if the indicator marks are outside the ‘Good’ range, replace the tensioner.
- Seek professional assistance if the tensioner bolt is seized, as applying excessive force can damage the timing cover housing.
Maintaining the accessory drive system on a 2015 Toyota Tacoma requires a precise understanding of the belt routing path. Whether you are operating the 1GR-FE 4.0L V6 or the 2TR-FE 2.7L I4 engine, the serpentine belt is the critical link between the crankshaft and engine peripherals, including the alternator, water pump, and air conditioning compressor. Improper installation or failure to adhere to the manufacturer’s routing specifications can lead to premature component failure, accessory seizure, or cooling system collapse. This guide provides the technical breakdown, OEM-specified routing paths, and maintenance protocols necessary to execute a successful belt service on your Tacoma platform.

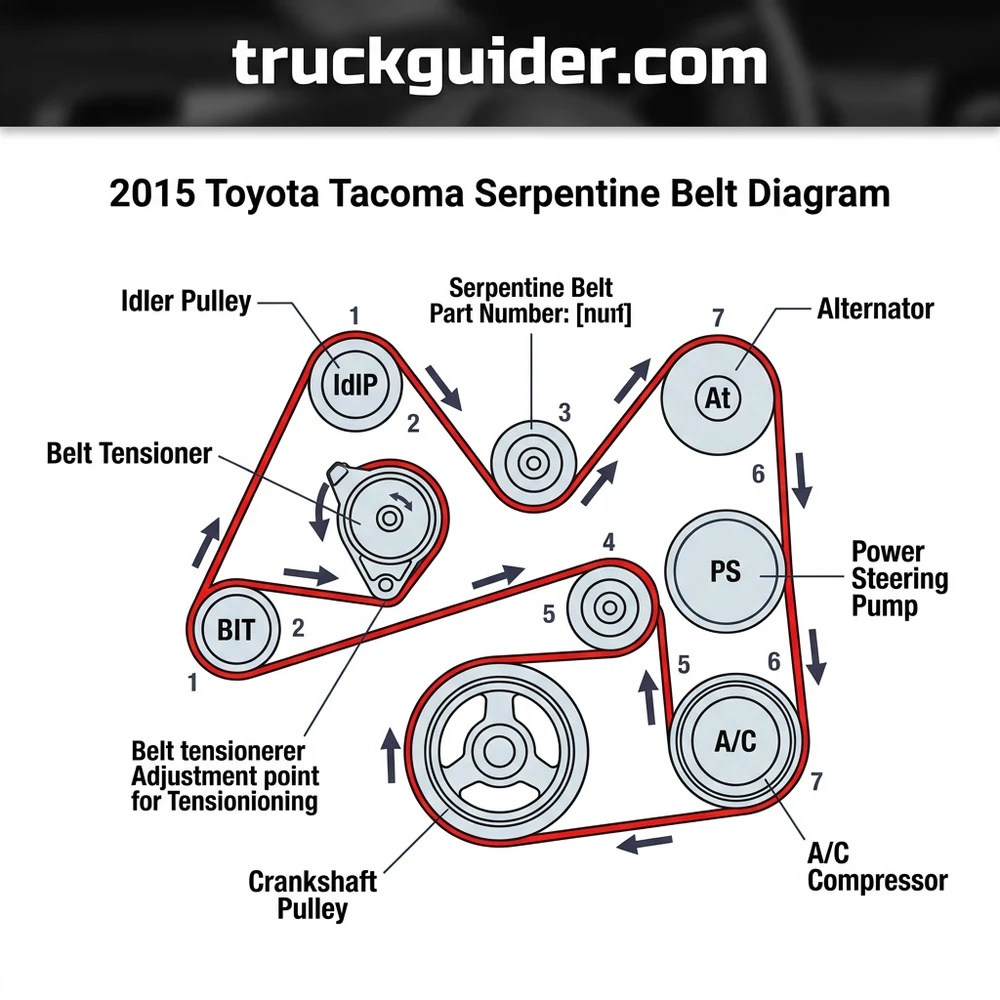

[DIAGRAM_PLACEHOLDER: 2015 Toyota Tacoma Serpentine Belt Routing Diagram]
Understanding the 2015 Toyota Tacoma Serpentine Belt Diagram
Recommended Best Deal Products
The 2015 Toyota Tacoma utilizes a single-belt serpentine system designed for high-tension efficiency. Interpreting the 2015 Toyota Tacoma serpentine belt diagram requires identifying the specific engine configuration, as the V6 and I4 models have vastly different pulley layouts and rotational directions. In the 4.0L V6 (1GR-FE), the belt wraps around the crankshaft, alternator, power steering pump, water pump, air conditioning compressor, and multiple idler pulleys. The key to understanding this layout is recognizing the distinction between grooved pulleys, which engage the ribbed side of the belt, and smooth idler pulleys, which contact the flat back of the belt.
For the 2.7L I4 engine, the routing is more linear but still requires careful attention to the belt tensioner position. The tensioner is a spring-loaded component designed to maintain consistent deck engagement across all pulleys. If the tensioner fails or loses its hydraulic or spring pressure, the belt will slip, often resulting in a high-pitched chirping sound under load or during cold starts.
When reviewing any pulley diagram for this model year, pay close attention to the path relative to the water pump. On these engines, the water pump is often driven by the smooth side of the belt. If the belt is installed with the grooved side against a smooth idler pulley, the belt will quickly generate excessive heat, melt the internal cords, and snap. Always ensure the belt ribbing sits perfectly within the grooves of the crankshaft and alternator pulleys. The idler pulleys must also be inspected for lateral play; even a minor wobble in the bearing can cause the belt to track off-center, leading to shredding along the edges.
For technicians: The 2015 Tacoma utilizes a self-adjusting hydraulic or mechanical tensioner depending on the specific build date and market specification. Always check the tensioner markings (the “range indicator”) to verify that the belt length is correct. If the tensioner is at the edge of its travel, the belt is either stretched or the incorrect size.
2015 Toyota Tacoma Serpentine Belt Part Numbers and Specs
Sourcing the correct belt is paramount to long-term reliability. Using a generic aftermarket belt that does not match the exact OEM belt cross-reference can lead to issues with belt stretch and accessory load distribution. The following table provides the reference specifications for standard replacement parts on the 2015 model year.
| Engine Displacement | OEM Part Number | Belt Type / Specs |
|---|---|---|
| 4.0L V6 (1GR-FE) | 90916-02664 | 7-Rib, EPDM Construction |
| 2.7L I4 (2TR-FE) | 90916-02685 | 7-Rib, EPDM Construction |
Always utilize EPDM (Ethylene Propylene Diene Monomer) belts. Older Neoprene belts are not rated for the higher thermal operating ranges of the 2015 Tacoma accessory drive system and will suffer premature cracking.
Step-by-Step Routing Instructions for the 2015 Toyota Tacoma
Recommended Best Deal Products
Installing the belt requires a dedicated serpentine belt tool or a long-handled 14mm/19mm socket depending on the tensioner bolt head configuration. Before removing the old belt, map the path using a marker or verify it against the diagram provided in the vehicle’s engine bay decal.
1. Positioning: Place the vehicle on a level surface. Access the engine bay from the front. If you have a large radiator shroud, removing it may provide better leverage, though it is not always mandatory.
2. Tensioner Release: Locate the belt tensioner pulley. Attach your serpentine belt tool to the tensioner bolt. Rotate the tensioner arm clockwise (or as indicated by the arrow on the tensioner housing) to compress the internal spring and create slack in the belt.
3. Belt Removal: With the tensioner held in the compressed position, slip the belt off the most accessible pulley—usually the idler pulley or the alternator. Slowly release the tensioner and remove the old belt entirely from the engine compartment.
4. Routing the New Belt: Route the new belt around the pulleys following the 2015 Toyota Tacoma serpentine belt diagram. Start at the crankshaft pulley (the lowest, largest pulley) and work your way up. Ensure the ribbed side faces the grooved pulleys.
5. Final Engagement: Leave the tensioner pulley for last. Again, compress the tensioner arm with your tool. Carefully loop the belt over the tensioner pulley. Verify that every rib is perfectly aligned within the tracks of all pulleys. Misalignment by even one rib will cause the belt to shred within minutes of engine operation.
6. Verification: Once the belt is in place, release the tensioner and allow it to seat against the back of the belt. Start the engine and observe the belt path for 30 seconds. If there is any “wandering” or excessive vibration, shut the engine down immediately and re-verify the routing path.
Never place your fingers between the belt and any pulley while the engine is running or while you are releasing the tensioner. The force of the spring-loaded tensioner can cause severe crush injuries.
Tensioner Maintenance and Accessory Drive Adjustment Notes
While the belt is removed, you have the ideal opportunity to inspect the rotating components that the belt drives. The tensioner assembly is a common failure point on the 2015 Tacoma after 100,000 miles. Check for fluid leaks around the hydraulic shock portion of the tensioner, if applicable. A leaking tensioner indicates that the internal seals have failed, and the unit will no longer be able to maintain the necessary tension to prevent slippage.
Furthermore, spin each idler pulley by hand while the belt is off. A healthy pulley should spin silently with minimal resistance. If you hear grinding, feel “crunchy” resistance, or detect any side-to-side play, the bearing is failing. Replacing the idler pulley along with the belt is a proactive measure that prevents a catastrophic accessory drive failure on the road. Also, inspect the water pump pulley for coolant weeping; since the belt drives the water pump, a failing pump bearing will eventually put side-load stress on the belt, leading to premature snapping. Always verify that all pulleys are free of debris or solidified rubber residue from the old belt.
2015 Toyota Tacoma Serpentine Belt Diagram Questions Answered
Recommended Best Deal Products
How do I know if my tensioner is the cause of my belt noise?
If the belt itself is in good condition (no cracks or missing ribs) but still chirps, use a tension gauge to verify the pressure. Additionally, inspect the belt tensioner indicator marks. Most 2015 Tacomas feature a set of index marks on the tensioner housing. If the arm is resting outside the “service zone” marks while the engine is off, the spring has fatigued and the unit requires replacement.
Can I use a belt that is slightly shorter than the OEM specification?
No. A belt that is too short will put excessive radial load on the alternator and water pump bearings, leading to internal seal failure. A belt that is too long will bottom out the tensioner, preventing it from applying the necessary torque to the belt, resulting in immediate slippage. Always stick to the OEM-specified length.
Why does my new belt have a white residue after the first few miles?
Small amounts of “dust” are normal as a new belt seats into the pulley grooves. However, if you see heavy rubber shavings, your belt is misaligned. Re-check the 2015 Toyota Tacoma serpentine belt diagram to ensure the belt is properly centered on every pulley, particularly the idler pulley, which is the most common site for tracking errors.
How often should the serpentine belt be replaced on this model?
Under standard operating conditions, Toyota recommends inspection every 30,000 miles. For vehicles used in off-road, dusty, or high-heat environments, replacing the belt every 60,000 miles is considered the industry standard for preventing roadside failure. If the belt shows three or more cracks per inch of ribbing, replace it immediately.
