Chevy Silverado Wiring Color Codes: Complete Guide 1999-2026
Silverado wire color codes depend on the model year, circuit, connector, and factory equipment. There is no single Chevrolet Silverado color chart that safely identifies every wire from 1999 through 2026.
A yellow wire is a good example. Chevrolet used yellow for a left trailer stop and turn circuit on a 2006 Silverado, while some 2003–2006 Bose-equipped trucks use yellow for a left rear speaker negative wire.
Always identify a Silverado wire using the year, circuit, full color including tracer, connector location, and pin number. Then verify the circuit electrically before cutting, splicing, or applying power.
Silverado Trailer Wire Color Codes by Model Year
Factory wiring colors changed across Silverado generations. Use the truck year, complete tracer color, connector cavity, and circuit function together.
Recommended Best Deal Products
Confirm the model year, circuit function, complete wire color including tracer, and connector cavity or pin number before making a permanent connection.
Which Silverado Generation Matches Your Wiring
Chevrolet introduced Silverado as the model name for its full-size pickup line for 1999. Chevrolet identifies redesigns for the 2007, 2014, and 2019 model years, creating four main generations through 2026.
| Silverado Generation | Model Years | Common Platform Name | Wiring Consideration |
|---|---|---|---|
| First generation | 1999–2006 | GMT800 | Simpler conventional circuits are common |
| Classic overlap | 2007 Classic | GMT800 | Do not use new-body 2007 diagrams |
| Second generation | 2007–2013 | GMT900 | More data-controlled electronics |
| Third generation | 2014–2018 | K2XX | Tracer colors and module controls become more common |
| Fourth generation | 2019–2026 | T1XX | Extensive BCM, lighting-module, CAN, and network-controlled circuits |
The 2007 model year needs special attention. Chevrolet sold Classic trucks based on the previous architecture alongside redesigned 2007 trucks. Parts documentation also distinguishes 2007 Silverado Classic applications from later architecture.
Silverado 2500HD and 3500HD electrical changes can also occur on a different schedule from Silverado 1500. Match the service information to the exact series before using any wire chart.
How To Read GM Wire Color Codes
GM wiring schematics use abbreviations for primary colors, secondary tracer colors, and light or dark color modifiers.
The 2026 Silverado 1500 Electrical Body Builder Manual states that GM identifies the color modifier first, followed by the primary color and then the secondary tracer color.
Recommended Best Deal Products
| GM Code | Wire Color |
|---|---|
| BK | Black |
| BN | Brown |
| BU | Blue |
| GN | Green |
| GY | Gray |
| OG | Orange |
| PK | Pink |
| PU | Purple |
| RD | Red |
| TN | Tan |
| VT | Violet |
| WH | White |
| YE | Yellow |
| L | Light modifier |
| D | Dark modifier |
A label such as YE/BU means yellow with a blue secondary color. BK/WH means black with a white secondary color.
Do not shorten YE/BU to just “yellow.” The tracer often separates one circuit from several neighboring wires with the same primary color.

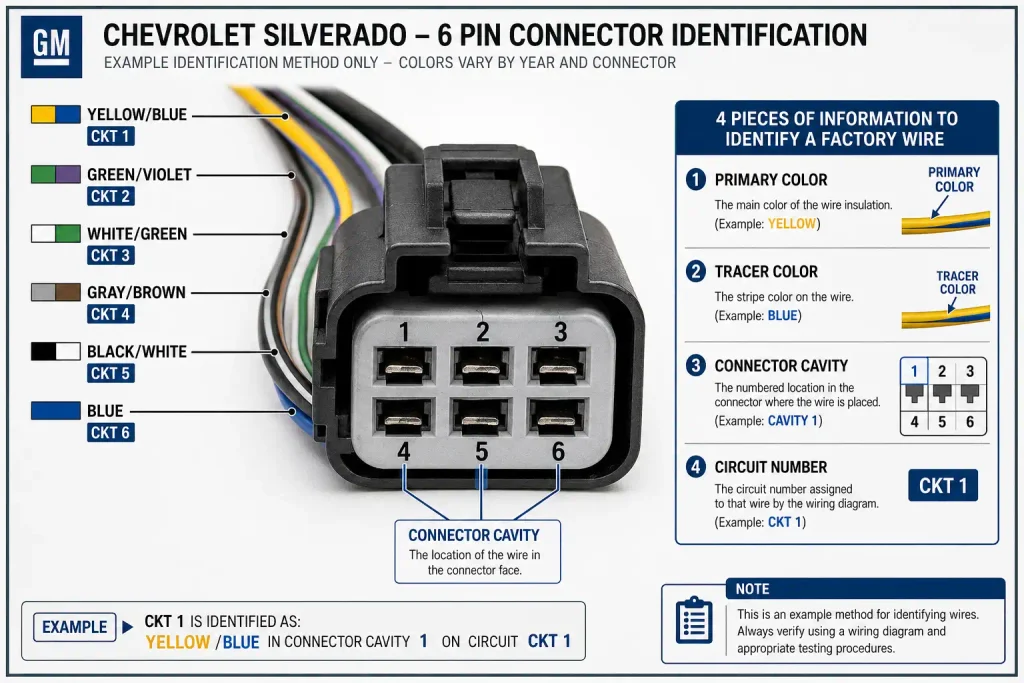

GM schematics also assign circuit numbers and connector cavity numbers. A modern schematic may therefore identify a wire by circuit number, color, connector, and terminal position rather than color alone.
For a broader explanation of automotive wiring terminology, Truck Guider’s automotive wire color code chart covers common color-identification concepts. Silverado factory diagrams still take priority over generic automotive conventions.
Silverado Trailer Wire Color Codes by Year
Trailer wiring provides one of the clearest examples of Silverado wire colors changing between generations.
2006 Silverado GMT800 Trailer Wiring
Chevrolet’s 2006 Silverado owner’s manual lists the following circuits for the factory heavy-duty trailer harness.
Recommended Best Deal Products
| Factory Wire Color | Circuit |
|---|---|
| Yellow | Left stop and turn |
| Dark Green | Right stop and turn |
| Brown | Tail lamps |
| White | Ground |
| Light Green | Back-up lamps |
| Light Blue | Center High-Mounted Stop Lamp |
| Red | Battery feed |
| Dark Blue | Trailer brake |
The Light Blue Center High-Mounted Stop Lamp circuit is separate from the primary trailer connector functions and was provided for trailer, camper, or cap applications.
Earlier GMT800 trucks should still be checked against their exact model-year diagram. Do not automatically apply the 2006 table to every 1999–2005 Silverado simply because the trucks share a generation.
2007 Silverado HD Trailer Wiring
A 2007 Silverado 3500HD manual shows a similar seven-wire arrangement for its heavy-duty trailer package.
| Factory Wire Color | Circuit |
|---|---|
| Yellow | Left stop and turn |
| Dark Green | Right stop and turn |
| Brown | Tail lamps |
| White | Ground |
| Light Green | Back-up lamps |
| Red | Battery feed |
| Dark Blue | Trailer brake |
This table applies to the documented 2007 HD application. A 2007 Classic and a redesigned 2007 Silverado should not be treated as interchangeable without confirming the harness.
2014 Silverado Trailer Wiring
The 2014 Silverado 1500 owner’s manual documents a different tracer-based factory scheme.
| Factory Wire Color | Circuit |
|---|---|
| Green/Violet | Left stop and turn |
| Yellow/Gray | Right stop and turn |
| Gray/Brown | Tail and parking lamps |
| White | Ground |
| White/Green | Back-up lamps |
| Red/Green | Battery feed |
| Dark Blue | Trailer brake |
This generation demonstrates why a plain “green equals right turn” rule is unreliable.
2017 And 2018 Silverado Trailer Wiring
Chevrolet’s 2017 and 2018 documentation lists another important orientation for the stop and turn circuits.
| Factory Wire Color | Circuit |
|---|---|
| Yellow/Gray | Left stop and turn |
| Green/Violet | Right stop and turn |
| Gray/Brown | Tail and parking lamps |
| White/Green | Back-up lamps |
| Red/Green | Battery feed |
| White | Ground |
| Blue or Dark Blue | Electric trailer brake |
Notice the difference from the 2014 owner manual. This is exactly why the truck’s exact model year must be checked before modifying a factory harness.
2019 Silverado Trailer Wiring
Silverado changed substantially again for 2019. Chevrolet documentation for the 2019 Silverado 1500 camper harness lists these circuits.
| Factory Wire Color | Circuit |
|---|---|
| Yellow/Blue | Left stop and turn |
| Green/Violet | Right stop and turn |
| Gray/Brown | Tail and parking lamps |
| White/Green | Reverse lamps |
| Red/Green | Battery feed |
| White | Ground |
| Blue | Electric trailer brake |
The 2019 Silverado HD manual shows a related but not identical arrangement. Its documented harness uses Yellow/Blue for left stop/turn, Green/Brown for right stop/turn, Red/Violet for battery feed, Black for ground, and Blue for electric trailer brakes.
That difference means 1500 and HD harness charts cannot always be combined.
2020 Silverado Trailer Wiring
The 2020 Silverado 1500 owner’s manual documents the following camper and trailer circuits.
| Factory Wire Color | Circuit |
|---|---|
| Yellow/Blue | Left stop and turn |
| Green/Violet | Right stop and turn |
| Gray/Brown | Tail and parking lamps |
| White/Green | Reverse lamps |
| Red/Green | Battery feed |
| White | Ground |
| Blue | Electric trailer brake |
2021 To 2026 Silverado Trailer Wiring
Do not assume the 2020 table applies unchanged through 2026.
GM publishes dedicated electrical Body Builder Manuals by model year, including Silverado documentation for 2025 and 2026. The 2026 schematic for the tow receptacle uses circuit numbers plus colors including YE/BU, GN/BN, BU/BN, YE, GN, OG, BN, GY, WH, and BK in the trailering system.
For a 2021–2026 truck, use the exact year’s trailering schematic and connector pin assignment before making a connection. GM provides current Silverado 1500 and HD electrical manuals through its official Upfitter Integration library.
How Silverado Tail Light Wires Differ From Trailer Wires
A trailer harness chart is not automatically a tail-light connector chart.
The truck’s rear lamp assemblies can use dedicated feeds, feedback circuits, grounds, module outputs, and connector-specific wiring. Later Silverados rely much more heavily on electronic control modules.
For example, the 2025 Silverado 1500 electrical manual identifies circuits such as WH/VT for a rear turn-signal feedback signal and BN/GY for right rear park-lamp control at specific connector locations.
That does not mean every white/violet wire on a 2025 truck is a turn-signal wire. The circuit number and connector cavity are part of the identification.
The 2025 exterior-light schematic also shows the Body Control Module, Lighting Control Module, headlamp switch, turn-signal switch, and brake-pedal sensor interacting within the lighting system.
If you are tracing a backup-light problem rather than the trailer harness, this reverse light wiring diagram explains the basic circuit path and multimeter checks. Use your Silverado factory schematic for the actual connector colors.
Silverado Radio Wire Colors by Year
Factory radio wiring is another area where universal Silverado color charts cause problems.
2003 To 2006 Silverado Bose Wiring
Scosche documents the following factory colors for the 2003–2006 Silverado Bose Premium System at the speaker wiring.
| Function | Factory Wire Color |
|---|---|
| Constant 12V | Orange |
| Switched accessory | Data controlled |
| Chassis ground | Black/White |
| Amplifier remote | Pink |
| Left front positive | Tan |
| Left front negative | Gray |
| Right front positive | Light Green |
| Right front negative | Dark Green |
| Left rear positive | Brown |
| Left rear negative | Yellow |
| Right rear positive | Dark Blue |
| Right rear negative | Light Blue |
This table explains why color alone is dangerous. Yellow means left rear speaker negative in this audio harness, but yellow means left stop and turn in the documented 2006 trailer harness.
2007 To 2013 Silverado Audio Wiring
The 2007–2013 Silverado uses data-controlled functions in the radio system.
Scosche’s LTZ and HD technical guide identifies the 12V accessory function as data controlled. It lists Pink for battery power, striped Black for ground, and Orange for amplifier turn-on in the documented application.
The same guide gives these speaker colors:
| Function | Factory Wire Color |
|---|---|
| Left front positive | Light Brown |
| Left front negative | Light Green |
| Right front positive | Light Green/White |
| Right front negative | Orange/Black |
| Left rear positive | Gray/White |
| Left rear negative | Dark Brown |
| Right rear positive | Blue |
| Right rear negative | Light Brown |
Factory navigation, Bose, OnStar, and other options can change the interface requirements. Scosche specifically separates several of these configurations.
2014 To 2026 Silverado Infotainment Wiring
Do not wire a modern Silverado radio using a generic red, yellow, black aftermarket-stereo chart.
Modern infotainment systems communicate through vehicle data networks and may depend on modules for retained accessory power, warning chimes, steering controls, cameras, amplification, and other functions.
For 2014–2026 trucks, identify the radio or infotainment connector by year and RPO equipment, then use the factory connector schematic or a verified vehicle-specific interface.
How Silverado Power And Ground Wires Differ
Black and white commonly appear in Silverado ground circuits, but neither color is a universal guarantee of ground.
The 2026 GM schematic legend confirms that BK means black and WH means white, while combinations such as BK/WH identify striped or secondary-color wiring rather than a different universal circuit function.
Modern trucks can contain several grounds serving separate modules and harness sections. A ground should therefore be confirmed by its circuit number, connector pin, ground-point designation, and a proper resistance or voltage-drop test.
The same rule applies to red, orange, and pink wiring. Those colors often appear in power-related circuits, but they can serve different feeds depending on the harness.
Never apply battery voltage to an unidentified Silverado wire simply because its color resembles a power wire.
How To Verify Silverado Wires Before Splicing
Treat Silverado wire color codes as an identification aid, not final proof.
- Confirm the exact model year.
A 2007 Classic and redesigned 2007 truck can require different diagrams. - Confirm the truck series.
Identify whether you have a Silverado 1500, 2500HD, or 3500HD. - Identify the component and connector.
Find the actual tail lamp, trailer receptacle, radio, BCM, headlamp, or accessory connector. - Match the full wire color.
Record both the primary color and tracer. Yellow/Blue and Yellow/Gray are different identifiers. - Match the connector cavity and circuit number.
Modern GM schematics use both extensively. - Test the expected electrical behavior.
A trailer turn circuit should switch with the appropriate signal. A ground should show the expected low-resistance path. A battery feed should show the expected supply voltage. - Confirm against the factory schematic before modifying the harness.
GM’s Body Builder Manuals include dedicated electrical schematics and connector information for current Silverado trucks.
Use a high-impedance digital multimeter when working around module-controlled circuits. Scosche also recommends a volt/ohm meter rather than a grounded test light on electronically controlled GM systems because an unsuitable probe can damage electronics.
For common headlamp connector layouts and terminal identification principles, Truck Guider’s headlight plug wiring diagram guide provides additional reference material.
5 Silverado Wire Color Mistakes To Avoid
1. Assuming One Color Has One Meaning
Yellow can identify a trailer turn circuit in one harness and a speaker circuit in another. Always identify the system first.
2. Ignoring The Tracer Color
Green/Violet, Green/Brown, White/Green, and Red/Violet are complete identifiers. Reading only the first color can put you on the wrong circuit.
3. Mixing Trailer And Tail Light Wiring
The seven-pin towing harness and the truck’s rear lamp connectors are separate electrical contexts. Later trucks may route lamp functions through control modules.
4. Mixing Silverado 1500 And HD Diagrams
A documented 2019 Silverado 1500 camper harness and 2019 Silverado HD harness do not use identical colors for every function.
5. Assuming The Next Model Year Is Identical
Chevrolet documentation shows meaningful color changes even within the same broad generation. Verify the actual model year instead of choosing the nearest diagram available.
Which Silverado Wire Chart Should You Use
The correct Silverado wire color chart is the one that matches your exact model year, truck series, electrical system, connector, and factory equipment.
For a 2006 GMT800 trailer harness, plain Yellow, Dark Green, Brown, White, and Light Green are documented factory colors. A 2019 or 2026 truck uses a more complex tracer and circuit-number system.
Start with the truck’s year and the component you are working on. Then confirm the complete color code, connector cavity, circuit number, and electrical behavior before making a permanent connection.
Silverado Wire Color Codes FAQs
What Color Is The Ground Wire On A Chevy Silverado
There is no single ground color for every Silverado circuit. White is documented as the trailer ground on several factory harnesses, while some 2019 HD trailer wiring uses Black and audio systems can use Black/White.
Confirm the specific connector rather than grounding a wire based only on color.
What Color Is The Silverado Reverse Light Wire
It depends on the year and harness. The documented 2006 heavy-duty trailer harness uses Light Green for backup lamps, while 2014, 2018, 2019, and 2020 trailer documentation uses White/Green.
The truck’s tail-lamp connector can use a different circuit color.
What Color Is The Silverado Trailer Brake Wire
Dark Blue is documented for the factory trailer-brake circuit on several older Silverado applications, including 2006 and 2014. Later Silverado documentation commonly identifies the electric trailer-brake circuit as Blue.
Check the exact model-year manual before installing an aftermarket controller.
Are Chevy Trailer Wire Colors The Same Every Year
No. Chevrolet’s own documentation shows clear changes between generations and even differences between 1500 and HD applications.
For example, the 2006 harness uses Yellow for left stop/turn, while a 2019 Silverado 1500 harness uses Yellow/Blue for the same documented function.
Can I Identify A Silverado Wire By Color Alone
No. Color should be combined with model year, connector location, tracer color, circuit number, and pin position.
This becomes especially important on 2019–2026 trucks because many lighting and accessory functions are controlled or monitored by electronic modules rather than simple standalone switches.
