GMC Sierra 1500 Gear Ratio Chart by Year 1999-2026 Engine & Axle
The GMC Sierra 1500 gear ratio chart depends on the truck’s model year, engine, transmission, drivetrain, cab, and factory trailering equipment. Factory rear axle ratios documented across the 1999–2026 period include 3.08, 3.23, 3.42, 3.73, and, on certain older 1500 configurations, 4.10.
A 3.42 axle makes the driveshaft turn 3.42 times for each complete axle-shaft rotation. It does not describe the transmission’s individual gear ratios. Use the charts below to identify documented factory combinations, then check your Sierra’s equipment codes before ordering differential parts or relying on a towing rating.
GMC Sierra 1500 RPO Gear Ratio Decoder
Identify a factory rear axle ratio from the equipment code. Code availability varies by model year and configuration.
How a factory code translates
A 3.42:1 axle means approximately 3.42 driveshaft rotations per axle rotation.
Common GM Rear Axle RPO Codes
These codes are a lookup guide, not a list of ratios offered on every Sierra 1500.
- GU43.08:1Rear axle
- GU53.23:1Rear axle
- GU63.42:1Rear axle
- GT43.73:1Rear axle
- GT54.10:1Rear axle
How to Verify Your Sierra’s Axle
Factory equipment data describes the original build, not necessarily a modified truck.
- Find the equipment list Check the older SPID label or the newer driver-side B-pillar QR label when equipped.
- Decode the axle code Match the RPO with the year-specific Sierra manual or factory build record.
- Confirm modified trucks Axle swaps or gear changes may require mechanical verification.
GMC Sierra 1500 Gear Ratio Chart by Year
This table highlights documented factory combinations, not every trim or option sold in every year. Entries for individual model years are supported by GMC manuals, brochures, or specification releases. A value shown for one year is not automatically verified for adjacent years.
| Model Year | Engine | Factory Axle Ratio | Verified Configuration |
|---|---|---|---|
| 1999 | 5.0L V8 | 3.08 / 3.42 / 3.73 | Legacy C-1500 2WD, not new-body Sierra |
| 1999 | 5.7L V8 | 3.42 / 3.73 | Legacy K-1500 4WD, not new-body Sierra |
| 2001 | 4.3L V6 | 3.08 / 3.42 | Regular Cab, short box, 2WD |
| 2001 | 4.8L V8 | 3.42 / 3.73 | Regular Cab, short box, 2WD |
| 2001 | 5.3L V8 | 3.73 / 4.10 | Regular Cab, short box, 4WD |
| 2004 | 5.3L V8 | 3.42 / 3.73 | Extended Cab, short box, 2WD |
| 2012 | 4.3L V6 | 3.23 / 3.73 | Regular Cab, standard box, 2WD; transmission dependent |
| 2012 | 5.3L V8 | 3.08 / 3.42 | Regular Cab, standard box, 2WD; cooling package dependent |
| 2012 | 6.2L V8 | 3.73 | Select NHT Max Trailering configurations |
| 2014 | 5.3L V8 | 3.42 | Regular Cab, NHT Max Trailering specification |
| 2014 | 6.2L V8 | 3.73 | Double Cab, NHT Max Trailering specification |
| 2015 | 5.3L V8 | 3.08 / 3.42 / 3.73 | Crew Cab, short box, 4WD; 3.73 with specified trailering equipment |
| 2015 | 6.2L V8 | 3.23 / 3.42 | Crew Cab, short box, 4WD; 3.42 with specified trailering equipment |
| 2017 | 5.3L V8 | 3.08 / 3.42 / 3.73 | Crew Cab, short box, 4WD; transmission/package dependent |
| 2017 | 6.2L V8 | 3.23 / 3.42 | Crew Cab, short box, 4WD; package dependent |
| 2020 | 2.7L Turbo | 3.42 | Crew Cab, short bed, 2WD/4WD |
| 2020 | 5.3L V8 | 3.23 / 3.42 | Select Crew Cab configurations, transmission/package dependent |
| 2020 | 3.0L Duramax | 3.23 | Crew Cab short bed in official trailering guide |
| 2022 | 2.7L Turbo | 3.42 | GMC’s published preliminary specification |
| 2022 | 5.3L / 6.2L V8 | 3.23 / 3.42 | 3.42 with NHT package |
| 2022 | 3.0L Duramax | 3.23 / 3.73 | 3.73 with NHT package |
| 2024 | 2.7L TurboMax | 3.42 | GMC’s published Sierra 1500 trailering specification |
| 2025 | 5.3L / 6.2L V8 with NHT | 3.42 | Eligible Max Trailering Package configurations |
| 2025 | 3.0L Duramax with NHT | 3.73 | Eligible Max Trailering Package configurations |
| 2026 | 5.3L / 6.2L V8 with NHT | 3.42 | Eligible Max Trailering Package configurations |
| 2026 | 3.0L Duramax with NHT | 3.73 | Eligible Max Trailering Package configurations |
Reading the chart: A slash means separate documented configurations, not that every listed ratio fits every cab and drivetrain. For years not individually itemized, consult that year’s factory trailering guide and the truck’s RPO record. Do not assign a ratio from a neighboring year. The 1999 rows specifically describe a legacy Sierra; the newer 1999 body style needs its own build-specific check.
GMC Sierra 1500 Gear Ratios From 1999 to 2006
Early Sierra gear choices cannot be summarized by engine alone. The 1999 model year is especially tricky because old-body C/K-series Sierra trucks and the redesigned Sierra overlap in used-truck listings. GMC’s 1999 legacy manual lists 3.08, 3.42, and 3.73 for different 2WD 5.0L V8 applications, while its 4WD 5.7L V8 entries show 3.42 and 3.73.
The newer engine family is different. In GMC’s 2001 Sierra owner manual, a Regular Cab short-box 2WD 4.3L V6 is listed with 3.08 or 3.42. The corresponding 4.8L V8 uses 3.42 or 3.73. A 5.3L V8 Regular Cab short-box 4WD instead lists 3.73 or 4.10.
That last example matters when shopping for replacement gears. A 4.10 listing on an older 1500 is not evidence that GMC sold 4.10 gears with every engine or in later generations. Match the exact year, 2WD/4WD layout, and axle assembly.
GMC Sierra 1500 Gear Ratios From 2007 to 2013
The redesigned 2007 Sierra brought another round of drivetrain combinations. Do not group a 2007 Classic carryover with the redesigned model without checking the VIN and factory literature.
GMC’s 2012 Sierra manual provides useful examples. A 2WD Regular Cab with the 4.3L V6 lists 3.23 or 3.73, depending on transmission. Its 4.8L V8 lists 3.23 or 3.73. A 5.3L V8 in that cab configuration lists 3.08, while versions equipped with the K5L heavy-duty cooling package can have a 3.42 axle.
The manual also identifies a 3.73 ratio for certain 6.2L V8 trucks with the NHT Max Trailering Package. These are different factory combinations with their own gross combined weight ratings, not interchangeable towing certifications. Consult the applicable cab and box row in the original manual before deciding what a 2007–2013 truck can pull.
GMC Sierra 1500 Gear Ratios From 2014 to 2018
The 2014 redesign introduced the EcoTec3 4.3L V6, 5.3L V8, and 6.2L V8. A single engine can still appear with several axle ratios. Transmission choice and Max Trailering equipment are essential details.
GMC’s 2015 Sierra brochure gives a clear example for the Crew Cab short-box 4WD:
| Engine | Documented Axle Ratio | Relevant Difference |
|---|---|---|
| 4.3L V6 | 3.42 | Crew Cab short-box 4WD |
| 5.3L V8 | 3.08 or 3.42 | Different factory configurations |
| 5.3L V8 | 3.73 | Specified Max Trailering equipment |
| 6.2L V8 | 3.23 | Regular published configuration |
| 6.2L V8 | 3.42 | Specified Max Trailering equipment |
By 2017, GMC’s published Crew Cab data also distinguishes 5.3L six-speed and eight-speed configurations. Some 5.3L six-speed NHT versions show 3.73, while an NHT-equipped eight-speed version uses 3.42. The 6.2L eight-speed is documented at 3.23 without the specified NHT setup and 3.42 with it.
This is why generic claims such as “every 6.2L Sierra uses 3.73” are unreliable. The year, transmission, and option package must agree.
GMC Sierra 1500 Gear Ratios From 2019 to 2026
The 2019 redesign and 2022 refresh added turbocharged four-cylinder and Duramax diesel powertrains. More transmission gears do not make the numerical rear axle ratio irrelevant; the two work together.
GMC’s 2022 Sierra technical specifications identify these axle combinations:
| 2022 Engine | Standard Published Ratio | With NHT Max Trailering |
|---|---|---|
| 2.7L Turbo | 3.42 | Do not assume a separate NHT ratio |
| 5.3L V8 | 3.23 | 3.42 |
| 6.2L V8 | 3.23 | 3.42 |
| 3.0L Duramax Turbo-Diesel | 3.23 | 3.73 |
GMC’s 2024 Sierra brochure separately documents 3.42 for the TurboMax engine across its listed cab and drivetrain combinations. This confirms that 3.42 remained a factory configuration after the 2022 refresh, but it does not prove identical ratios for every trim in 2019–2026.
For eligible newer models, the Max Trailering Package is a useful identification clue. GMC’s 2026 Sierra 1500 configuration page lists a 3.42 rear axle for the selected gas-engine package. GMC’s 2025 package details also differentiate 3.42 for gas and 3.73 for diesel, and 2026 configuration data supports those eligible NHT combinations. Check the equipment on your individual truck rather than assuming an advertised package was installed.
How to Decode GMC Sierra Axle RPO Codes
An RPO code, or Regular Production Option code, identifies equipment specified for the truck when it was built. Older GM axle codes are especially useful when a model-year chart lists multiple ratios.
| RPO Code | Meaning | Ratio |
|---|---|---|
| GU4 | Rear axle ratio | 3.08:1 |
| GU5 | Rear axle ratio | 3.23:1 |
| GU6 | Rear axle ratio | 3.42:1 |
| GT4 | Rear axle ratio | 3.73:1 |
| GT5 | Rear axle ratio | 4.10:1 |
| G80 | Automatic locking rear differential | Not a ratio |
| NHT | Max Trailering Package | Not a ratio |
For example, GU6 means a 3.42:1 axle, while G80 identifies an automatic locking rear differential rather than 3.80 gears. NHT identifies a trailering package, whose associated axle ratio changes with model year and engine. Not every RPO in this table was offered on every Sierra 1500.
Owners comparing the related GM half-ton platform can use the Chevy Silverado 1500 gear ratio chart for Silverado-specific combinations. Do not substitute a Silverado chart row for your Sierra’s verified factory build.
Where to Find Your GMC Sierra Axle Ratio
You can identify the original factory axle without removing the differential cover. Start with the vehicle’s factory equipment information.
- Identify the exact model year and body style. Pay extra attention to 1999 and 2007 transition-year trucks.
- Look for the Service Parts Identification label on older trucks. Its location can vary by year. Check the owner’s manual and familiar factory locations such as the glove compartment.

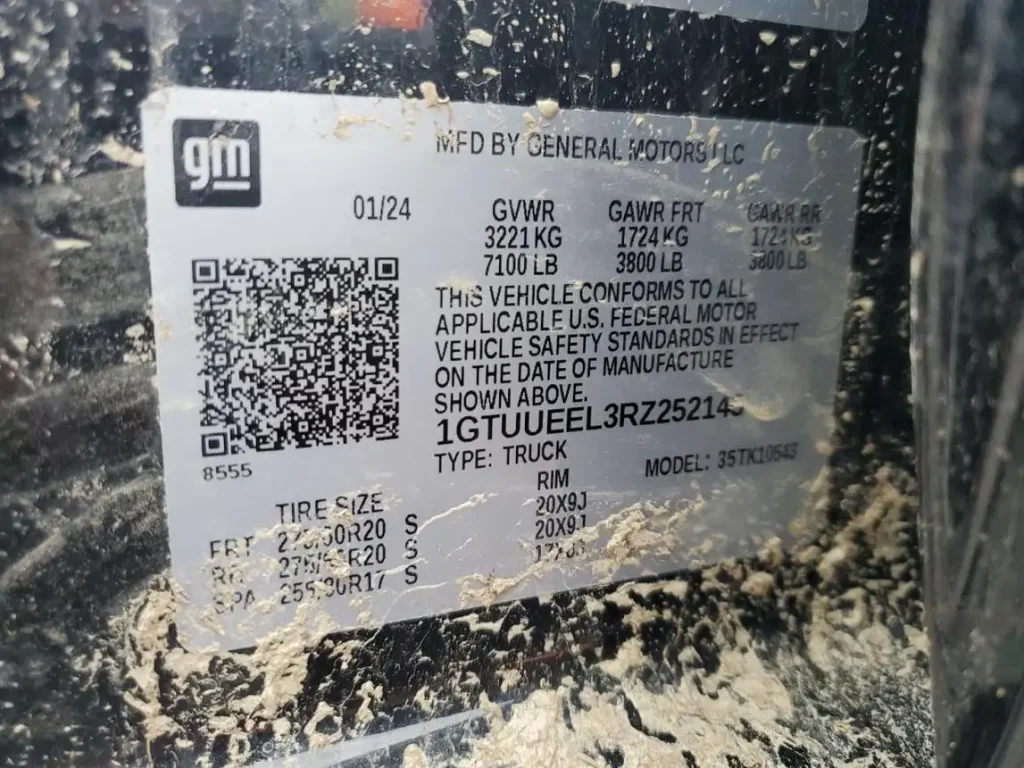

- Check the driver-side B-pillar certification label on newer trucks. GM began phasing in QR-coded equipment information during the 2018 model year. If a 2018 certification label has no QR code, the older SPID label should remain in its usual location.
- Scan the QR code and read the RPO list. Match an applicable axle-ratio code to the table above. A QR scan produces codes, not necessarily readable option descriptions.
- Ask a GMC dealer for the factory build record using your VIN if the label is missing or confusing. A generic VIN decoder alone may not reveal the axle ratio.
These methods identify what the truck was originally built with. If someone swapped the axle or changed the ring-and-pinion gears, the current hardware may no longer match the RPO record. In that case, a qualified technician can inspect ring-and-pinion tooth counts or otherwise verify the installed ratio using an appropriate shop procedure.
How Axle Ratio Changes Sierra 1500 Towing
A higher numerical axle ratio multiplies torque more before it reaches the wheels. At the same road speed, engine speed can also be higher when transmission gearing and tire diameter remain unchanged. That is why a towing configuration may pair a different axle with cooling, suspension, and weight-rating changes.
For example, GMC’s 2015 data lists a Crew Cab short-box 4WD 5.3L V8 at 6,200 pounds of conventional towing with a 3.08 ratio. A 3.42 version is listed at 9,200 pounds, while a properly equipped 3.73 configuration is rated at 10,900 pounds. Those are separate factory configurations, not towing upgrades achieved merely by replacing gears.
For exact limits, refer to the GMC Sierra 1500 towing capacity chart. Axle ratio alone cannot establish the truck’s safe trailer rating. Cab, drivetrain, Gross Combined Weight Rating (GCWR), tires, and installed equipment matter too. The GMC Sierra 1500 payload capacity chart helps explain the separate weight carried by passengers, cargo, and trailer tongue load.
When Larger Tires Change the Effective Gear Ratio
Changing tires does not physically change the axle’s ring-and-pinion ratio. It changes how far the truck travels per wheel rotation, which alters the gearing experienced at the road.
For a simple example, a truck with 3.42 gears and 31-inch tires that switches to 33-inch tires has an approximate effective ratio of 3.21:1 relative to the original tire diameter:
3.42 × (31 ÷ 33) = 3.21
This is a gearing comparison, not a new RPO code or a certified towing configuration. Tire sizes printed on sidewalls are nominal, and actual rolling dimensions vary by tire. If the truck has been re-geared or fitted with a different axle, verify the mechanical ratio before purchasing replacement parts.
How to Confirm the Right Factory Gear Ratio
The GMC Sierra 1500 gear ratio chart is a starting point, not a substitute for the truck’s build information. Year, engine, transmission, 2WD/4WD configuration, cab, and trailering equipment can all affect which factory ratio appears in the documentation.
For a stock truck, find the factory RPO or equipment record and match it against the correct model-year manual. For a used or modified Sierra, verify the installed axle hardware as well. This approach prevents ordering the wrong differential components and avoids treating an axle ratio as a guaranteed towing rating.
GMC Sierra 1500 Gear Ratio Frequently Asked Questions
What Gear Ratio Does My GMC Sierra 1500 Have?
Your Sierra’s ratio depends on its model year and exact factory configuration. Find the axle RPO code or dealer build record, then confirm it against your year-specific documentation instead of guessing from the engine badge.
How Do I Know if My Sierra Has 3.23 or 3.42 Gears?
On applicable older GM equipment lists, GU5 means 3.23 and GU6 means 3.42. Newer trucks may store the codes in a QR-readable equipment list. A previous axle swap can make the factory record different from the gears currently installed.
What Does G80 Mean on a GMC Sierra?
G80 identifies a factory automatic locking rear differential, not an axle ratio. You still need the separate ratio code or a build-specific record to establish whether the axle uses 3.23, 3.42, 3.73, or another applicable gear set.
Is 3.42 or 3.73 Better for Towing?
With everything else equal, 3.73 provides more wheel torque multiplication than 3.42. However, GMC towing ratings also depend on the engine, transmission, cooling, tires, cab, drivetrain, and trailering package. Changing only the axle gears does not increase a certified tow rating.
Can I Find My GMC Sierra Gear Ratio Using the VIN?
A GMC dealer can use the VIN to look up factory build details when those records are available. A basic public VIN decoder may identify the engine and model without showing the installed axle ratio. Check the RPO equipment information for a more direct answer.
