Mud Tires for 20 Inch Rims That Actually Fit and Perform [2026]
Picking mud tires for 20-inch rims is harder than it looks. The rim size limits your tire options, raises the price, and introduces a sidewall tradeoff most buyers don’t see coming. We compared the top mud-terrain options available in 20-inch fitments to show you exactly which tire wins for your specific use case — and when the “best” pick actually isn’t.
Why 20-Inch Rims Make Mud Tire Selection Different
Before comparing brands, you need to understand what makes 20-inch rims a unique challenge for mud tires.

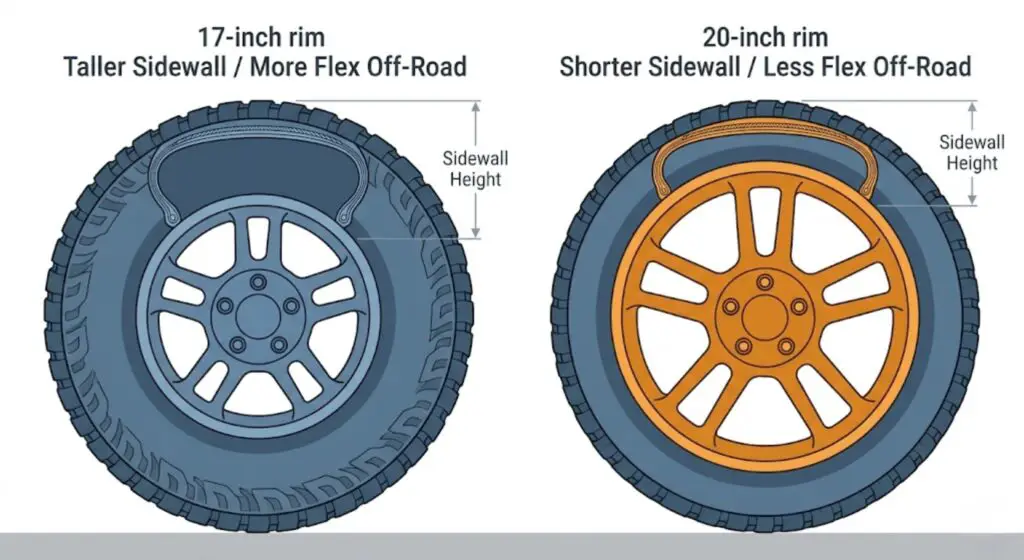

20-inch wheels deliver a shorter sidewall than 17- or 18-inch setups running the same overall tire diameter. That shorter sidewall reduces flex over rocks and roots, limiting the tire’s ability to conform around obstacles the way a 17-inch setup does. Replacement tire costs for 20-inch MT tires also average around $309 per tire compared to $238 for comparable 18-inch options.
This doesn’t mean mud tires on 20-inch rims don’t work. It means you need to pick a tire that compensates with reinforced sidewall construction and an aggressive compound — not just an aggressive tread pattern.
The most common 20-inch mud tire sizes are:
- LT275/65R20 (approximately 34.1 inches tall)
- 33×12.50R20LT (33 inches tall, 12.5 inches wide)
- 35×12.50R20LT (35 inches tall — needs 3-inch minimum lift on most trucks)
- LT295/55R20 (approximately 33.0 inches tall — popular on Ram 1500 TrailBoss)
If you’re running factory 20-inch rims on a Ram 1500, F-150, or Silverado and want to keep them, the 275/65R20 and 295/55R20 sizes fit most stock setups. For 35×12.50R20, plan for a 3-inch lift minimum to avoid fender contact at full lock.
For Ram owners checking whether your current factory wheels will even work with your preferred fitment, our guide on what year Dodge Ram wheels are interchangeable covers bolt pattern and offset compatibility across model years.
The Mistake Most Buyers Make With 20-Inch MT Tires
Most buyers pick a mud tire based on look and price. They see the aggressive tread, check the price, and order.
That approach ignores two critical questions:
- How many miles a week do you drive on pavement vs. off-road?
- What type of off-road are you actually doing — mud bogs, rocky trails, or mixed?
A true mud-terrain tire built for deep mud (wide voids, low void ratio) will be significantly louder on highway than a tire with a tighter center pattern. If you commute 40 miles a day and hit the trail once a month, a hard-core MT tire will grind on you every morning.
The second mistake is ignoring tread life. Most M/T tires for 20-inch rims carry no manufacturer tread life warranty. At $300+ per tire, a set that wears out in 30,000 miles costs you far more than a set rated for 50,000-60,000 miles, even if the initial price is lower.
20+ miles each way on pavement every day
40%+ of your off-road time is in thick clay or muddy trails
Weekend trails with rocky sections and occasional mud
80%+ highway / city driving, trail use is rare
The 4 Conditions That Determine Which Tire Wins
Before looking at specific tires, answer these four questions. They determine the verdict before you ever look at a brand name.
Condition 1 — Daily highway miles: If you drive more than 20 miles each way on pavement, road noise becomes a real quality-of-life issue. Tires with tighter center block patterns (Nitto Trail Grappler, Mickey Thompson Baja Boss M/T) handle this better than wide-void designs.
Condition 2 — Type of off-road terrain: Deep mud favors wide-void, high-void-ratio tires with aggressive shoulder scoops (BFGoodrich KM3). Rocky trails favor reinforced 3-ply sidewalls and good siping (Nitto Trail Grappler, Mickey Thompson Baja Boss M/T).

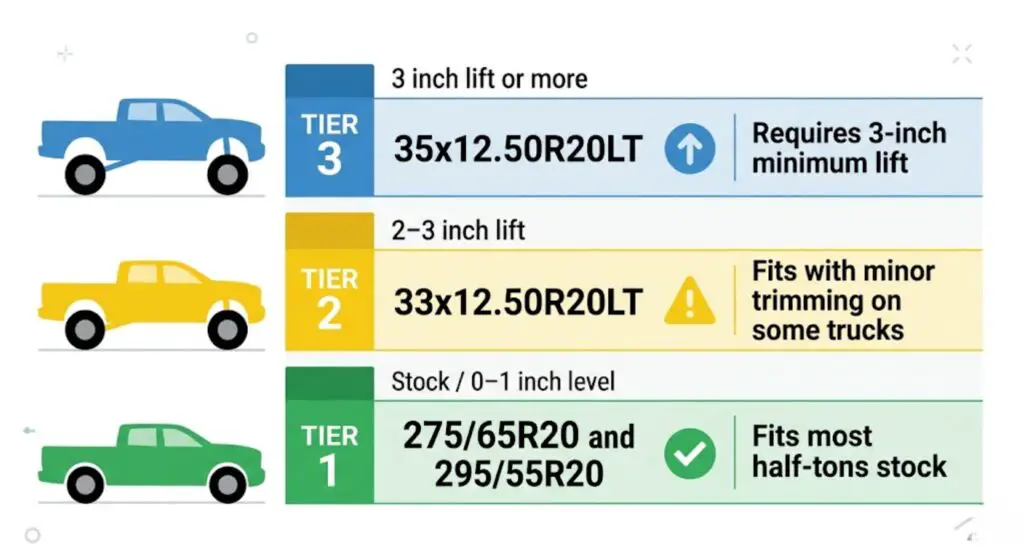

Condition 3 — Lift level: Running stock suspension or a 2-inch level with factory 20-inch rims? Size matters. At stock height, LT275/65R20 and LT295/55R20 fit most half-tons without rubbing. At 3 inches and above, 35×12.50R20 opens up.
Condition 4 — Budget for full life cost: A $280/tire MT without a tread warranty vs. a $330/tire MT with a 50,000-mile warranty — the cheaper tire can cost more over four years if it wears out at 28,000 miles.

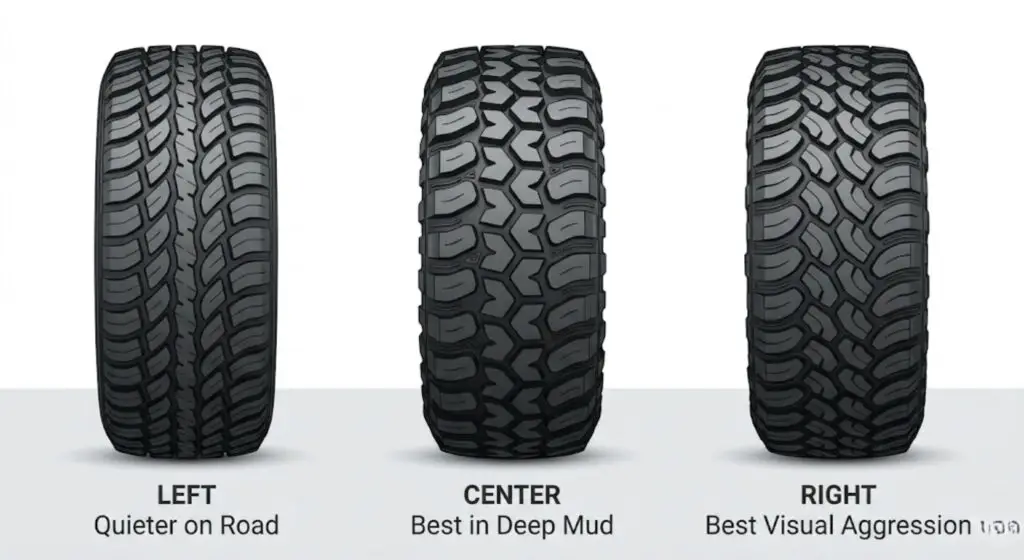

Option A — Nitto Trail Grappler M/T
The Nitto Trail Grappler is the quietest true mud-terrain tire available for 20-inch rims. Its symmetrical center tread with smaller blocks and narrower void spacing reduces the air-trapping resonance that makes most M/T tires so loud on highway.
Available 20-inch sizes: 33×12.50R20LT, 35×12.50R20LT, LT275/70R20
Sidewall: 3-ply reinforced construction. Tread depth runs 18.9–21/32nds, making it one of the deeper-treaded options in the MT category.
Off-road performance: Excellent in mud and snow. Deep grooves evacuate mud effectively, and the central siping handles wet rock surfaces well. It loses ground to the BFGoodrich KM3 in pure deep-mud situations because its void spacing is narrower — meaning it doesn’t self-clean as aggressively in thick mud.
On-road behavior: This is where it stands apart from competitors. The Trail Grappler’s smaller center blocks and tighter void spacing make it noticeably quieter than the KM3 or Toyo Open Country M/T at highway speeds. Owners on the JL Wrangler Forums consistently report it as one of the easiest M/T tires to live with daily.
Tread life: Expect 30,000–40,000 miles with regular 5-tire rotation. No manufacturer tread life warranty — standard for the MT category.
Best for: Truck owners who drive on pavement 5 or more days a week but still want genuine M/T capability on weekends. It also suits owners who prioritize rocky trails over deep mud bogs.
Weakness: Not the best in deep mud compared to the KM3. Its narrower voids can pack with thick clay-style mud faster than the KM3’s wide channels.
Option B — BFGoodrich Mud Terrain T/A KM3
The BFGoodrich KM3 is the gold standard for raw off-road performance among 20-inch mud tires. It was designed around deep mud, rocky terrain, and the demands of competition off-road racing — and it shows.
Available 20-inch sizes: LT275/65R20, 33×12.50R20LT, 35×12.50R20LT, LT305/55R20
Sidewall: Features BFGoodrich’s Krawl-TEK compound and CoreGard Max sidewall technology — the same tech validated in the Baja 1000. The sidewall resists cuts and splitting significantly better than standard 3-ply construction.
Off-road performance: The KM3’s wide grooves and high-void ratio, combined with its triangular stone ejectors, make it exceptional at clearing mud, rock debris, and gravel from the tread. The angled shoulder blocks wrap around obstacles for more surface contact on rocks. In pure deep mud, it outperforms the Trail Grappler due to its larger voids and more aggressive self-cleaning design.
On-road behavior: This is where buyers pay the price. The wide channels that make the KM3 so good in mud are the same channels that create noise on pavement. Multiple forum owners rate it as noticeably louder than the Trail Grappler at highway speeds. Tread wear research also estimates the KM3 at 60,000–80,000 miles for tread life — which is exceptional for an M/T and offsets the higher per-tire cost.
Best for: Owners who spend 40% or more of their driving time off-road, particularly in muddy or rocky environments. Also right for truck owners who tow or haul heavily and need the superior sidewall protection of the CoreGard technology.
Weakness: Loud on highway. If your commute takes you over long stretches of highway regularly, the KM3’s road noise becomes a daily annoyance.
Option C — Mickey Thompson Baja Boss M/T
The Mickey Thompson Baja Boss M/T sits between the Trail Grappler and KM3 in terms of highway manners, but exceeds both in visual aggression. Its asymmetric tread pattern improves on-road handling compared to traditional directional M/T designs.
Available 20-inch sizes: 33×12.50R20LT, 35×12.50R20LT, LT295/55R20, LT305/55R20
Sidewall: PowerPly XD construction adds 50% heavier denier cord to the angled third ply. This improves puncture resistance and steering response. The oversized four-pitch Sidebiters extend well down the sidewall — giving you extra traction at low air pressure when you air down for trails.
Off-road performance: Excellent. The Baja Boss M/T won the 2023 King of the Hammers Every Man Challenge, a legitimate real-world performance credential. Its mud scoops and angled shoulder scallops clear mud aggressively. The asymmetric pattern also handles wet rock well. Some owners report rocks trapping in the tread — a minor issue on rocky trails that the KM3’s stone ejectors handle slightly better.
On-road behavior: Owners consistently report it as quieter than expected for a mud-terrain tire. The asymmetric pattern reduces the tonal resonance that makes symmetric M/T designs loud. Road noise sits between the Trail Grappler (quietest) and KM3 (loudest) at highway speeds.
Tread life: No manufacturer tread life warranty — owners report 30,000–40,000 miles, roughly comparable to the Trail Grappler. Some reports of balancing issues on certain sizes — verify at installation.
Best for: Owners who want maximum visual aggression combined with better-than-average highway manners. Also right for those who trail ride on rocky terrain and mud equally, rather than specializing in one surface.
Weakness: Rock-trapping in the tread on sharp stone trails. Sidewalls rated softer than the KM3 — requires running higher PSI on highway for stability, per some forum reviewers.
Head-to-Head Comparison
| Criteria | Nitto Trail Grappler | BFG KM3 | Mickey Thompson Baja Boss M/T |
|---|---|---|---|
| Deep Mud Traction | Good | Best | Very Good |
| Rocky Trail Grip | Very Good | Very Good | Very Good |
| Highway Noise | Quietest | Loudest | Middle |
| Sidewall Protection | 3-ply standard | CoreGard Max (best) | PowerPly XD (very good) |
| Wet Road Grip | Good | Good | Good |
| Estimated Tread Life | 30K–40K miles | 60K–80K miles | 30K–40K miles |
| Tread Warranty | None | None | None |
| Available in 35×12.50R20 | Yes | Yes | Yes |
| Price Range (per tire) | $280–$380 | $320–$420 | $290–$390 |
Fuel economy note: All M/T tires on 20-inch rims will reduce MPG. Studies show aggressive tread patterns can reduce fuel economy by approximately 3% or more compared to all-season tires — factor this into your long-term cost calculation.
| Criteria | Nitto Trail Grappler | BFG KM3 | Mickey Thompson Baja Boss M/T |
|---|---|---|---|
| Deep Mud Traction | Good | Best ✓ | Very Good |
| Rocky Trail Grip | Very Good | Very Good | Very Good |
| Highway Noise | Quietest ✓ | Loudest | Middle |
| Sidewall Protection | 3-ply Standard | CoreGard Max ✓ | PowerPly XD |
| Wet Road Grip | Good | Good | Good |
| Est. Tread Life | 30K–40K miles | 60K–80K miles ✓ | 30K–40K miles |
| Tread Warranty | None | None | None |
| 35×12.50R20 Available | Yes | Yes | Yes |
| Price Range (per tire) | $280–$380 | $320–$420 | $290–$390 |
The Verdict: Which Mud Tire for 20-Inch Rims Is Right for You
The Trail Grappler wins for truck owners who drive highway 5+ days a week and want M/T capability without daily noise punishment. However, if you’re regularly in deep mud, the KM3 is the correct choice.
The BFGoodrich KM3 wins for dedicated off-roaders who spend more time on trails than pavement, need the best sidewall protection available, and can tolerate highway noise. Its 60,000–80,000-mile tread life estimate also makes it the strongest value over time if you can absorb the higher entry price.
The Mickey Thompson Baja Boss M/T wins for owners who want the most aggressive-looking tire with better-than-average highway manners — and who spend roughly equal time on pavement and mixed rocky/muddy terrain.
Once you’ve chosen your tire, torque matters at installation. Our lug nut torque specs chart covers the correct torque for common trucks, and if you’re running a Ram 2500, check the Ram 2500 wheel torque specs specifically before tightening down a new set.
When the Answer Flips
When the Trail Grappler is the wrong pick: You live in a region with heavy clay mud, spend more weekends in deep bogs than on rocky trails, and don’t care much about road noise. Switch to the KM3 — its superior void ratio and self-cleaning design will outperform the Trail Grappler significantly in that environment.
When the KM3 is the wrong pick: You have a long highway commute, rarely hit true mud, and just want an aggressive look with some capability. The Trail Grappler or Baja Boss M/T will serve your daily life better without the constant road drone.
When to skip M/T tires entirely on 20-inch rims: If you do more than 80% of your driving on pavement, an aggressive all-terrain tire like the Nitto Ridge Grappler A/T or BFGoodrich All-Terrain T/A KO3 gives you the look without the ride quality and noise penalty of a full M/T.
Frequently Asked Questions
Will 35×12.50R20 mud tires fit a stock Ram 1500?
No — not without rubbing at full steering lock. A 3-inch lift minimum is needed to clear 35-inch tires on a factory Ram 1500 with 20-inch rims. A 275/65R20 or 295/55R20 is the largest practical size for a leveled or stock setup.
Are mud tires legal on public roads?
Yes. All three tires listed here are DOT-approved for highway use. M/T tires are not restricted from road use in the US, though they produce more road noise and wear faster on pavement than all-terrain or all-season tires.
Do mud tires hurt fuel economy on 20-inch rims?
Yes, modestly. Expect a 1–3 MPG reduction compared to all-terrain or all-season tires, due to higher rolling resistance from the aggressive tread pattern. The shorter sidewall of 20-inch rims slightly reduces this impact compared to the same MT tire on a 17-inch rim.
Which 20-inch mud tire lasts the longest?
The BFGoodrich KM3 has the best estimated tread life among the three options, with 60,000–80,000 miles from owners who rotate regularly. The Trail Grappler and Baja Boss M/T both run 30,000–40,000 miles under normal conditions.
Can I air down 20-inch mud tires for off-road?
Yes, but with more caution than on 17- or 18-inch rims. The shorter sidewall on 20-inch setups means you have less bead security when aired down. Stay above 18–20 PSI minimum, and ensure your tire has a reinforced LT construction (not passenger rating) before airing down aggressively.
Conclusion
Mud tires for 20-inch rims work — but the rim size forces a tradeoff between deep-mud performance and highway livability that you have to acknowledge before buying.
The Nitto Trail Grappler is your best daily driver M/T. The BFGoodrich KM3 is your best off-road performer and long-term value. The Mickey Thompson Baja Boss M/T is your best visual aggression option with solid mixed-terrain credentials.
Pick based on where you actually drive — not where you wish you drove. That one decision will save you from four years of regret at highway speeds.
