Silverado Ground Clearance Chart by Year: 1999-2026 Trim and Model
The Silverado ground clearance chart shows why one number cannot describe every Chevrolet pickup. For 2026, a Silverado 1500 Crew Cab Short Bed 4WD has 8.08 inches of published ground clearance, while the factory-lifted Trail Boss reaches 11.10 inches and the ZR2 reaches 11.22 inches in the same cab and bed class.
Figures also vary by year, cab, bed, drivetrain, and truck class. Check the year chart, then the configuration tables.
TruckGuider · Factory Specifications
Crew Cab · Short Bed · Published clearance in inches
Which Factory Setup Sits Higher?
Bar lengths start at zero and are scaled to the highest value, 11.22 inches.
Silverado 1500 Ground Clearance Chart by Year
The table gives one identified factory configuration for each model year, not the minimum or maximum for every Silverado sold that year. It avoids mixing cab styles, drivetrains, and factory-lifted trims.
| Model Year | Reference Silverado 1500 Configuration | Ground Clearance |
|---|---|---|
| 1999 | Regular Cab, 119-inch wheelbase, 2WD | 8.0 in, front and rear |
| 2000 | Regular Cab, 119-inch wheelbase, 2WD | 8.0 in, front and rear |
| 2001 | Regular Cab, 119-inch wheelbase, 2WD | 8.0 in, front and rear |
| 2002 | Regular Cab, long bed, 4WD | 8.5 in |
| 2003 | Regular Cab, short bed, 4WD | 8.7 in |
| 2004 | Crew Cab, 4WD | 8.7 in |
| 2005 | Crew Cab, 4WD | 8.7 in |
| 2006 | Crew Cab, 4WD | 8.7 in |
| 2007 | New-body Crew Cab, 4WD | 9.1 in |
| 2008 | Crew Cab, short box, 4WD | 9.1 in |
| 2009 | Crew Cab, short bed, 4WD | 9.0 in |
| 2010 | Crew Cab, 4WD | 9.0 in |
| 2011 | Crew Cab, short bed, 4WD | 9.0 in |
| 2012 | Crew Cab, 4WD | 9.0 in |
| 2013 | Crew Cab, short bed, 4WD | 9.0 in |
| 2014 | Crew Cab, short bed, 4WD | 8.9 in |
| 2015 | Crew Cab, short bed, 4WD | 8.9 in |
| 2016 | Crew Cab, short bed, 4WD | 8.9 in |
| 2017 | Crew Cab, short bed, 4WD | 8.9 in |
| 2018 | Crew Cab, short bed, 4WD | 8.9 in |
| 2019 | New-body Crew Cab, short bed, 4WD | 8.1 in |
| 2020 | Crew Cab, short bed, 4WD | 8.1 in |
| 2021 | Crew Cab, short bed, 4WD | 8.1 in |
| 2022 | Crew Cab, short bed, 4WD | 8.1 in |
| 2023 | Crew Cab, short bed, 4WD | 8.0 in |
| 2024 | Crew Cab, short bed, 4WD | 8.08 in |
| 2025 | Crew Cab, short bed, 4WD | 8.08 in |
| 2026 | Crew Cab, short bed, 4WD | 8.08 in |
How to read the chart: The figures identify specific stock setups and are not interchangeable across trims. The 2007 entry refers to the redesigned Silverado, not the separately sold Silverado Classic. Values are reproduced at their reported precision, so 8.1 and 8.08 inches should not be interpreted as a meaningful real-world difference without consistent measurement methods.
Early factory specifications list front and rear measurements separately. For example, 1999 Silverado 1500 specifications show 8.0 inches at both ends for the reference Regular Cab truck. Historical trim and model-year records, including Silverado 1500 ground clearance data, also show why an all-trim range differs from a single representative number.
These are reference specifications, not measurements of an individual truck. Equipment and modifications can change actual clearance.
How 2026 Silverado 1500 Trims Compare
For 2026, the difference between a non-lifted Crew Cab Short Bed 4WD at 8.08 inches and the ZR2 at 11.22 inches is 3.14 inches. The Trail Boss sits between them at 11.10 inches in its short-bed configuration.
| 2026 Silverado 1500 Configuration | Factory Ground Clearance |
|---|---|
| Crew Cab Short Bed, 2WD, non-lifted | 7.89 in |
| Crew Cab Short Bed, 4WD, non-lifted | 8.08 in |
| Crew Cab Standard Bed, 4WD, non-lifted | 7.95 in |
| Double Cab Standard Bed, 2WD, non-lifted | 7.87 in |
| Double Cab Standard Bed, 4WD, non-lifted | 8.08 in |
| Regular Cab Standard Bed, 4WD, non-lifted | 8.26 in |
| Trail Boss Crew Cab Standard Bed, 4WD | 11.00 in |
| Trail Boss Crew Cab Short Bed, 4WD | 11.10 in |
| ZR2 Crew Cab Short Bed, 4WD | 11.22 in |
The table separates standard-height and factory-lifted configurations. Many conventional trims share figures when their cab, bed, and drivetrain match.
Standard Silverado 1500 Trims
For an everyday WT, Custom, LT, RST, LTZ, or High Country, identify the cab and bed first. The non-lifted Crew Cab Short Bed 4WD reference is 8.08 inches, but the Crew Cab Standard Bed 4WD reference is 7.95 inches. A different configuration can matter more than the badge on the tailgate.
A 4WD badge also does not guarantee a large clearance increase. The 2026 Crew Cab Short Bed difference between 2WD and non-lifted 4WD is only 0.19 inch in the published dimensions.
Silverado Trail Boss
Both Custom Trail Boss and LT Trail Boss are factory off-road-oriented Silverado 1500 versions. The published 2026 Trail Boss Short Bed measurement is 11.10 inches, compared with 11.00 inches for the Standard Bed.
The advertised suspension lift does not equal added clearance beneath every component.
Silverado ZR2
The 2026 Silverado 1500 ZR2 Crew Cab Short Bed 4WD is listed at 11.22 inches. That is 0.12 inch above the comparable 2026 Trail Boss Short Bed value. Off-road capability also depends on tires, wheelbase, geometry, and underbody protection.
How 2024 Silverado 2500HD and 3500HD Compare
A Silverado HD is not simply a Silverado 1500 with larger tires. Their clearance changes with cab, bed, chassis, and rear-wheel setup.
| 2024 Silverado HD Configuration | Ground Clearance |
|---|---|
| 2500HD Regular Cab Long Bed | 10.19 in |
| 2500HD Double Cab Standard Bed | 10.19 in |
| 2500HD Double Cab Long Bed | 10.15 in |
| 2500HD Crew Cab Standard Bed | 10.12 in |
| 2500HD Crew Cab Long Bed | 10.08 in |
| 3500HD Regular Cab Long Bed, SRW | 11.82 in |
| 3500HD Regular Cab Long Bed, DRW | 10.47 in |
| 3500HD Double Cab Long Bed, SRW | 11.18 in |
| 3500HD Double Cab Long Bed, DRW | 10.39 in |
| 3500HD Crew Cab Standard Bed, SRW | 11.18 in |
| 3500HD Crew Cab Long Bed, SRW | 11.14 in |
| 3500HD Crew Cab Long Bed, DRW | 10.39 in |
These values come from Chevrolet’s published 2024 Silverado HD specifications. They describe the specified 2024 configurations. Do not apply them automatically to a 2023, 2025, or 2026 HD truck, or to an HD ZR2 without checking that exact trim.
SRW means single rear wheels. DRW means dual rear wheels, commonly called a dually. A 2024 3500HD Crew Cab Long Bed measures 11.14 inches with SRW and 10.39 inches with DRW.
Chevrolet’s 2024 specification sheet also contains an apparent inch-to-millimeter inconsistency for the Regular Cab 3500HD SRW entry. The 11.82-inch value above is shown as published; the accompanying metric conversion in that source should not be copied uncritically.
How Silverado Clearance Changed Across Four Generations
The reference chart does not show ground clearance climbing steadily with each redesign. Chevrolet changed body dimensions, wheelbases, suspension packages, and the mix of available trims over time.
Silverado GMT800 From 1999 to 2006
Early Silverado 1500 trucks used different cab and drivetrain combinations, so front and rear specifications could differ. The 1999 Regular Cab 2WD example reports 8.0 inches at both ends, while a later Crew Cab 4WD example reports 8.7 inches. These are different configurations.
Silverado GMT900 From 2007 to 2013
The redesigned 2007 Silverado appeared alongside carryover Classic models. A 2007 new-body Crew Cab 4WD reference measures 9.1 inches, while several later Crew Cab 4WD references measure 9.0 inches. Keep Classic and redesigned trucks separate.
Silverado K2XX From 2014 to 2018
The 2014 redesign introduced a new body and chassis. Across the selected Crew Cab Short Bed 4WD references in the chart, the published figure is 8.9 inches. Regular Cab and 2WD versions can differ, so 8.9 inches is not a claim about every K2XX truck.
Silverado T1 From 2019 to 2026
The 2019 redesign brought a new set of body dimensions, followed by Trail Boss and ZR2 configurations with much higher reported clearance. Compare stock-height and factory-lifted versions separately. The 2019 model year also included the carryover Silverado 1500 LD, which should not be combined with the new-body measurements.
Why Silverado Ground Clearance Measurements Disagree
A ground-clearance number is useful only when you know what was measured. Some specification sheets list front and rear clearance. Others state minimum running ground clearance or an overall published value. Those labels should not automatically be treated as identical.
Underbody Clearance Versus Body Height
The bottom of the front bumper, skid plate, suspension components, and rear differential do not sit at the same height. The lowest point relevant to a centerline rock may be different from the component that contacts a deep rut. A truck’s overall roof height says little about either measurement.
Factory Setup Versus a Modified Truck
A used Silverado may have oversized tires, a front leveling kit, changed suspension springs, or a replacement skid plate. Any of those can make its current measurements different from published factory specifications. Load and inflation also matter.
Rounding and Source Differences
Older sources often round to one decimal place, while newer GM tables may use two. For example, 8.08 inches rounds to 8.1 inches. The reported decimals can reflect formatting, not a meaningful change in clearance. Always compare the same measurement definition before drawing conclusions.
How Tires and Suspension Change Silverado Clearance
Larger tires and suspension modifications do not raise every part of a Silverado by the same amount. The change depends on whether a component moves with the axle, frame, or body.
Larger Tires and Differential Clearance
A larger overall tire diameter can raise axle and differential clearance. As an idealized example, changing from a 32-inch-diameter tire to a 34-inch-diameter tire increases the tire radius by 1 inch, so axle-center height rises by about 1 inch. Actual results depend on tire dimensions and load.
The rim diameter alone does not determine clearance. A larger rim paired with a lower-profile tire may leave the overall tire diameter nearly unchanged. Check Silverado factory tire sizes by year before calculating a change.
If the goal is extra traction rather than a lift, compare the available all-terrain tires for the Chevy Silverado 1500 4×4 against the truck’s factory wheel size and load requirements. A taller tire must still clear the fenders, liners, and suspension throughout steering and travel.
Leveling Kits and Suspension Lifts
A leveling kit primarily raises the front of a truck to reduce the factory nose-down stance. It may improve bumper or front-frame clearance, but it does not automatically lift the rear axle differential. A suspension lift can raise portions of the chassis while leaving solid-axle differential clearance largely governed by tire radius.
For a model-specific example, see the 2014 Chevy Silverado 1500 leveling-kit comparison. Verify fitment by year, suspension, drivetrain, and existing lift.
Body Lifts and Real Off-Road Clearance
A body lift increases the distance between the cab or bed and the frame. It does not directly increase axle or differential clearance. A lift can also affect approach and departure angles, suspension geometry, and drivability, so do not choose a kit based only on the advertised lift inches.
What Changes in 2027 Silverado Ground Clearance
Published 2027 Silverado 1500 figures show a notable increase for factory off-road trims. The ZR2 Crew Cab Short Bed 4WD moves from 11.22 inches in 2026 to 12.35 inches in 2027, an increase of 1.13 inches.
| Silverado 1500 Configuration | 2026 | 2027 | Difference |
|---|---|---|---|
| ZR2 Crew Cab Short Bed 4WD | 11.22 in | 12.35 in | +1.13 in |
| Trail Boss Crew Cab Short Bed 4WD | 11.10 in | 11.98 in | +0.88 in |
| Trail Boss Crew Cab Standard Bed 4WD | 11.00 in | 12.05 in | +1.05 in |
| Non-lifted Crew Cab Short Bed 4WD | 8.08 in | 7.39 in | -0.69 in |
The 2027 Silverado order-guide comparison reports these configuration-specific changes. That distinction matters: the off-road versions gain clearance, while the listed regular Crew Cab 4WD configuration has a lower published value. Do not describe 2027 as an across-the-board increase.
These are 2027 model-year specifications, not a measurement of a used or modified 2026 truck.

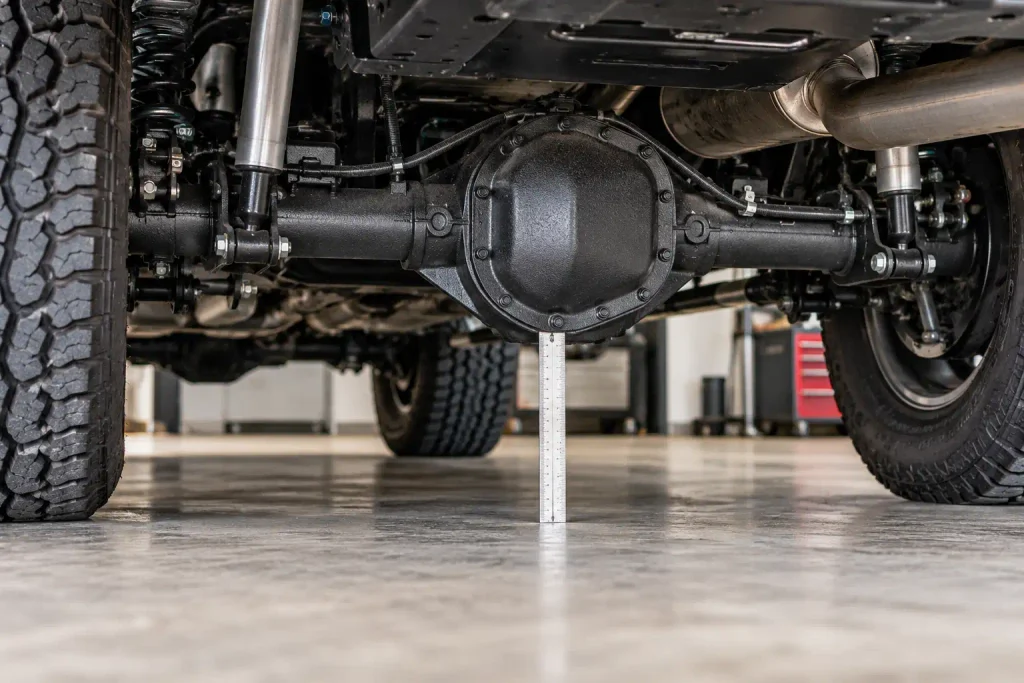

How to Measure Ground Clearance on Your Silverado
For a modified Silverado, measure the component that matters for your intended obstacle instead of relying on a published stock number. A level surface and an unloaded, safely parked truck provide a better starting point for comparison.
- Prepare the truck. Park on firm, level ground, set the parking brake, and check tire pressures against the correct placard. Note whether the truck is carrying a load.
- Identify the measurement point. Inspect the underside from a safe position and identify the lowest fixed component or the specific point you need to clear. Never crawl underneath an unsupported truck.
- Measure vertically. Use a ruler or tape to measure from the ground to that point, then record the location and conditions. Repeat on both sides if the truck’s stance or surface is uneven.
A measured number is specific to that truck and point. It may not match Chevrolet’s published measurement definition.
What Silverado Owners Should Check Before Upgrading
The Silverado ground clearance chart is most useful when you match the year, weight class, cab, bed, drivetrain, and factory suspension package. A 2026 Silverado 1500 Crew Cab Short Bed 4WD at 8.08 inches is not equivalent to a Trail Boss at 11.10 inches or a ZR2 at 11.22 inches. Heavy-duty Silverado trucks need their own configuration checks, especially when comparing single and dual rear wheels.
Use the factory figures as a reference, not a guarantee of what your individual truck clears today. Before ordering larger tires or suspension parts, confirm the exact stock setup, check component clearance, and measure the truck if its suspension or tires have changed.
Silverado Ground Clearance Frequently Asked Questions
What Is the Ground Clearance of a Chevy Silverado 1500?
It depends on the model year and configuration. For 2026, the non-lifted Crew Cab Short Bed 4WD is listed at 8.08 inches, while the factory-lifted ZR2 reaches 11.22 inches. Check the year chart and trim table rather than applying either value to every Silverado 1500.
Which Silverado Trim Has the Highest Ground Clearance?
Among the 2026 Silverado 1500 factory configurations compared here, the ZR2 Crew Cab Short Bed 4WD has the highest listed figure at 11.22 inches. The comparable Trail Boss measures 11.10 inches. A different model year or an aftermarket lift can change the comparison.
Does a Silverado Trail Boss Have More Ground Clearance Than an LT?
A factory-lifted 2026 Trail Boss Short Bed has 11.10 inches of published clearance, compared with 8.08 inches for a non-lifted Crew Cab Short Bed 4WD reference. The LT name alone does not identify every configuration, so match the cab, bed, and equipment before comparing.
What Is the Ground Clearance of a Silverado 2500HD?
Chevrolet lists 10.12 inches for the 2024 Silverado 2500HD Crew Cab Standard Bed and 10.08 inches for the Crew Cab Long Bed. Other 2024 cab arrangements show different measurements. These values are not universal figures for every 2500HD model year or factory suspension package.
Do Larger Tires Increase Silverado Ground Clearance?
Larger overall-diameter tires can raise axle and differential clearance by approximately half the increase in actual tire diameter. For example, a two-inch increase in overall tire diameter could add roughly one inch at the axle under similar conditions. Confirm fitment, tire load rating, rubbing clearance, and the truck’s actual measurements.
