5.3 Vortec Interchangeability Guide and What Years Fit

Quick Answer: Gen III 5.3 engines through 2006 use a 24X crank signal and a rear cam sensor. Gen IV engines from 2007 use a 58X signal and a front cam sensor. The 2014 and newer 5.3 is a Gen V design that does not swap with Gen IV.

This 5.3 Vortec interchangeability guide shows which model years share parts and which do not. The 5.3L V8 spans three engine generations, and the gaps between them are bigger than the model year range suggests.

Electronics decide most swaps. A 24X engine and a 58X engine need different computers, harnesses, and cam sensors. Heads, blocks, and mounts follow their own rules.

Not sure what you have? Confirm the engine with our 5.3 Vortec engine diagram before you order parts.

5.3 Vortec Interchangeability by Year Chart

This chart groups 5.3L truck engines by generation. Each row shows the crank signal, cam sensor location, and which engines share parts.

PSI Conversion lists the 24X truck engines as running through 2006, and the 58X engines as 2007 and newer.

2007 is the crossover year. Wikipedia’s LS engine tables say the LY5 replaced the LM7 that year, so a 2007 truck can carry either engine.

Gen III 5.3 Vortec Parts That Interchange

Gen III trucks through 2006 share the 24X crank reluctor. On these engines the cam sensor sits at the rear of the block, where the distributor used to be.

LSX Magazine says Gen III knock sensors are single-wire units under the valley cover. The same article says later Gen III engines use an electronic throttle body instead of a cable-driven one.

StreetTrucks Magazine lists the 5.3 at a 96 mm bore and 92 mm stroke. It says the L33 shares that displacement in an aluminum block with cast-in cylinder liners.

Gen IV 5.3 Vortec Parts That Interchange

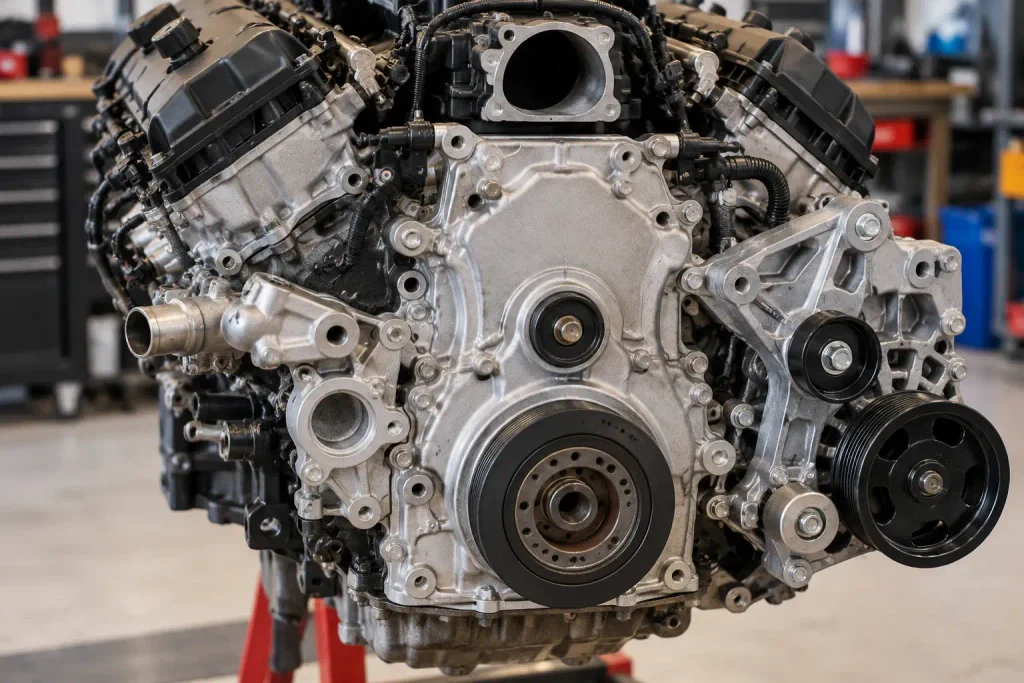

Gen IV engines from 2007 use a 58X reluctor and move the cam sensor to the front cover. LSX Magazine adds that Gen IV knock sensors are smaller two-wire units on the sides of the block.

Chevytrucks.org’s engine guide lists most Gen IV 5.3 engines with Active Fuel Management. The LH8, LH9, and LMF are the exceptions.

Variable valve timing arrived for 2010 on some engines. Check AFM and valve timing status before you buy cams or lifters.

Why Gen III and Gen IV Do Not Mix Easily

Five differences cause most failed swaps:

• Crank reluctor: Gen III uses 24X and Gen IV uses 58X. The wheel must match the computer.
• Cam sensor: It sits at the rear of the block on Gen III and in the front cover on Gen IV.
• Knock sensors: Gen III has valley units, and Gen IV has smaller units on the block sides.
• Computer and harness: Both must match the engine. A 24X harness on a 58X engine cranks but never fires.
• Throttle and injectors: Connectors and injectors differ between the two generations.

LSX Magazine says a direct computer swap has a low success rate. It recommends adapting the signals instead, and names Lingenfelter’s TRG-002 module for 58X engines in 24X trucks.

A 2011 GMT400 forum post quoting Truckin’ Magazine says injectors vary from Gen III to Gen IV. Treat it as a hint, not a GM reference.

Heads and Intake Manifold Fit Across 5.3 Engines

Speedway Motors says most LS heads can bolt to any LS block. The intake manifold must match the port style, because rectangular and cathedral intakes do not interchange.

The same article lists 706, 862, 799, and 243 as the head castings used on 5.3 engines. Check valve clearance against the bore before you mix heads and blocks.

Gen V EcoTec3 5.3 Does Not Swap with Gen IV

Holley’s Gen V guide says the block keeps the 4.400-inch bore spacing and 90-degree layout. It concludes the block does not appear interchangeable with Gen IV components.

Motor mount lug spacing changed, one bellhousing bolt moved, and the oil pan rail differs. Gen V also adds a direct injection system above 2,100 psi.

The electronics are closer than the hardware. ICT Billet says the LT uses the same 58X crank and cam signals as the LS, so an LS computer can read them with adapters.

For the Gen V truck engine, see our GM 5.3L L84 engine specs guide.

How to Confirm Your Engine Before Buying Parts

Check the cam sensor first. A sensor at the rear of the block points to Gen III, and a sensor in the front cover points to Gen IV.

Then match the RPO code to the chart above. ICT Billet warns that GM has mixed injector sizes within the same RPO codes, so measure before you order.

Which 5.3 Vortec Parts Fit Your Truck

Use this 5.3 Vortec interchangeability guide to match parts by generation, not by displacement. Gen III engines through 2006 use a 24X crank signal and a rear cam sensor. Gen IV engines from 2007 use a 58X signal and a front cam sensor.

Heads can bolt across LS blocks, but the intake must match the port style. The 2014 and newer Gen V 5.3 does not swap with Gen IV.

Confirm your engine, then match computers, harnesses, and injectors. Treat the chart as a starting point and confirm each part number. If you are shopping for a used engine, read our 5.3 Vortec problems guide first.

Frequently Asked Questions About 5.3 Vortec Interchangeability

Can Gen IV Replace Gen III

Yes, but not as a bolt-in. LSX Magazine says the 58X crank signal, front cam sensor, and knock sensors must be handled, and the computer must match.

Do 5.3 Heads Interchange Between Years

Most LS heads bolt to any LS block, according to Speedway Motors. The intake manifold must match the port style. Check bore clearance and the head casting before you buy.

Which Years Have a 58X Reluctor

PSI Conversion lists 2007 and newer truck engines as 58X and truck engines through 2006 as 24X. 2007 is the crossover year, so check the engine itself.

Does the 2014 5.3 Fit Gen IV

No. Holley says the Gen V block does not appear to interchange with Gen IV components. Motor mount lugs, one bellhousing bolt, and the oil pan rail all changed.

Do All Gen IV 5.3s Have AFM

No. Chevytrucks.org lists the LH8, LH9, and LMF as 5.3 engines without AFM. Most other Gen IV 5.3 engines have it.
