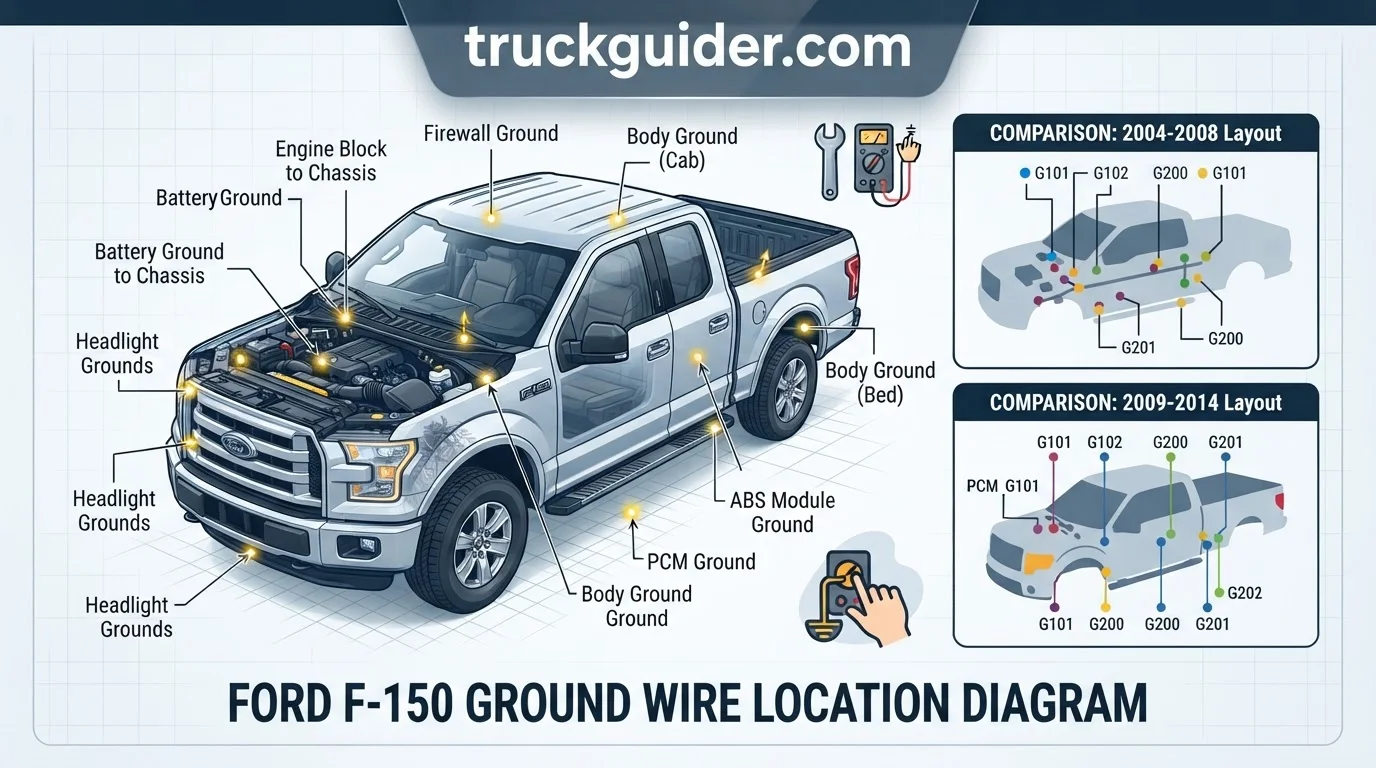

Diagram Ford F150 Ground Wire Location: Mapped Out by Model Year (2004-2026)
Finding the correct diagram ford f150 ground wire location is the most effective way to resolve persistent electrical glitches, flickering lights, or intermittent sensor failures. Because Ford F-150 trucks utilize multiple chassis and body grounds to complete the electrical circuit, a loose or corroded connection can trigger a cascade of unrelated error codes across different modules.
How to Read This Chart
The chart above outlines primary grounding zones based on general Ford architecture across major F-150 generations. “Component/Zone” identifies the electrical system being served, while “General Location” describes the physical assembly area of the truck. Because specific vehicle configurations (such as aluminum body versus steel frame or different engine displacement options) can shift exact bolt locations, please consult your specific service manual to verify exact mounting points. Always confirm the presence of a grounding strap or pigtail before disconnecting components, as some modern systems utilize redundant paths to ensure safety and module stability.
Recommended Best Deal Products


Understanding the Specifications and Advantages of Grounding Systems
Proper grounding is a fundamental design specification for Ford vehicles. It ensures that the return path for electrical currents is low-resistance, preventing voltage drops that can lead to false readings in the PCM (Powertrain Control Module). The main advantage of keeping these grounds clean is the preservation of sensitive electronic components, which are highly susceptible to “floating” grounds.

Disadvantages of poor ground maintenance include flickering instrument clusters, phantom trouble codes (like P0300 or U-codes), and premature starter failure. A systematic comparison of ground health versus wiring harness integrity often reveals that a simple $5 cleaning of a ground strap yields better performance results than replacing expensive sensors or ECU modules.
📋
Step-by-Step Guide: Inspecting and Cleaning Ground Connections
Always disconnect the battery negative terminal before working with wiring harnesses. This prevents accidental shorts while you are cleaning or moving grounding points.
Recommended Best Deal Products

Refer to your truck’s specific diagram to identify the location. Use a socket wrench to remove the bolt or nut. Be careful not to snap the stud, as these are often threaded directly into the chassis or block.
Use a wire brush to remove corrosion from both the lug and the contact surface. Apply a thin layer of dielectric grease to prevent future oxidation, then tighten the bolt securely.
🔎 How to Find Your Specific Ground Location (VIN/Sticker/Label)
While general diagrams provide a roadmap, the exact location of ground points can vary based on your F-150’s engine (EcoBoost vs. V8) and cab configuration. To find the ground points specific to your vehicle:
Recommended Best Deal Products
- Locate your VIN on the driver-side dashboard or door sticker.
- Search for “Ford Body and Electrical Service Manual” using your specific year and model.
- Check the “Ground Distribution” section in the manual; this will provide the specific diagram ford f150 ground wire location for your unique production run.
- Verify the location by looking for wires terminating with eyelets secured to the frame or engine block using 8mm, 10mm, or 13mm hex-head bolts.
What If It Still Doesn’t Work? Troubleshooting Next Steps
If you have cleaned the visible ground points and the electrical issues persist, the problem may be an internal wiring harness break or a damaged ground wire buried within a chassis loom. Follow these steps to narrow the search:
- Test Continuity: Use a multimeter to test resistance between the ground point and the battery negative terminal. High resistance confirms a bad connection.
- Inspect Pigtails: Check the plastic connectors near the grounds; if they show signs of melting, the ground issue is likely causing excessive heat due to resistance.
- Consult a Dealer: If issues involve the PCM, professional diagnostic equipment may be required to clear module-specific fault codes that DIY tools cannot access.
Costs for professional electrical diagnostics typically range from $150 to $300, depending on the complexity of the harness inspection required.
FAQ: Diagram Ford F150 Ground Wire Location Questions Answered
Are all F-150 ground locations identical?
No. While the primary battery and engine block grounds are standard, supplemental grounds change based on your truck’s specific features, such as towing packages, heated seats, or infotainment systems, which require additional grounding paths.
Can I add an extra ground wire to my truck?
Yes. Many owners choose to perform “The Big Three” upgrade, which involves adding additional heavy-gauge ground wires between the battery, engine block, and chassis. This is a common and effective way to stabilize electrical performance.
What is the most frequent symptom of a bad ground?
The most frequent indicator is a “Christmas tree” dashboard, where multiple warning lights (ABS, Airbag, Check Engine) illuminate simultaneously for no apparent reason, often accompanied by flickering headlights or radio resets.
Addressing ground integrity is a vital component of F-150 maintenance that often goes overlooked. By using the provided diagrams and cleaning protocols, you can effectively avoid costly dealership visits for minor electrical faults. Always remember that for modern vehicles, a solid ground is the foundation of reliability; keeping these connections clean is the single best way to ensure your truck’s electronic features continue to function as designed. For further technical specifics regarding your exact trim, cross-reference your vehicle’s build date with the latest Ford service bulletins.
Key Takeaways
-
✓
Locate factory ground points on the engine block, firewall, and chassis frame rails. -
✓
Compare grounding layouts between 2004-2008 and 2015-2020 F-150 generations. -
✓
Identify specific symptoms of failing grounds, including flickering lights and sensor errors. -
✓
Learn the professional method for cleaning contact points to eliminate resistance. -
✓
Assess the advantages and disadvantages of installing secondary ground straps.
❓ Frequently Asked Questions
1
What is a Ford F-150 ground wire location?
A ground wire location is the specific point where an electrical circuit attaches to the vehicle’s chassis or engine block to complete the circuit. On the F-150, these are vital connection points that return current to the battery. If these points corrode, the truck experiences strange electrical behaviors and sensor malfunctions.
2
How does a bad ground wire affect my truck?
A bad ground wire creates electrical resistance, leading to ‘ghost’ problems. Symptoms include dimming headlights, intermittent interior electronics, fuel pump failures, and false OBDII error codes. Because the computer relies on consistent voltage, even minor corrosion at a ground location can cause significant performance disadvantages.
3
Why is inspecting ground wires important?
Regular inspection ensures your truck’s electrical system remains reliable. Corrosion is the primary disadvantage of living in humid or salty climates. By keeping these points clean, you ensure that high-draw components like the starter and alternator function correctly, preventing costly replacements of healthy parts misdiagnosed as faulty.
4
What are the benefits of adding secondary ground wires?
Adding secondary ground wires, often called the ‘Big 3’ upgrade, provides a direct path for current, which improves lighting brightness and helps the alternator maintain stable voltage. The main feature is reduced electrical noise, which can help sensitive audio equipment and engine management computers operate more smoothly.
5
How can I get started with inspecting my grounds?
Start by identifying the main cable from the battery negative terminal to the chassis. Use the provided generation-specific diagrams to locate secondary points. Clean each lug with a wire brush, check for loose hardware, and verify connectivity using a multimeter set to the lowest DC voltage range.
6
How do I check if a ground wire is good?
Set a multimeter to Ohms. Measure between the wire terminal and a clean part of the chassis. A healthy ground should show near 0 ohms.
