Ford Transmission Identification Chart: 2026 F-150, TR Codes & Tag Numbers
Identifying a Ford transmission is usually easier than it looks. The fastest place to start is the Safety Compliance Certification Label near the driver-side door opening. Look for the field marked TR or transmission code.
However, there is one important rule: Ford transmission codes are not universal across every model and year. A letter or number must be matched with the vehicle’s model year and model before you identify the transmission.
For example, Ford identifies the 6R80 with code 6 and the 10R80 with code G in the 2019 F-150. But Ford uses code G for the 10R140 in the 2020 Super Duty. The 2020 Explorer uses still another set of codes, including T, U, and B.
This guide shows you how to identify a Ford transmission using the door sticker, transmission case tag, engineering number, VIN, and physical transmission features. For other makes, see our guide on how to identify your transmission.
How to Identify Your Ford Transmission
Use the model year, vehicle model, door-jamb TR code, VIN/build information, and physical transmission tag together for the most reliable identification.
4-Step Ford Transmission Identification
Check the Door Sticker
Open the driver’s door and find the Safety Compliance Certification Label.
Find the TR Code
Look for the field marked TR or transmission and record the complete code.
Match Model & Year
Never decode the TR character alone. Match it with the exact Ford model and model year.
Verify the Case Tag
If buying parts or a replacement transmission, confirm the physical transmission ID tag.
Verified Ford Transmission Code Examples
| Ford Model | Model Year | TR Code | Transmission | Speeds |
|---|---|---|---|---|
| F-150 | 2013 | 6 | 6R80 | 6-Speed |
| F-150 | 2018–2019 | 6 | 6R80 | 6-Speed |
| F-150 | 2018–2019 | G | 10R80 | 10-Speed |
| Super Duty | 2017–2018 | S | 6R100 | 6-Speed |
| Super Duty | 2020 | G | 10R140 | 10-Speed |
| Explorer | 2020 | T | 10R60 | 10-Speed |
| Explorer | 2020 | U | 10R80 | 10-Speed |
| Explorer Hybrid | 2020 | B | A10R80-MHT | Hybrid 10-Speed |
Ford TR Codes Are Not Universal
The same transmission code can identify different transmissions on different Ford models or model years. Never identify a transmission using the TR character alone.
Why Model & Year Matter
On verified late-2010s F-150 applications, Ford identifies code G with the 10R80 10-speed automatic.
The same G code can represent the heavier-duty 10R140 on a Super Duty application.
Before Buying a Replacement Transmission
Ford Transmission Identification: Quick Answer
Use these methods in this order:
| Identification Method | Where to Look | Best For | Reliability |
|---|---|---|---|
| Door-jamb TR code | Safety Compliance Certification Label | Finding the factory-installed transmission | High when matched to model/year |
| Transmission case tag | Side/top of transmission housing | Confirming the transmission currently installed | Very high |
| Engineering/assembly number | Tag, sticker, or casting on transmission | Parts and application verification | Very high when cross-referenced |
| VIN/build information | VIN, dealer, Ford records | Confirming original vehicle configuration | High when used with build data |
| Pan/case shape | Under the vehicle | Narrowing down older transmissions | Medium |
| Bolt count | Transmission pan | Classic transmission identification | Medium; always cross-check |
If the transmission may have been replaced previously, the physical transmission tag is more important than the door sticker, because the door label only describes how the vehicle was originally built.

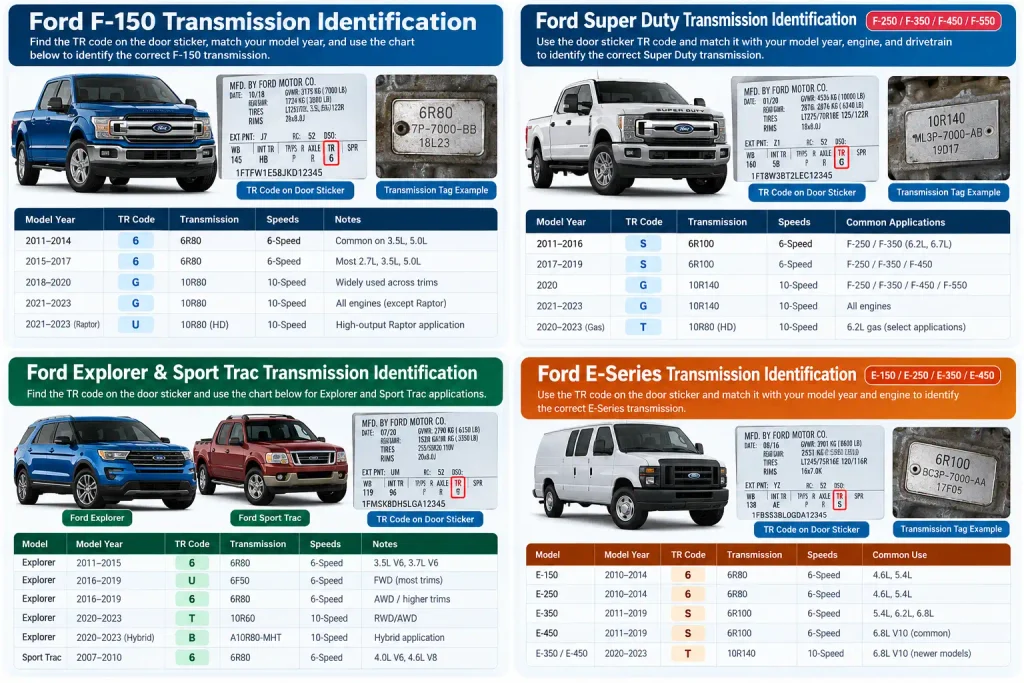

Ford Transmission Identification Chart: Verified TR Codes
The following examples are based on Ford owner-manual transmission-code tables. They demonstrate why the model and year must always be considered.
| Ford Model / Year | Transmission | Ford TR Code |
|---|---|---|
| 2013 F-150 | 6R80 6-speed automatic | 6 |
| 2015 F-150 | 6R80E 6-speed automatic | 6 |
| 2018 F-150 | 6R80 6-speed automatic | 6 |
| 2018 F-150 | 10R80 10-speed automatic | G |
| 2019 F-150 | 6R80 6-speed automatic | 6 |
| 2019 F-150 | 10R80 10-speed automatic | G |
| 2016 Super Duty | 5R110W 5-speed automatic | T |
| 2016 Super Duty | 6R140 6-speed automatic | P |
| 2016 Super Duty | 6R140W 6-speed automatic | W |
| 2017–2018 Super Duty | 6R140 6-speed automatic | P |
| 2017–2018 Super Duty | 6R100 6-speed automatic | S |
| 2017–2018 Super Duty | 6R140W 6-speed automatic | W |
| 2020 Super Duty | 6R100 6-speed automatic | S |
| 2020 Super Duty | 10R140 10-speed automatic | G |
| 2020 Explorer | 10R60 10-speed automatic | T |
| 2020 Explorer | 10R80 10-speed automatic | U |
| 2020 Explorer Hybrid | A10R80-MHT | B |
Important: Do Not Decode a Ford TR Code Without the Model Year
This is one of the most common Ford transmission identification mistakes.
For example:
G does not always mean 10R80.
A 2019 F-150 with code G uses a 10R80, while a 2020 Super Duty with code G uses the much heavier-duty 10R140.
Similarly, code U should not automatically be interpreted as an older 4R70W. Ford’s 2020 Explorer documentation identifies code U as the 10R80.
Always use this formula:
Model Year + Ford Model + TR Code = Transmission Identification
Ford F-150 Transmission Identification Chart
Ford F-150 transmission identification is one of the most common reasons owners search for Ford TR codes.
The F-150 has used several automatic and manual transmission families over its long production history. For modern trucks, the most useful identification sources are the door sticker and transmission case tag.
Common F-150 Transmission Families by Era
| F-150 Era | Common Transmission Families | Identification Notes |
|---|---|---|
| Older/classic F-150 | C6, AOD and various manual units | Case/tag and pan shape are especially useful |
| 1990s–early 2000s | E4OD, 4R100, 4R70W and manual units | Engine and GVWR can change the transmission |
| Mid-2000s | 4R70-series, 4R75-series | Check TR code and case tag |
| 2011–2016 | Primarily 6R80 automatic | Ford manuals confirm code 6 on verified years |
| 2017–2020 | 6R80 and 10R80 | Depends on engine and model year |
| 2021–2026 | 10-speed automatic family dominates | Hybrid versions use a hybrid electronic 10-speed configuration |
Ford’s 2026 F-150 specifications show an electronic 10-speed automatic across the current conventional engine lineup, while PowerBoost models use a hybrid electronic 10-speed automatic transmission.
Ford F-150 TR Code 6
If your F-150 door sticker shows TR code 6, it can indicate the 6R80 on model years where Ford documents that combination.
Ford’s owner manuals confirm code 6 for the 6R80 on the 2013 F-150 and code 6 for the 6R80E on the 2015 F-150. The 2018 and 2019 manuals also use code 6 for the 6R80.
Ford F-150 TR Code G
On verified late-2010s F-150 applications, TR code G indicates the 10R80 10-speed automatic transmission.
Both Ford’s 2018 and 2019 F-150 manuals identify:
G = 10R80
But do not use that rule for every Ford vehicle. Code G means something different on some Super Duty applications.
What Transmission Is in a 2026 Ford F-150?
Ford states that the 2026 F-150 engine lineup is paired with a 10-speed automatic transmission. PowerBoost full-hybrid trucks use a hybrid electronic 10-speed automatic transmission.
If you are buying a replacement transmission, knowing only that the truck has a “10-speed” is not enough. Match the VIN, engine, drivetrain, transmission identification tag, engineering number, and calibration/application before ordering. Our Ford F-150 transmission interchange chart can help you compare units before you buy.
Where Is the Transmission Code on a Ford Door Sticker?
Open the driver’s door and locate the Safety Compliance Certification Label.
Depending on the vehicle, the label can be attached to the door pillar, door latch post, or edge of the door near the latch. Ford’s manuals show the transmission identification code as one of the fields on this certification label.
Look for a field marked:
TR
or, on some labels,
TRANS
The character beneath that field is the transmission code for the vehicle’s original factory configuration.
Example
If a 2019 F-150 label shows:
TR: G
Ford’s 2019 manual identifies the transmission as a 10R80 10-speed automatic.
If a 2020 Super Duty shows:
TR: G
the transmission is instead a 10R140 10-speed automatic.
That is why copying a generic Ford transmission code chart without checking the vehicle year can lead to the wrong answer.
How to Identify a Ford Transmission in 3 Steps
Step 1: Read the Door-Jamb TR Code
Start with the Safety Compliance Certification Label.
Write down:
Model year
Ford model
Engine
TR code
Do not search the TR code by itself.
Instead of searching only:
Ford transmission code G
use:
2019 Ford F-150 transmission code G
This gives you the model-specific answer.
Step 2: Check the Transmission Identification Tag
If you need to order a replacement transmission—or suspect the original transmission has been changed—inspect the transmission itself.
Ford transmissions can have a metal tag, barcode sticker, or identification label attached to the housing.
Depending on the transmission, the tag may contain:
Engineering or assembly number
Transmission variant
Production information
Serial or sequence number
Calibration or solenoid information
Tag location varies by transmission family, so inspect the sides of the case and the area above the transmission pan.
Step 3: Match the Case Tag With the Vehicle
Before ordering a transmission, match more than just the transmission family.
A 10R80 from another Ford vehicle may still have different bellhousing, output-shaft, drivetrain, internal, electronic, or calibration requirements.
For replacement purposes, confirm the vehicle’s:
Year
Model
Engine
2WD or 4WD configuration
Transmission engineering number
VIN/build information
This is considerably safer than buying a unit simply because both transmissions are called “6R80” or “10R80.” If you are swapping between model years, read our guide on which Ford F150 parts are interchangeable.
Ford Transmission Identification by VIN Number
Can you identify a Ford transmission from the VIN?
Sometimes the VIN can help identify the original configuration, but there is no universal “transmission digit” in a Ford VIN that directly tells you the transmission model.
On many modern Ford vehicles, VIN characters identify information such as the vehicle line, engine, model year, assembly plant, and production sequence. Ford’s 2015 F-150 manual, for example, identifies an engine-type position within the VIN data but lists the transmission code separately on the Safety Compliance Certification Label. For F-150 trucks, our Ford F150 VIN engine code chart lists the engine code by year.
So if you are asking:
Which letter in a Ford VIN tells me the transmission?
The safest answer is:
Do not rely on one VIN character as a universal Ford transmission decoder.
Instead, use the full VIN to retrieve factory build information through Ford or a dealer, then verify the result using the door-jamb TR code and transmission case tag. To check the basic vehicle details first, try our truck VIN decoder.
Best Method When Using the VIN
Use the VIN to establish the exact:
vehicle model, model year, engine, drivetrain, and original build configuration.
Then compare that information with the physical transmission.
This is especially important on older trucks where a previous owner may have installed a different transmission.
How to Read Ford Transmission Identification Numbers
A transmission can have several different numbers stamped, printed, or attached to it.
They do not all mean the same thing.
You may see numbers such as:
E9TP-7000-AA
6G9R-7002-BA
JL3P-7000-...
PKA-DC2
or other combinations.
These may be engineering numbers, assembly identifiers, application codes, production codes, or serial information.
Do not assume every transmission number can be decoded using the same system.
What Does 6G9R-7002-BA Mean on a Ford Gearbox?
One Bing search bringing visitors to this guide asks about a Ford gearbox carrying:
6G9R 7002 BA T1GF2 080806 224252
The important starting point is:
6G9R-7002-BA is not a Ford door-jamb TR code.
It is an engineering/assembly-style identifier found on a transmission.
The basic number 7002 appears in Ford parts listings as a transmission or transaxle assembly identifier across numerous Ford applications.
Independent Ford parts listings also cross-reference 6G9R-7002-BA with manual-transmission applications used with 1.8 TDCi Ford vehicles such as the Mondeo/S-Max family. However, application descriptions are not perfectly consistent between catalogs, making the complete vehicle details essential before ordering parts.
Therefore, if your gearbox reads:
6G9R-7002-BAT1GF2080806224252
do not try to identify the entire transmission from 6G9R alone.
Record every line on the tag and cross-reference it with:
VIN + model + engine + production year + complete transmission tag
The remaining production or sequence markings should not be guessed without the corresponding Ford application data.
Ford Engineering Number vs. Transmission Model
An engineering number is not necessarily the name of the transmission.
For example:
10R80 is a transmission family/model name.
A number such as:
JL3P-7000-XX
may identify a specific assembly, revision, or application associated with a transmission.
That difference matters when buying used transmissions. Two units can both belong to the same transmission family but still have different applications.
Ford Transmission Pan Identification Chart
When the door sticker is missing and the transmission tag cannot be read, the fluid-pan shape can help narrow down older Ford transmissions.
Use the pan as a secondary identification method, not the final answer.
| Transmission Family | Common Visual Clue |
|---|---|
| C4 | Small, relatively square pan; commonly identified with an 11-bolt pattern |
| C6 | Large, irregular-shaped pan; commonly identified with a 17-bolt pattern |
| AOD family | Rectangular/irregular overdrive-transmission pan |
| E4OD / 4R100 | Large rectangular heavy-duty pan; commonly identified with a 20-bolt pattern |
| 6R80 | Modern aluminum electronically controlled automatic; identify using tag rather than pan alone |
| 10R80 | Modern 10-speed automatic; tag/application verification is preferred |
Pan shape is particularly useful on classic transmissions, but aftermarket transmission pans can change the visual appearance.
For AOD, AODE, 4R70W, and related transmissions, online references frequently disagree about bolt-count terminology and pan interchange. The safer identification method is the case/tag plus application information rather than bolt count alone.
Ford AOD Transmission Identification
The AOD, AODE, and 4R70W belong to the same broad evolutionary family, which is why they are frequently confused.
AOD
AOD stands for Automatic Overdrive.
It is an older hydraulically controlled four-speed automatic and does not rely on the same full electronic shift-control system used by later AODE and 4R70W units.
AODE
The AODE is the electronically controlled development of the AOD design.
4R70W
The 4R70W continued the electronic overdrive design with revised gearing and other changes.
Because these transmissions can appear similar externally, do not identify an AOD-family transmission using only one visual feature.
For the most reliable Ford AOD transmission identification, check:
Identification tag
Case features
Electrical connectors
Vehicle year/model
Engine application
If the transmission is installed in the original vehicle, also check the door-jamb transmission code.
Ford Manual Transmission Identification
Ford manual transmission identification works slightly differently because many older manual gearboxes do not have a modern door-code lookup that is useful by itself.
Start by looking for an identification tag or stamped/cast number on the transmission case.
For a manual transmission, record the complete number exactly as it appears.
Do not remove characters or assume similar-looking tags represent the same gearbox.
This is particularly important on Ford Ranger, Mustang, Transit, European Ford, and older truck manual transmissions because multiple gearboxes may share similar cases while using different ratios, input shafts, output configurations, or bellhousing patterns.
Ford Super Duty Transmission Identification
Super Duty trucks are another example of why universal TR-code charts should be avoided.
Ford’s documentation gives these verified examples:
| Super Duty Model Year | Transmission | TR Code |
|---|---|---|
| 2016 | 5R110W | T |
| 2016 | 6R140 | P |
| 2016 | 6R140W | W |
| 2017–2018 | 6R140 | P |
| 2017–2018 | 6R100 | S |
| 2017–2018 | 6R140W | W |
| 2020 | 6R100 | S |
| 2020 | 10R140 | G |
Ford’s owner manuals confirm these transmission-code designations.
So if you are trying to identify an F-250, F-350, F-450, or F-550 transmission, include the model year and engine when decoding the TR code.
Ford Explorer Transmission Code Meaning
Ford Explorer owners also frequently search for the meaning of the TR code on the door sticker.
For the 2020 Explorer, Ford lists:
| Transmission | TR Code |
|---|---|
| 10R60 10-speed automatic | T |
| 10R80 10-speed automatic | U |
| A10R80-MHT hybrid transmission | B |
This is another reason you should never assume that code U automatically means an older 4R70W or that code B always indicates one specific Ford transmission.
What If the Ford Transmission Has Been Swapped?
If the vehicle has had a transmission replacement, the door label may no longer describe the transmission currently installed.
In that situation:
Trust the physical transmission identification information first.
Compare the case tag or engineering number with the engine, drivetrain, and vehicle application.
If you find a mismatch between the TR code and physical transmission tag, assume the drivetrain may have been modified until you can verify the repair history.
What If the Ford Door Sticker Is Missing?
If the Safety Compliance Certification Label is damaged, painted over, or missing, you can still identify the transmission.
Use the transmission case tag first.
If the tag is also missing, use the VIN and vehicle build information to establish the original transmission, then compare the actual transmission’s physical features and engineering numbers.
For older or modified vehicles, a transmission specialist or Ford parts department may need the complete VIN and case numbers to make the final identification.
Frequently Asked Questions
What Ford transmission do I have?
First check the TR code on the Safety Compliance Certification Label near the driver’s door. Match the code with the exact model and model year. If the transmission may have been replaced, verify the identification tag on the transmission itself.
What is a Ford transmission identification chart?
A Ford transmission identification chart matches a vehicle’s model year and transmission code with the original transmission model. The year and vehicle must be included because Ford reuses some transmission-code letters across different applications.
How do I identify a Ford F-150 transmission?
Check the driver’s door certification label for the TR code, then match it to the F-150’s model year. For example, Ford documents code 6 as the 6R80 and code G as the 10R80 on the 2019 F-150.
What does Ford F-150 transmission code G mean?
On Ford F-150 model years where Ford documents that combination, such as 2018 and 2019, code G identifies the 10R80 10-speed automatic transmission. It should not be treated as a universal Ford code because G identifies the 10R140 on the 2020 Super Duty.
What does Ford F-150 transmission code 6 mean?
Ford documentation identifies code 6 as the 6R80/6R80E on several F-150 model years, including 2013, 2015, 2018, and 2019. Always verify the model year before ordering parts.
Can I identify my Ford transmission by VIN number?
The VIN can help retrieve the vehicle’s factory configuration, but there is no single universal Ford VIN digit that directly gives the transmission model. Use the full VIN with Ford/dealer build information and confirm the result with the TR code or transmission tag.
Which letter in a Ford VIN identifies the transmission?
There is no universal Ford VIN position that works as a standalone transmission identifier. Ford owner manuals list VIN information and transmission-code information separately. Use the full VIN plus the Safety Compliance Certification Label.
Where is the transmission code on a Ford?
The easiest factory code is on the Safety Compliance Certification Label around the driver’s door opening. Look for the field marked TR or transmission. A separate identification tag or sticker can also be attached directly to the transmission case.
How do I identify a Ford transmission if the door sticker is missing?
Locate the identification tag, barcode label, engineering number, or stamped number on the transmission itself. Cross-reference the complete number with the VIN, model year, engine, and drivetrain.
How do I identify a Ford AOD transmission?
Use the transmission identification tag, vehicle application, case design, electrical connections, and pan shape. Do not rely only on a generic door-code chart or pan bolt count because AOD, AODE, and 4R70W-family transmissions can easily be confused.
What does 6G9R-7002-BA mean?
6G9R-7002-BA is an engineering/assembly-style Ford transmission number rather than a door-jamb TR code. The 7002 basic number appears in Ford transmission/transaxle assembly listings. Exact application should be confirmed using the entire tag, model, engine, year, and VIN.
How can I tell what transmission is in my Ford E-350 or E-450?
Start with the TR code on the certification label and the vehicle’s model year. Because E-Series vans have used different transmissions depending on engine, year, and GVWR, verify the physical transmission tag before purchasing replacement parts.
What does transmission code D, E, T, U, B, or G mean on a Ford?
The letter alone is not enough. Ford reuses transmission-code letters between different models and model years. Always decode it using the vehicle’s year and model.
Final Verdict
The safest way to identify a Ford transmission is to use more than one piece of information.
Start with the TR code on the Safety Compliance Certification Label to identify the factory transmission. Then check the physical transmission tag or engineering number if you need replacement parts or suspect the transmission has been swapped.
For F-150 owners, remember that code 6 is documented for the 6R80 on several model years, while code G identifies the 10R80 on verified late-2010s F-150 applications. But those codes should never be used as universal Ford transmission identifiers.
The rule to remember is simple:
Year + Model + TR Code + Physical Tag = The Most Reliable Ford Transmission Identification.
