Nissan Titan Towing Capacity Chart by Year From 2004 to 2024
The Nissan Titan towing capacity chart spans 2004 through 2024, with maximum conventional towing ratings ranging from 9,290 to 9,740 pounds for the second-generation standard Titan. Earlier properly equipped first-generation trucks were rated up to 9,500 pounds. These are manufacturer maximums for specific configurations, not universal limits for every Titan.
The Titan XD is a different truck with higher available ratings. Use the year-by-year chart first, then check cab style, drivetrain, tow equipment, payload, and the weight of your loaded trailer before towing.
Nissan Titan Towing Capacity by Year
Maximum conventional trailer ratings in pounds for the standard Titan. All ratings require the specified factory configuration and equipment.
2017–2024 / Standard Titan
Maximum published conventional towing figures. Bar lengths use a zero baseline with a 10,000 lb reference.
*The 2023 Nissan press kit advertises 9,323 lb; its King Cab configuration table lists 9,320 lb. For 2024, the 9,290 lb maximum applies to the properly equipped SV Crew Cab 4×2.
2024 Titan XD / Separate model
Not standard TitanNissan Titan Towing Capacity Chart 2004 to 2024
The table lists the highest Nissan-published conventional trailer rating for each standard Titan model year. A properly equipped truck is required to achieve these figures. They are not ratings for base models or every trim.
| Model year | Maximum towing capacity | Configuration or qualification |
|---|---|---|
| 2024 | 9,290 lb | SV Crew Cab 4×2, properly equipped |
| 2023 | 9,323 lb* | Nissan’s published model-year headline maximum |
| 2022 | 9,320 lb | S King Cab 4×2, properly equipped |
| 2021 | 9,310 lb | Properly equipped 4×2 configuration |
| 2020 | 9,370 lb | Properly equipped 4×2 configuration |
| 2019 | 9,660 lb | Properly equipped 5.6L V8 Titan |
| 2018 | 9,740 lb | Properly equipped 4×2 Titan |
| 2017 | 9,740 lb | Properly equipped 4×2 Titan |
| 2016 | Not applicable | Titan XD introduced; no regular half-ton Titan model-year rating |
| 2015 | 9,500 lb | King Cab, properly equipped |
| 2014 | 9,500 lb | King Cab, properly equipped |
| 2013 | 9,500 lb | King Cab, properly equipped |
| 2012 | 9,500 lb | King Cab, properly equipped |
| 2011 | 9,500 lb | King Cab, properly equipped |
| 2010 | 9,500 lb | King Cab, properly equipped |
| 2009 | 9,500 lb | King Cab, properly equipped |
| 2008 | 9,500 lb | King Cab, properly equipped |
| 2007 | 9,500 lb | King Cab, properly equipped |
| 2006 | 9,500 lb | King Cab, properly equipped |
| 2005 | 9,500 lb | King Cab, properly equipped |
| 2004 | 9,500 lb | King Cab, properly equipped |
2023 discrepancy: Nissan’s 2023 Titan press kit states 9,323 lb, while its model-specific specification table rounds the applicable 4×2 King Cab maximum to 9,320 lb. Treat 9,323 lb as Nissan’s published headline figure, not permission to add three pounds to a configuration-specific rating.
2024 distinction: Nissan advertised 9,290 lb for the available Crew Cab SV 4×2. The 2024 owner’s manual also contains a 9,320 lb King Cab 2WD reference, although the 2024 King Cab was sold only as SV 4×4. The 9,320 lb reference must not be presented as an available 2024 King Cab 2WD retail configuration.
The original Nissan material, including its 2015 Titan specifications and 2024 Titan owner’s manual, distinguishes advertised maximums from configuration-specific figures. Consult the owner’s manual for the exact model year before selecting a trailer.
Nissan Titan First Generation Towing From 2004 to 2015
The first-generation Titan used the 5.6L Endurance V8 gasoline engine and a five-speed automatic transmission. Nissan published a 9,500 lb maximum for a properly equipped King Cab throughout this generation, with a 9,400 lb maximum for a properly equipped Crew Cab.
King Cab and Crew Cab Ratings
Cab choice alone does not establish the towing rating. For example, Nissan’s 2015 specifications put an SV King Cab 4×2 at 9,500 lb when properly equipped. The corresponding Crew Cab SV 4×2 maximum is 9,400 lb.
That 100 lb difference is small, but base configurations can vary much more. The 2015 S King Cab 4×2, for example, has a listed maximum of 7,400 lb, well below the King Cab headline figure.
Factory Tow Package Differences
The first-generation towing equipment included factory-dependent hitch provisions, trailer wiring and tow-related packages. On trucks such as the 2012 SV, the appropriate Utility Package changed which published rating applied.
Do not assume that a truck has its maximum tow rating because it has a receiver hitch. Check the original equipment and the exact model-year table. Adding a hitch later does not independently raise the truck’s manufacturer rating.
Nissan Titan Second Generation Towing From 2017 to 2024
The standard half-ton Titan returned as a redesigned 2017 model following the 2016 Titan XD launch. Its updated 5.6L Endurance V8 made 390 hp and 394 lb-ft in 2017, paired with a seven-speed automatic transmission.
2017 to 2019 Titan Ratings
Nissan listed a 9,740 lb maximum for properly equipped 2017 and 2018 Titan configurations. For 2017, its specification tables also list a maximum 9,560 lb rating for the corresponding highlighted 4×4 configuration.
For 2019, the advertised maximum fell to 9,660 lb. That change does not mean every 2019 Titan tows less than every 2018 Titan. The cab, drivetrain and optional equipment still determine the actual comparison.
2020 to 2024 Titan Ratings
The updated 2020 Titan received a 400 hp, 413 lb-ft version of the 5.6L Endurance V8 and a nine-speed automatic transmission. Its maximum published rating was 9,370 lb.
Nissan reported 9,310 lb for 2021, 9,320 lb for 2022, and a 9,323 lb headline rating for 2023. The final 2024 model year carried a 9,290 lb advertised maximum for the standard Titan.
Nissan’s 2017 specification material shows why towing numbers should be read as equipment-specific maximums rather than a single guaranteed capability across a whole model range.
Nissan Titan XD Towing Capacity From 2016 to 2024
The Titan XD is not a towing package for the standard Titan. Nissan gave it a separate, longer and heavier-duty-oriented chassis, with different hitch and trailer ratings. Its numbers should never be inserted into the regular Titan chart.
Titan XD Diesel Ratings
The 2016 Titan XD introduced a 5.0L Cummins V8 Turbo Diesel, rated at 310 hp and 555 lb-ft. Nissan published a maximum 12,314 lb conventional towing rating for the diesel XD 4×2 when properly equipped.
The corresponding diesel XD gooseneck maximum in Nissan’s original 2016 table was 12,160 lb. This is a useful reminder that a gooseneck hitch does not automatically produce a higher limit on every model year.
Titan XD Gasoline Ratings
The 2016 gasoline Titan XD used a 5.6L Endurance V8. Nissan listed an 11,270 lb conventional maximum for the properly equipped gasoline XD 4×2. Equipment and drivetrain changed that rating.
The Cummins diesel was discontinued before the Titan’s final model years. The 2024 Titan XD used the 5.6L gasoline V8 and nine-speed automatic transmission.
Conventional vs Gooseneck Ratings
For 2024, Nissan listed these maxima for the Titan XD SV Crew Cab 4×4:Hitch arrangement Maximum trailer rating Conventional receiver hitch 10,900 lb Integrated gooseneck hitch 11,050 lb
These numbers apply to the specified XD equipment, not the standard Titan or all XD trims. Nissan’s 2016 Titan XD press kit documents the earlier gas and diesel powertrains and the distinct conventional and gooseneck ratings.
How Nissan Titan Cab and Drivetrain Change Towing Limits
Two Titans from the same year can have different manufacturer ratings. Cab style, four-wheel-drive equipment, trim and towing package can alter the maximum.
Cab and Bed Configurations
Early Titans used King Cab and Crew Cab layouts. The 2017–2019 second-generation range also offered Single Cab versions. Later Nissan simplified the lineup, and the final 2024 standard Titan offered King Cab SV 4×4 and several Crew Cab configurations.
A longer or heavier truck can have less rated trailer capacity despite using the same engine. Read the exact configuration row rather than selecting the largest number associated with the year.
Two Wheel vs Four Wheel Drive
The 2024 SV Crew Cab is a clear example. Nissan specifies 9,290 lb for 4×2 and 9,130 lb for 4×4, both when properly equipped. Its PRO-4X Crew Cab 4×4 is listed at 9,070 lb.
Those ratings reflect particular factory configurations. Four-wheel drive can improve traction in suitable conditions, but it does not raise the manufacturer’s towing limit.
Which Nissan Titan Tow Equipment Changes Safe Limits

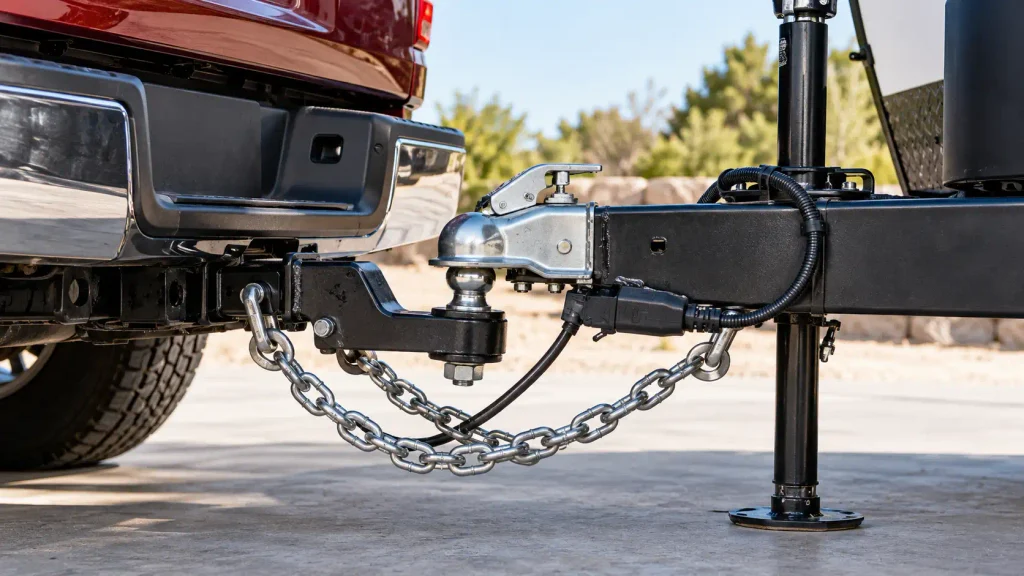

A high advertised trailer rating assumes suitable towing equipment. Verify the receiver, ball mount, hitch ball, wiring, brakes and any factory towing-package requirements before pulling a loaded trailer.
Factory Tow Package Equipment
Depending on the year and trim, Titan tow equipment includes a frame-mounted receiver, four- and seven-pin wiring, trailer brake controller and Trailer Sway Control. Nissan’s 2024 information lists some components as standard on certain trims and optional on others.
For electric-brake trailers, the brake controller must be correctly set up. Truck Guider’s guide to using a trailer brake controller explains its gain and manual-override functions.
Trailer Hitch Rating Restrictions
The 2024 Nissan owner’s manual recommends a weight-distributing hitch when towing more than 5,000 lb. It also limits towing using the Genuine Nissan step bumper as a ball mount to 5,000 lb trailer weight and 500 lb tongue load.
Those are model-year-specific instructions, not universal rules for every older Titan. Never exceed the lowest rated component in the towing setup.
What Nissan Titan Payload and Tongue Weight Mean
The towing figure is only one limit. Trailer tongue weight acts on the truck and uses part of its available payload, alongside passengers, cargo and installed equipment.
Payload and Tongue Weight
For a conventional trailer, tongue weight commonly needs to be around 10–15% of loaded trailer weight, subject to the trailer and hitch maker’s requirements. Nissan’s 2024 manual gives this range and says not to exceed the listed tongue-load maximum.
Consider a 7,000 lb loaded trailer with 12% tongue weight. Its tongue presses approximately 840 lb onto the truck. Against the 2024 manual’s reference 1,600 lb maximum payload for a Crew Cab 2WD, that leaves 760 lb before accounting for passengers, cargo and other equipment. This is an illustration, not a capacity approval for any particular truck.
GVWR and GCWR Restrictions
GVWR means Gross Vehicle Weight Rating, the maximum allowed loaded weight of the truck. GCWR means Gross Combined Weight Rating, the allowed combined weight of the truck and trailer. Front and rear gross axle weight ratings (GAWR) also apply.
Nissan advises weighing the loaded truck and trailer. Available combined-weight towing capacity is bounded by GCWR minus the actual loaded truck weight, but the manufacturer’s trailer rating, hitch limits, payload and axle limits can impose a lower cap.
For a truck-to-truck comparison, see Truck Guider’s Ram towing capacity chart by year. Use the same model-year, configuration and trailer-weight assumptions when comparing brands.
How to Find Your Nissan Titan Exact Tow Rating
Use the correct factory specification instead of estimating from the engine badge or a generic chart.
- Identify the model year and model. Verify whether the truck is a standard Titan or a Titan XD.
- Record its configuration. Check cab style, 2WD or 4WD, trim, wheel and factory towing-package details.
- Check the original Nissan towing table. Match the year and applicable configuration, including the correct conventional or gooseneck hitch category.
- Read the truck’s labels and hitch ratings. Find the GVWR and axle ratings on the certification label and the actual payload information on the tire-and-loading label. Check the receiver and ball mount separately.
- Weigh the loaded setup. Include passengers, cargo, equipment and trailer contents. Compare actual truck, axle, trailer and combined weights against every applicable limit.
A VIN can help identify how the truck was built, but a VIN lookup alone is not a substitute for equipment verification, load measurements and manufacturer towing instructions.
Which Nissan Titan Towing Figure Should You Trust
The correct Nissan Titan towing capacity is the rating Nissan published for your model year and factory configuration, reduced as necessary by the truck’s actual load and the limits of its towing equipment. The chart is a starting point, not authorization to tow its highest number.
A properly equipped first-generation King Cab could reach 9,500 lb, while the newer standard Titan reached up to 9,740 lb in 2017 and 2018. The Titan XD has its own higher capacity figures, which cannot be assigned to a regular Titan. For safe towing, match the model and hitch type, check the owner’s manual, and weigh the complete loaded combination before departing.
Nissan Titan Towing Capacity Frequently Asked Questions
How Much Can a Nissan Titan Tow?
A standard Nissan Titan’s maximum varies by year and equipment. Properly equipped first-generation King Cabs reached 9,500 lb, selected 2017–2018 configurations reached 9,740 lb, and the advertised 2024 maximum was 9,290 lb. A specific truck may have a substantially lower rating.
Which Nissan Titan Year Has the Highest Towing Capacity?
For the standard Titan, Nissan published a 9,740 lb maximum for both 2017 and 2018. That does not include Titan XD ratings or mean that every truck built in those years reaches 9,740 lb. Check the relevant trim and drivetrain before comparing used models.
Can a Nissan Titan Tow a 7,000 lb Travel Trailer?
Potentially, yes, if the trailer’s fully loaded weight, tongue weight and the Titan’s exact ratings allow it. Confirm passengers, cargo, hitch capacity, GVWR, axle ratings and GCWR before towing. A 7,000 lb dry-weight listing is not the same as a 7,000 lb loaded trailer.
What Is the Difference Between Nissan Titan and Titan XD Towing?
The Titan XD uses a different chassis and can support higher towing ratings. For 2024, Nissan lists 9,290 lb as the standard Titan advertised maximum, compared with 10,900 lb conventional and 11,050 lb gooseneck for a properly equipped Titan XD. The hitch type matters.
Does the Nissan Titan PRO-4X Have Lower Towing Capacity?
In some configurations, yes. The 2024 Titan PRO-4X Crew Cab 4×4 is rated at 9,070 lb, compared with 9,130 lb for an appropriately equipped SV Crew Cab 4×4. Do not apply these 2024 figures to earlier PRO-4X models without checking their specifications.
Why Does the 2024 Titan Manual Show 9,320 lb?
The 2024 manual includes a King Cab 2WD reference rating of 9,320 lb. However, Nissan offered the 2024 King Cab only as an SV 4×4, while the highest advertised 2024 standard Titan retail configuration was the Crew Cab SV 4×2 at 9,290 lb. Use the applicable equipment-specific rating, not the largest number appearing anywhere in the manual.
