U0100 Ram 1500: Causes, Symptoms and Diagnostic Fixes 2026

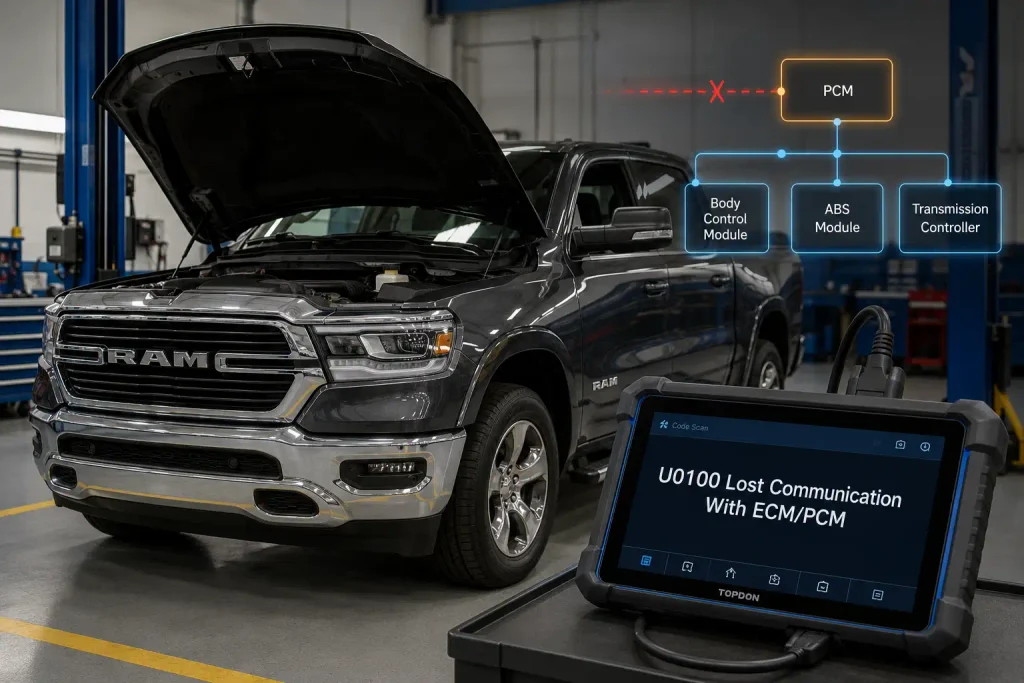

U0100 on a Ram 1500 means another control module stopped receiving expected messages from the Engine Control Module or Powertrain Control Module.
This code does not prove the PCM has failed. Low voltage, a missing power feed, a poor ground, damaged wiring, connector trouble, or another network fault can produce the same result.
A stored code on a running truck requires a different approach than active U0100 with no PCM communication.
What Does U0100 Mean On A Ram 1500
U0100 is a network Diagnostic Trouble Code for lost communication with the ECM or PCM. Our general U0100 diagnostic guide explains the code across different makes. This guide narrows the test order to the Ram 1500.
Recommended Best Deal Products
PCM Communication
The PCM sends operating information across the truck’s network. The Anti-lock Brake System, Body Control Module, and transmission controller depend on those messages.
U0100 is usually stored by a module that expected PCM data but stopped receiving it. That distinction matters because the module reporting U0100 may still communicate normally with your scan tool.
CAN Network Messages
Controller Area Network, or CAN, is the communication system connecting the truck’s electronic modules. U0100 means the expected PCM messages disappeared. It does not identify where the communication path failed.
Power loss can shut the PCM down, while damaged CAN wiring can isolate a powered PCM from other modules.
Active And Stored Codes
An active U0100 returns immediately or remains current during the fault. A stored or history code records a past interruption that is not happening now.
If U0100 followed a discharged battery, jump-start, or battery replacement, save all codes before clearing them. Operate and rescan the truck to see what returns.
Recommended Best Deal Products
6 Common U0100 Ram 1500 Causes
Start with power and network integrity before treating U0100 as a failed PCM. These are diagnostic categories, not failure percentages.
1 Low Battery Voltage
Low or unstable voltage can interrupt module operation and network messages. This cause becomes more likely when U0100 follows a dead battery, slow cranking, a jump-start, or a P0562 system-voltage-low code.
If P0562 is also present, follow the tests in our P0562 system voltage guide before condemning a module.
2 Missing PCM Power
A blown fuse, faulty relay where applicable, open circuit, or poor power-distribution connection can take the PCM offline. The scan tool may still communicate with other modules because they use separate power feeds.
Fuse names and cavity numbers vary between Ram 1500 years and DS or DT platforms. Use the fuse chart for the exact model year, then verify power electrically instead of relying only on visual inspection.
3 Poor PCM Ground
A loose, corroded, or damaged ground can allow intermittent operation before the PCM drops off the network. Warning lights may appear together, and the engine may stall or fail to restart.
Recommended Best Deal Products
A clean-looking ground can still fail under load. Use the factory voltage-drop procedure instead of relying only on continuity.
4 Damaged CAN Wiring
An open circuit, short between CAN wires, short to power, or short to ground can interrupt communication. Harness abrasion, previous repairs, collision damage, moisture, and rodent damage all justify a close inspection.
Do not assume the PCM branch is damaged merely because the code names the PCM. A shared network problem can make several modules report communication codes together.
5 Connector Terminal Faults
Water, corrosion, bent pins, pushed-back terminals, poor tension, or incomplete seating can create intermittent U0100. Follow the exact truck’s safe disconnection instructions before inspection.
Our Ram 1500 PCM location guide helps identify the module area by model year. It should not replace the correct wiring diagram or connector view.
6 Module Or Software Faults
The PCM, another network module, or module software can cause communication loss after power, ground, wiring, and terminal faults are excluded. This category belongs late in the test order because replacement modules may require programming and configuration.
One verified software case applies to a limited group of 2021 DT trucks. It does not make software the default explanation for every U0100 Ram 1500.

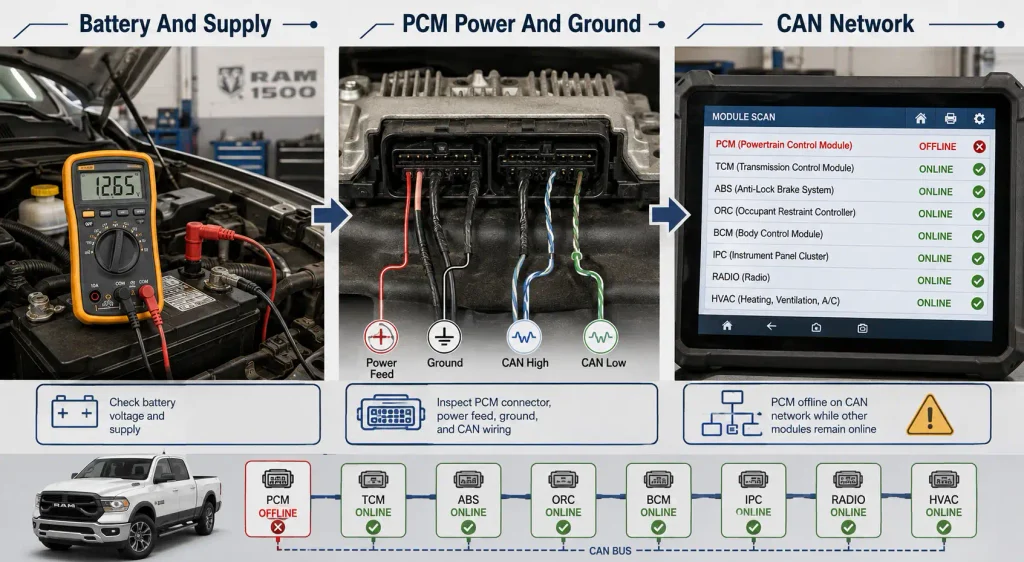

How To Diagnose U0100 Ram 1500 In 7 Steps
The fastest path depends on PCM communication. Use a scanner capable of reading every available module, not only generic powertrain codes.
Step 1 Scan Every Module
Run a complete network scan and save the report before clearing anything. Record which module stored U0100, which modules respond, and which are offline.
Look for related codes such as U0101, U0102, U0121, U0140, U1818, U1003, and P0562. Not every code applies to every configuration.
If the PCM provides live data, it is not completely offline. Focus on the reporting module, intermittent supply, terminals, and network path.
Step 2 Confirm Active Status
Allow the truck to power down, then rescan under the model-year service procedure. An active fault deserves priority over a history code.
If U0100 does not return and the truck operates normally, inspect battery history and obvious connections. Do not replace the PCM based only on an old stored code.
Step 3 Test Electrical Supply
Test battery condition and charging performance correctly. Voltage alone does not measure capacity or prove performance under load.
Inspect battery terminals, cables, and major connections. On eTorque trucks, follow the correct 48-volt system safety procedure.
Correct a confirmed low-voltage or charging fault first. Clear the recorded codes, complete an appropriate drive or key cycle, then scan every module again.
Step 4 Verify PCM Fuses And Feeds
Use the exact-year manual and wiring diagram to identify PCM feeds. A generic fuse number can be wrong for another configuration.
Test both sides of each fuse. If one is open, find the short or overload before replacement.
If the fuse is good, verify the required voltage at the PCM connector using the correct terminal chart. Backprobing without the proper method can spread terminals or damage a circuit.
Step 5 Verify Grounds And Connectors
Inspect PCM grounds, fasteners, harness routing, and connector seals. Look for corrosion, bent pins, chafing, heat damage, and incomplete engagement.
Use a loaded voltage-drop test where the factory procedure calls for it. Disconnecting modules or probing terminals incorrectly can create new faults, so stop if you lack the connector views.
Step 6 Test The CAN Network
Test CAN resistance with the network powered down and the exact diagram. Many properly terminated high-speed CAN buses measure roughly 60 ohms across the pair.
That value is not universal. An approximately correct reading can coexist with an intermittent open, signal distortion, or another segment fault.
DLC pins 6 and 14 are commonly used for high-speed CAN checks, but confirm their application first. Advanced diagnosis may require waveform testing, network topology, splice locations, and controlled module isolation.
Step 7 Confirm The Failed Branch
If the PCM remains offline, confirm all required power feeds, grounds, CAN circuits, and connector terminals before blaming the module. If those tests pass, PCM-level diagnosis becomes reasonable.
If the PCM communicates but only one module reports U0100, investigate that module’s supply and communication path. The reporting module can be the problem even though the DTC names the PCM.
| Scan Result | Next Diagnostic Move |
|---|---|
| PCM communicates normally | Test the reporting module and intermittent network path |
| PCM is absent from the scan | Verify PCM power, grounds, and CAN connection |
| Several modules report U0100 | Check shared supply, network wiring, and PCM availability |
| U0100 follows low voltage | Repair the voltage fault, clear codes, and retest |
| Network and supply tests pass but PCM stays offline | Continue with PCM diagnosis and programming checks |
U0100 Ram 1500 No Start Versus Normal Operation
The symptom accompanying U0100 often tells you more than the code by itself. Match the truck’s behavior to the correct branch before replacing parts.
Truck Runs Normally
If the truck runs normally, check whether U0100 is stored. Review battery discharge, jump-starting, accessory installation, and repair history.
Save and clear the code, then rescan after normal operation. If it returns, inspect intermittent power, ground, connector, and network faults.
Truck Starts Then Stalls
If the truck starts and stalls as communication disappears, check PCM supply and grounds. Heat or movement sensitivity supports a harness or connector fault.
Do not perform an unsafe wiggle test around belts, fans, exhaust parts, or moving components. Use scan data and proper electrical testing to locate the interruption.
Truck Cranks Without Starting
If the engine cranks without starting, check PCM communication and live engine speed. No communication points toward supply, network, or module failure.
If the PCM communicates, U0100 stored in another module may not be the direct no-start cause. Diagnose all current powertrain and security codes instead of focusing on one history code.
No Crank With Many Warnings
For no-crank with several warnings, begin with battery condition and a complete scan. Record which powertrain, body, brake, and transmission modules respond.
Many modules going offline together suggests a shared supply or network problem. One missing module suggests a more localized branch, although network topology still matters.
2021 Ram 1500 U0100 Software Bulletin
One verified Ram-specific software case applies to a limited group of 2021 DT Ram 1500 trucks. FCA Technical Service Bulletin 08-037-21 was issued on March 16, 2021.
The NHTSA-hosted FCA bulletin applies to trucks built on or before January 5, 2021. They must have the 3.6L Pentastar V6 eTorque engine with Sales Code ERG.
The bulletin covers a Hybrid Control Processor software update. Its possible DTC list includes U0100-00, U0121-00, U0140-00, U1818-00, U0102-00, U1003-00, and P0562.
This bulletin does not apply automatically to every 2021 Ram 1500. It should not be generalized to 5.7L Hemi V8 trucks, other engines, later build dates, DS Ram 1500 Classic trucks, or other model years.
Confirm the VIN, platform, engine, sales code, build date, and current software level before applying it. The bulletin directs technicians to use wiTECH and reprogram the HCP with current software when its conditions match.
When Does U0100 Point To A Bad Ram 1500 PCM
U0100 should make the PCM a test target, not an automatic replacement part. A failed PCM becomes more plausible only after the supporting circuits pass their tests.
Before replacement, confirm all of the following:
- The PCM does not communicate when the fault is active.
- Battery and system voltage meet the applicable test conditions.
- Every required PCM battery and ignition feed is present.
- PCM grounds pass the specified loaded tests.
- CAN circuits are not open, shorted, or pulled down.
- PCM connector terminals have proper condition and tension.
- Other modules or software faults have been eliminated.
Our guide to Ram 1500 PCM problems covers failure symptoms and confirmation steps in more detail.
A replacement PCM may require correct part-number matching, VIN programming, configuration, and security setup. Requirements vary by year, so verify the procedure before purchasing a used, rebuilt, or new module.
U0100 Ram 1500 Quick Decision Matrix
| What You Find | Most Useful Next Check |
|---|---|
| Stored U0100 and normal operation | Battery history and intermittent connections |
| U0100 with P0562 | Battery, charging system, and electrical supply first |
| PCM missing from the network scan | PCM power, grounds, and CAN path |
| Many modules report PCM communication loss | Shared network, supply, or PCM branch |
| Only one module reports U0100 | Reporting module and its communication path |
| Matching 2021 3.6L eTorque truck | Check FCA Bulletin 08-037-21 applicability |
| Power and network pass but PCM remains offline | PCM testing, programming, and configuration |
Match your scan results to the next test instead of guessing at a replacement part. Record the complete network scan before disconnecting modules because lost evidence can lengthen diagnosis.
When To Stop DIY CAN Diagnosis
A complete scan, battery test, fuse check, ground inspection, and visible harness inspection are reasonable DIY tasks. Proceed only when you have safe access and the correct information for the model year.
Network resistance interpretation, oscilloscope testing, connector backprobing, splice diagnosis, and module isolation require wiring diagrams and suitable equipment. Incorrect probing can damage terminals or create additional communication faults.
Stop and use a qualified diagnostic shop when the PCM remains offline after basic checks. Do the same if the engine stalls in traffic, wiring has overheated, water entered a module connector, or programming may be required.
You can also use the NHTSA recall and manufacturer-communication lookup with the truck’s VIN. A Technical Service Bulletin is not automatically a recall, and it does not guarantee free repair.
Fix U0100 Ram 1500 Without Guessing
The correct u0100 Ram 1500 repair begins with a complete network scan. Determine whether the PCM communicates, which module logged the code, and whether voltage or other U-codes are present.
Check battery condition, PCM power feeds, grounds, connectors, and the correct CAN path before replacing a module. Apply a software bulletin only when the truck matches its year, platform, engine, sales code, and build-date restrictions.
Save every code and identify all responding modules before disconnecting parts. That scan record turns U0100 from a vague communication code into a useful diagnostic path.
5 U0100 Ram 1500 Questions Answered
Can A Weak Battery Cause U0100
Yes. Low or unstable system voltage can interrupt module operation and network communication. This becomes more likely after slow cranking, a dead battery, jump-starting, or a P0562 code. Test battery condition and charging performance, repair the voltage problem, then clear and rescan every module.
Can I Drive With U0100
A stored U0100 on a normally operating truck needs diagnosis but may not indicate an active failure. Do not continue driving if the code is active with stalling, loss of power, erratic shifting, repeated warning messages, or a no-start condition. Arrange diagnosis and safe transport.
Does U0100 Prove PCM Failure
No. U0100 reports lost PCM communication, not confirmed PCM failure. Missing power, a poor ground, damaged CAN wiring, connector faults, low voltage, software, or the module logging the code can cause it. Confirm power, ground, and network integrity before PCM replacement.
Why Are Several U Codes Present
Several modules may log communication codes when a shared network or power problem affects them together. Compare which modules respond and which codes are active. A single reporting module points toward a different branch than widespread loss of PCM communication.
Will Clearing U0100 Fix It
Clearing U0100 removes the stored record, not the underlying fault. It can help confirm whether a history code returns after a corrected battery problem. Save the full scan first, clear the codes after repairs, then operate and rescan the truck.
