How To Fix U0100 Code Based on What Your Tests Show [2026]

If you pulled a U0100 code from your truck, the repair could cost you nothing — or it could run over $1,000. The difference comes down to what your diagnostic tests actually show. This code means your truck’s engine control module has lost communication with one or more modules on the vehicle’s network, and that single fault can have four completely different causes.

We put together this guide specifically so you test in the right order and don’t replace an expensive ECM before ruling out a dead battery or a corroded connector. Start at the top and work your way down. For a full list of Dodge Ram check engine light codes that often appear alongside U0100, that reference is worth keeping open.

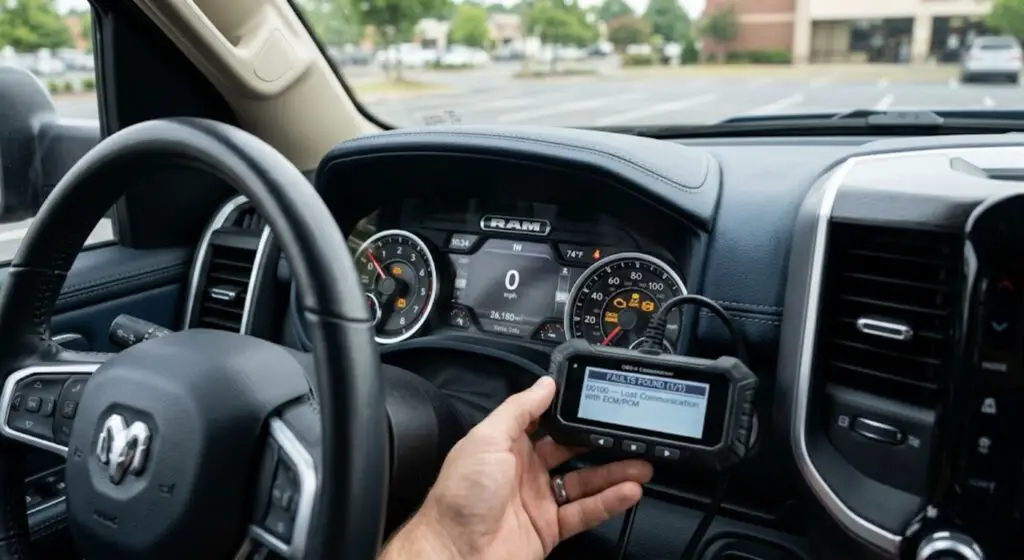

What U0100 Code Actually Means for Your Truck

The U0100 code stands for Lost Communication with ECM/PCM “A.” Your truck’s ECM — the computer that manages fuel injection, ignition timing, and transmission behavior — stopped exchanging data with one or more of the other control modules on the vehicle network.

Every module in your truck shares information over a two-wire circuit called the Controller Area Network, or CAN bus. The ABS module, the airbag module, the body control module, and the transmission control module all send and receive data over this same network. When the ECM drops off that network, every other module loses its primary data source at once — which is why U0100 often triggers a full dashboard warning light event.

The critical thing to understand is this: U0100 is a network communication code, not an ECM failure code. The ECM itself may be perfectly fine. The problem is often somewhere in the path between the ECM and the rest of the system — a weak battery, a corroded connector, or a shorted wire. Jumping straight to ECM replacement without testing that path first is how truck owners spend $1,200 unnecessarily.

Companion codes like U0101 (Lost Communication with TCM) or U0121 (Lost Communication with ABS) appearing at the same time are useful — they help narrow down which part of the network is failing.

4 Conditions That Determine How You Fix U0100

There are four conditions that cause U0100, and the right fix depends entirely on which one your tests reveal. Test them in this exact order — cheapest and easiest first.

1. Battery voltage is too low. Insufficient voltage disrupts CAN bus communication even when every component is physically intact. This is the most common trigger and the cheapest fix.
2. Wiring harness or connector damage. A frayed wire, corroded terminal, or loose connector breaks the communication path between the ECM and the network.
3. CAN bus short circuit. One of the modules on the network has a failed internal transceiver that pulls the entire bus down — and that module may not be the ECM.
4. ECM/PCM internal failure. The engine control module itself has a hardware or firmware fault. This is the last thing to check, not the first.

Test in this exact order. Skipping to Condition 4 without testing 1 through 3 first is how truck owners spend $1,200 on a part they didn’t need.

Start Here: Check Battery Voltage Before Anything Else

Before you touch a single wire, check your battery voltage — this single test resolves U0100 for a significant number of truck owners.

The CAN bus communication transceivers in the ECM require stable voltage to maintain network communication. When battery voltage drops below approximately 12.4 volts with the engine off, the ECM’s communication circuit can malfunction and drop off the network even if the ECM itself is undamaged. This is why U0100 frequently appears after a dead battery, a failed jump-start, or an extended period of sitting.

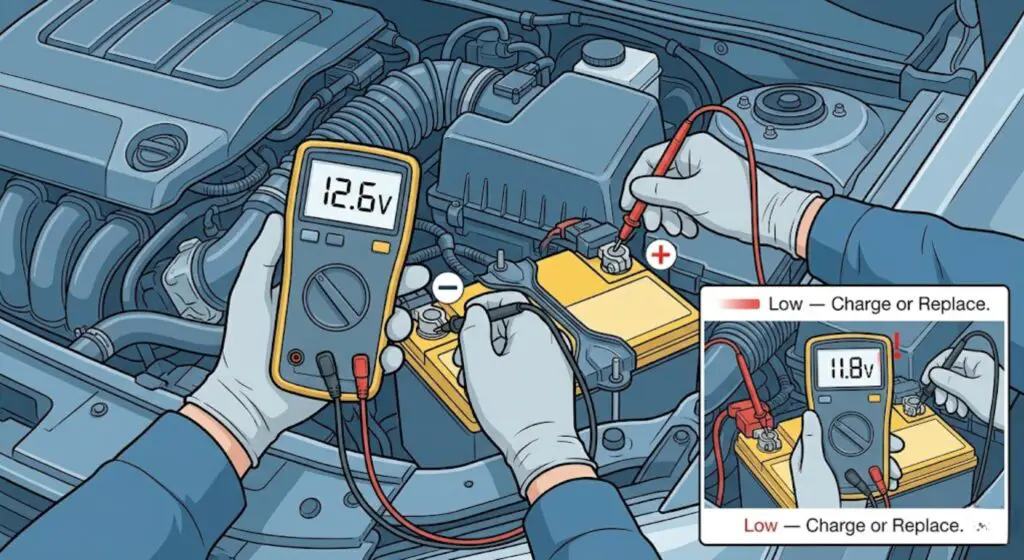

How to test:

1. Set your voltmeter or multimeter to DC voltage.
2. Touch the red probe to the positive battery terminal and the black probe to the negative terminal.
3. With the engine off, a healthy battery reads 12.6V or higher.
4. With the engine running, it should read 13.5V to 14.7V — confirming the alternator is charging.

If your reading is below 12.4V with the engine off, charge or replace the battery before doing anything else. Clear the U0100 code and rescan. A significant portion of U0100 cases close right here. After any battery work on a Ram, you may also need to reset your Dodge Ram 1500 computer to clear any residual module errors.

If battery voltage tests good, the problem is further down the circuit. Move to the wiring inspection.

If Battery Is Fine Check the Wiring and Connectors First

If your battery tested good, the next most likely cause is damaged or corroded wiring between the ECM and the rest of the vehicle’s network.

The ECM wiring harness is exposed to heat cycles, vibration, road debris, and moisture over years of use. The most common failure points are where the harness passes through the firewall grommet, near exhaust components where heat cracks the insulation, and at the ECM connector itself where corrosion builds up on the pins.

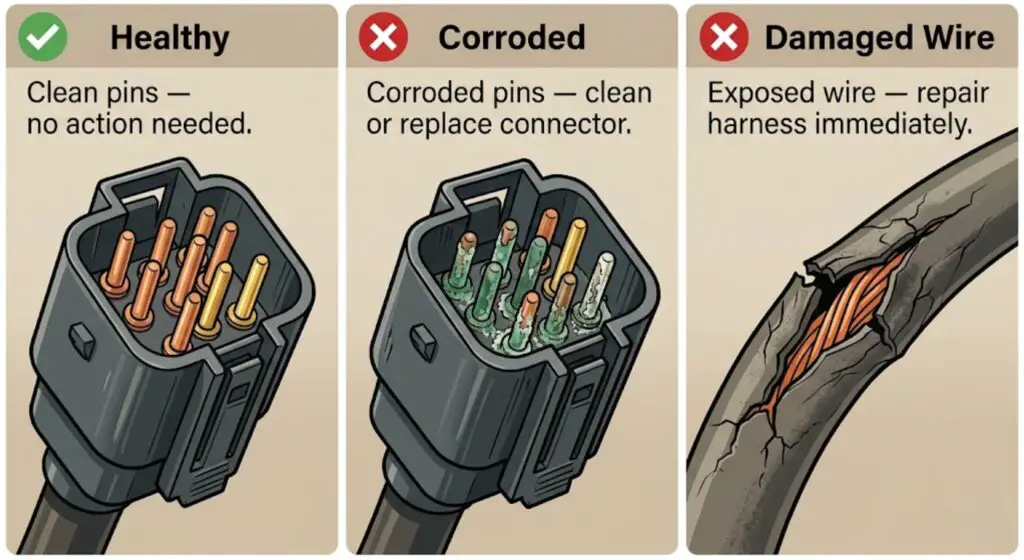

What to inspect:

1. Locate your ECM/PCM connector. On most Ram 1500 and 2500 trucks, the PCM sits in the engine bay near the air filter housing — the exact location and connector layout is covered in our Dodge Ram 1500 PCM location guide.
2. With the ignition off, unplug the ECM connector and inspect the pins closely. Look for green or white corrosion, bent pins, or pins that are pushed back into the housing.
3. Run your hand along the wiring harness from the ECM toward the firewall. Feel for areas where the insulation is cracked, melted, or abraded against a metal edge.
4. Perform a wiggle test: reconnect the harness, connect your OBD-II scanner, and wiggle the harness firmly at different points while watching for the U0100 code to appear or disappear. If the fault comes and goes with harness movement, you’ve found your problem.

If you find frayed insulation, corroded pins, or the code responds to the wiggle test, repair or replace the affected harness section. Do not proceed to the CAN bus test until wiring is confirmed clean — a wiring fault will produce false readings on every downstream test.

When Wiring Is Good Test the CAN Bus for Shorts

If wiring tests clean, the next check is the CAN bus circuit itself — this is where the ECM’s communication signal travels to and from every module in the truck.

The CAN bus uses two wires: CAN High and CAN Low. The standard resistance between these two wires, measured with the ignition off, is approximately 60 ohms. This value comes from two 120-ohm terminating resistors built into the network at each end of the bus, which combine in parallel. A reading near 60 ohms tells you the bus is intact. A reading near 0 ohms tells you there is a short somewhere on the bus.

How to test:

1. Locate your truck’s OBD-II port under the dashboard (standard location, driver’s side).
2. Set your multimeter to resistance (ohms).

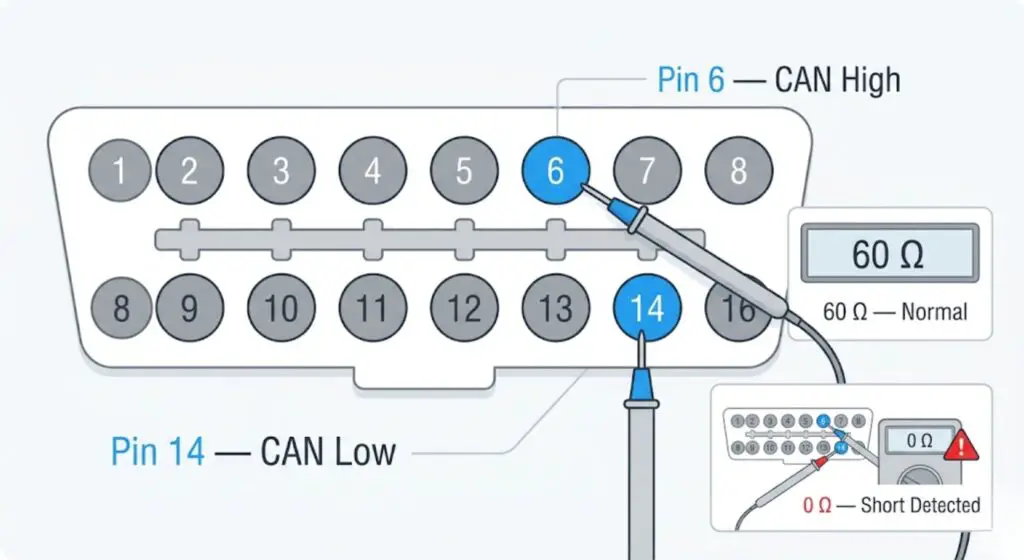

3. With the ignition completely off, probe OBD-II port Pin 6 (CAN High) and Pin 14 (CAN Low).
4. A healthy reading is 54 to 66 ohms. Anything below 40 ohms indicates a bus problem.

If your reading is near 0 ohms, a module on the network has a shorted CAN transceiver. The important thing to recognize here is that the shorted module may not be the ECM — it could be the ABS module, the BCM, or the TCM, all of which share the same bus. Scan each module individually and look for additional U-codes (U0101, U0121, etc.) that point to the specific module causing the short.

If resistance reads approximately 60 ohms and the bus is intact, the ECM/PCM itself is the likely culprit. Before replacing it, check the three edge cases in the next section — one of them may change your diagnosis completely. You can also review the full list of Dodge Ram 1500 PCM problems to compare your symptoms before committing to a replacement.

3 Edge Cases That Cause False U0100 Codes

Before you condemn the ECM, check these three situations — each one can produce a U0100 code with no actual ECM fault.

1. Aftermarket tuner or programmer plugged into the OBD-II port. Devices like performance tuners and scan monitors communicate over the same CAN bus. When these devices malfunction, interfere with network traffic, or are incompatible with the vehicle’s software, they can trigger U0100. The fix is simple: unplug the device, clear all codes, and rescan. If U0100 disappears, the tuner is the source — not the ECM.
2. Recent battery disconnect or jump-start from a dead battery. When the battery is fully disconnected or depleted to near zero during a jump event, modules can lose their communication sync. Some modules need to relearn their communication parameters through a normal drive cycle. Clear the U0100 code, drive the truck normally for 10 to 15 miles, and rescan before assuming the fault is still active.
3. A different module dragging down the CAN bus. This is the most misdiagnosed scenario. U0100 points to the ECM as the device that isn’t communicating, but the real culprit is often another module with a failed CAN transceiver pulling the bus voltage down. If your CAN bus resistance test showed a short, look for companion U-codes on other modules before assuming the ECM is at fault.

U0100 Decision Matrix: Test Result vs Recommended Fix

Use this table to match what your tests showed to the correct repair path.

Do not skip rows. Each test result must be confirmed before moving to the next line.

When To Stop DIY and Take It to a Dealer

Two specific situations require dealer-level tools — and attempting them without the right equipment will cost more time and money than the dealer visit itself.

ECM or PCM replacement requires VIN-specific programming. A replacement ECM purchased online or from a parts store will not work in your truck until it is programmed to your vehicle’s VIN. This requires a dealer or a shop with OEM-level programming software. Installing an unprogrammed module and then paying a dealer to program it often costs more than having the dealer handle the full replacement from the start. The 6.7 Cummins platform has its own ECM location and programming considerations — our 6.7 Cummins ECM location guide covers what you need to know before purchasing a replacement.

Inconclusive CAN bus diagnosis requires an oscilloscope. If your multimeter tests show borderline readings — not clearly 60 ohms, not clearly 0 — a shop uses an automotive oscilloscope to read the actual waveform on CAN High and CAN Low. A degraded waveform that looks nearly correct on a multimeter shows up clearly as corrupted on an oscilloscope. This is a dealer or advanced shop tool — consumer OBD-II scanners cannot perform this test.

U0100 combined with P0700 (Transmission Control System fault) signals that the TCM is involved. This combination requires a multi-module diagnosis that goes beyond standard DIY scope.

On driving safety: If U0100 is active and your truck stalls, enters limp mode, or refuses to start, do not drive it. Tow it. A truck in limp mode with lost ECM communication can behave unpredictably at highway speeds. Dealer diagnostic fees typically run $150 to $200 per hour — a single diagnostic session is almost always worth it compared to the cost of misdiagnosed parts.

Frequently Asked Questions

Can I drive my truck with a U0100 code?

If the truck drives normally with no stalling and no limp mode, short-distance driving is possible while you arrange diagnosis. If the truck stalls, hesitates badly, or enters limp mode, stop driving immediately and have it towed. The ECM could drop off the network entirely without warning.

How much does it cost to fix a U0100 code?

The cost ranges from around $100 to $200 for a battery replacement to $800 to $1,500 for an ECM replacement with VIN programming. Wiring repairs and module isolation fall in the middle. The test sequence in this guide exists specifically to get you to the right cost tier without overspending.

Will clearing the U0100 code fix it?

No. Clearing the code turns off the warning light temporarily, but the underlying communication fault remains. The code will return on the next drive cycle if the root cause is not repaired. Clear codes only after the actual repair is complete.

Can a bad battery really cause a U0100 code?

Yes — and it is one of the most common causes. When battery voltage drops below approximately 12.4 volts, the ECM’s CAN bus transceiver can malfunction and drop off the network. Always test battery voltage first before any other diagnostic step.

What other codes appear with U0100?

U0101 (Lost Communication with TCM), U0121 (Lost Communication with ABS Module), and P0700 (Transmission Control System fault) are the most common companions. Multiple U-codes appearing together almost always point to a bus-level fault or a shorted module rather than an ECM failure.

Conclusion

Fixing a U0100 code starts with the cheapest test and works toward the most expensive. Battery voltage, then wiring and connectors, then CAN bus resistance — only after all three pass does ECM replacement become the logical conclusion.

Most U0100 cases on Ram trucks resolve at the battery or wiring stage. Start with a voltmeter. If battery and wiring check out, bring the truck to a shop with a full network scan tool and request a module-by-module scan before authorizing any ECM replacement. Replacing the right part the first time costs a fraction of replacing the wrong one.
