The p0562 code dodge owners dread is straightforward in definition but tricky in diagnosis: your PCM detected system voltage dropping below 10.4 volts for at least 20 consecutive seconds. What makes it complex is that five different root causes can trigger that same reading — and each one requires a completely different fix.

This guide walks you through each condition so you find your branch, not just a generic parts list.

What P0562 Actually Means on a Dodge

P0562 tells you one specific thing: the voltage reaching your Dodge’s PCM dropped below 10.4V and stayed there long enough to log a fault.

The PCM monitors battery and charging voltage continuously. When that number dips below threshold and holds for 20+ seconds, it sets P0562 and may trigger a check engine light. On some Dodge Ram models, it can also push the truck into limp mode if voltage stays critically low.

When voltage drops that far, these systems start behaving erratically:

• Fuel injector pulse timing (causes rough idle or misfires)
• Transmission solenoid operation (causes erratic shifting)
• Sensor voltage references (causes false readings across multiple sensors)
• PCM processing accuracy (can create cascading fault codes)

That last point matters. A single P0562 can cause two or three other codes to appear at the same time. Fix the voltage issue first — secondary codes often clear on their own.

The part that matters is WHY it dropped — and that’s where the paths split.

5 Conditions That Change Your P0562 Fix

Before testing anything, match your situation to one of these five conditions.

1. Weak or dead battery — Voltage collapses under load. Most common cause on trucks over 4 years or 60,000 miles. Your signal: slow cranking on start-up, or the code appeared during cold weather.
2. Failing alternator — Battery drains while driving. Voltage fluctuates at idle. Your signal: battery warning light appeared while driving, or voltage gauge needle drops below center.
3. Corroded or loose connections — Code is intermittent. Clears and returns. No steady drain, no consistent symptom pattern. Your signal: code appeared and disappeared on its own, especially after rain or temperature changes.
4. PCM ground strap failure — Dodge-specific failure, particularly on 3rd and 4th gen Ram trucks. The PCM sees low voltage even when the charging system is functioning correctly. Your signal: battery and alternator both test fine, but the code keeps returning.
5. Aftermarket accessory overload or wiring fault — Code appeared after installing a winch, aux lighting, audio system, or lift kit lighting. Your signal: P0562 showed up within weeks of an accessory installation.

How To Diagnose a Weak or Failing Battery

If your signal matched Condition 1, start here — this test takes five minutes with a multimeter.

Tools needed: Digital multimeter (set to DC voltage)

Test 1: Resting voltage

1. Turn the truck off. Wait 15 minutes with nothing drawing power.
2. Set your multimeter to DC voltage.
3. Connect red lead to positive terminal, black lead to negative.
4. Read the voltage.

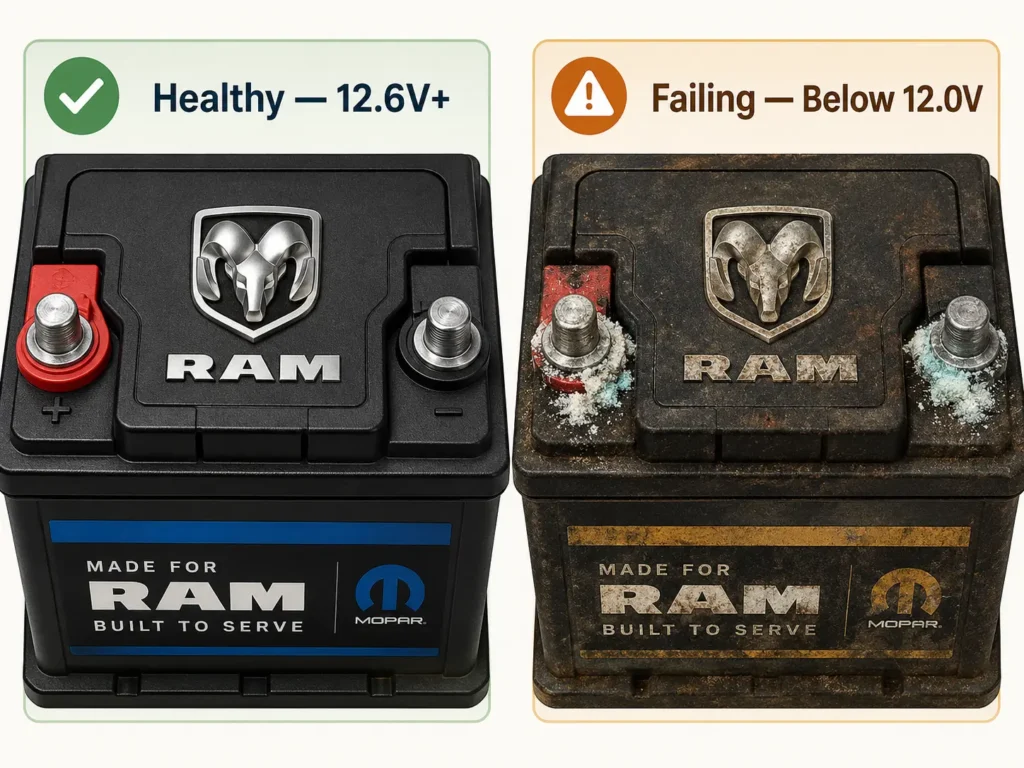

Interpret the result:

• 12.6V or higher — Battery is fully charged. Not the issue. Move to the alternator test.
• 12.4V to 12.5V — Battery is slightly discharged. Charge it and retest before replacing.
• 12.0V to 12.3V — Battery is significantly discharged or aging. Perform a load test.
• Below 12.0V — Battery is failing or has a dead cell. Replace it.

Test 2: Load test

A resting voltage test alone doesn’t catch a battery that fails under load. If your resting reading was borderline, take the truck to AutoZone, O’Reilly, or any parts store — they load test for free in under 10 minutes.

If the battery fails the load test, replace it. For Ram 1500 owners, see the 2019 Ram 1500 battery replacement guide for step-by-step instructions.

If the battery tests healthy under load, the problem is upstream — move to the alternator and connection check.

Alternator Failure vs Loose Connection What To Check

If the battery is fine, you have two likely culprits — and they require different fixes.

Branch 1 — Failing Alternator

The alternator should output 13.5V to 14.8V at idle on most Dodge Ram gas engines. Diesel models with dual alternator setups follow the same spec.

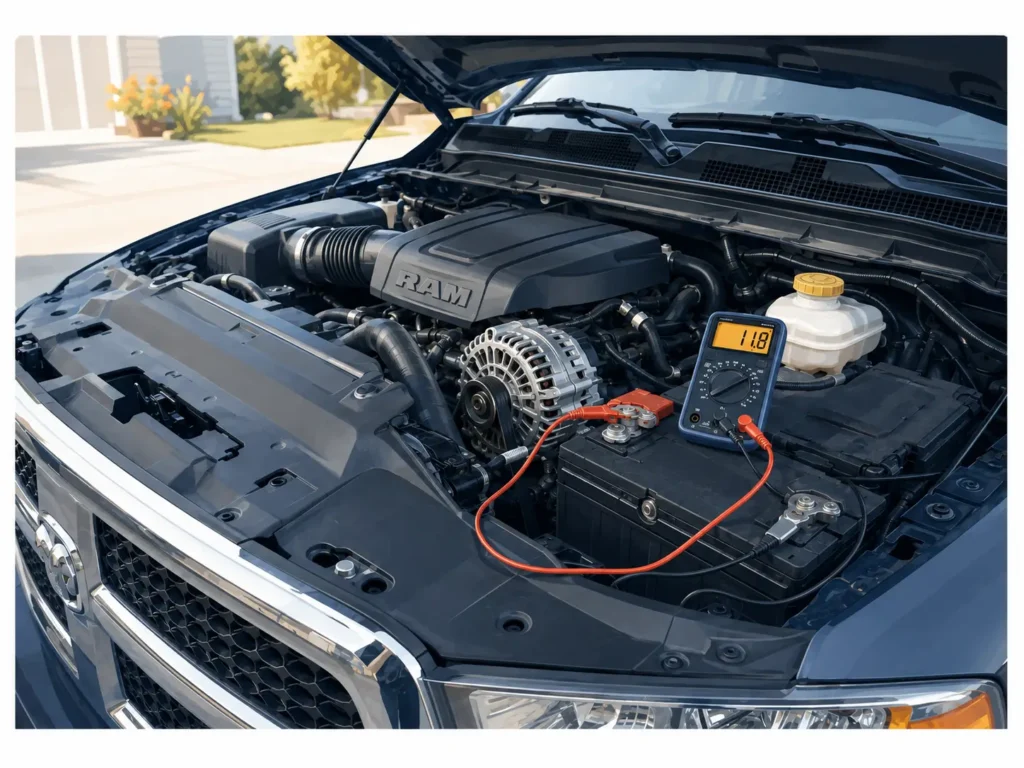

Test the charging output:

1. Start the truck and let it idle.
2. Place multimeter leads on the battery terminals (engine running).
3. Read the voltage.

Interpret the result:

• 13.5V to 14.8V at idle — Alternator output is normal. The issue is elsewhere.
• Below 13.0V at idle — Alternator is undercharging. It may be failing or a connection to the alternator is loose.
• Above 15.0V at idle — Alternator is overcharging. This is also a fault — replace the voltage regulator or alternator.

Next, rev the engine to 2,000 RPM while watching the voltage reading. If voltage drops below 13.5V under rev, the alternator is weak and needs replacement.

Dodge Ram alternators typically last 80,000 to 120,000 miles. If your truck is in that range and the test shows undercharging, replacement is the correct call. Alternator replacement on a Ram 1500 typically runs $250 to $450 parts and labor at an independent shop, or $350 to $600 at a dealer.

Branch 2 — Corroded or Loose Connections

If the alternator output is in spec, the next step is a physical inspection of every ground and power connection in the charging circuit.

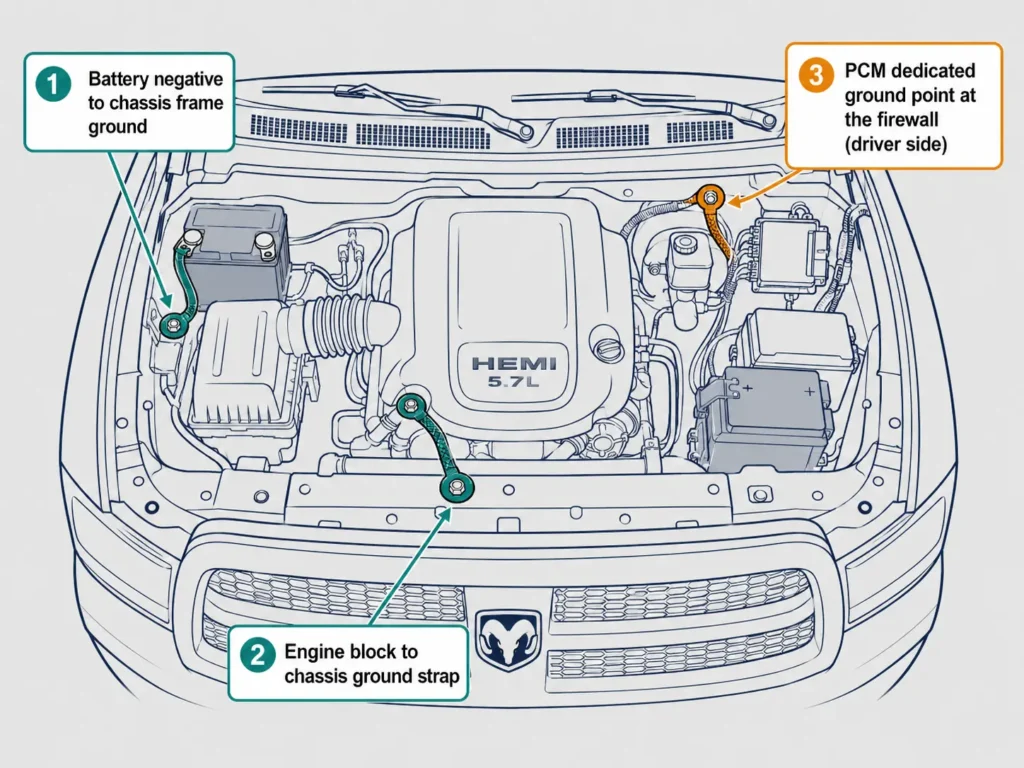

Check these specific points in this order:

• Battery terminals — Look for white, blue, or green buildup. A heavy coating equals significant resistance.
• Ground strap from battery negative to chassis — Pull it, inspect the connection point on the frame, reattach firmly.
• Ground strap from engine block to chassis — Located near the bellhousing on most Ram models. Loosen, clean with sandpaper, reattach.
• Alternator B+ cable — The heavy red wire running from the alternator to the battery. Check for corrosion at both ends.

If terminals show corrosion: clean with a baking soda and water solution, reconnect firmly, clear the code with your scanner, and drive 50 miles.

If the connection was simply loose: tighten it, clear the code, retest.

If the code returns after cleaning and tightening everything: you’re in edge case territory. Move to the next section.

For a broader look at how voltage faults can produce multiple Dodge Ram 2500 check engine light codes simultaneously, that pattern is worth understanding before clearing anything.

3 Edge Cases That Fool Most Dodge Owners

If you’ve tested the battery, alternator, and connections — and the code is still there — you’re in edge case territory. These three situations pass basic testing but still trigger P0562.

Edge Case 1 — PCM Ground Strap Failure

This is a documented failure on 3rd gen (2002–2008) and 4th gen (2009–2018) Ram trucks. The PCM has a dedicated ground point, typically at the firewall or on the driver-side inner fender. When that ground develops high resistance, the PCM sees artificially low voltage even when the charging system is working perfectly.

To test: with the truck off, measure resistance between the PCM ground bolt and the battery negative terminal. You should read below 0.5 ohms. If you read 1 ohm or higher, the ground strap has failed.

Fix: replace or clean and re-terminate the PCM ground strap. This is a $15–$40 DIY repair in parts — labor at a shop runs $80 to $150. For more context on how this affects your truck’s brain, the Dodge Ram 1500 PCM problems guide covers the downstream effects in detail.

Edge Case 2 — Aftermarket Accessory Overload

If P0562 appeared after installing a winch, high-output LED light bars, a secondary battery system, or a high-powered audio amplifier, the issue may be a total electrical load exceeding your alternator’s output capacity.

Stock Dodge Ram 1500 alternators produce 136 to 160 amps depending on year and engine. A single winch can draw 400+ amps at full pull. Even average draw from multiple accessories can push the alternator past its sustainable output under load.

Fix: calculate your total accessory draw and compare it to your alternator’s rated output. If you’re within 80% of capacity, you’re in the danger zone. Upgrade to a high-output alternator (180–220 amp units are available for most Ram applications) or reduce the accessory load.

Edge Case 3 — Wiring Harness Fault

If all components test fine and the code is intermittent — appearing and disappearing without a clear pattern, often correlating with rain, temperature swings, or vibration — you likely have a chafed wire or corroded connector somewhere in the charging circuit.

This is the hardest to diagnose without wiring diagrams and a proper power probe. Suspect locations are where the wiring harness routes near exhaust components, through firewall grommets, or along frame rails where rubbing occurs.

Fix: this condition requires systematic wiring trace work. Unless you have the factory service manual wiring diagrams and a power probe or oscilloscope, this is an escalation candidate.

P0562 Dodge Diagnosis and Repair Cost Breakdown

Match your test results to the table below before buying any parts.

Costs reflect parts and labor estimates for Dodge Ram 1500 gas models. Ram 2500/3500 labor rates are typically 15–25% higher due to component access. Dealer labor runs roughly 30–40% above independent shop rates.

When To Stop DIY and Take It to a Shop

Some P0562 situations are beyond multimeter work — here is exactly when to stop.

• IF a wiring harness fault is confirmed — Stop. You need factory wiring diagrams, a power probe, and the ability to trace circuits under load. An independent shop with Dodge experience is the right call, not a dealer at dealer pricing.
• IF the PCM itself is suspected as faulty — Stop. PCM replacement on a Dodge Ram requires VIN-specific programming. Aftermarket remanufactured PCMs exist, but they still require flash programming with a dealer-level tool or an independent shop with a J2534 flash device.
• IF the code returns within 100 miles after fixing what the tests identified — Stop and bring it in. A returning code after a confirmed fix means the actual root cause was not found. A shop with live data monitoring can catch what static testing misses.
• IF voltage readings are wildly inconsistent — For example, swinging from 11V to 15V randomly at idle — this can indicate an internal short or a failing voltage regulator that requires oscilloscope testing.
• IF your truck is under warranty or CPO coverage — Go to a dealer first. DIY electrical work on a covered vehicle can void the powertrain warranty on any system you touch. It isn’t worth the risk.

After any electrical repair on a Dodge Ram, resetting the Dodge Ram 1500 computer lets the PCM relearn correct parameters before you call the fix complete.

Frequently Asked Questions

Is it safe to drive my Dodge with a P0562 code?

It depends on severity. If your voltage is reading below 11V while driving, critical systems are already compromised and you shouldn’t be on the road. If the code is intermittent and the truck drives normally with no other symptoms, short trips to a shop are acceptable — but don’t ignore it.

Can a bad ground cause P0562 on a Dodge?

Yes — a corroded or broken ground strap is one of the most overlooked causes on Dodge Ram trucks, particularly 3rd and 4th gen models. Test ground resistance with a multimeter before replacing any expensive components.

Will P0562 clear itself on a Dodge?

The code will clear if voltage returns to the normal range, but the underlying cause does not fix itself. If the cause is intermittent — like a loose connection — the code may disappear temporarily and return after the next cold start or heavy electrical load.

How much does fixing P0562 cost on a Dodge Ram?

It ranges from under $40 for a terminal cleaning to $600 or more for an alternator replacement, depending on which condition you have. Use the diagnosis table above to identify your specific cause before spending anything.

Does P0562 affect Dodge Ram transmission shifting?

Yes — low system voltage directly affects transmission solenoid performance and can cause erratic or harsh shifting, or trigger the truck into limp mode. Resolving the voltage fault typically restores normal shifting behavior without any separate transmission repair.

Conclusion

The p0562 code dodge owners deal with is fixable in most cases — the key is identifying which of the five conditions you actually have before replacing anything. Most cases trace back to a battery or alternator that has reached the end of its service life.

If basic testing comes back clean on both, check the PCM ground strap before assuming an expensive electrical fault. That $20 fix resolves P0562 on more Dodge Ram trucks than most owners expect.

Start with the resting voltage test, match your result to the diagnosis table, and follow your branch. You’ll have a direction in under 10 minutes.
