2003 Chevy Silverado Bulb Size Chart Diagram: 2026 Troubleshooting
The 2003 Chevy Silverado uses 9005 (high beam) and 9006 (low beam) bulbs. Front turn signals utilize 3157A, while taillights use 3057. Ensure the electrical system is off during replacement. Always verify the specific configuration, as Silverado light assemblies require secure locking tabs to maintain weather-tight seal integrity.
📌 Key Takeaways
- High beam headlights require 9005 bulbs; low beams require 9006 bulbs for standard halogen housing.
- The system configuration uses dual-filament 3157 bulbs for multi-purpose front turn signal and parking functions.
- Always wear nitrile gloves when handling glass bulbs to prevent oil transfer, which causes premature heat failure.
- A common mistake involves forcing the bulb into the socket without aligning the locking tabs, leading to housing water leaks.
- If a new bulb fails to illuminate, test the harness ground point before assuming a multi-functional switch failure.
Maintaining the electrical integrity of a 2003 Chevy Silverado requires precision, as the vehicle utilizes a sophisticated 12-volt DC system sensitive to resistance fluctuations. Whether you are replacing a burnt-out filament or upgrading to modern lighting technology, utilizing the correct 2003 Chevy Silverado bulb size chart is vital for avoiding CANbus errors and terminal corrosion. This guide provides technical specifications, schematic analysis, and configuration data to ensure your lighting system operates within OEM design parameters. From headlight assemblies to auxiliary turn signals, understanding the exact component structure prevents common installation failures, ensuring that your vehicle remains compliant with safety standards while maintaining optimal luminous output.
Prime for Young Adults — 6 Months Free
Students and 18–24s get six months of Prime free, then half price.

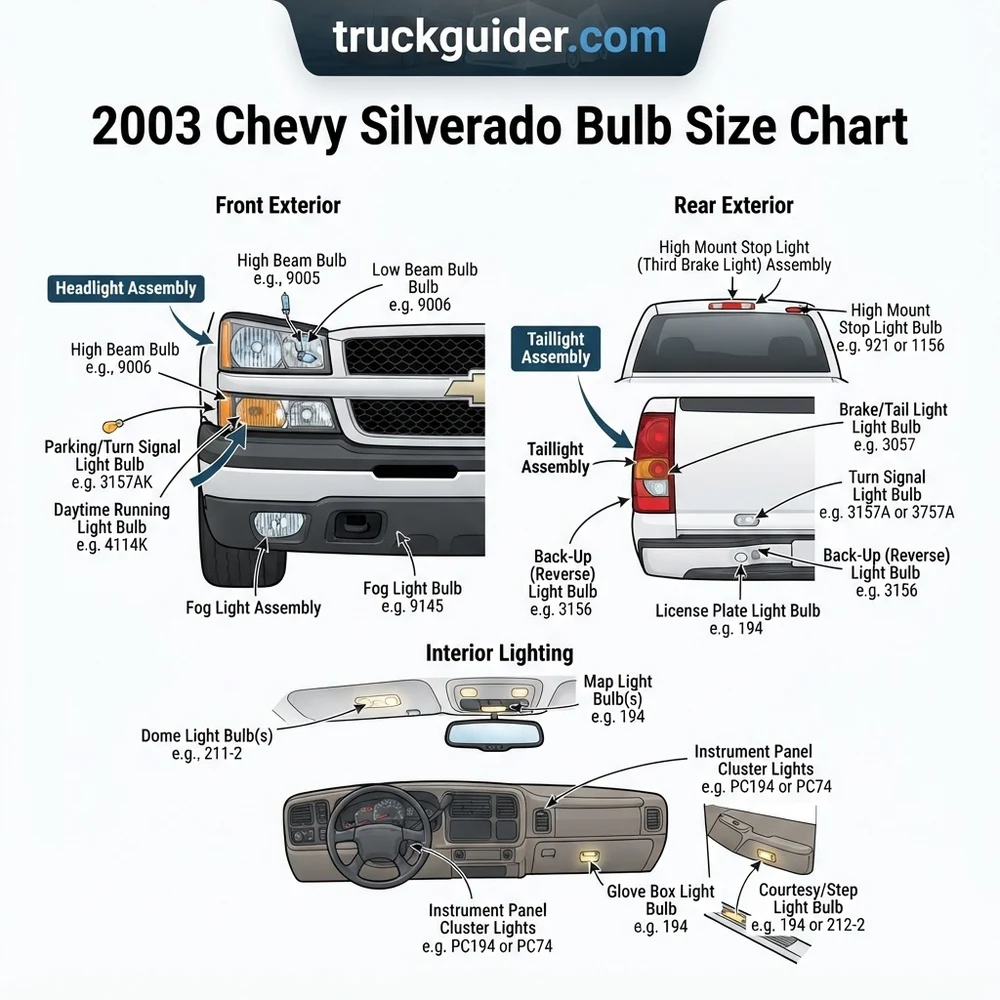

Start 6 Months Free[DIAGRAM_PLACEHOLDER: A technical line-art schematic of the 2003 Chevy Silverado front and rear lamp assemblies. Labels point to: 1) Low Beam (9006), 2) High Beam (9005), 3) Front Turn Signal (3157A), 4) Tail/Brake (3057), 5) Back-up Light (3156), 6) License Plate Light (194). Callout boxes detail terminal pinouts for the 3157 socket assembly.]
Comprehensive 2003 Chevy Silverado Bulb Size Chart and Specifications
Recommended Best Deal Products
To ensure the longevity of your lighting system, every technician must adhere to the specific wattage and base requirements defined by the manufacturer. The 2003 model year utilizes a mix of glass-wedge and metal-base automotive bulbs. When cross-referencing your 2003 Chevy Silverado bulb size chart, prioritize high-quality halogen or LED replacements that match these specific amperage draws to prevent overheating the wiring harness.
| Lighting Position | Bulb Size (OEM) | Application Notes |
|---|---|---|
| Low Beam Headlight | 9006 (HB4) | Single filament, 55W |
| High Beam Headlight | 9005 (HB3) | Single filament, 65W |
| Front Turn/Park | 3157A | Dual filament, Amber |
| Tail / Brake Light | 3057 | Dual filament, Red |
| Back-up Light | 3156 | Single filament |
| License Plate Light | 194 | Wedge base |
| Dome/Interior | 211-2 | Festoon type |
Headlight alignment torque for the adjusting screws should not exceed 1.5 Nm. Over-tightening will strip the plastic housing threads and compromise the integrity of the headlight seal, leading to internal condensation.
When selecting components, avoid low-cost generic imports. The structure of the bulb base must meet SAE (Society of Automotive Engineers) standards to ensure a secure lock into the housing. Specifically, the 3157A amber bulbs for the front turn signals require a specific amber coating that resists fading over time. If you observe the coating flaking, the bulb must be replaced immediately to maintain legal color output for turn signal indicators. Always inspect the wiring harness connector for signs of thermal stress or melted plastic; if the connector shows brown discoloration, it should be replaced in tandem with the bulb to ensure proper electrical contact.
How to Properly Install and Replace Your Silverado Lights
Replacing bulbs in a 2003 Silverado requires knowledge of the modular headlight assembly. Accessing the bulbs involves removing the locking clips at the top of the grille assembly. Use a non-marring trim removal tool to prevent scratching the factory paint. Once the clips are removed, pull the assembly forward to gain access to the back of the housing.
Never handle halogen capsules with bare fingers. Oils from your skin will create hot spots on the quartz glass, causing premature failure of the filament. Use latex gloves or a clean, lint-free cloth when handling all high-intensity bulbs.
1. Disconnect the negative battery terminal: Always isolate the 12-volt DC system before handling electrical components to prevent short circuits during assembly.
2. Release the retaining pins: On the 2003 model, pull the two vertical retaining pins upward. Once these are removed, the entire headlight housing slides straight out toward the front of the vehicle.
3. Socket rotation: Rotate the bulb socket counter-clockwise (approximately 90 degrees) to unlock it from the housing.
4. Terminal inspection: Visually check the electrical pins inside the socket for oxidation. If present, use a specialized electrical contact cleaner and a small nylon brush to restore connectivity.
5. Installation: Insert the new bulb, ensuring the locking tabs seat firmly into the housing. Reinstall the assembly by pushing it back into the alignment tracks until the retaining pins click into position.
6. System test: Reconnect the battery and engage the light switch through all positions (parking, low beam, high beam) to verify the configuration is correct and no dimming occurs due to poor contact.
Properly securing the housing is essential to maintain the beam pattern. If the assembly is loose, the light output will be erratic, potentially blinding oncoming drivers. The 2003 model year was the final iteration of the “cat-eye” front-end design for the GMT800 platform, which features a distinct housing layout that requires the assembly to be perfectly flush with the body panels. If the assembly does not sit flush, verify that the guide pins at the base of the unit are correctly aligned with the mounting holes.
Troubleshooting Common 2003 Chevy Silverado Lighting Issues
Recommended Best Deal Products
Electrical gremlins are common in aging equipment, particularly when the system has been modified. Using the 2003 Chevy Silverado bulb size chart as a reference, you can isolate whether a failure is due to a faulty bulb, a blown fuse, or a resistance mismatch in the vehicle’s electrical system.
Audible — Listen Free for 30 Days
One free credit a month and thousands of titles included.
Listen Free for 30 Days| Symptom | Primary Cause | Corrective Action |
|---|---|---|
| Hyper-flash | Lowered resistance (LEDs) | Install load resistors or LED-compatible flasher relay |
| Dim Headlights | Voltage drop/Ground corrosion | Clean chassis ground points; inspect harness for resistance |
| Flickering Lights | Loose socket terminal | Replace socket; ensure tight mechanical fit |
| Blown Fuse | Short to ground | Trace wiring harness for exposed insulation |
When upgrading to LED conversion kits, the most common issue is “hyper-flash,” where the turn signal blinks at double speed. This occurs because the factory flasher relay is designed to monitor the specific current draw of a 3157 incandescent bulb. Since LEDs draw significantly less amperage, the relay interprets this as a burnt-out bulb. To rectify this without using resistors, replace the stock flasher module with an electronic load-independent unit designed for the GMT800 electrical architecture.
For vehicles frequently used in off-road or high-vibration environments, consider using dielectric grease on all socket connections. This protects the electrical contacts from moisture ingress, which is the primary cause of intermittent failure in older Silverado lighting systems.
2003 Chevy Silverado Bulb Size Chart Questions Answered
Can I use HID bulbs in my 2003 Chevy Silverado headlight housings?
Technically, it is not recommended. The stock headlight housings are designed for halogen capsules, which feature a specific filament position. HID conversion kits often create glare because the light source position is incompatible with the reflector optics, causing a scattered beam pattern that is unsafe for other drivers. Always stick to the 9006/9005 specifications for the best results.
What causes the daytime running lights (DRL) to burn out so frequently?
The DRL system in the 2003 Silverado runs at a lower voltage but is active whenever the vehicle is in gear, leading to high thermal buildup within the assembly. Ensure you are using “Long Life” designated bulbs (LL) which are engineered with a thicker filament to withstand constant vibration and thermal cycling.
Is it necessary to use CANbus-compatible LEDs?
While the 2003 Silverado does not use a complex modern CANbus system, utilizing “error-free” or load-balanced LEDs is beneficial. These bulbs contain integrated circuitry that provides consistent electrical resistance, which prevents flickering and ensures the BCM (Body Control Module) correctly registers the light’s state.
Where are the ground points for the tail light system located?
The tail light harness ground is typically located behind the rear frame cross-member on the driver’s side. If you notice both tail lights flickering or behaving erratically, check this specific ground point for rust or loose bolts. A solid metal-to-metal connection is critical for the stability of the entire rear lighting configuration.
Step-by-Step Guide to Understanding the 2003 Chevy Silverado Bulb Size Chart
Recommended Best Deal Products
Identify – Review the bulb size chart to verify the correct part number for the specific failed light component.
Locate – Access the rear of the headlight or taillight assembly by removing the necessary retaining bolts or clips.
Audible Premium Plus — Annual Membership
12 audiobook credits up front, plus the full Audible catalogue.
See Annual PlansReference – Use the diagram to confirm the socket rotation direction and release mechanism for the specific assembly structure.
Connect/Route – Insert the new bulb into the harness socket, ensuring the locking tabs are aligned and clicked securely into the housing.
Verify – Turn on the lighting system to ensure the bulb operates correctly across all intended modes before finalizing the assembly.
Troubleshoot – If the bulb remains unlit, test the socket wiring harness for voltage using a multimeter to confirm power flow.
