2014 Ram 1500 Transmission Guide What To Do Based On Your [2026]

If your 2014 Ram 1500 is shifting rough, shuddering, or slipping, the right fix depends on one thing first — which transmission is actually in your truck. The 2014 Ram 1500 came with two completely different units, and the diagnosis, fluid type, and repair costs vary significantly between them.

This guide walks you through identification first, then takes you through a structured decision path. Know your transmission, know your symptom, and you’ll know exactly what to do next. Start with Step 1 before making any repair decisions.

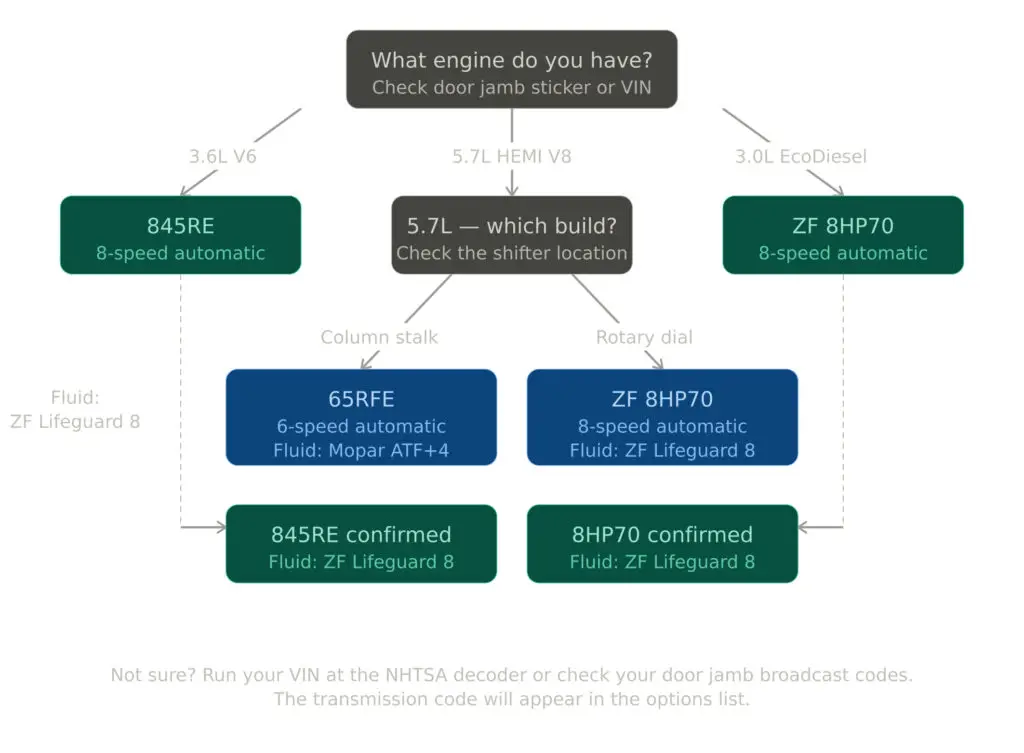

Which Transmission Does a 2014 Ram 1500 Have

The 2014 Ram 1500 came with two different transmissions depending on your engine and trim.

• 3.6L Pentastar V6 — 8-speed automatic (845RE, Chrysler’s licensed version of the ZF 8HP45)
• 5.7L HEMI V8 — either the 6-speed 65RFE or the 8-speed ZF 8HP70, depending on build date and trim
• 3.0L EcoDiesel V6 — 8-speed ZF 8HP70

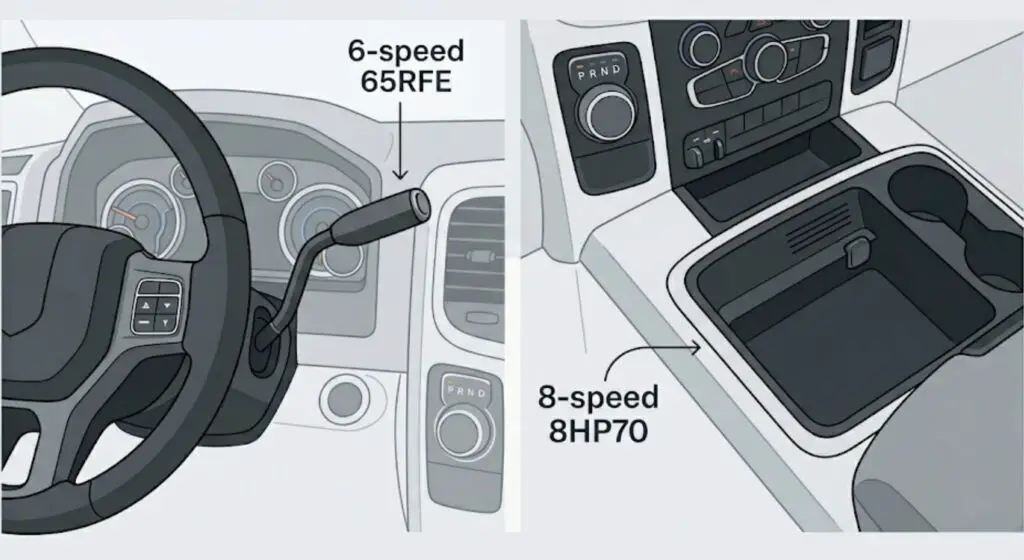

The 5.7L HEMI is the one that causes confusion. Early 2014 production HEMI trucks often got the 65RFE. Later builds — especially those with a dial shifter on the dash — got the 8HP70. If your shifter is a column stalk, you have the 6-speed. If it’s a rotary dial, you have the 8-speed.

How To Find Your Transmission Code

The fastest method is your door jamb sticker or a VIN decoder. Look for the transmission code in the broadcast codes section. You can also visit the Ram 1500 8-speed transmission review on this site to cross-reference 8HP70 characteristics against what you’re experiencing.

Once you know which transmission you have, the next step is understanding the five variables that determine your repair path.

5 Variables That Decide What You Should Do Next

Before you call a shop or order parts, work through these five inputs. They determine which branch of this guide applies to you.

1. Transmission type — 65RFE (6-speed) or 8HP70/845RE (8-speed). Established above.
2. Specific symptom — shudder at highway speed, slipping under load, delayed engagement, hard shifts, no reverse, or whining noise. Each points to a different cause.
3. Current mileage — under 80K, 80K to 150K, or over 150K. This directly affects whether a rebuild is cost-effective.
4. Fluid service history — has the transmission fluid been changed in the last 30,000 miles? If unknown, assume no.
5. Truck value vs repair estimate — if the repair cost exceeds 50–60% of the truck’s current market value, the math changes.

How To Diagnose Your 2014 Ram 1500 Transmission Symptom

Start with the fluid — most transmission symptoms in the 2014 Ram 1500 are misdiagnosed because owners skip this step.

Step 1 — Check fluid condition. Pull the dipstick (65RFE has one; 8HP70 does not have a traditional dipstick — use the fill plug method or have a shop check it). Healthy fluid is red or light pink. Dark brown, black, or burnt-smelling fluid is a direct signal that heat damage has occurred.

• If fluid is dark or burnt with no stored DTCs → do a fluid service first before any other repair. This alone resolves a meaningful percentage of shudder and shift-quality complaints.

Step 2 — Note when and where the symptom occurs. Cold start only? Highway speed only? Under load while towing? Specific gear range? A shudder that appears only at 45–55 mph in 8th gear and disappears when you manually downshift points strongly to the torque converter lockup clutch, not the transmission itself.

Step 3 — Scan for DTCs. Use an OBD-II reader to pull any stored or pending codes.

• If codes P0730 through P0736 are present → solenoid pack failure is the likely cause, not a full rebuild. See the Dodge Ram shift solenoid replacement guide for specifics.
• If no codes are present but symptoms persist after a fluid service → move to the branch sections below.

If your diagnosis points to a minor fix, the next section covers exactly what that looks like and what it costs.

Minor Fix Branch: Service, Solenoid or Software Update

If your diagnosis lands here, you’re in the best position — these fixes are under $500 in most cases and resolve the majority of shift quality complaints on the 2014 Ram 1500.

Fix 1: Transmission Fluid Service

The correct fluid depends on which transmission you have.

• 65RFE — Mopar ATF+4 (MS-9602 spec). Do not substitute with a generic multi-vehicle ATF.
• 8HP70 / 845RE — ZF Lifeguard 8 fluid. This is transmission-specific and matters. Using ATF+4 in the 8-speed is incorrect.

A shop fluid service typically runs $150–$250 including filter replacement. If the fluid is dark and the symptom is a shudder or rough shift, do this first. Many owners report the shudder resolves within 500 miles of a proper fluid change with the correct spec fluid.

Fix 2: Solenoid Pack Replacement

If codes P0750, P0755, P0760, or P0765 are stored, the issue is a failed shift solenoid, not internal transmission damage. Solenoid replacement on the 65RFE runs approximately $300–$500 at an independent shop, parts included. This is a valve body-accessible repair and does not require full transmission removal in most cases.

Fix 3: TCM Software Update

Early 8-speed 2014 Ram 1500 trucks had known shift calibration issues that Chrysler addressed through TCM software updates. If your 8HP70 is exhibiting rough or hunting shifts but fluid and codes check out clean, a dealer TCM reflash may be the fix — and it’s typically covered under TSB at no cost. See the TCM reset guide for Dodge Ram 1500 for background on what this involves.

If your symptoms go beyond this branch — slipping under load, no reverse, or shudder that persists after a fluid service and TCM update — the next section applies.

Major Repair Branch: When Rebuild or Replacement Makes Sense

When the minor fix branch doesn’t apply, you’re choosing between two real options — rebuild or replace. Both have legitimate cases.

Option A: Transmission Rebuild

A rebuild makes the most sense when mileage is under 120,000, the truck is otherwise sound, and you have a shop with specific experience on the 65RFE or 8HP70.

Rebuild kit costs for the 8HP70 run $1,800–$2,400 depending on whether you replace the torque converter and whether it’s a stock or performance-spec kit. Add 4–6 hours of labor at shop rates ($100–$150/hr), and total installed cost typically lands between $2,500–$3,500. For the 65RFE, rebuild costs are generally lower — expect $1,800–$2,800 all-in at a reputable independent shop.

Review the full cost breakdown at the Dodge Ram 1500 transmission rebuild cost article for detailed figures.

Option B: Remanufactured Replacement Unit

A factory-reman unit is the better path if mileage is over 120,000–150,000, the truck has already had a prior rebuild, or you want a warranty with the repair. Mopar remanufactured units for the 2014 Ram 1500 typically run $3,000–$3,500 for the unit alone. Installed cost at a dealer runs $4,500–$5,500 depending on the region and transmission type.

The advantage: a reman unit comes with a 3-year warranty from Mopar and has been fully rebuilt to factory spec. For a truck in the 130K+ range, this is often the cleaner long-term decision.

The cost-vs-value gate: If the total repair cost exceeds 50–60% of your truck’s current market value, reconsider. A 2014 Ram 1500 with 150K miles is worth roughly $12,000–$18,000 in average condition. A $5,000 reman install on a $14,000 truck is a reasonable bet. The same repair on a truck worth $8,000 needs harder scrutiny.

If mileage is under 120K and the truck is otherwise sound → a rebuild is cost-effective. If over 150K with multiple issues → a remanufactured unit with warranty makes more sense.

Before you commit to either path, check whether your situation matches any of the three edge cases below — they change the math.

3 Edge Cases That Change the Decision

Three situations alter the standard recommendation. Check whether any of these apply before finalizing your repair path.

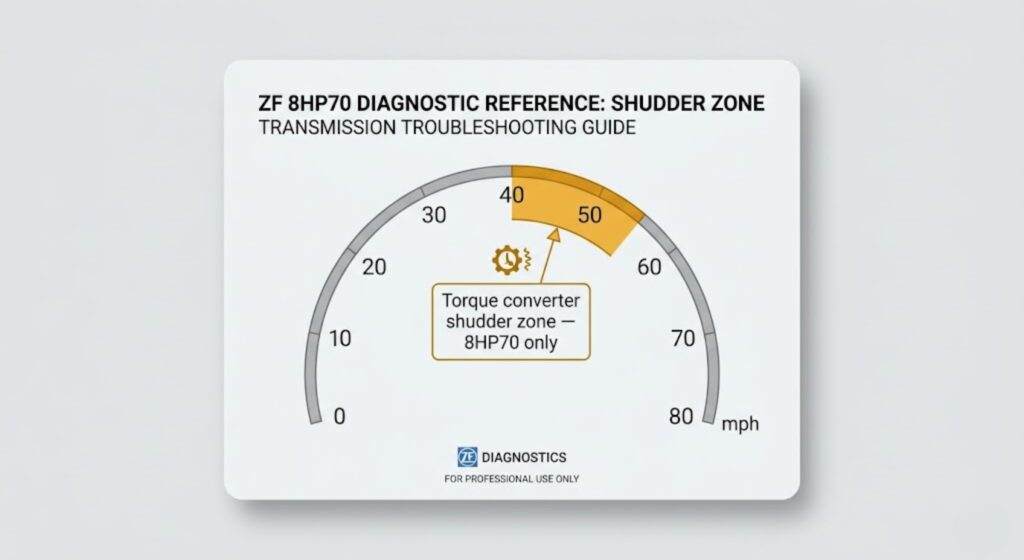

Edge Case 1: Torque Converter Shudder on the 8-Speed A shudder that occurs specifically at 40–55 mph during light throttle, disappears when you accelerate through it or manually downshift, and feels similar to driving over rumble strips — this is the torque converter lockup clutch exhibiting flex shudder. This is a known characteristic of the 8HP70 in the 2014 Ram 1500. Many owners replaced entire transmissions unnecessarily. The fix is a fluid service with ZF Lifeguard 8 fluid plus a TCM reflash. Recall 14V-161 (Park engagement) is separate — if you haven’t confirmed that recall was completed on your specific VIN, check at nhtsa.gov.

Edge Case 2: Heavy Towing History Without Cooler Service If the truck has been used for regular towing — especially above 7,000 lbs — without a transmission fluid change every 30,000 miles, the damage profile is different. High heat degrades clutch packs in a specific pattern that a simple fluid service will not reverse. If you can confirm a towing history with no fluid service record, go directly to the Major Repair Branch. A fluid change alone will not solve this.

Edge Case 3: Prior Rebuild Already Performed If the transmission has been rebuilt once before, a second rebuild carries significantly lower success rates. The case and hard parts that survived the first failure are now on their second life. In this case, a remanufactured replacement unit is the correct path — not another rebuild, regardless of mileage.

Use the decision matrix below to confirm your recommended path based on everything above.

2014 Ram 1500 Transmission Decision Matrix

Run your situation through this matrix to confirm your recommended action.

One situation overrides this matrix entirely — when symptoms signal you should stop driving immediately.

When To Stop Driving and Call a Specialist

Some symptoms mean the decision tree is over. Stop driving and call a specialist.

• Burning smell from the transmission combined with slipping in any gear — stop driving.
• Complete loss of drive or reverse — stop driving.
• Loud clunking or grinding noise under acceleration — stop driving.
• Transmission fluid pooling under the truck (active leak with low fluid level) — stop driving.
• Truck enters limp mode and shifts become locked in a single gear — stop driving and have it trailered, not driven.

At this point, continuing to drive causes damage beyond the transmission — cooler lines, transfer case, and driveshaft components can all be affected. The guide’s decision tree no longer applies. You need a specialist with a lift, a flush system, and specific experience with the 65RFE or 8HP70.

Frequently Asked Questions

What transmission is in a 2014 Ram 1500 with a 5.7 HEMI?

It depends on the build date and trim. Early 2014 HEMI trucks got the 6-speed 65RFE. Later builds, particularly those with a rotary dial shifter, got the 8-speed ZF 8HP70. Check your door jamb sticker or run your VIN through a decoder to confirm which you have.

How much does it cost to replace a 2014 Ram 1500 transmission?

A remanufactured unit installed runs approximately $4,500–$5,500 at a dealer. An independent shop rebuild typically lands between $2,500–$3,500 for the 8HP70 or $1,800–$2,800 for the 65RFE, depending on parts used and whether the torque converter is replaced.

What transmission fluid does a 2014 Ram 1500 use?

It depends on your transmission. The 65RFE (6-speed) requires Mopar ATF+4 fluid to spec MS-9602. The 8HP70 and 845RE (8-speed units) require ZF Lifeguard 8 fluid. Using the wrong fluid in the 8-speed is a known cause of accelerated clutch pack wear and shudder complaints.

Is the ZF 8-speed in the 2014 Ram 1500 reliable?

Yes, when properly serviced. The 8HP70 is rated for up to 516 lb-ft of torque and is used in a wide range of high-end applications. The most common issues — torque converter shudder and shift calibration problems — are largely addressed through fluid service with ZF Lifeguard 8 and a TCM software update rather than internal repairs.

What are the most common 2014 Ram 1500 transmission problems?

The 65RFE is known for solenoid pack failures (codes P0750–P0765) and valve body issues at higher mileage. The 8HP70 is most commonly associated with torque converter shudder at highway speed, which is typically a fluid and calibration issue rather than a mechanical failure. Both transmissions benefit significantly from fluid service every 30,000 miles.

Conclusion

A 2014 Ram 1500 transmission problem is not automatically a rebuild or replacement. The right answer follows directly from which transmission you have, what symptom you’re experiencing, and what the fluid condition and service history show.

Start by confirming your transmission type. Run through the five variables. Follow the branch that matches your situation and verify against the decision matrix. Most symptoms resolve at the fluid service or solenoid level — the expensive path is only the right path in specific, confirmed circumstances.

If you’re starting at the fluid service stage, confirm your correct fluid spec above before buying anything. Using the wrong fluid in the 2014 Ram 1500 transmission is one of the most common and most preventable causes of accelerated wear on both units.
