Nissan Titan Bed Size Chart by Year: 2004-2024 Cab Type
The Nissan Titan bed size chart changes with the model year, cab style, and whether the truck is a standard Titan or Titan XD. A 2024 Titan Crew Cab has a 67.0-inch bed, while the 2024 King Cab and Titan XD Crew Cab use 78.7-inch beds. Older Titans also offered longer cargo boxes, including a nearly 99-inch King Cab option.
Use the chart below to identify the right factory bed configuration. Then check the measurement points before ordering a tonneau cover, liner, camper shell, or rack.
TruckGuider • Factory dimensions
Nissan Titan Bed Size Comparison
Actual bed lengths in inches for selected model years and cab styles. Each bar uses the same 100-inch scale.
2024 Titan and Titan XD
Earlier Titan Configurations
2024 Bed Width and Depth
These width and depth dimensions are from the 2024 Titan brochure and are not stated here as universal measurements for older models.
Fitment check: Match the model year, Titan vs Titan XD, cab style, and actual bed measurement before ordering a cover, liner, or rack.
Nissan Titan Bed Size Chart From 2004 to 2024
The table separates generations and cab styles rather than treating every 5.5-foot or 6.5-foot Titan bed as identical. Dimensions are factory-listed cargo-bed lengths, not the truck’s overall exterior length.Model Years Model and Cab Configuration Bed Length Nominal Bed Class 2004–2006 Titan Crew Cab 67.1 in 5 ft 7 in 2004–2006 Titan King Cab 78.9 in 6 ft 7 in 2007 Titan Crew Cab About 5 ft 7 in Short bed 2007 Titan King Cab About 6 ft 7 in Standard bed 2008–2009 Titan Crew Cab, standard wheelbase 67.3 in 5 ft 7 in 2008–2009 Titan King Cab, standard wheelbase 79.1 in 6 ft 7 in 2008–2009 Titan Crew Cab, long wheelbase 87.0 in 7 ft 3 in 2008–2009 Titan King Cab, long wheelbase 98.8 in 8 ft 3 in 2010–2014 Titan Crew Cab, standard wheelbase 67.3 in 5 ft 7 in 2010–2014 Titan King Cab 79.1 in 6 ft 7 in 2010–2014 Titan Crew Cab SV/SE long wheelbase, where offered 87.0 in 7 ft 3 in 2015 Titan Crew Cab 67.3 in 5 ft 7 in 2015 Titan King Cab 79.1 in 6 ft 7 in 2016 Titan XD Crew Cab 77.8 in 6.5 ft 2017–2019 Titan Crew Cab 67.0 in 5.5 ft 2017–2019 Titan King Cab 78.7 in 6.5 ft 2017–2019 Titan Single Cab 8 ft nominal Long bed 2017–2019 Titan XD Crew Cab or King Cab 78.7 in 6.5 ft 2017–2019 Titan XD Single Cab 8 ft nominal Long bed 2020–2024 Titan Crew Cab 67.0 in 5.5 ft 2020–2024 Titan King Cab 78.7 in 6.5 ft 2020–2024 Titan XD Crew Cab 78.7 in 6.5 ft
How to read the chart: A bed advertised as 5.5 feet is a size category, not a promise that its measured floor is exactly 66.0 inches. For 2007 and the later Single Cab entries, nominal lengths are shown rather than an unverified decimal measurement. Availability varied by year, trim, and drivetrain; a listed configuration was not necessarily offered on every trim.
The 2016 entry refers to the Titan XD introduced for that model year, not to an equivalent 2016 standard Titan Crew Cab. Nissan discontinued the Titan after the 2024 model year, so there is no factory 2025 or 2026 Titan bed size.
What Changed in Titan Beds From 2004 to 2015
The original Nissan Titan launched with two cab choices. The Crew Cab prioritized passenger space with a roughly 5-foot-7-inch bed, while the King Cab used a longer cargo box measuring roughly 6 feet 7 inches.
Early Titan Crew and King Cab
The first-generation trucks used slightly different published decimal measurements over their production life. Early brochures specify 67.1 inches for the Crew Cab and 78.9 inches for the King Cab. Later official specifications list 67.3 and 79.1 inches.
Those small differences matter when comparing manufacturer figures, but a cover should still be selected from the manufacturer’s exact year-and-cab fitment listing. Nissan’s original 2004 Titan Crew Cab release establishes the original short-bed configuration.
Long Wheelbase Options From 2008
Nissan expanded the first-generation lineup for 2008 with Long Wheelbase versions of both cab styles. The Crew Cab Long Wheelbase offered an 87.0-inch bed, while the King Cab Long Wheelbase reached 98.8 inches.
That 98.8-inch King Cab is easy to miss because many generic Titan charts list only short and standard beds. Nissan’s 2009 Titan press kit specifies both Long Wheelbase lengths alongside the standard versions.
Final First Generation Bed Configurations
By the 2010–2014 period, Nissan’s documented lineup focused on the standard King Cab, standard Crew Cab, and longer Crew Cab SV or SE configurations. The 2015 press kit identifies 79.1 inches for the King Cab and 67.3 inches for the Crew Cab.
A used 2014 long-bed Crew Cab and a 2015 standard Crew Cab therefore should not be treated as the same box. Match the actual cab, wheelbase, and bed measurement before buying a fitted accessory.
Titan Cab and Bed Options From 2016 to 2024
Nissan’s second-generation rollout did not introduce every Titan cab style at once. This makes 2016 through 2019 especially important when reading a model-year chart.
2016 Titan XD Launch
The 2016 Titan XD launched first with a Crew Cab and a nominal 6.5-foot cargo box. Nissan lists its actual bed length as 77.8 inches, not the 78.7 inches used in later model years. The difference is documented in the 2016 Nissan Titan XD press kit.
Do not apply the 2016 XD measurement automatically to a 2018 or 2024 Titan XD. Likewise, do not assume the 2016 XD table describes a regular half-ton Titan configuration.
2017 to 2019 Single Cab Options
By 2017, the regular Titan lineup included Crew Cab, King Cab, and Single Cab versions. The Single Cab offered a nominal 8-foot bed. The Titan XD lineup also included Single Cab and King Cab options during this period, alongside the Crew Cab.
For 2019, Nissan described the regular Titan’s bed choices as 5.5 feet for Crew Cab, 6.5 feet for King Cab, and 8 feet for Single Cab. The 8-foot description is a marketed size class; it should not be converted into an invented exact interior length.
2020 to 2024 Cab Configurations
The Single Cab was no longer part of the 2020-and-later lineup. Regular Titan buyers had a short-bed Crew Cab or a longer-bed King Cab, while the Titan XD was sold in Crew Cab form.
The 2024 factory dimensions are 67.0 inches for Titan Crew Cab and 78.7 inches for Titan King Cab and XD Crew Cab. These are the relevant configurations for the final Titan model year.
How Nissan Titan XD Bed Sizes Differ
The Titan XD is not simply a regular Titan with a different badge. It uses a different chassis and wheelbase, and its bed measurements must be checked against XD-specific fitment information.Titan XD Model Year Cab Style Published Bed Length 2016 Crew Cab 77.8 in 2017–2019 Crew Cab or King Cab 78.7 in 2017–2019 Single Cab 8 ft nominal 2020–2024 Crew Cab 78.7 in
A 2024 Titan King Cab and 2024 Titan XD Crew Cab share the same published 78.7-inch bed length. That does not prove that their rail-mounted covers, racks, or camper shells are interchangeable. Brackets, mounting systems, and product-specific fitment still need separate confirmation.
The safest purchasing sequence is to select the Titan or Titan XD model first, followed by model year, cab style, and listed bed size. Only then compare hardware requirements.
What Are Nissan Titan Bed Width and Depth Measurements
Length is only one cargo measurement. Bed width, distance between the wheel wells, and wall depth determine whether wide or tall equipment can sit inside the box.
For the 2024 Titan lineup, Nissan publishes the following shared measurements:Bed Measurement 2024 Titan and Titan XD Maximum bed width 63.8 in Width between wheel wells 50.0 in Bed depth 20.8 in Crew Cab bed length 67.0 in King Cab or XD Crew Cab bed length 78.7 in
Nissan’s official Titan bed specification page distinguishes maximum bed width from width between wheel wells. The latter is the more useful number when loading a wide, flat item onto the bed floor.
These are 2024 specifications, not universal measurements for every Titan built since 2004. Earlier beds can differ in wall height and other details. The 2005-era documentation, for example, lists a bed height of 19.9 inches rather than 20.8 inches.

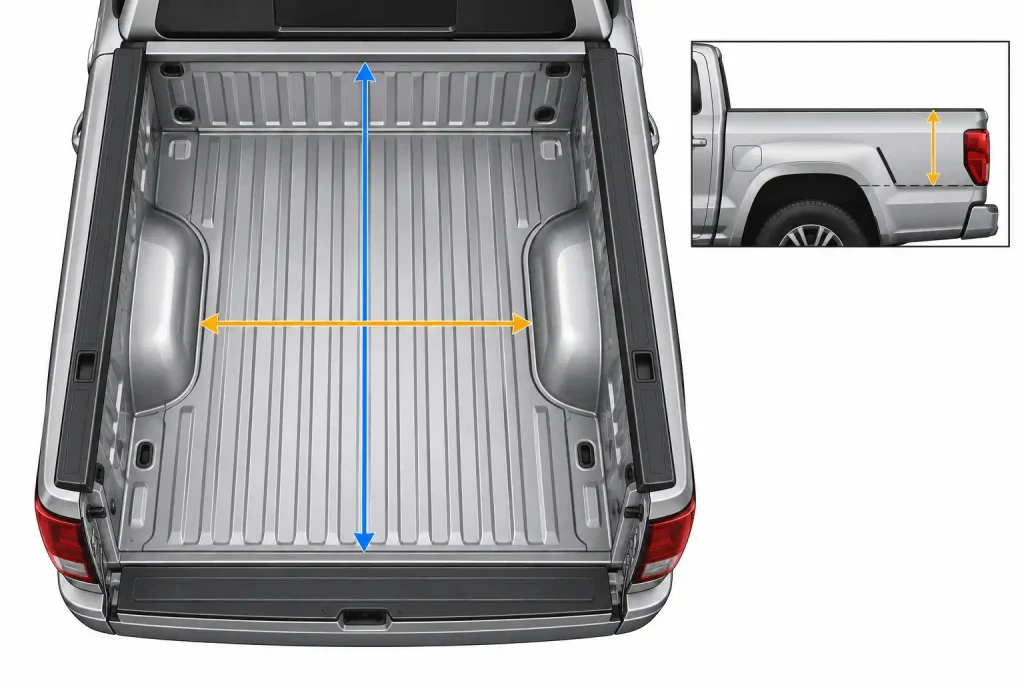

How to Measure a Nissan Titan Truck Bed
An actual measurement is the final check when the truck has an aftermarket liner, custom rails, or an uncertain model-year listing. Use a tape measure and record the following dimensions in inches.
- Measure the interior length. Close the tailgate and measure from the inside face of the front bulkhead to the inside face of the closed tailgate. Keep the tape straight along the bed floor.
- Measure the narrowest floor width. Place the tape between the inner faces of the two wheel wells. This is the clearance that matters for sheet goods, drawer systems, and wider cargo.
- Measure the upper opening and depth. Check side-to-side clearance near the bed rails and measure from the bed floor to the top of a sidewall. A fitted topper or cover may require particular rail measurements.
- Check the accessory instructions. Compare your recorded measurements with the exact fitment procedure provided by the accessory manufacturer. Some covers use rail or bulkhead reference points instead of the floor-length method.
Do not count the open tailgate as part of the factory bed length. A tailgate extender may add usable support, but that is a separate measurement and does not change the truck’s listed bed size.
Which Accessories Fit Each Nissan Titan Bed Size
The bed length chart narrows the search for accessories, but it cannot guarantee fitment by itself. Different accessory categories depend on different mounting points.Accessory Most Important Fitment Check Tonneau cover Year, model, cab, bed designation, and rail hardware Drop-in liner or bed mat Interior floor contours, wheel wells, and length Camper shell Bed rails, cab clearance, and exact model application Bed rack Rail construction, clamp clearance, and tie-down channels Cargo drawer system Usable floor width, bed length, and wheel-well clearance
The Titan’s available Utili-track channels can affect mounting and cargo-management choices. A rack or organizer advertised for a 6.5-foot box might still need Titan-specific brackets.
For practical storage options after confirming the dimensions, see our truck bed organization ideas and storage systems. It covers dividers, sliding systems, and rack arrangements that make use of the available cargo space.
4 Nissan Titan Bed Size Mistakes to Avoid
- Treating nominal sizes as exact measurements. A 5.5-foot class bed is not necessarily 66.0 inches inside. Use the actual specification where available.
- Applying one XD dimension to every year. The 2016 XD Crew Cab’s 77.8-inch figure differs from the later 78.7-inch specification.
- Ignoring historical Long Wheelbase trucks. The 2008–2009 King Cab could have a 98.8-inch box, while certain Crew Cabs carried 87.0-inch beds.
- Confusing the Titan with the Frontier. Nissan’s midsize Frontier uses different bed dimensions. Check our Nissan Frontier bed size chart by year and cab only when identifying a Frontier, not as a Titan fitment reference.
A few minutes spent checking these details can prevent buying a cover or liner for the wrong cargo box.
What to Check Before Choosing Bed Accessories
The Nissan Titan bed size chart is most useful when you match the year, model, and cab before relying on a length figure. The 2024 Titan Crew Cab has a 67.0-inch bed, while its King Cab and XD Crew Cab counterparts use 78.7-inch beds. Older models need a closer look because long-wheelbase variants and early dimensional differences exist.
Use the factory chart as the starting point, then confirm your own bed measurements. A product’s fitment listing should explicitly name your Titan or Titan XD configuration. Do not order a cover, liner, or rack solely because the listing says “short bed” or “6.5-foot truck bed.”
5 Common Questions About Nissan Titan Bed Sizes
What Size Bed Does a Nissan Titan Crew Cab Have?
A 2024 standard Titan Crew Cab has a 67.0-inch bed. A 2015 Crew Cab has a published 67.3-inch bed, and some older Crew Cab Long Wheelbase trucks have an 87.0-inch bed. Match the model year and wheelbase before choosing accessories.
Does the Nissan Titan Come With an 8 Foot Bed?
Yes, certain historical Titan configurations offered an 8-foot-class bed. The 2008–2009 King Cab Long Wheelbase measured 98.8 inches, and Single Cab variants sold in the later generation were advertised with an 8-foot bed. The 2024 lineup did not include a Single Cab.
How Long Is a Nissan Titan King Cab Bed?
The 2024 Titan King Cab bed is 78.7 inches long. A 2015 King Cab bed is 79.1 inches, while a 2009 Long Wheelbase King Cab measures 98.8 inches. These configurations should not share a single exact-fit cover listing.
Is the Titan XD Bed Bigger Than the Regular Titan?
Not in every dimension. A 2024 Titan XD Crew Cab and Titan King Cab both list 78.7-inch bed lengths, but the standard Titan Crew Cab is shorter at 67.0 inches. The XD’s chassis and accessory fitment still require separate confirmation.
How Wide Is a Nissan Titan Bed Between Wheel Wells?
For 2024 Titan and Titan XD models, Nissan specifies 50.0 inches between the wheel wells. Maximum bed width is 63.8 inches, and bed depth is 20.8 inches. Check a different model year’s specifications before applying these figures to an older truck.
