Toyota Tundra Tire Size Chart by Year and Trim 2000-2026
The Toyota Tundra tire size chart varies by model year, trim, and factory wheel package. A 2026 Tundra SR uses 245/75R18 tires, for example, while the TRD Pro uses 285/65R18 and the Capstone uses 265/50R22. Those sizes are not interchangeable without checking wheel and tire specifications.
Below, you’ll find factory tire sizes for the 2000–2026 Toyota Tundra, including special-package exceptions, wheel diameters, and practical replacement checks. Use the chart to identify likely original equipment (OE) fitment, then confirm the exact specification on your truck’s tire-and-loading label.
Toyota Tundra Tire Size Chart by Year 2000 to 2026
Toyota has used three Tundra generations since 2000. The following chart lists documented original-equipment tire-size families, not every possible aftermarket fitment. Multiple sizes in one row mean different trims or factory wheel packages used different tires. They are not a list of sizes approved for every Tundra built that year.
| Model Year | Generation | Documented OEM Tire Sizes | Factory Configuration Notes |
|---|---|---|---|
| 2026 | Third | 245/75R18, 265/70R18, 265/60R20, 285/65R18, 265/50R22 | SR, SR5, premium trims, TRD Pro, Capstone |
| 2025 | Third | 245/75R18, 265/70R18, 265/60R20, 285/65R18, 265/50R22 | Size changes with trim and wheel package |
| 2024 | Third | 245/75R18, 265/70R18, 265/60R20, 285/65R18, 265/50R22 | TRD Pro uses 18-inch wheels; Capstone uses 22-inch |
| 2023 | Third | 245/75R18, 265/70R18, 265/60R20, 285/65R18, 265/50R22 | SR5 packages can change wheel diameter |
| 2022 | Third | 245/75R18, 265/70R18, 265/60R20, 285/65R18, 265/50R22 | First year of the redesigned Tundra |
| 2021 | Second | 255/70R18, 275/65R18, 275/55R20 | SR/SR5, TRD Pro, Limited and premium wheels |
| 2020 | Second | 255/70R18, 275/65R18, 275/55R20 | Steel versus alloy wheel packages |
| 2019 | Second | 255/70R18, 275/65R18, 275/55R20 | Trim and wheel-package dependent |
| 2018 | Second | 255/70R18, 275/65R18, 275/55R20 | Trim and wheel-package dependent |
| 2017 | Second | 255/70R18, 275/65R18, 275/55R20 | SR/SR5 and available premium wheels |
| 2016 | Second | 255/70R18, 275/65R18, 275/55R20 | TRD Pro and other 18-inch configurations |
| 2015 | Second | 255/70R18, 275/65R18, 275/55R20 | TRD Pro offered with 275/65R18 |
| 2014 | Second | 255/70R18, 275/65R18, 275/55R20 | Updated styling; verify wheel package |
| 2013 | Second | 255/70R18, 275/65R18, 275/55R20, 285/70R17 | 17-inch tire belongs to TRD Rock Warrior |
| 2012 | Second | 255/70R18, 275/65R18, 275/55R20, 285/70R17 | TRD Rock Warrior exception |
| 2011 | Second | 255/70R18, 275/65R18, 275/55R20, 285/70R17 | TRD Rock Warrior exception |
| 2010 | Second | 255/70R18, 275/65R18, 275/55R20, 285/70R17 | TRD Rock Warrior exception |
| 2009 | Second | 255/70R18, 275/65R18, 275/55R20, 285/70R17 | TRD Rock Warrior exception |
| 2008 | Second | 255/70R18, 275/65R18, 275/55R20 | 18-inch and 20-inch factory wheel choices |
| 2007 | Second | 255/70R18, 275/65R18, 275/55R20 | First year of the second generation |
| 2006 | First | 245/70R16, 265/70R16, 265/65R17 | Base, SR5, Limited and Sport packages |
| 2005 | First | 245/70R16, 265/70R16, 265/65R17 | Optional 17-inch wheels |
| 2004 | First | 245/70R16, 265/70R16, 265/65R17 | Limited and Sport package variations |
| 2003 | First | 245/70R16, 265/70R16, 265/65R17 | 17-inch option appears in later first-generation listings |
| 2002 | First | 245/70R16, 265/70R16 | V6, V8 and trim differences |
| 2001 | First | 245/70R16, 265/70R16 | SR5 and Limited configurations |
| 2000 | First | 245/70R16, 265/70R16 | V6 versus V8 factory sizes |
Important: This is a U.S.-market factory-size reference, not a VIN-specific fitment approval. Some individual model years had less-common editions or equipment combinations. For replacement tires, the original tire placard, wheel specifications, load index, and Toyota documentation take priority over the chart.
The tire-size families were cross-checked against tire-manufacturer listings, including Michelin’s Toyota Tundra tire reference. The generation breakdown matters because the same trim name can use a different tire on a redesigned truck.
What Tire Sizes Fit 2022 to 2026 Toyota Tundra Trims
The third-generation Tundra launched for 2022 with 18-, 20-, and 22-inch factory wheel configurations. Its five principal tire sizes remain represented in 2026 fitment listings, but you must match the size to the actual trim and optional package.
| Trim or Configuration | Common Factory Tire | Wheel Diameter |
|---|---|---|
| SR with steel wheels | 245/75R18 | 18 inches |
| SR5 with standard alloy wheels | 265/70R18 | 18 inches |
| SR5 with selected 20-inch packages | 265/60R20 | 20 inches |
| Limited | 265/60R20 | 20 inches |
| Platinum | 265/60R20 | 20 inches |
| 1794 Edition | 265/60R20 | 20 inches |
| TRD Pro | 285/65R18 | 18 inches |
| Capstone | 265/50R22 | 22 inches |
These configurations are supported by Goodyear’s 2026 Tundra fitment listings. Factory availability of the SR5’s 18-inch or 20-inch packages varies by model year, so confirm the package rather than assuming every SR5 has the same wheels.
SR and SR5 Factory Tire Sizes
A 2026 SR with factory steel wheels uses 245/75R18 tires. The standard SR5 alloy-wheel setup uses 265/70R18, while certain 20-inch SR5 packages use 265/60R20. Although both SR5 sizes have a similar overall diameter, an 18-inch tire cannot mount on a 20-inch wheel.
Toyota has revised package names and equipment across model years. Check the Toyota Tundra trim levels by year if you need help distinguishing an SR5 package from a higher trim.
Limited Platinum and 1794 Tire Sizes
The common factory configuration for Limited, Platinum, and 1794 Edition trucks is 265/60R20 on 20-inch wheels. Optional off-road packages may alter wheel design or tire model even when the nominal tire size remains unchanged.
Do not assume that a tire advertised for any 20-inch Tundra wheel has the correct load index, speed rating, or approved rim width. Match the replacement to your truck’s configuration.
TRD Pro and Capstone Tire Sizes
Third-generation TRD Pro trucks use 285/65R18 all-terrain tires on 18-inch wheels. The Capstone uses 265/50R22 on 22-inch wheels. Both are factory configurations, but they have different sidewall heights and wheel requirements.
The Toyota 2026 Tundra brochure confirms the TRD Pro’s forged 18-inch BBS wheels and the Capstone’s 22-inch wheel setup. Tire fitment still needs to be confirmed on the individual truck.
Which Tires Came on 2007 to 2021 Toyota Tundra
Second-generation Tundras generally used three regular factory sizes: 255/70R18, 275/65R18, and 275/55R20. The wheel package is a more reliable clue than trim name alone, especially on SR5 and Limited trucks.
| Factory Tire Size | Typical Configuration | Approximate Diameter |
|---|---|---|
| 255/70R18 | Base or SR/SR5 steel-wheel packages | 32.1 inches |
| 275/65R18 | SR5, TRD Off-Road, TRD Pro and selected Limited packages | 32.1 inches |
| 275/55R20 | Selected SR5, Limited, Platinum and 1794 packages | 31.9 inches |
| 285/70R17 | 2009–2013 TRD Rock Warrior package | 32.7 inches |
The last row is a real factory-package exception, not permission to install 285/70R17 on every second-generation truck. Toyota’s Rock Warrior setup used 17-inch wheels and a light-truck tire specification. Goodyear also identifies this option in its 2012 Tundra trim and package listing.
A 2015 or 2021 TRD Pro commonly uses 275/65R18, whereas the 2022-and-newer TRD Pro uses 285/65R18. That distinction matters when a listing says only “Tundra TRD Pro tires” without identifying the year.
What Tire Sizes Fit 2000 to 2006 Toyota Tundra
First-generation Tundras used smaller factory tires than later models. The main tire-size families were 245/70R16 and 265/70R16 throughout 2000–2006, plus 265/65R17 on certain 2003–2006 configurations.
| Factory Size | Typical Application | Approximate Diameter |
|---|---|---|
| 245/70R16 | Base and selected SR5 configurations | 29.5 inches |
| 265/70R16 | V8, SR5, and some Limited configurations | 30.6 inches |
| 265/65R17 | Later Limited and Sport-package configurations | 30.6 inches |
Standard 16 Inch Factory Tires
The 245/70R16 size appears on base and some SR5 trucks, including earlier V6 configurations. The larger 265/70R16 is common on V8-equipped and four-wheel-drive versions. Engine type alone does not establish your exact factory wheel package.
Optional 17 Inch Factory Tires
Some later first-generation Limited and Sport-package trucks came with 265/65R17 tires. They have nearly the same nominal overall diameter as 265/70R16, but require a different wheel diameter.
Because a 20-year-old Tundra may have had its original wheels replaced, inspect the installed rims and door placard before ordering replacement tires.
How to Read Toyota Tundra Tire Size Numbers
The marking 265/70R18 provides the tire’s nominal dimensions and construction. Each component means something different:
| Marking | Meaning |
|---|---|
| 265 | Nominal section width, in millimeters |
| 70 | Sidewall height is 70% of section width |
| R | Radial tire construction |
| 18 | Required wheel diameter, in inches |
The approximate unloaded overall diameter is calculated as wheel diameter plus twice the nominal sidewall height. Using this formula, a 265/70R18 tire is about 32.6 inches tall. Actual mounted dimensions depend on the specific tire and approved measuring rim.
A prefix such as P indicates a passenger-metric tire, while LT identifies a light-truck tire. Load index and speed rating appear after the size, such as 116T. Do not judge replacement suitability from the size code alone: tire construction, load capacity, and inflation requirements matter too.
Where to Confirm Your Toyota Tundra Factory Tire Size
A general chart tells you which tires Toyota offered, but your truck’s label identifies the applicable factory tire specification. This is particularly important after a wheel swap or when purchasing a used Tundra.
Check the Driver Door Tire Placard
Open the driver’s door and locate the Tire and Loading Information label in the door or door-jamb area. Read the specified tire size and recommended cold inflation pressure. Do not use the maximum pressure printed on the tire sidewall as the vehicle’s recommended pressure.

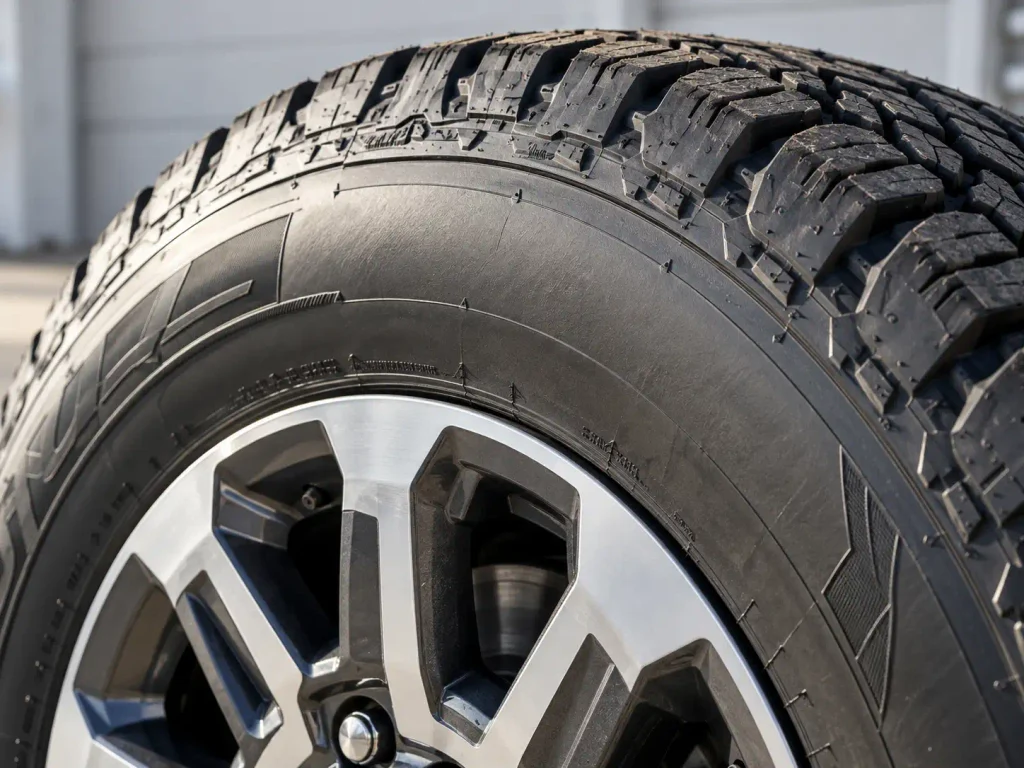

Read the Installed Tire Sidewall
Find the full size marking on a currently installed tire. If the tire says 275/55R20, you have a 20-inch tire, even if an online lookup lists 18-inch tires as another option for that model year.
That confirms the installed size, not necessarily the original factory size. Previous owners may have changed wheels or tires.
Confirm the Original Wheel Package
Compare the label with the installed tire and your model-year owner’s manual. If they disagree, have a qualified tire shop inspect wheel diameter, rim width, offset, load rating, and clearance before ordering. Four-wheel-drive trucks also require careful matching of rolling circumference across the tires.
Can You Fit Larger Tires on a Stock Tundra
Sometimes, but there is no universal 33-inch or 35-inch tire that clears every stock Tundra. Available room changes with generation, wheel offset, tire width, suspension height, alignment, and actual tread/shoulder shape.
A tire that fits while the truck is parked can still rub the liner, body mount, or suspension components at full steering lock or during compression. Wider tires are especially sensitive to offset and wheel width.
Taller tires also change the effective final-drive relationship and may affect speedometer readings or shift behavior. For the mechanical implications, see our Toyota Tundra gear ratio chart.
Before ordering an oversized tire, verify the tire manufacturer’s measured dimensions and rim-width range. Check suspension and steering clearance through their travel with professional guidance. An online claim that a particular size “fits without rubbing” is not sufficient without wheel-offset and truck-configuration details.
4 Tire Sizing Mistakes Toyota Tundra Owners Should Avoid
- Buying by year alone. A 2026 SR and a 2026 Capstone use different factory wheel diameters. Select the exact trim and package first.
- Confusing tire diameter with wheel diameter. A tire around 32.5 inches tall may be designed for an 18-, 20-, or 22-inch wheel. The tire’s final
Rnumber must match the rim diameter. - Ignoring load capacity. A tire with the correct dimensions may have the wrong load index or construction for the truck’s requirements, especially when replacing an LT tire with a P-metric tire or vice versa.
- Skipping checks after installation. Confirm cold pressure, adequate clearance, and the Tire Pressure Monitoring System (TPMS). If a warning appears after replacement, review TPMS sensor checks after a tire change and follow the model-specific owner’s manual.
The correct tire is the one that matches the truck’s factory requirements or a properly validated replacement fitment, not simply a similar diameter on a retailer’s compatibility list.
How to Choose the Correct Toyota Tundra Tire Size
Start with your Tundra’s model year and trim, then identify its factory wheel package in the chart. Use the tire-and-loading label to confirm the exact size and cold inflation specification. If the truck has aftermarket wheels, compare its actual wheel dimensions and have the proposed replacement checked for load capacity and clearance.
The Toyota Tundra tire size chart is most useful as a reference, not a substitute for the original vehicle label. For a direct replacement, matching the documented factory specification is usually the simplest path. For larger off-road tires, the deciding factors are the wheel, suspension, and measured clearance on your exact truck.
5 Toyota Tundra Tire Size Questions Answered
What Size Tires Come on a Toyota Tundra?
There is no single size for every Tundra. Common first-generation sizes include 245/70R16 and 265/70R16; second-generation trucks commonly use 255/70R18, 275/65R18, or 275/55R20; and third-generation trucks have five major size options. Confirm your factory package before purchasing.
What Is the Stock Tire Size for a 2026 Toyota Tundra?
The 2026 SR uses 245/75R18, while a standard SR5 uses 265/70R18. Limited, Platinum, and 1794 Edition commonly use 265/60R20, the TRD Pro uses 285/65R18, and the Capstone uses 265/50R22. Optional packages may require a different check.
What Size Tires Does a Tundra TRD Pro Use?
A 2022–2026 Tundra TRD Pro uses 285/65R18 tires, while a 2015–2021 TRD Pro commonly uses 275/65R18. The tire-size difference reflects the generation change. Verify the year and actual factory wheel package rather than relying on the TRD Pro name alone.
Can I Put 35 Inch Tires on a Stock Toyota Tundra?
A 35-inch tire cannot be assumed to clear a stock Tundra. Fitment depends on the generation, tire width, wheel offset, actual tire dimensions, and suspension. Check clearance through steering and suspension travel before installing larger tires, and do not treat another owner’s setup as universal proof of fitment.
Where Can I Find My Toyota Tundra Tire Size?
Check the Tire and Loading Information label in the driver’s door area for the original specification. Read the current tire sidewall to identify the installed size, and consult the owner’s manual if they differ. A tire shop can confirm replacement fitment when the truck has aftermarket wheels.
