Engine Oil Cooler Replacement: Ultimate Diagnostic and Repair Guide 2026

The internal combustion engine operates within a remarkably narrow envelope of thermal tolerance, necessitating advanced thermal management systems to maintain mechanical integrity. While primary cooling systems manage the thermal load of the engine block via liquid coolant, the engine oil cooling system serves a critical secondary function. Engine oil acts as a primary heat transfer medium for internal rotating components that lack direct coolant jackets, such as the crankshaft and connecting rod bearings.

The ideal operating temperature for engine oil rests precisely between 230 and 260 degrees Fahrenheit. When oil temperatures exceed this critical threshold, the fluid undergoes rapid thermal breakdown, losing its hydrodynamic lubricating properties. Maintaining viscosity within the optimal 10 to 20 centistokes (cSt) range is paramount, as it reduces metal-to-metal contact within journal bearings by up to 92 percent.

To manage this, modern heavy-duty trucks utilize complex heat exchangers—typically utilizing a stacked-plate or tube-and-shell architecture—to transfer thermal energy from the pressurized oil into the engine coolant or ambient air. When these components fail, the thermodynamic balance is compromised, leading to catastrophic engine wear, fluid cross-contamination, and severe mechanical failure.

What Are the Symptoms of a Failing Engine Oil Cooler?

Diagnosing a failing engine oil cooler requires an understanding of fluid dynamics and differential pressures within the engine block. The heat exchanger serves as the strict boundary between the engine lubrication system, which operates at a highly pressurized 60 to 80 PSI, and the cooling system, which circulates at a much lower 15 to 20 PSI. When the internal 0.3 to 0.5-millimeter walls of a stacked-plate cooler degrade due to internal corrosion or thermal fatigue, this pressure differential dictates a unilateral flow of contamination.

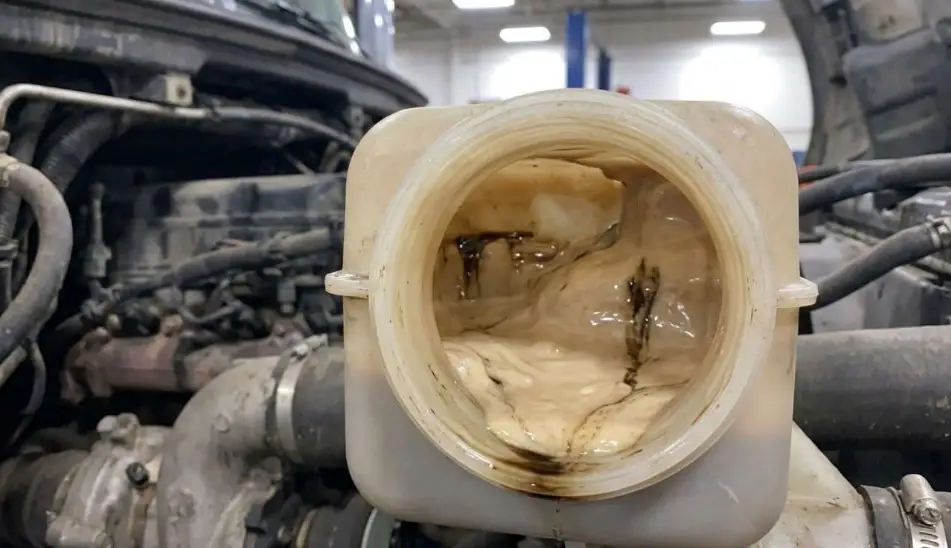

Because the engine oil pressure vastly exceeds the coolant pressure, a microscopic breach forcefully injects petroleum directly into the cooling system. The immediate clinical symptom is the formation of a dense, highly viscous emulsion colloquially referred to as a “milkshake” or brown sludge within the coolant reservoir and radiator neck. A critical diagnostic insight is distinguishing an oil cooler internal rupture from a head gasket failure. When an oil cooler fails, the combustion process remains entirely unaffected. The engine will typically start with ease, idle smoothly, and generate normal power without any excessive white smoke emitting from the exhaust, which would otherwise indicate coolant entering the combustion chamber.

Beyond the milkshake phenomenon, a compromised cooler core triggers a cascade of secondary performance degradations. Leaking tubes induce an immediate pressure drop of 15 to 20 PSI within the lubrication system, leading to inconsistent cylinder wall lubrication and widened bearing clearances. This loss of vital fluid pressure is often accompanied by the illumination of the vehicle’s low oil pressure warning lamp and the onset of audible mechanical distress. Furthermore, external leaks are common where the oil cooler interfaces with the engine block via the oil filter adapter gaskets; degradation of these seals results in visible pooling of oil and coolant around the engine base.

For heavy-duty diesel applications, specifically the Ford 6.0L Powerstroke architecture, technicians rely on a highly specific thermal metric known as the 15-Degree Rule to diagnose internal restrictions before a total rupture occurs. Utilizing a digital monitor to track both engine oil temperature (EOT) and engine coolant temperature (ECT) simultaneously, the vehicle is driven at sustained highway speeds. If the engine oil temperature registers more than 15 degrees hotter than the coolant temperature, the oil cooler is definitively restricted, which is the leading root cause of subsequent Exhaust Gas Recirculation (EGR) cooler failure in the 6.0L platform.

Engine Oil Cooler Replacement Cost by Truck Model

The financial burden of an oil cooler replacement fluctuates dramatically based on engine architecture, placement complexity, and regional labor rates. Across standard passenger vehicles, the baseline average cost for replacement oscillates between $656 and $783. However, scaling up to heavy-duty truck platforms fundamentally alters the economic equation due to packaging density, part scale, and extensive fluid capacities.

The data reveals extreme divergence based on payload classification. A half-ton Ram 1500 represents one of the most affordable repairs in the segment, whereas stepping up to the Cummins-equipped Ram 2500 or 3500 HD escalates the cost dramatically, driven entirely by the massive volume of the parts and the labor-intensive diesel packaging. Similarly, Chevrolet’s Silverado 2500 HD and 3500 HD platforms demand average repair tickets floating between $900 and $1,800, anchored by the cost of the heavy-duty cooler core itself.

Step-by-Step Diagnostic and Replacement Procedure

The architectural integration of the oil cooler dictates labor times, required specialty tools, and critical torque sequences. The procedures for the “Big Three” heavy-duty diesel truck platforms illustrate the mechanical complexity of this repair.

Ford Powerstroke Architecture

The 6.0L Powerstroke engine features a liquid-to-liquid engine oil cooler buried deep within the engine’s valley, submerged inside the high-pressure oil pump reservoir. Accessing the component requires stripping away the intake manifold, the turbocharger assembly, and the complex oil filter housing. On the later 6.7L Powerstroke iteration, stringent torque rules apply to prevent instant component destruction. Technicians must exercise extreme caution regarding a specific oil cooler nut located inside the upper oil pan; failure to remove or properly torque this nut results in immediate structural damage to the cooler core. During the installation of a new 6.7L cooler, the crucial oil cooler nut must be tightened first to 24 Nm (18 lb-ft), followed by a specific sequence for the seven perimeter mounting bolts, drawn down to exactly 10 Nm (89 lb-in).

General Motors Duramax (LB7 through L5P)

The mechanical procedure on the Duramax heavily emphasizes torque precision to maintain the integrity of the oil filter adapter gasket interface, which is notorious for lateral pressure leaks. The primary oil cooler assembly bolts and the oil cooler adapter nuts must be universally torqued to 18 lb-ft. The associated adapter studs are tightened to a delicate 89 lb-in. Because this job inevitably involves draining the massive crankcase, the main oil drain plug requires a substantial 62 lb-ft of torque upon reassembly, while the peripheral oil pressure relief valve requires 29 lb-ft.

Ram Cummins 5.9L and 6.7L Architecture

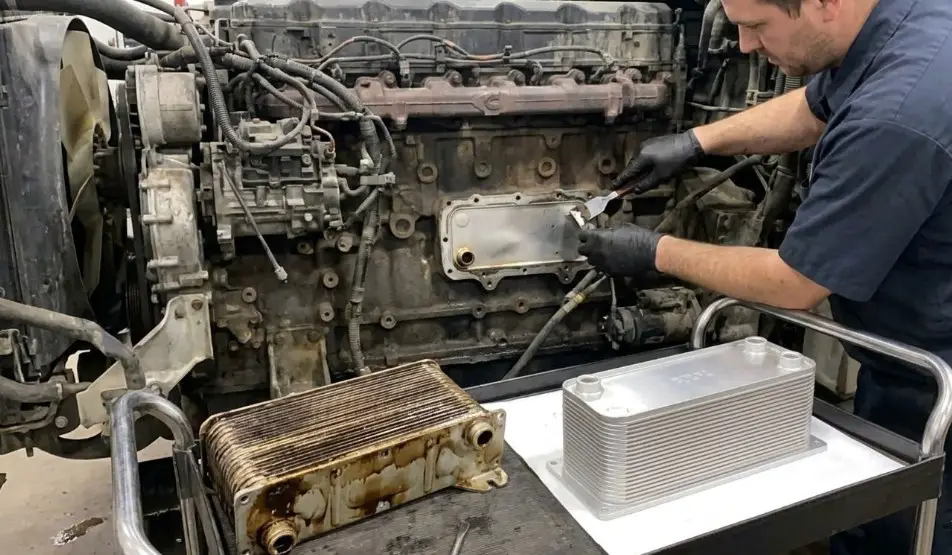

The inline-six configuration of the Cummins powerplant places the oil cooler along the flank of the heavy cast-iron block. Older generations of the 6.7L feature an internal pressed-in mounting stud equipped with a 10mm nut that often requires dropping the heavy engine oil pan for proper removal, though later models eliminated this stud for direct external extraction. The physical replacement requires removing the seven 10mm mounting bolts that secure the cooler matrix to the block and aggressively cleaning the bare engine block mating surface with a pick tool. When installing the new high-density oil cooler, the hardware must be hand-threaded initially, followed by a strict crisscross tightening pattern radiating from the center bolts outward to the perimeter, culminating at a final torque yield of 89 in-lbs.

FAQs

How do you flush the cooling system after an oil cooler failure?

A common fallacy in automotive repair is the assumption that replacing the ruptured oil cooler concludes the procedure. In reality, oil contamination creates a tenacious, insulating barrier across the inner walls of the radiator and heater core that pure water cannot dislodge. The mechanical flush involves a repetitive thermal cycling process—filling with water, running to operating temperature, and draining—repeated at least three times.

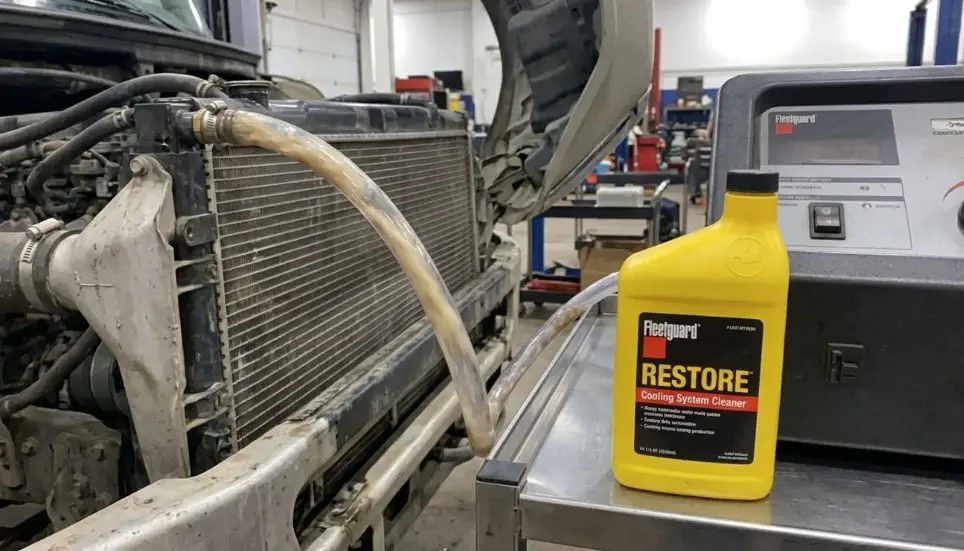

However, a chemical intervention is required to strip the baked-on grease. Industrial experts strongly warn against using generic, commercial heavy-duty radiator flushes or dish soaps, as the harsh acids and foaming agents inevitably attack older rubber hose connections and solder joints. The industry gold standard for post-rupture remediation is the deployment of specialized, alkaline-based chemical agents. Approved by Cummins as the preferred product for cleaning oil contaminated cooling systems, Fleetguard Restore is specifically formulated to attack oil and fuel contamination without degrading aluminum radiator matrices or internal gaskets. The dosing protocol requires one gallon of Fleetguard Restore for every ten gallons of cooling system capacity, allowing the alkaline solution to safely scour the internal pathways.

Does towing require an upgraded aftermarket engine oil cooler?

The factory-installed oil cooler is engineered to accommodate average consumer use cases. However, for vehicles subjected to sustained high-load environments—such as ascending steep grades while towing fifth-wheel trailers—the OEM parameters quickly become insufficient. Towing imparts an exponential thermal load on the powertrain, dramatically reducing the lubricating efficiency of the engine oil.

If a truck regularly operates near its Gross Combined Weight Rating (GCWR), an auxiliary or upgraded engine oil cooler transitions from a luxury to a mechanical necessity. Upgrading the system usually takes two forms: replacing the factory heat exchanger with a high-capacity unit, or plumbing an auxiliary air-to-oil cooler in series with the existing system using an oil filter sandwich adapter. Premium aftermarket units incorporate additional cooling plates and optimized fluid pathways. Rigorous testing indicates that an upgraded oil cooler produces up to 31% better heat reduction than its stock counterpart by shedding significantly more BTUs of thermal energy while maintaining proper internal oil pressure.

Are there any active recalls or TSBs for engine oil coolers?

The systemic importance of the oil cooler is underscored by the frequency with which major automotive manufacturers issue federal recalls and Technical Service Bulletins (TSBs) regarding its operation.

Ford Motor Company recently initiated a massive recall affecting 2024 and 2025 F-150, Expedition, and Lincoln Navigator vehicles equipped with the 3.5L GTDI engine. The catastrophic flaw stems from a severely misaligned engine cup plug situated within the oil cooler tube assembly, resulting in a rapid, pressurized hemorrhage of engine oil. This sudden loss of hydrodynamic pressure creates an immediate high-speed engine stall and introduces a severe vehicle fire risk as oil sprays onto hot exhaust components.

Furthermore, General Motors dictates a draconian but necessary protocol under TSB 22-NA-074 for any gasoline engine replaced from the years 2000 through 2024: if an engine block is condemned due to the mechanical failure of a connecting rod or crankshaft main bearing, the technician is strictly mandated to replace the oil cooler alongside the new block. When a bearing shatters, microscopic metallic shrapnel is injected deep into the labyrinth-like galleries of the heat exchanger. Because the internal flow paths of the cooler are incredibly narrow, it is physically impossible to thoroughly clean the debris out. Reusing the cooler guarantees that trapped metal shavings will dislodge during the first heat cycle, migrating directly into the pristine bearings of the new engine and causing a second catastrophic failure.
