P0087 6.7 Cummins Code Causes and Fixes by Year 2026
P0087 on the 6.7L Cummins Turbo Diesel means fuel rail pressure is lower than the engine controller expects. On a Ram 2500 or 3500, it can appear with weak acceleration, reduced power, extended cranking, or a no-start condition. It does not automatically mean the high-pressure fuel pump has failed.
Filters, fuel supply, internal leaks, control faults, and pumps can all cause P0087. The model year matters, especially on recall-affected 2019–2020 trucks and redesigned 2025–2026 engines.
P0087 on the 6.7L Cummins
Fuel Rail Pressure Too Low. Follow the symptom and test result, not the assumption that one part has failed.
Pull over safely. Arrange towing and qualified fuel-system inspection.
Save stored codes, freeze-frame conditions, model year, and repair history.
Power Loss Under Load
Start with: Filter restriction and low-pressure fuel supply. If supply passes, have rail control and internal leakage tested.
Hard Start or No Start
Start with: Cranking conditions, fuel delivery, and cranking rail pressure. If supply passes, request specialist return-flow testing.
Code After Filter Service
Start with: Correct filters, seals, air entry, and factory priming procedure. Retest if the fault returns.
Model-year alerts
Safety note: Never loosen common-rail injector lines or search for high-pressure leaks with your hands. This is a diagnostic overview, not a substitute for factory repair procedures.
What Does P0087 Mean on a 6.7 Cummins
P0087 is the diagnostic trouble code for Fuel Rail Pressure Too Low. The engine control module (ECM), sometimes described as the powertrain control module (PCM), requests a fuel pressure based on operating conditions. A rail-pressure sensor reports actual pressure. The controller can set P0087 when the difference remains outside its calibrated limit.
Two parts of the fuel system matter. The low-pressure supply side moves diesel from the tank through the filtration system to the high-pressure pump. The high-pressure common rail distributes pressurized fuel to the injectors. A restriction before the pump and an internal leak after it can both prevent actual rail pressure from meeting the commanded value.
The code alone cannot justify replacing a sensor, injector, or pump. First identify the installed system.
Which Fuel System Does Your 6.7 Cummins Use
Not every 6.7L Cummins Turbo Diesel uses the same high-pressure pump or filter arrangement. Before ordering components, identify the model year and check the truck’s actual repair history.
| Ram Model Years | Fuel System Context | What Changes for P0087 Diagnosis |
|---|---|---|
| 2007.5–2012 | Bosch CP3 common-rail system | Check supply pressure, rail-pressure tracking, and internal return leakage using early-system procedures. |
| 2013–2018 | CP3 system with later filtration arrangements | Test fuel supply and both serviceable filters where equipped before condemning the CP3. |
| 2019–2020 | Some trucks originally received a CP4 pump | Check recall Y78 by VIN and determine whether the pump was replaced with the CP3.3 remedy. |
| 2021–2024 | Revised system after the CP4 period | Confirm the installed pump, service parts, and factory procedures by VIN. |
| 2025–2026 | Redesigned Cummins high-pressure system and top-access dual filtration | Do not use older pump, filter, or pressure-test instructions without checking current service information. |
For 2025, Cummins introduced a new pump, top-feed injectors, and top-access filters. Recall-repaired trucks may also differ from original builds.
For general component orientation, TruckGuider’s 6.7 Cummins engine diagram and component guide can help you identify the rail and related engine hardware. Verify year-specific details separately, particularly for 2025 and newer trucks.
Which P0087 Symptoms Determine the First Test
Before clearing codes, record engine speed, load, temperature, and other stored faults.
Loss of Power Under Load
If P0087 appears while towing or accelerating, the system may struggle to maintain pressure under demand. Check filters and supply delivery before investigating high-pressure leakage or replacing the pump.
Hard Start or No Start
Extended cranking points toward inadequate supply or insufficient pressure buildup. Injector return flow, connector-tube leakage, and pressure-limiting valve faults also warrant testing.
Rough Idle After Fuel Service
After filter service, check installation, seals, trapped air, and proper priming before blaming the pump.
Symptoms alone do not confirm a failed part.
If P0087 Appears While Towing or Accelerating
When P0087 sets under load, the first question is whether actual rail pressure drops below commanded pressure when fuel demand increases. A capable scan tool can record both values and the conditions captured by freeze-frame data.
- Check for companion codes. If P000F or another fuel-pressure or injector-related code is stored, use the applicable factory diagnostic order. Do not diagnose P0087 in isolation.
- Inspect the supply side. Check fuel quantity, filter service history, signs of water or contamination, and accessible low-pressure connections. Have supply pressure and volume tested to the truck’s model-year specification.
- Compare commanded and actual rail pressure. If the supply side passes but actual pressure still falls behind the request, a technician should investigate pressure-control operation, internal return leakage, and high-pressure pump output.
- Inspect for contamination if pump failure is suspected. Abnormal noise, sudden stalling, or evidence of metal debris changes the priority from routine testing to protecting the entire fuel system.
Oregon Fuel Injection’s 6.7L Ram diesel diagnostic reference identifies low fuel supply, plugged filters, and high-pressure-side leakage as relevant causes. It also explains why a supply problem should be ruled out before condemning the injection pump.
Never recreate severe power loss on the road or while towing. Arrange shop testing.
If P0087 Causes Hard Starts or No Starts
For a no-start condition, check battery condition, cranking speed, stored codes, fuel delivery, and cranking rail pressure.
For the 2007.5–2018 CP3-equipped systems only, Oregon Fuel Injection’s diagnostic material gives two useful reference values:
- Approximately 10–15 psi of low-pressure fuel supply at idle.
- Approximately 4,000 psi of rail pressure during cranking as a starting reference.
These are older-system reference points, not specifications for 2019–2026 models. Confirm the test location and procedure.
Follow the evidence:
- If supply pressure or flow is below specification, diagnose the filter, pickup, lift pump, associated wiring, and fuel supply plumbing.
- If supply passes but rail pressure will not build, have a diesel technician test injector return flow, connector-tube sealing, pressure-limiting valve leakage, and pump output according to factory instructions.
- If cranking rail pressure is sufficient, investigate the remaining starting-related codes and electrical or mechanical causes rather than replacing fuel-system components arbitrarily.
Do not loosen high-pressure injector lines or attempt a homemade rail-pressure test. High-pressure diesel fuel can penetrate skin and cause life-threatening injuries.
If P0087 Appears After a Fuel Filter Change
If P0087 follows filter service, check that work before replacing other parts.
Check that the correct filters were installed, housings and seals are seated properly, the water separator is closed, and the system was primed according to the Ram service procedure. If the fuel or drained filter contains water or visible contamination, stop and determine the source before restarting.
On many 2013–2024 pickup configurations, the filtration system includes an engine-mounted filter and a frame-mounted fuel-water separator. TruckGuider’s 6.7 Cummins fuel filter location guide explains the earlier layout. Its older arrangement must not be applied to the redesigned 2025–2026 top-access system.
If extended cranking continues after correct priming, retrieve codes and check rail pressure.
When 2019 and 2020 Rams Need Recall Y78 Checks
Certain 2019–2020 Ram 2500 and 3500 trucks with the 6.7L Cummins were built with a high-pressure fuel pump that could fail prematurely. The same campaign also covers specified Ram chassis-cab models. The issue is addressed by Safety Recall Y78, NHTSA 21V-880.
Pump failure can cause debris contamination, poor running, and sudden stalls. P0087 does not prove CP4 failure, and recall eligibility varies by VIN.
If you own one of these trucks:
- Check the VIN and recall-completion status with Ram or an authorized dealer.
- Ask whether the original pump was replaced under Y78. A revised CP3.3 pump may already be fitted.
- If the truck will not run or contamination is suspected, avoid restarting it and arrange dealer inspection.
Ram’s official Y78 dealer recall instructions describe pump replacement and, when failure has contaminated the system, additional cleaning and component replacement. The recall remedy for eligible vehicles is performed without charge under the campaign.
Even after recall service, other P0087 causes remain possible.
What 2026 Ram Owners Should Check Before Replacing Parts
Ram issued PCM software bulletins for certain 2026 Ram 2500 and 3500 trucks with the 6.7L Cummins High Output engine and eight-speed automatic.
In particular, TSB 18-025-26 Rev. B, dated July 9, 2026, includes P0087-00 among the listed codes and covers specified trucks built on or before February 11, 2026. Its repair approach is to inspect the PCM software and reprogram it when applicable. The revised bulletin supersedes earlier versions; eligibility depends on the VIN, equipment, and build date.
If you have a 2026 truck with P0087, ask the dealer to check the applicable Ram PCM software bulletin before authorizing component replacement. A software bulletin is not proof that every P0087 is a software-only issue, especially when the truck also has a genuine supply failure or visible contamination.
How to Verify Low Fuel Pressure on a Cummins
The correct diagnosis combines electronic data with approved mechanical tests. A scanner that only displays the fault code does not provide enough information to identify the failed part.
A professional diagnostic sequence should include the following steps:
- Save codes and freeze-frame data. Record P0087 and any accompanying P000F, P008A, sensor, or injector codes. Note the conditions when the code set.
- Verify basic fuel supply. Check correct diesel fuel, service history, filter restriction, water contamination, and the appropriate low-pressure supply measurement.

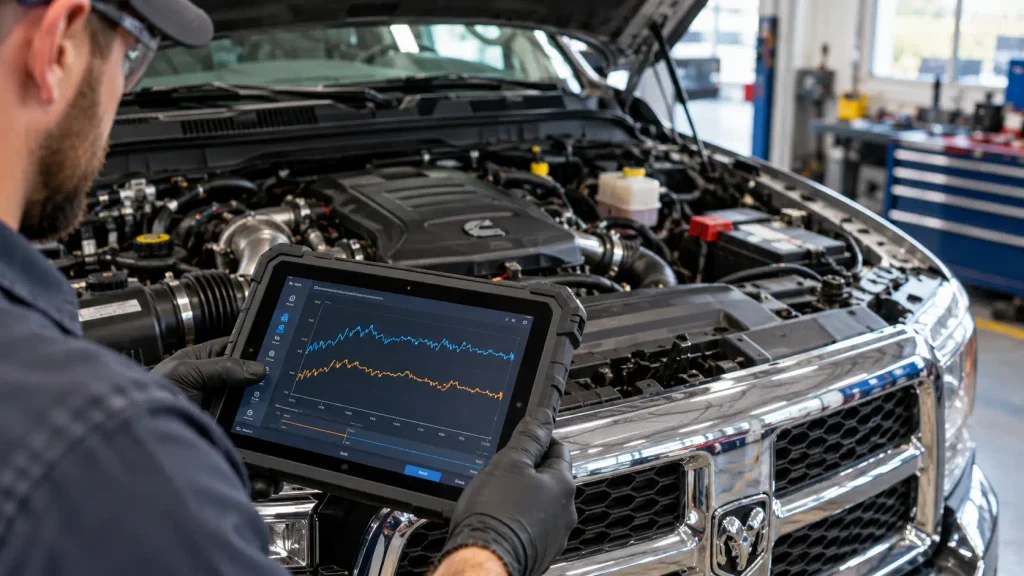

- Compare commanded and measured pressure. Review actual and requested fuel rail pressure at idle or during a controlled test suitable for the truck’s condition.
- Check the pressure-control system. If low-side delivery is good, follow the manufacturer’s actuator, sensor-circuit, and rail-pressure control procedures.
- Measure excessive internal leakage. Qualified technicians can assess injector return flow, connector-tube sealing, and pressure-limiting valve leakage using approved equipment.
- Evaluate the pump last. A pump diagnosis should be supported by output testing, the presence of debris, or other documented evidence. For recall-eligible trucks, follow the dealer campaign procedure.
For intermittent faults, check wiring and recorded data. Test any suspicious sensor reading before replacing it.
Safety warning: Common-rail diesel injection operates at pressures capable of injecting fuel through skin. Never use fingers to search for a leak, disconnect an injection line with the engine running, or bypass a pressure-relief device as a quick fix.
How Much Can a P0087 Repair Cost on a Ram
Repair cost depends on the confirmed fault, not the code.
| Confirmed Repair | Real Pricing Context | Important Limitation |
|---|---|---|
| Fuel filter replacement | $251–$303 estimated average for a Ram 2500 by RepairPal, updated September 2026 | Model, location, number of filters, and labor change the final quote. |
| One compatible fuel-filter part | Mopar 68157291AA carried a $145 MSRP for the 2013–2024 application | Parts-only reference; verify exact VIN and other filter requirements. |
| Injector or internal-return repair | Price after the defective injector or sealing component is identified | No accurate flat price follows from P0087 alone. |
| High-pressure pump repair | Requires a year-specific parts and labor quote | Contamination cleaning can materially increase the job. |
| Eligible recall Y78 remedy | $0 to the owner for covered recall work | Dealer must verify the VIN and campaign status. |
The RepairPal Ram 2500 fuel-filter estimate is not a quote for both Cummins filters in every model year. Request itemized parts, labor, diagnostic, and cleaning charges.
Which P0087 Repair Matches Each Diagnostic Result
The right repair follows a verified failed test, not a guess based on the most expensive possible failure.
| Observed Condition and Test Result | Next Action |
|---|---|
| Low supply pressure or a restricted filter is confirmed | Correct the filter, lift pump, supply restriction, or related electrical fault. |
| Adequate supply but excessive injector return is measured | Identify and repair the leaking injector or connection using factory procedures. |
| A pressure-limiting valve fails its specified leakage test | Replace the verified defective component with the correct service part. |
| Pump failure or metal debris is confirmed | Stop operation and arrange a full fuel-system contamination assessment. |
| VIN shows Y78 recall still open | Arrange authorized dealer recall service. |
| Eligible 2026 truck has an applicable PCM update | Have the dealer evaluate and perform the update, then recheck the fault. |
Confirm the repair with the manufacturer’s verification procedure before clearing the case.
When Should You Stop Driving With P0087
Stop driving if P0087 comes with repeated stalling, major power loss, a suspected diesel leak, abnormal high-pressure pump noise, or signs of metal contamination. Pull over safely and arrange towing rather than attempting another loaded test.
An intermittent P0087 does not automatically mean pump failure. Avoid heavy towing and arrange diagnosis. Never touch suspected high-pressure leaks.
How to Fix P0087 Without Replacing Parts Blindly
Fixing P0087 on a 6.7 Cummins starts with confirming the model year, reading all stored codes, and identifying when actual rail pressure falls below the requested value. Filter restriction and insufficient fuel supply are sensible early checks, but high-pressure leakage, control faults, and pump problems require targeted testing.
Certain 2019–2020 trucks need recall checks, and some 2026 trucks qualify for software updates. Neither replaces proper diagnosis.
For a load-related problem, preserve the scan report and explain exactly when the power loss occurred. That history helps the shop reproduce the fault under controlled conditions. Authorize only the repair supported by a failed test.
Frequently Asked Questions About P0087 on the Cummins
What Does P0087 Mean on a 6.7 Cummins
P0087 means the engine controller has detected lower-than-expected fuel rail pressure. The fault can originate on the low-pressure supply side or the high-pressure injection side. A scan tool and model-year-specific testing are needed to identify which component is responsible.
Can a Clogged Fuel Filter Cause P0087 on a Cummins
Yes. A restricted filter can limit fuel delivery to the high-pressure pump, especially as engine demand rises. Confirm the correct filters and supply pressure before blaming the pump. Other issues, including internal leakage, can produce the same code.
Can I Drive My Ram 2500 With a P0087 Code
Do not keep driving if the truck is stalling, losing significant power, leaking diesel, or making abnormal pump noises. If the fault was intermittent and the truck runs normally, arrange prompt diagnosis and avoid heavy towing. Driving risk depends on the symptoms, not just the code number.
Does P0087 Mean the CP4 Fuel Pump Has Failed
No. P0087 indicates a pressure problem, not a specific failed pump. Certain 2019–2020 Cummins trucks were originally equipped with a CP4 pump covered by recall Y78, but the truck’s VIN and installed hardware must be checked before drawing conclusions.
How Do I Diagnose P0087 When My Cummins Will Not Start
Begin with stored codes, cranking speed, fuel supply, and scan-tool rail-pressure readings. If supply tests pass but rail pressure will not build, a qualified technician should investigate injector return leakage, pressure-limiting valve leakage, and pump output using the correct service procedure for your model year.
