Ram 1500 EcoDiesel Towing Capacity Chart By Year and Guides 2026

The Ram 1500 EcoDiesel towing capacity reaches up to 12,560 pounds when properly equipped. That maximum applies to specific 2020 to 2023 DT-generation trucks with the 3.0L EcoDiesel V6, the 8HP75 eight-speed automatic transmission, the right axle ratio, and the correct towing package.

Most EcoDiesel trucks tow less than the headline number. Cab size, bed length, 2WD or 4WD, axle ratio, trim weight, payload, tire package, hitch rating, and Gross Combined Weight Rating all change the final number. This guide covers 2014 to 2023 Ram 1500 EcoDiesel towing ratings, then shows how to find the safe number for your exact truck.

Ram 1500 EcoDiesel Towing Capacity By Year

The table below shows the highest published Ram 1500 EcoDiesel towing capacity by model year. Use it as a starting point, then verify your truck by VIN, door sticker, axle ratio, and the official towing chart for that model year.

Ram’s own towing charts calculate trailer ratings under SAE J2807, include a 300-pound passenger allowance, and list payload, base weight, axle ratio, GCWR, and max trailer weight by configuration. That is why a single “EcoDiesel towing capacity” number is not enough.

For the broader Ram towing library, the site’s Ram towing capacity chart by year is the right pillar page to connect this EcoDiesel-specific guide.

Which Ram 1500 EcoDiesel Hits 12560 Pounds

The 12,560-pound Ram 1500 EcoDiesel tow rating is a best-case number, not a universal rating. Stellantis announced the 2020 Ram 1500 EcoDiesel with 480 lb-ft of torque and a maximum half-ton diesel tow rating of 12,560 pounds, but that rating depends on the build.

In the 2021 Ram Body Builder chart, the 12,560-pound EcoDiesel row appears with the 3.0L V6 EcoDiesel, 8HP75 transmission, 3.92 axle ratio, Max Tow Package, 7,200-pound GVWR, 2,060-pound payload, and 18,200-pound GCWR. The chart row is for a 4×2 Quad Cab with the 6-foot-4 box.

To reach the top rating, the truck generally needs these factors working together:

• 3.0L EcoDiesel V6 with the later 260 hp and 480 lb-ft tune.
• 8HP75 eight-speed automatic transmission on DT-generation trucks.
• 3.92 axle ratio, not the lower tow-oriented 3.21 setup.
• Max Tow Package where listed in the towing chart.
• Low enough truck weight so payload and GCWR leave trailer capacity available.

GCWR means Gross Combined Weight Rating. It is the maximum allowed combined weight of the loaded truck and loaded trailer. Once the truck gets heavier, available trailer weight goes down.

Why Payload Limits EcoDiesel Trailer Weight First

Payload is often the real limiter on a Ram 1500 EcoDiesel. Payload is the weight the truck can carry in passengers, cargo, hitch equipment, bed gear, aftermarket parts, and trailer tongue weight.

Ram’s towing chart notes that payload and trailer weight rating are mutually exclusive. It also says the recommended tongue weight for a conventional hitch is 10 percent of gross trailer weight, and the Class IV receiver hitch maximum tongue weight is limited to 1,100 pounds.

That matters because a 7,500-pound travel trailer can place about 750 pounds on the hitch at 10 percent tongue weight. Add two adults, tools, a weight-distribution hitch, coolers, bed cargo, and accessories, and a luxury EcoDiesel Crew Cab can run out of payload before it runs out of tow rating.

Here is a simple example:

• Loaded travel trailer weight: 7,500 lbs
• Estimated 10 percent tongue weight: 750 lbs
• Two adults and small cargo: 400 lbs
• Weight-distribution hitch and bed gear: 150 lbs
• Total payload used before extra cargo: 1,300 lbs

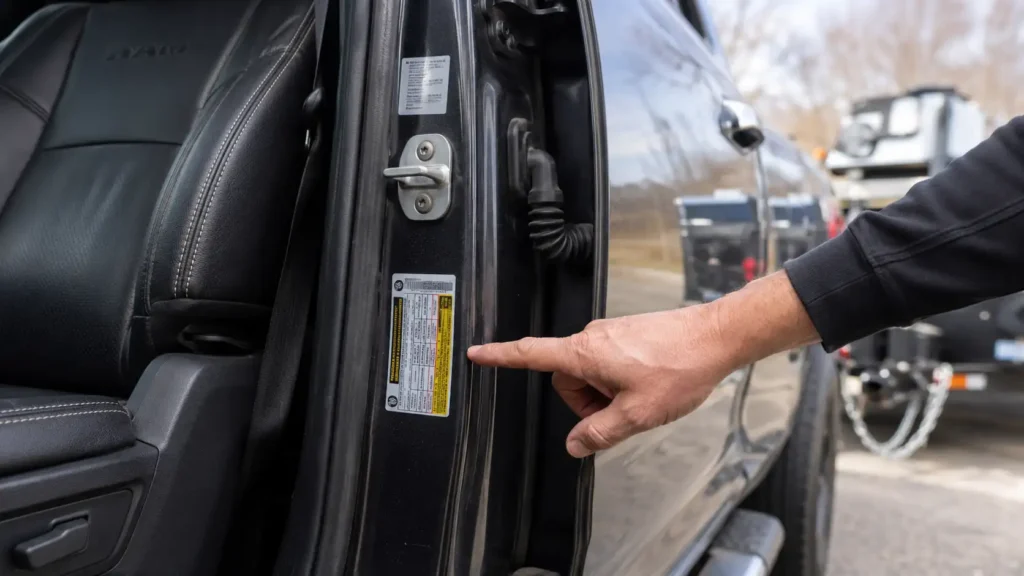

If your door sticker shows 1,350 pounds of payload, that setup leaves almost no margin. If your door sticker shows 1,750 pounds of payload, the same trailer is easier to manage. The yellow payload sticker on the driver door jamb is more useful than any online max tow number.

For a full payload reference, link this section to the Ram payload capacity chart so readers can move from trailer rating to real carrying capacity.

Best Real World Trailer Weight For EcoDiesel

The best real-world trailer weight for a Ram 1500 EcoDiesel is usually below the advertised maximum. Factory ratings are measured under defined test assumptions. Real towing adds passengers, tools, fuel, hitch hardware, wind, grade, tires, cargo, and trailer frontal area.

A conservative owner should compare loaded trailer weight, loaded truck weight, payload, GCWR, Gross Vehicle Weight Rating, axle ratings, and hitch rating. GVWR means Gross Vehicle Weight Rating, the maximum loaded weight of the truck itself.

For camper shopping, do not shop only by dry trailer weight. Use loaded trailer weight and estimated tongue weight. A trailer that looks safe on empty brochure weight can become marginal after batteries, propane, water, food, and camping gear are added.

EcoDiesel vs 5.7L Hemi Towing Difference

The 3.0L EcoDiesel V6 and the 5.7L Hemi V8 solve different towing problems. The EcoDiesel is stronger at low rpm and better suited to efficient highway towing. The 5.7L Hemi V8 has higher horsepower and, in some configurations, higher maximum Ram 1500 tow ratings.

If you tow often and care about diesel torque, the EcoDiesel can be the better half-ton choice. If you want lower diesel emissions-system complexity, stronger gas-engine familiarity, and a broader used market, the 5.7L Hemi V8 may be easier to own.

Used buyers should also read Ram EcoDiesel years to avoid before choosing a high-mileage diesel half-ton.

How To Find Your Exact EcoDiesel Tow Rating

Your exact EcoDiesel tow rating is tied to your truck’s VIN and build. Two Ram 1500 trucks with the same engine can have different limits because the factory equipment and curb weight are different.

1. Check the driver door payload sticker. This tells you how much combined passenger, cargo, and tongue weight your exact truck can carry.
2. Confirm the axle ratio. EcoDiesel trucks with 3.92 gearing usually rate higher than comparable 3.21 trucks.
3. Use the official Ram towing chart. Match year, cab, bed, drivetrain, engine, transmission, axle ratio, GVWR, and GCWR.
4. Check the receiver hitch rating. The hitch can have its own weight-carrying and weight-distributing limits.
5. Scale the loaded setup. Compare actual truck and trailer weights against GVWR, GCWR, GAWR, payload, and trailer rating.

For VIN-based lookup workflow, point readers to Ram towing capacity by VIN after they understand the chart logic.

5 Common EcoDiesel Towing Mistakes

Most Ram 1500 EcoDiesel towing mistakes come from reading only one number. The max tow rating matters, but it is not the same as the safe trailer weight for every truck.

Using 12560 Pounds For Every Truck

Not every EcoDiesel is rated for 12,560 pounds. Earlier DS-generation trucks are commonly around the 9,000-pound range at best, and many Crew Cab 4×4 trims are lower than the headline number.

Ignoring The Payload Sticker

Payload includes trailer tongue weight. A half-ton diesel with a heavy trim package can hit payload before it reaches the trailer rating.

Buying Too Much Travel Trailer

Travel trailers create more wind resistance than flatbed or boat trailers. A trailer may be within the tow rating but still feel unstable or overloaded once passengers and cargo are added.

Forgetting Hitch And Tire Limits

The receiver hitch, weight-distribution setup, tires, and axle ratings all matter. The weakest rated component controls the safe setup.

Skipping Maintenance Before Towing

Cooling system condition, brake condition, tire condition, transmission service, and diesel emissions-system health matter more when the truck is pulling heavy weight. A neglected EcoDiesel is not a good tow platform.

Final Verdict For Ram EcoDiesel Towing

The Ram 1500 EcoDiesel towing capacity is excellent for a half-ton diesel when the truck is properly equipped. The top rating is 12,560 pounds on select 2020 to 2023 DT-generation trucks, while earlier DS-generation EcoDiesel models usually sit far lower.

The practical answer is simple. Use the official chart for your model year, confirm the VIN or build sheet, check the door-sticker payload, and calculate loaded tongue weight before buying a trailer. If payload or trailer size pushes the limit, a Ram 2500 is the cleaner choice.

Ram 1500 EcoDiesel Towing Capacity FAQ

What Is The Maximum Ram 1500 EcoDiesel Towing Capacity

The maximum Ram 1500 EcoDiesel towing capacity is 12,560 pounds when properly equipped. That rating applies to select DT-generation trucks with the later 3.0L EcoDiesel V6 and the right tow configuration.

Which Ram 1500 EcoDiesel Can Tow 12560 Pounds

The 2021 Ram Body Builder chart shows a 4×2 Quad Cab 6-foot-4 box EcoDiesel setup with 3.92 gearing, Max Tow Package, 18,200-pound GCWR, and 12,560-pound max trailer rating. Other trims and 4×4 models can rate lower.

Is The EcoDiesel Better Than The 5.7L Hemi V8 For Towing

The EcoDiesel is better for low-rpm torque and efficient highway towing. The 5.7L Hemi V8 can be better if you want gas-engine simplicity, stronger horsepower, and higher ratings in some eTorque Max Tow configurations.

Can A Ram 1500 EcoDiesel Tow A Travel Trailer

Yes, a Ram 1500 EcoDiesel can tow many travel trailers, but payload is the critical limit. Use loaded trailer weight and tongue weight, not dry brochure weight, before deciding whether the camper is a safe match.

Why Did Ram Stop Making The EcoDiesel

Ram ended 1500 EcoDiesel production in January 2023 as the brand shifted toward newer powertrains and electrified plans. That makes EcoDiesel towing research mainly a used-truck buying topic now.

How Do I Find My Exact Ram 1500 EcoDiesel Tow Rating

Find your exact tow rating by matching your VIN or build details to the official Ram towing chart. Confirm cab, bed, 2WD or 4WD, axle ratio, GVWR, GCWR, payload, and hitch rating before towing.
