Ram 2500 vs 3500: Towing GVWR and Frame Differences Explained 2026
Most buyers assume the Ram 2500 and 3500 are built on completely different platforms. They are not. Both trucks share the same base frame design, the same 6.4L HEMI V8 and 6.7L Cummins Turbo Diesel engine options, and in most configurations, the same 11.5-inch rear axle.
What actually separates them is narrower than dealer marketing suggests: rear suspension type, GVWR (Gross Vehicle Weight Rating) classification, and how much towing and payload headroom Ram engineers into each truck’s frame.
This guide breaks down the real differences using official Ram specifications and owner-verified mechanical data, so you can decide which heavy-duty truck actually fits how you plan to use it.
Ram 2500 vs Ram 3500
Recommended Best Deal Products
Towing, payload, GVWR, and frame comparison
Source: Stellantis 2025 Ram Heavy Duty press kit and ramtrucks.com official specifications.
Ram 2500 vs 3500 Towing and Payload by Engine
The gap between these two trucks shows up fastest in the towing numbers. The Ram 3500, properly equipped, tows more than 16,000 pounds beyond the 2500’s maximum rating.
Both trucks offer the same 6.4L HEMI V8, rated at 405 horsepower and 429 lb-ft of torque, and the same 6.7L Cummins Turbo Diesel, rated at 370 horsepower and 850 lb-ft of torque. Since the 2025 model year, both also offer the High-Output 6.7L Cummins, rated at 430 horsepower and 1,075 lb-ft of torque.
| Spec | Ram 2500 | Ram 3500 |
|---|---|---|
| Max towing (HO Cummins diesel) | 20,000 lbs | 36,610 lbs |
| Max payload (gas HEMI) | 4,420 lbs | 7,590 lbs |
| Standard rear axle | 11.5-inch AAM | 11.5-inch AAM (SRW) |
| HO Cummins axle upgrade | Not available | 12-inch AAM (DRW only) |
| GVWR range | 10,000 to 11,040 lbs | 11,700 to 14,000 lbs |
| Rear suspension | 5-link coil | Hotchkiss leaf spring |
| Rear wheel setup | Single rear wheel only | Single or dual rear wheel |
The takeaway: engine output is identical between the two trucks. Capacity is not. The 3500’s frame, axle options, and GVWR ceiling are what unlock the higher numbers, not a more powerful drivetrain.
For a full year-by-year breakdown, see the Ram 2500 towing capacity chart and the Ram 3500 towing capacity charts.
Recommended Best Deal Products
6.7L Cummins HO Availability 2500 vs 3500 by Year
Before the 2025 model year, the High-Output 6.7L Cummins was a Ram 3500 exclusive. Buyers who wanted the extra torque had to step up to the heavier truck even if they never needed the 3500’s payload capacity.
That changed with the 2025 Ram Heavy Duty lineup. Ram made the HO Cummins available on the 2500 for the first time, pushing its diesel towing capacity to 20,000 pounds and torque to 1,075 lb-ft.
If you are shopping used trucks, this matters. A pre-2025 Ram 2500 with the Cummins diesel is capped at the standard-output engine. A 2025-or-newer 2500 can be ordered with the same HO Cummins block found in the 3500, just without the 3500’s frame and axle upgrades to fully use it.
Frame Axle and Brake Differences Between Ram 2500 and 3500
Owner forums have documented this for years, and it holds up against the spec sheets: the 2500 and 3500 single-rear-wheel trucks share the same 11.5-inch AAM rear axle and the same brake components.
The one exception is the 3500 dual-rear-wheel truck ordered with the HO Cummins engine. That configuration gets a larger 12-inch AAM rear axle, built to handle the higher torque and towing loads.
The frame itself follows the same base design across both trucks. The 3500 gets additional reinforcement at the rear to support its leaf-spring suspension and higher GVWR, but it is not a separate ground-up chassis.
Recommended Best Deal Products
Ram 2500 Coil Spring vs Ram 3500 Leaf Spring Suspension
This is the difference most owners actually feel from the driver’s seat. The Ram 2500 uses a 5-link coil rear suspension, which Ram markets as a class-exclusive feature for ride comfort. It smooths out bumps and rides closer to a half-ton truck when unloaded.

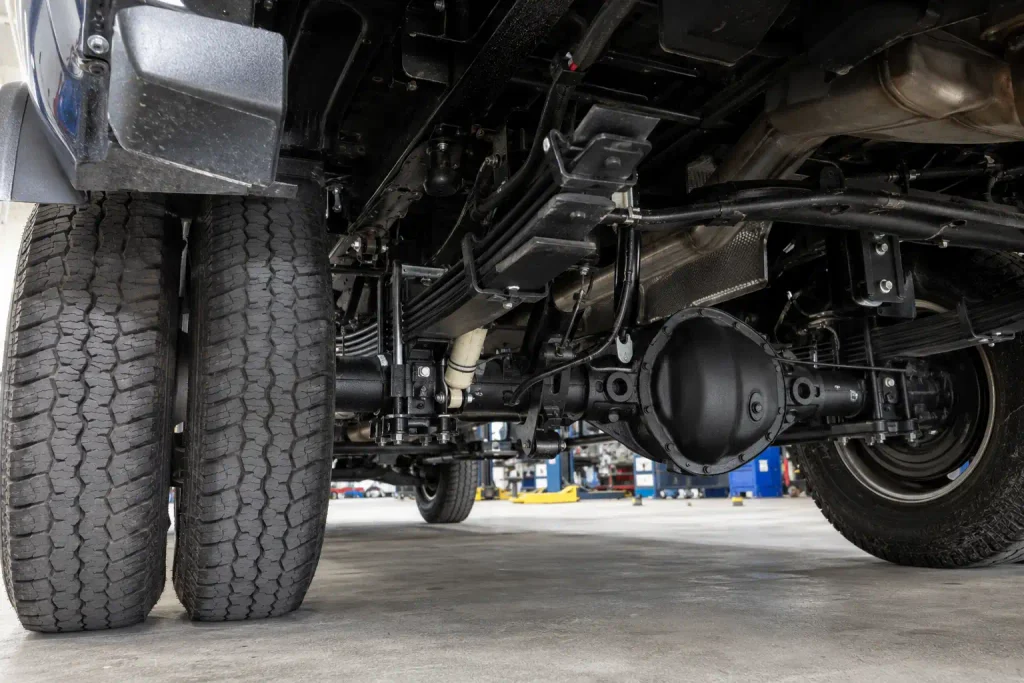

The Ram 3500 uses a Hotchkiss leaf-spring rear suspension instead. Leaf springs ride stiffer empty, but they hold their shape better under heavy, sustained loads like a loaded gooseneck trailer or a fully packed utility bed.
Owners cross-shopping both trucks on ramforums.com and hdrams.com threads consistently describe the same pattern: the 2500 feels smoother as a daily driver, while the 3500 feels more planted once real weight is on it.
Ram 2500 GVWR vs Ram 3500 GVWR Explained
GVWR is the maximum total weight a truck is rated to carry, including the truck itself, passengers, cargo, and fuel. It is not the same as towing capacity, which covers a separate trailer.
Most Ram 2500 configurations carry a 10,000-pound GVWR. Ram raised the GVWR on diesel-equipped 2500 models to 11,040 pounds during the 2025 model year, closing some of the gap with the 3500. The Ram 3500 still outranks it, with GVWR ratings from 11,700 up to 14,000 pounds depending on cab, bed, and drivetrain configuration.
Part of the 2500’s lower ceiling comes down to classification, not just engineering limits. Keeping the 2500 under certain GVWR thresholds affects registration fees and, in some states, commercial licensing requirements for the driver.
The 3500’s higher GVWR moves it into a different weight class, which is worth checking against your state’s registration rules before you buy if you plan to run near the truck’s limits.
Ram 3500 Dually vs Ram 2500 Single Rear Wheel
The Ram 3500 is the only one of the two available with dual rear wheels, commonly called a dually, on Crew Cab models. The wider rear track spreads the load across four rear tires instead of two, which improves stability under a heavy trailer.
The Ram 2500 is single rear wheel only, in every configuration.
A dually matters most for fifth-wheel and gooseneck towing near the truck’s maximum rating, or for commercial work where the load shifts constantly. If you are not regularly towing at the top of your weight range, the extra width of a dually mostly adds parking and lane-width headaches without a real benefit.
Which Should You Buy Ram 2500 or Ram 3500
Buy the Ram 2500 if you drive it daily, tow under roughly 18,000 to 20,000 pounds, and want the smoother coil-spring ride. It starts at a lower price and covers the towing needs of most boat, camper, and equipment trailer owners without excess truck to manage.
Buy the Ram 3500 if you regularly tow heavy fifth-wheel or gooseneck trailers, need GVWR headroom above 11,040 pounds, or work in a commercial or fleet setting where a dually’s stability matters. The Ram 2500 vs 3500 ride quality comparison is worth reading if ride comfort is your deciding factor.
For 2026, the Ram 2500 starts at an MSRP of $45,995. The Ram 3500 starts at $47,195. The gap between base trims is smaller than most buyers expect, which is exactly why the towing, GVWR, and suspension differences above matter more than the sticker price.
If you are also weighing the half-ton Ram 1500 against either heavy-duty truck, the Ram 1500 vs 2500 size difference guide covers that step down in more detail.
Common Questions About Ram 2500 vs 3500
Do the Ram 2500 and 3500 share the same engine?
Yes. Both offer the 6.4L HEMI V8, the standard-output 6.7L Cummins, and since the 2025 model year, the High-Output 6.7L Cummins. The engines are identical; the frame, axle, and GVWR determine how much of that power each truck can use for towing.
Can a Ram 2500 tow as much as a 3500?
No. The 2500 tops out at 20,000 pounds with the HO Cummins diesel, while the 3500 reaches 36,610 pounds with the same engine in its highest DRW configuration. The 3500’s frame, GVWR, and available dual rear wheels unlock the higher rating.
Is the Ram 2500 or 3500 a smoother ride?
The Ram 2500 rides smoother unloaded thanks to its 5-link coil rear suspension. The Ram 3500’s leaf-spring rear suspension rides stiffer empty but holds up better under heavy, sustained loads.
