2015 Ram 1500 Headlight Bulb Replacement [2026]

Quick Answer: 2015 Ram 1500 Headlight Bulb Size Chart

⚠️ Important: The 9012 and H11 are NOT interchangeable. Using the wrong bulb in a projector housing will result in a loose fit, poor beam pattern, and potential electrical damage. Always confirm your housing type before ordering.

A burned-out headlight on your 2015 Ram 1500 is more than an annoyance — it’s a safety issue and a quick ticket from law enforcement. The good news is that with the right bulb and about 30 to 45 minutes, you can handle this job yourself without paying dealer labor rates.

The 2015 model year sits inside the 4th Generation Ram lineup (2009–2018) and uses one of two completely different headlight systems depending on your trim level. Getting the bulb size wrong is the most common and costly mistake owners make, so this guide starts there before walking you through the full removal and replacement procedure.

Whether you have the standard quad reflector housings on a Tradesman or the premium projector setup on a Laramie or Rebel, the steps below cover your exact setup. We also cover what you need to know if you’re considering upgrading to LEDs — because the 2015 Ram has a CANBus electrical system that will cause flickering if you buy the wrong type.

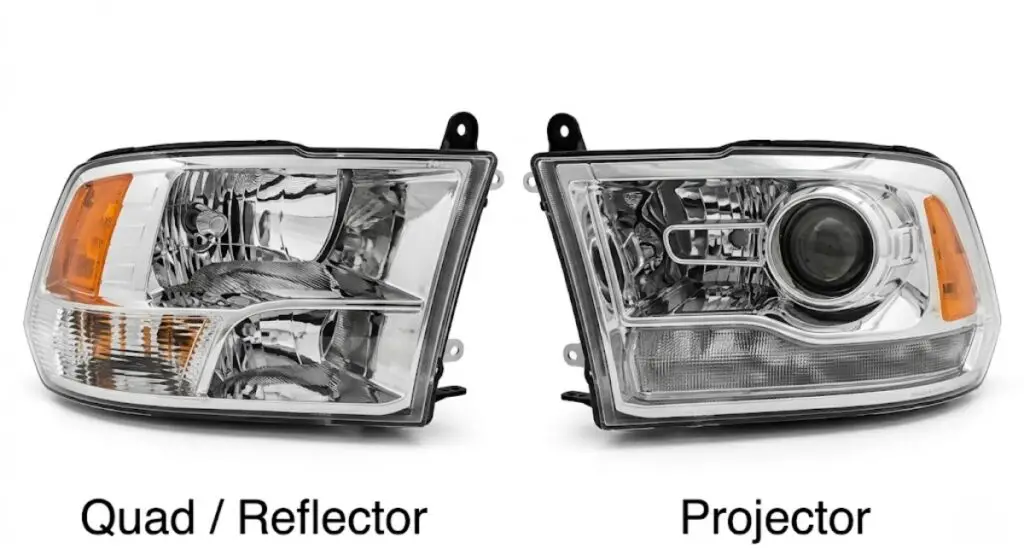

What Headlights Does the 2015 Ram 1500 Have? Projector vs. Quad

Before you order any bulbs, you need to identify which headlight housing your 2015 Ram 1500 has. The two types look noticeably different from outside the truck and require entirely different bulb sizes.

Quad (Reflector) Housings are found on base and mid-level trims, including the Tradesman, Express, Big Horn, SLT, and Outdoorsman. Looking at the front of the truck, you will see two separate chrome or black reflector bowls on each side — one for the low beam and one for the high beam. Each bowl holds its own bulb.

Projector Housings come standard on the Laramie, Laramie Longhorn, Rebel, and Limited trims. These have a single rounded “fish-eye” magnifying lens per side. One 9012 bulb handles both the low beam and high beam functions within a single housing. If you look closely at the lens, you will see a circular projector assembly inside it.

Still not sure? Open the hood and look at the back of the headlight assembly. Quad housings have two separate bulb sockets per side. Projector housings have one large socket per side with a distinctive three-prong connector.

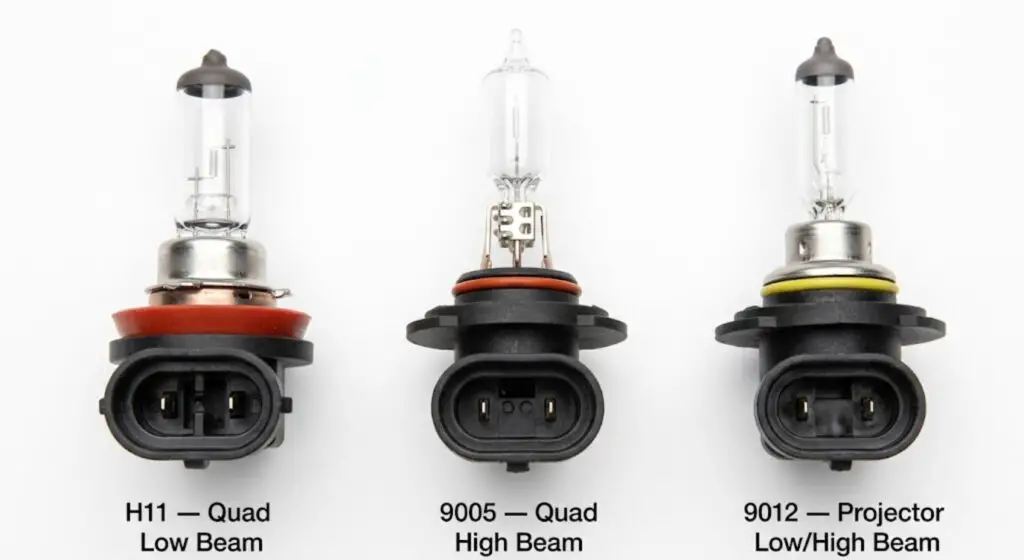

2015 Ram 1500 Headlight Bulb Sizes: Full Breakdown

Quad (Reflector) Headlight Bulb Sizes

If your 2015 Ram 1500 has quad reflector headlights, here are the exact bulb specifications:

• Low Beam: H11 (55W halogen OEM)
• High Beam: 9005 (65W halogen OEM)
• Fog Lights: H10 / 9145 (42W halogen OEM)

The H11 and 9005 are among the most widely available automotive bulb sizes, sold at every auto parts store. When buying OEM replacements, look for bulbs rated at the factory wattage to avoid stressing the factory wiring harness. If you’re stepping up to performance halogens, stay at or below the OEM wattage rating.

Projector Headlight Bulb Sizes

If your 2015 Ram 1500 has projector headlights — common on Laramie, Longhorn, and Rebel trims — the setup is different:

• Low Beam / High Beam (single bulb): 9012 / HIR2 (55W halogen OEM)
• Fog Lights: 9006 (55W halogen OEM)

The 9012 (also labeled HIR2) is less common than H11 or 9005, so not every auto parts store carries it on the shelf. It is widely available online. Do not substitute a 9005 or H11 — the connector notch and pin layout are different, and forcing the wrong bulb risks cracking the socket or causing a short.

Pro tip: Before heading to the store, pull the old bulb out and check the stamp on the base. The bulb type (H11, 9005, 9012, etc.) is always printed directly on the glass base. This takes 2 minutes and eliminates any guesswork.

For a complete reference covering all Ram 1500 generations from 2002 through 2024, see our full Dodge Ram 1500 Headlight Bulb Size Guide.

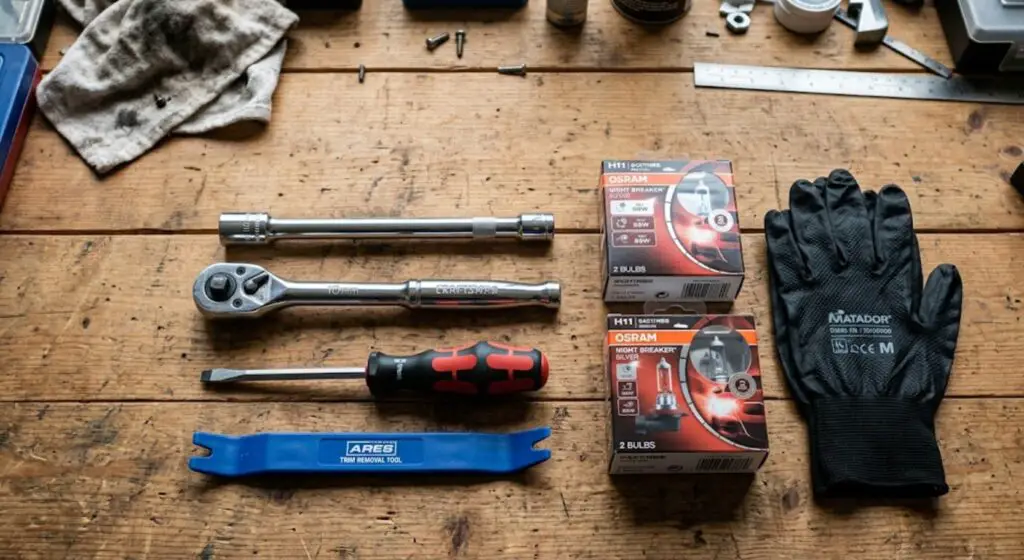

Tools and Parts You’ll Need Before You Start

Gather everything before you open the hood. Having the right tools ready cuts the job time in half and prevents the frustration of discovering mid-job that you’re missing something.

Tools:

• 10mm socket with ratchet
• 6-inch or longer extension bar (1/4″ drive)
• Flathead screwdriver or trim panel removal tool
• Nitrile gloves (critical — see the warning below)

Parts:

• Two new headlight bulbs (always replace both sides at the same time)
• Optional: anti-flicker harness or CANBus decoders (required if upgrading to LED)

⚠️ Do not touch the glass part of the bulb with bare fingers. The natural oils from your skin create a hot spot on the quartz glass that causes the bulb to burn significantly hotter at that point, leading to premature failure — sometimes within days. Always handle new halogen bulbs with nitrile gloves or hold the base only.

How to Replace the Headlight Bulb on a 2015 Ram 1500: Step-by-Step

The 2015 Ram 1500 (4th Gen) has a reputation for being awkward to access the headlight housing, but you do not need to remove the entire front grille. Here is the correct method.

Step 1 — Open the Hood and Locate the Headlight Assembly

Open the hood and look at the top of each headlight assembly. On 2014 and newer 4th Gen Rams, FCA added a plastic fascia strip that runs between the grille and the radiator support, extending out to cover the top bolt of each headlight housing. You need to remove this before you can reach the upper mounting bolt.

The fascia strip is held by two plastic push-pin clips on each side. Use a flathead screwdriver or trim removal tool to pop each clip out. Once the clips are free, pull the strip away from the radiator support. Set it aside — you will reinstall it after the job.

Step 2 — Remove the Three Mounting Bolts (No Full Grille Removal Needed)

Each headlight housing on the 2015 Ram 1500 is held in place by three fasteners: two bolts and one sliding clip inside the fender.

Upper bolt: Now that the fascia strip is off, the upper 10mm bolt on top of the housing is fully accessible from the engine bay. Remove it with your ratchet.

Lower bolt: This one is trickier. You cannot reach it directly from above. Use your 6-inch extension bar with the 10mm socket and reach down through the fascia opening at the front of the truck. Point the extension at approximately a 45-degree angle downward and feel for the bolt head at the bottom of the housing. A magnetic 10mm socket makes this much easier. You do not need to remove the grille for this — the socket and extension fit through the grille opening.

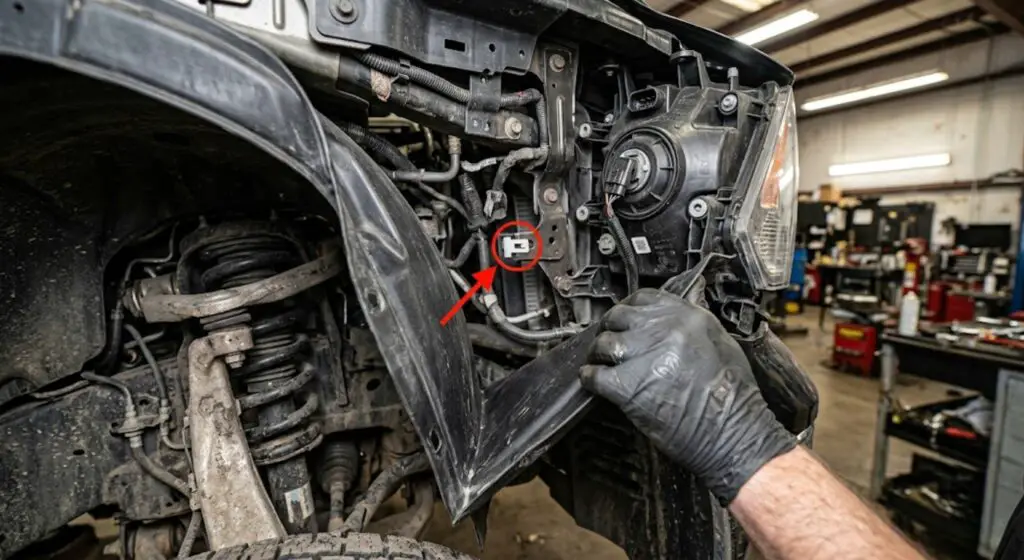

Fender clip: Open the front wheel well liner on the same side as the headlight you are replacing. There is a small plastic access flap or push-pin held section in the liner. Pull back the liner flap to expose a white sliding plastic clip. This clip locks the rear of the headlight housing into a tab on the inner fender. Slide or push the white clip toward the rear of the truck to release it. This step is the one most people miss, and it is why the housing feels stuck even after both bolts are out.

Step 3 — Remove the Headlight Housing

With all three fasteners released, the housing should tilt forward and away from the truck. Tip the front edge of the housing outward and pull it clear of the grille surround. As you pull it out, you will feel the wiring harness tug — do not yank. Reach behind the housing to unplug the wiring connector before pulling the housing fully free. The connector has a tab or lever you press to release.

Set the housing on a clean, soft surface (a folded towel works well) to avoid scratching the lens.

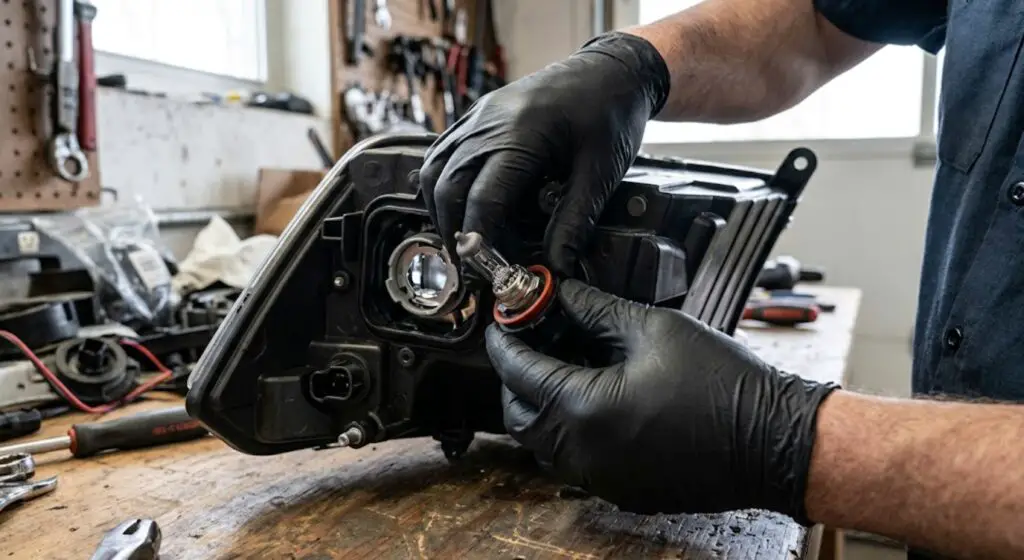

Step 4 — Swap the Bulb

With the housing free, you have clear access to the bulb from the rear.

1. Locate the dust cap (a rubber or plastic cover) on the back of the housing. Turn it counterclockwise about a quarter turn and pull it off.
2. You will now see the back of the bulb and its wiring connector. Unplug the connector by pressing the release tab and pulling.
3. Twist the old bulb counterclockwise approximately a quarter turn to release it from the socket. Pull it straight out.
4. Put on your nitrile gloves. Remove the new bulb from its packaging, holding it by the base only.
5. Insert the new bulb into the socket and twist clockwise until it locks. It should feel firm and seated — there should be no wobble.
6. Reconnect the wiring harness. You should hear or feel it click into place.
7. Test before reassembly. Turn on your headlights to confirm the new bulb lights up. This saves you from reinstalling the housing only to discover a connection issue.
8. Reinstall the dust cap by pressing it on and turning clockwise.

Step 5 — Reinstall the Housing and Verify Beam Aim

Plug the wiring harness back in if you haven’t already, then guide the housing back into position. Re-engage the white sliding fender clip first (easiest when the housing is only partially seated), then hand-tighten the upper and lower 10mm bolts, and finally reinstall the fascia strip push-pins.

After everything is reassembled, check your headlight beam aim. Park 25 feet from a flat wall or garage door with the truck on level ground. The center of the low beam cutoff line should be at or slightly below the height of the headlight center. Most 2015 Ram 1500 housings have a vertical aiming screw accessible from the top of the housing — a Phillips head screwdriver adjusts the beam up or down.

If your 2015 Ram 1500 has been having other electrical gremlins, it’s worth checking our guide on the 2015 Ram 1500 Fuse Box Location to make sure a blown fuse isn’t contributing to any lighting issues.

Should You Upgrade to LED? What 2015 Ram 1500 Owners Need to Know

Many 4th Gen Ram owners use a headlight replacement as an opportunity to upgrade to LED bulbs. LED upgrades offer real advantages — higher output, longer lifespan, and a cleaner white light. However, there is a critical compatibility issue specific to the 2015 Ram 1500 that you need to understand before buying.

CANBus and Anti-Flicker: The #1 Issue for 2015 Ram LED Upgrades

The 2015 Ram 1500 uses a CANBus (Controller Area Network) electrical system that actively monitors the power draw of every exterior bulb. When you install an LED that draws significantly less current than the original halogen, the truck’s computer interprets this as a failed or missing bulb. The result is either a “Bulb Out” warning light on the dashboard, a rapid flickering or strobe effect when the lights are on, or both.

There are two ways to solve this:

Option 1 — Buy CANBus-ready LED bulbs. These have built-in resistor circuitry that mimics the power draw of a halogen bulb, effectively “tricking” the truck’s computer into seeing a normal bulb. Look for bulbs specifically labeled “CANBus compatible,” “error-free,” or “no dashboard warning.” The 2015 model year is among the more sensitive years in the 4th Gen lineup, so this is not optional — it is required.

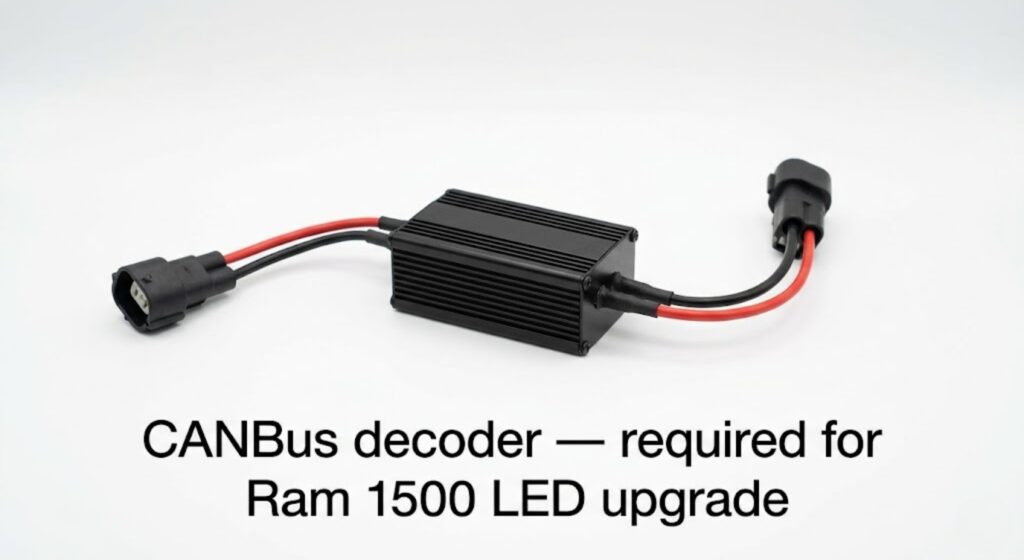

Option 2 — Add external load resistors. If you already purchased LED bulbs and are experiencing flickering, plug-in anti-flicker decoders or load resistors solve the problem. These small plug-and-play devices install between the factory harness and the bulb socket. Mount them to a metal surface (the back of the headlight housing or a nearby bracket) because they generate heat during operation.

LED Bulb Fitment Tips by Housing Type

For quad (reflector) housings: Choose LED bulbs where the light-emitting chips are positioned in the same location as a halogen filament — ideally oriented horizontally at the 3 o’clock and 9 o’clock positions. A poorly positioned chip in a reflector housing creates scattered light that blinds oncoming drivers while giving you poor actual illumination. Look for bulbs with a 360-degree adjustable collar so you can fine-tune the chip orientation after installation.

For projector housings: Projector lenses are precision optics that work best with a concentrated light source. Look for LED bulbs with CSP (Chip Scale Package) technology, which provides a denser, more focused output that the projector lens can properly focus into a long beam. Ensure the bulb has active cooling (a built-in fan or substantial aluminum heat sink) because projector housings are enclosed and trap heat.

HID Upgrades for Projector-Equipped 2015 Rams

If your 2015 Ram 1500 came with projector headlights, High-Intensity Discharge (HID) bulbs are another strong option. HIDs produce a 360-degree light spread that pairs especially well with projector optics, producing a very sharp cutoff line and exceptional long-distance throw. A 4300K to 5000K HID kit gives you a clean white light without the blue tint of higher color temperatures. Keep in mind that HID kits require a ballast for each headlight and take a few seconds to reach full brightness after switching on.

Common Mistakes and Pro Tips

• Always replace headlight bulbs in pairs. If one bulb has failed, the other is typically near the end of its service life. Replacing both at the same time ensures matched brightness on both sides and means you won’t repeat this job in two months.
• Confirm your housing type before ordering. Quad vs. projector is the single most common ordering mistake. The 9012 and H11 look similar but are not compatible.
• Test the new bulb before reassembling the housing. It takes 10 seconds and saves you 20 minutes if there’s a connection issue.
• Reconnect the battery before testing. On some 4th Gen Rams, the lighting system can log a fault code if a bulb is swapped while the truck is powered. Disconnect the negative battery terminal, do your swap, reconnect, and test.
• Check beam aim after replacement. Any time you remove the headlight housing, the aim can shift slightly. A two-minute check against a wall prevents you from blinding other drivers.
• Don’t over-torque the mounting bolts. The housing is plastic. The 10mm bolts only need to be snug — firm hand-tight is sufficient. Over-torquing cracks the housing tabs.
• If you notice TPMS lights or other warning lights after the job, the battery disconnect may have triggered a reset. Check our 2015 Ram 1500 TPMS Reset Button Location guide to quickly reset it.

2015 Ram 1500 Headlight Replacement Cost: DIY vs. Shop

Doing this job yourself saves significant money. Here’s a realistic cost comparison:

Many auto parts stores (AutoZone, O’Reilly, Advance Auto Parts) will install basic bulbs for free if you purchase them in-store. However, the 2015 Ram 1500 housing removal is more involved than a simple twist-and-swap, so some stores may decline on this model or charge a fee.

Frequently Asked Questions

What bulb does the 2015 Ram 1500 use for the low beam?

It depends on your trim and housing type. Quad/reflector housings (Tradesman, Big Horn, SLT, Express) use an H11 low beam bulb. Projector housings (Laramie, Rebel, Longhorn, Limited) use a 9012 (HIR2) bulb that handles both low and high beam in a single unit. Do not interchange these — they have different connector pin layouts.

Do I have to remove the grille to change the headlight bulb on a 2015 Ram 1500?

No, full grille removal is not required. The lower housing bolt can be accessed using a long 10mm extension through the front fascia opening. The upper bolt is accessible from the engine bay once the plastic fascia strip between the grille and radiator support is removed. The third fastener is a sliding white clip accessed through a flap in the front wheel well liner.

How long does it take to replace a headlight bulb on a 2015 Ram 1500?

For a first-timer, expect 30 to 45 minutes per side. Once you understand the three-point mounting system and have done it once, it drops to about 15 to 20 minutes. The wheel well clip is the step that catches most people the first time.

Why does my LED headlight bulb flicker on my 2015 Ram 1500?

The 2015 Ram uses a CANBus electrical system that monitors bulb resistance. LED bulbs draw far less current than halogens, which causes the computer to interpret the lower draw as a failed bulb. It then sends a pulsed current to “test” the circuit, creating a strobe effect. The fix is either CANBus-compatible LED bulbs (which have built-in resistors) or external anti-flicker load resistors added to the existing wiring.

What is the fog light bulb size for a 2015 Ram 1500?

Quad/reflector trims use H10 (9145) fog light bulbs. Projector trims use 9006 fog light bulbs. Check the stamp on your existing fog light bulb before purchasing a replacement to confirm.

Can I use a 9005 bulb instead of a 9012 in my 2015 Ram 1500 projector?

No. The 9005 and 9012 have different notch positions and connector configurations. While they are physically similar in size, they are not cross-compatible. Forcing a 9005 into a 9012 socket risks damaging the socket, creating a poor electrical connection, and voiding any warranty on the headlight assembly.

Should I replace both headlight bulbs at the same time?

Yes, always. When one bulb fails, the other has typically operated for the same number of hours and is approaching its end of life. Replacing both at once ensures matched brightness and color output across both headlights and means you only have to do the housing removal once.

Related Guides

If you found this guide helpful, these related articles cover other common 2015 Ram 1500 maintenance jobs:

• Dodge Ram 1500 Headlight Bulb Size Guide — All Years & Generations
• 2016 Ram 1500 Rear Turn Signal Bulb Replacement
• 2015 Ram 1500 TPMS Reset Button Location
• 2015 Ram 1500 Fuse Box Location
• 2015 Ram 1500 Power Steering Reservoir Location
• Ram 1500 Lug Nut Torque Specs by Year
• Dodge Ram Won’t Start But Has Power? The 3-Step Fix

Final Thoughts

Replacing the headlight bulb on a 2015 Ram 1500 is a manageable DIY job once you understand the two-housing-type distinction and the three-point mounting system. The most important steps are confirming whether you have quad or projector headlights before ordering any parts, using the fender-liner shortcut to release the third clip without removing the full grille, and always wearing nitrile gloves when handling halogen bulbs. If you’re upgrading to LEDs, spend a few extra dollars on a CANBus-compatible kit — it will save you considerable frustration.

For a complete reference on headlight bulb sizes across all Ram 1500 model years, visit our Dodge Ram 1500 Headlight Bulb Size Guide. And if you run into any other maintenance questions on your 2015 Ram, TruckGuider has you covered with guides written by owners and mechanics who know these trucks inside and out.
