Toyota Tacoma Towing Capacity Chart by Year – 2026
This Toyota Tacoma towing capacity chart by year shows the maximum tow rating for each model year from 1995 to 2026. The short answer is that older first-generation Tacoma trucks usually top out around 5,000 lbs, second-generation V6 models reach up to 6,500 lbs, third-generation V6 models reach up to 6,800 lbs, and newer fourth-generation Tacoma models reach up to 6,500 lbs when properly equipped.
That number does not apply to every Tacoma. Engine, cab size, drivetrain, transmission, axle setup, tow package, payload, passengers, cargo, and accessories all change the real number your truck can safely handle.
Use the chart first, then confirm your exact rating from the door jamb sticker, owner’s manual, and Toyota documentation before hooking up a trailer.
Toyota Tacoma Towing Capacity Chart by Year
The chart below is a maximum rating guide, not a guarantee for every Tacoma on the road. A base 4-cylinder Tacoma may be rated far lower than a V6 or turbo model with the correct tow equipment.
| Toyota Tacoma Year | Generation | Main Engine Options | Maximum Towing Capacity | Key Configuration Notes |
|---|---|---|---|---|
| 1995 | 1st Gen | 2.4L I4, 2.7L I4, 3.4L V6 | 5,000 lbs | Highest rating generally tied to V6 models |
| 1996 | 1st Gen | 2.4L I4, 2.7L I4, 3.4L V6 | 5,000 lbs | 4-cylinder models commonly rate lower |
| 1997 | 1st Gen | 2.4L I4, 2.7L I4, 3.4L V6 | 5,000 lbs | V6 and towing equipment matter |
| 1998 | 1st Gen | 2.4L I4, 2.7L I4, 3.4L V6 | 5,000 lbs | Verify cab and drivetrain |
| 1999 | 1st Gen | 2.4L I4, 2.7L I4, 3.4L V6 | 5,000 lbs | V6 models carry the strongest tow rating |
| 2000 | 1st Gen | 2.4L I4, 2.7L I4, 3.4L V6 | 5,000 lbs | Check frame condition before towing |
| 2001 | 1st Gen | 2.4L I4, 2.7L I4, 3.4L V6 | 5,000 lbs | Tow rating depends on equipment |
| 2002 | 1st Gen | 2.4L I4, 2.7L I4, 3.4L V6 | 5,000 lbs | Use the owner’s manual for exact rating |
| 2003 | 1st Gen | 2.4L I4, 2.7L I4, 3.4L V6 | 5,000 lbs | V6 trucks are the better tow choice |
| 2004 | 1st Gen | 2.4L I4, 2.7L I4, 3.4L V6 | 5,000 lbs | Final first-gen year |
| 2005 | 2nd Gen | 2.7L I4, 4.0L V6 | 6,500 lbs | Larger chassis and stronger V6 |
| 2006 | 2nd Gen | 2.7L I4, 4.0L V6 | 6,500 lbs | V6 tow package models rate highest |
| 2007 | 2nd Gen | 2.7L I4, 4.0L V6 | 6,500 lbs | Check Regular Cab, Access Cab, Double Cab |
| 2008 | 2nd Gen | 2.7L I4, 4.0L V6 | 6,500 lbs | Tow package affects max rating |
| 2009 | 2nd Gen | 2.7L I4, 4.0L V6 | 6,500 lbs | Trailer-Sway Control appears in this era |
| 2010 | 2nd Gen | 2.7L I4, 4.0L V6 | 6,500 lbs | Verify 2WD and 4WD rating differences |
| 2011 | 2nd Gen | 2.7L I4, 4.0L V6 | 6,500 lbs | V6 models are the safer tow pick |
| 2012 | 2nd Gen | 2.7L I4, 4.0L V6 | 6,500 lbs | Facelift year, same general tow ceiling |
| 2013 | 2nd Gen | 2.7L I4, 4.0L V6 | 6,500 lbs | Check payload before camper towing |
| 2014 | 2nd Gen | 2.7L I4, 4.0L V6 | 6,500 lbs | Near end of 4.0L V6 era |
| 2015 | 2nd Gen | 2.7L I4, 4.0L V6 | 6,500 lbs | Final second-gen year |
| 2016 | 3rd Gen | 2.7L I4, 3.5L V6 | 6,800 lbs | V6 with tow package reaches max rating |
| 2017 | 3rd Gen | 2.7L I4, 3.5L V6 | 6,800 lbs | 4-cylinder models remain around 3,500 lbs |
| 2018 | 3rd Gen | 2.7L I4, 3.5L V6 | 6,800 lbs | Access Cab 4×2 V6 often rates highest |
| 2019 | 3rd Gen | 2.7L I4, 3.5L V6 | 6,800 lbs | Double Cab 4×4 usually rates lower |
| 2020 | 3rd Gen | 2.7L I4, 3.5L V6 | 6,800 lbs | Confirm tow package and transmission |
| 2021 | 3rd Gen | 2.7L I4, 3.5L V6 | 6,800 lbs | Properly equipped V6 models rate highest |
| 2022 | 3rd Gen | 2.7L I4, 3.5L V6 | 6,800 lbs | Tow package needed for max rating |
| 2023 | 3rd Gen | 2.7L I4, 3.5L V6 | 6,800 lbs | 4×2 Access Cab V6 listed at 6,800 lbs |
| 2024 | 4th Gen | 2.4L i-FORCE Turbo, i-FORCE MAX Hybrid | 6,500 lbs | Gas i-FORCE models rate highest |
| 2025 | 4th Gen | 2.4L i-FORCE Turbo, i-FORCE MAX Hybrid | 6,500 lbs | XtraCab i-FORCE trims can reach 6,500 lbs |
| 2026 | 4th Gen | 2.4L i-FORCE Turbo, i-FORCE MAX Hybrid | 6,500 lbs | Toyota lists up to 6,500 lbs |
For 2025 examples, published trim breakdowns list the SR at 3,500 lbs, i-FORCE XtraCab models at 6,500 lbs, i-FORCE Double Cab models at 6,400 lbs, and i-FORCE MAX Double Cab models around 5,950 to 6,000 lbs. A specific 2025 SR5 Double Cab 4WD spec example lists 6,400 lbs towing and 1,505 lbs payload.
That is why the chart should be your starting point, not your final tow number.
Toyota Tacoma Towing Capacity by Generation
Use this summary to compare Tacoma generations before checking the full year-by-year chart and your exact truck sticker.
| Model Years | Generation | Main Tow Engine | Max Tow Rating | Best Use Case |
|---|---|---|---|---|
| 1995 to 2004 | First Gen | 3.4L V6 | Up to 5,000 lbs | Small utility trailers, light boats, and compact cargo loads. |
| 2005 to 2015 | Second Gen | 4.0L V6 | Up to 6,500 lbs | Used buyers wanting a simpler V6 Tacoma with solid tow capability. |
| 2016 to 2023 | Third Gen | 3.5L V6 | Up to 6,800 lbs | Highest published Tacoma tow rating when properly equipped. |
| 2024 to 2026 | Fourth Gen | 2.4L i-FORCE Turbo | Up to 6,500 lbs | New Tacoma buyers who want modern towing tech and turbo power. |
| 2024 to 2026 | Fourth Gen Hybrid | i-FORCE MAX Hybrid | About 5,950 to 6,000 lbs | Strong torque and upper trims, but not always the max tow setup. |
4 Toyota Tacoma Generations Compared for Towing
Tacoma towing capacity changes most clearly when you compare the truck by generation. The biggest jumps came in 2005, when the second-generation truck arrived, and in 2016, when the third-generation V6 tow rating climbed to 6,800 lbs.
First Generation Tacoma
The 1995 to 2004 Tacoma was still closer to a compact pickup than the later midsize truck. The 3.4L V6 is the engine to look for if towing is the goal.
Most first-generation Tacoma trucks should be treated as light-duty tow rigs today. Age, frame condition, brake condition, cooling system health, and previous maintenance matter as much as the original brochure number.
Second Generation Tacoma
The 2005 to 2015 Tacoma moved to a larger platform and gained the 4.0L V6. This generation is commonly rated up to 6,500 lbs with the right V6 configuration and tow equipment.
This is a strong used-truck range for owners who want a simpler Tacoma with solid towing ability. If you are buying one now, inspect frame rust, rear suspension condition, brakes, tires, and transmission service history.
Third Generation Tacoma
The 2016 to 2023 Tacoma used the 3.5L V6 and carried the highest published Tacoma tow rating at up to 6,800 lbs. The highest number is usually tied to a specific V6 configuration, not every Double Cab 4×4.
For 2023, one configuration breakdown lists the 4×2 Access Cab V6 automatic with 6-foot bed at 6,800 lbs, while the 4×4 Double Cab V6 automatic with 5-foot bed is listed at 6,400 lbs.
Fourth Generation Tacoma
The 2024 to 2026 Tacoma switched to the 2.4L i-FORCE turbo engine family, with the i-FORCE MAX hybrid available on upper trims. Toyota’s current towing page lists the 2026 Tacoma at up to 6,500 lbs.
The hybrid brings strong torque, but it does not automatically tow more. Current trim breakdowns usually show the gas i-FORCE XtraCab models at the highest rating, with hybrid Double Cab models slightly lower.
Which Toyota Tacoma Configuration Tows the Most
The highest Tacoma tow rating usually belongs to a specific cab, drivetrain, engine, and package combination. You cannot apply the max number to every SR, SR5, TRD Sport, TRD Off-Road, Limited, Trailhunter, or TRD Pro.
For 2016 to 2023 trucks, the strongest published setup is commonly the 3.5L V6 with the tow package. In 2023 examples, a 4×2 Access Cab V6 automatic with 6-foot bed is listed at 6,800 lbs.
For 2024 to 2026 trucks, the top rating is usually tied to the 2.4L i-FORCE gas turbo setup. Published 2025 trim data lists XtraCab i-FORCE models at 6,500 lbs, Double Cab i-FORCE models at 6,400 lbs, and i-FORCE MAX models around 5,950 to 6,000 lbs.
| Tacoma Setup | Typical Tow Rating Pattern | Best For |
|---|---|---|
| 4-cylinder older Tacoma | Around 3,500 lbs | Utility trailer, small boat, light cargo |
| 2005 to 2015 4.0L V6 | Up to 6,500 lbs | Used buyers wanting simple V6 towing |
| 2016 to 2023 3.5L V6 | Up to 6,800 lbs | Highest Tacoma brochure tow rating |
| 2024 to 2026 i-FORCE gas | Up to 6,500 lbs | New Tacoma buyers wanting max rating |
| 2024 to 2026 i-FORCE MAX hybrid | Around 5,950 to 6,000 lbs | Torque, trailering tech, upper trims |
If your truck already has the factory towing hardware, confirm the details with our guide on how to tell if Tacoma has tow package. The hitch alone is not enough proof that the truck has the full tow setup.
How Tacoma Payload Limits Affect Towing
Payload is the number Tacoma owners ignore most often when sizing a trailer. Towing capacity tells you how much trailer weight the truck can pull, but payload tells you how much weight the truck can carry.
Payload includes passengers, cargo, accessories, the trailer hitch, and trailer tongue weight. Tongue weight is usually around 10 to 15 percent of the loaded trailer weight for conventional bumper-pull trailers.
Here is a simple example.
| Item In The Truck | Estimated Weight |
|---|---|
| Driver and passenger | 350 lbs |
| Camping gear in cab and bed | 250 lbs |
| Bed cover, tools, and recovery gear | 150 lbs |
| Weight-distribution hitch | 80 lbs |
| Trailer tongue weight from 5,000 lb trailer | 500 to 750 lbs |
| Total payload used | 1,330 to 1,580 lbs |
That example can use most of the available payload on many Tacoma configurations. A 2025 Tacoma SR5 Double Cab 4WD example lists 1,505 lbs of payload, so a loaded 5,000 lb travel trailer can become a payload problem before it becomes a tow-rating problem.
GVWR means Gross Vehicle Weight Rating. It is the maximum allowed weight of the truck itself when loaded. GCWR means Gross Combined Weight Rating. It is the maximum allowed combined weight of the loaded truck and loaded trailer.
The safe move is simple. Check the payload sticker on your Tacoma before shopping for a camper.
What Trailer Size a Toyota Tacoma Can Tow
A Tacoma can tow many small and midsize trailers, but trailer shape and loaded weight matter as much as the brochure number. A low utility trailer is easier to pull than a tall travel trailer with the same weight.
| Trailer Type | Loaded Weight Range | Tacoma Fit |
|---|---|---|
| Small utility trailer | 1,000 to 3,000 lbs | Good fit for most Tacomas |
| Jet ski or small fishing boat | 1,500 to 3,500 lbs | Good fit with correct hitch setup |
| ATV or side-by-side trailer | 2,000 to 4,500 lbs | Good fit for V6 or turbo models |
| Teardrop camper | 1,500 to 3,500 lbs | Good fit for most tow-equipped Tacomas |
| Small travel trailer | 3,500 to 5,500 lbs | Possible, but payload must be checked |
| Larger travel trailer | 5,500 to 6,500 lbs | Not ideal for most Tacoma owners |
For camping use, a Tacoma pairs better with teardrops, pop-up campers, compact fiberglass campers, and smaller travel trailers. A tall 6,000 lb camper may technically fall near the rating, but wind drag, tongue weight, braking distance, and hill climbs make it a harder real-world tow.
If you are setting up the bed for camping instead of pulling a heavy trailer, a Tacoma truck bed tent setup can be a lighter alternative.
Best Toyota Tacoma Years for Towing
The best Tacoma year for towing is not just the one with the highest brochure rating. You want the right rating, a healthy truck, and enough payload for the trailer you plan to pull.
The 2016 to 2023 Tacoma V6 years are the strongest if you only look at maximum published tow rating. Properly equipped models reach up to 6,800 lbs, which is the highest rating in the Tacoma chart.
The 2005 to 2015 Tacoma V6 years are still strong used choices. They rate up to 6,500 lbs and use the 4.0L V6, which many buyers like for its simpler character.
The 2024 to 2026 Tacoma is the better pick if you want a newer truck with advanced towing technology. Toyota lists available features such as Trailer Backup Guide, integrated brake controller, trailer blind spot monitoring, and trailer camera support on current Tacoma models.
For utility upgrades, bed storage, and general truck setup, the best Toyota Tacoma accessories guide is a useful next stop. Just account for accessory weight because every pound added to the truck reduces available payload.
How To Confirm Your Tacoma Tow Rating
The safest tow number is the one attached to your exact truck, not the highest number in a search result. Use the year chart as a guide, then confirm the rating before towing.
- Open the owner’s manual for your Tacoma year.
Go to the towing or trailer section and match your engine, cab, drivetrain, and transmission. - Check the driver-side door jamb sticker.

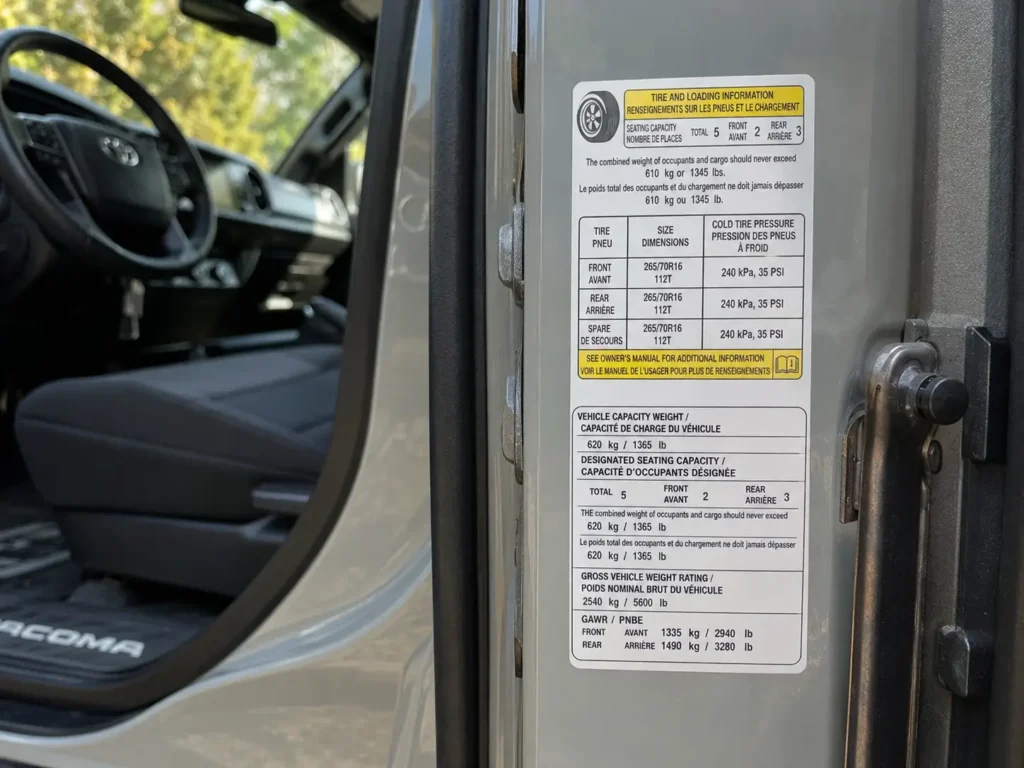

This sticker gives payload and weight-rating information for your truck as built. - Identify your exact configuration.
Confirm engine, cab, bed length, 2WD or 4WD, transmission, and factory tow equipment. - Confirm hitch and wiring equipment.
A proper tow setup may include a Class IV receiver, 4-pin and 7-pin wiring, trailer brake controller, and cooling upgrades depending on year. - Call Toyota with the VIN if needed.
A Toyota dealer can help confirm factory equipment when the truck’s history is unclear.
If you carry heavy tools in the bed, factor that into payload before towing. A Toyota Tacoma tool box setup is useful, but the loaded toolbox weight still counts against payload.
What Tacoma Towing Capacity Means for Buyers
The Toyota Tacoma towing capacity chart by year is useful only when you apply it to the right configuration. The third-generation V6 Tacoma carries the highest published max rating at up to 6,800 lbs, while the current 2026 Tacoma is listed by Toyota at up to 6,500 lbs.
For real-world towing, payload usually decides the limit before the max tow rating does. If you plan to tow a camper, boat, or loaded utility trailer, check the door sticker, owner’s manual, trailer GVWR, and loaded tongue weight before you buy.
Toyota Tacoma Towing Capacity Questions
What Year Toyota Tacoma Has the Highest Towing Capacity
The 2016 to 2023 Toyota Tacoma has the highest common published max towing capacity at up to 6,800 lbs. That rating applies to properly equipped V6 models, not every trim.
Can a Toyota Tacoma Really Tow 6500 lbs
Yes, some Toyota Tacoma configurations can tow 6,500 lbs. Toyota lists the current 2026 Tacoma at up to 6,500 lbs, but passengers, cargo, accessories, and trailer tongue weight can reduce what is safe in real use.
Which Toyota Tacoma Engine Is Best for Towing
For 2016 to 2023 trucks, the 3.5L V6 is the best Tacoma towing engine. For 2024 to 2026 trucks, the 2.4L i-FORCE gas turbo setup usually carries the highest published tow rating.
Does The Tacoma i-FORCE MAX Tow More Than Gas Tacoma
No, the i-FORCE MAX hybrid does not automatically tow more than the gas i-FORCE Tacoma. Current trim data generally shows gas i-FORCE models with the highest max tow rating, while hybrid models sit closer to 5,950 to 6,000 lbs.
Can a Toyota Tacoma Tow a Camper
Yes, a Toyota Tacoma can tow many teardrop campers, pop-up campers, and smaller travel trailers. A heavy or tall camper near 6,000 lbs needs careful payload, tongue weight, braking, and cooling checks.
How Do I Find My Exact Tacoma Towing Capacity
Check your owner’s manual, door jamb payload sticker, and factory equipment list. If you are unsure, give your VIN to a Toyota dealer and ask for the truck’s exact towing equipment and rating.
